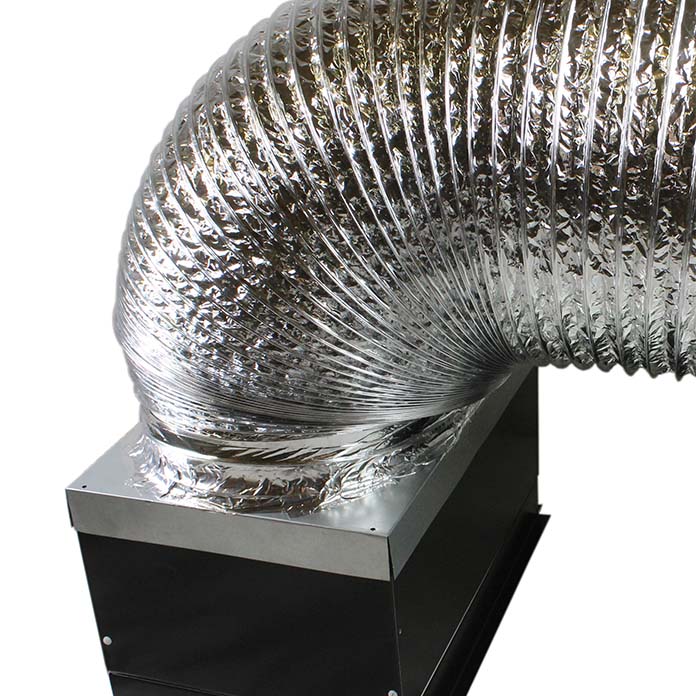

Detailed close-up of the damper box, motor, Wi-Fi hub, and free Wi-Fan control app on smart device.
Front of 14" modern whole house fan with pre-wired WiFi hub and included ceiling damper box and duct.
Modern whole house fan installed in an attic space.
Features of the CX1401HUB include ventilation for spaces up to 533 sq. ft., Wi-Fi® operation, reduced cooling costs, and 3 prong plug.
Detailed close-up of the damper box, motor, Wi-Fi hub, and free Wi-Fan control app on smart device.

14 In. 2-Speed Modern Whole House Fan with Ceiling Grid and Wi-Fi Controls

DESCRIPTION:

This modern 14 in. fan is ideal for use in mild climates during the morning or evening, efficiently pulling in fresh air through open windows and removing hot, stale air from your home through the attic for a more comfortable and refreshing living environment. Unlike a standard whole house fan, our ducted models feature a damper box that is sealed with R5 insulation to prevent heat transfer back into your home, and a 12 ft. duct for maximum ventilation performance and noise reduction. The fan head mounts to an attic rafter with the included hanging bracket and plugs into a standard outlet for an easier, faster install than a traditional whole house fan. It's a cost-effective solution to improving your indoor air quality while relieving strain on your air conditioning equipment. Save on energy costs by taking advantage of the timer setting available only on Wi-Fi hub units, which will automatically turn off your unit after your desired time setting has been reached via our free Wi-Fan app.

PERFECT FOR:
  • Home

  • FOR HOME
    SPACES UP TO
    533 SQ. FT.

  • 2-SPEED & ON/OFF
    WI-FI OPERATION

  • REDUCES
    COOLING COSTS

  • QUIET
    OPERATION

Circulation:

Designed for home spaces up to 533 sq. ft.

Installation:

No cutting of ceiling joists required. Damper box fits between 16 in. or 24 in. on-center ceiling joists.

Controls:

2-speed operation with timer controlled via pre-wired Wi-Fi hub that plugs into a standard outlet

Material:

Galvanized steel fan housing and plenum box with R5 insulation

Energy Efficiency:

Save money on your cooling bills and reduce stress on A/C equipment

Safety:

Requires 306 sq. in. of NFA

Primary Color

White

Secondary Color

Black

CFM

1,600

Material Details

Galvanized Steel Fan Housing and Plenum Box

Motor Details

2-Speed Thermally Protected Motor

Motor Specs

Rated for 6 Amps - Draws 2.5 Low / 4.65 High Amps in operation

120 Volts, 60 Hz


Dimensions

Fan: 17.75 in. H x 19 in. W x 13.25 in. D

Damper Box: 12 in. H x 23 in. W x 15 in. D

Unit Weight

36 lbs.

Box Dimensions

Ships in two boxes

Box 1 (Damper): 24.375 in. H x 16.625 in. W x 13.563 in. D

Box 2 (Fan): 24.25 in. H x 23.75 in. W x 25.25 in. D

Ship Weight

Box 1: 17 lbs.

Box 2: 41 lbs.

Alias SKU(s)

CX1401HUB
CX1401HUBUPS: Plain carton

Multi UPC Info

CX1401: 047242540116
CX1401UPS: 047242540109

Country of Origin - Assembly

US from Domestic and Imported Components

Other Details

Includes fan, hanging bracket, duct and transition assembly, damper assembly box, intake grille with mounting screws, and rafter bracket.

Noise: 6.6 sones

CONTROL AT YOUR FINGERTIPS

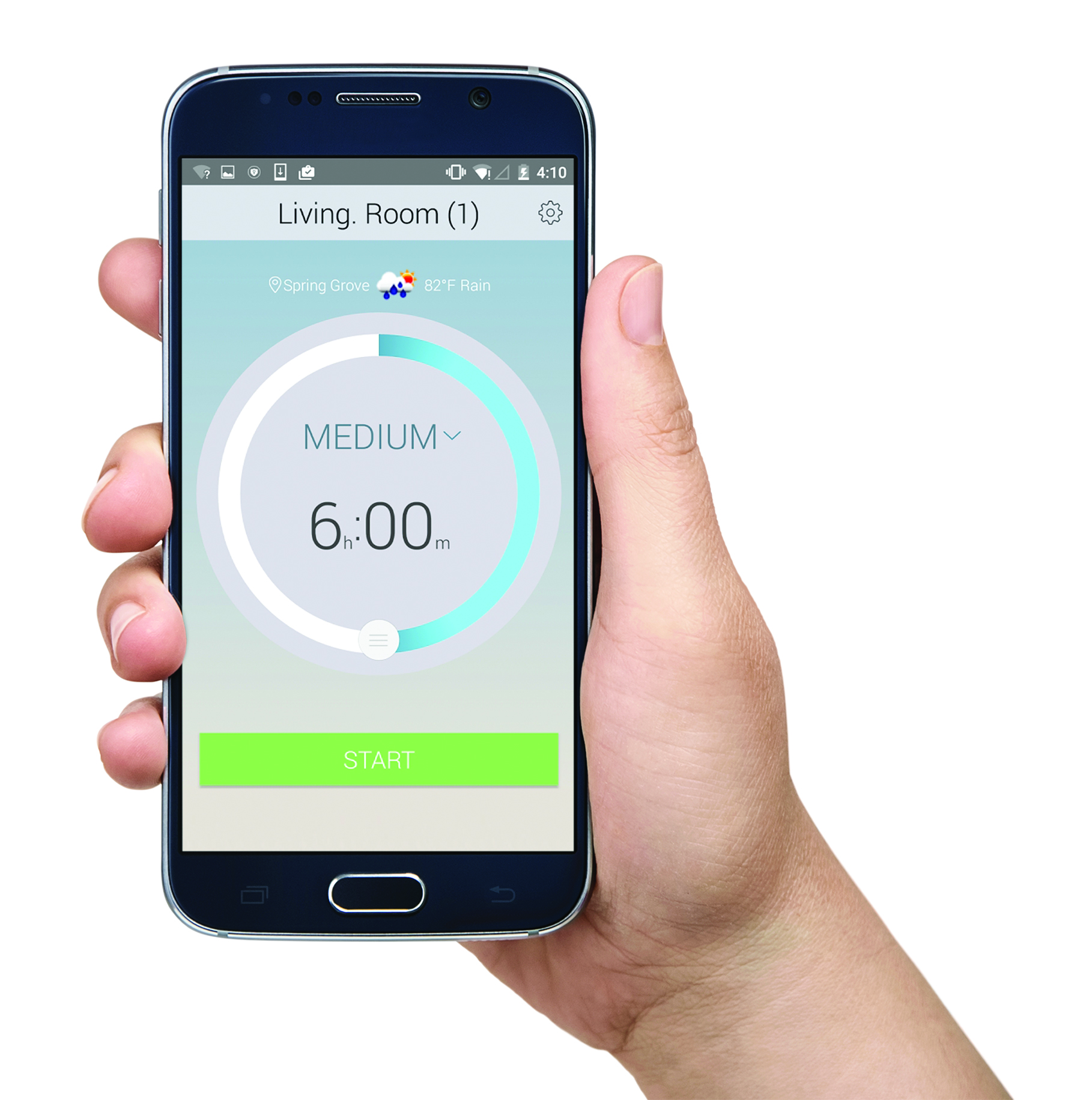

Our Wi-Fi whole house fans are controlled using our free Wi-Fan app, which can be downloaded on any smart device. Control multiple fans independently, set the speed or place the fan on a timer, or turn the fan off without ever getting up to flip a switch.

ULTRA-QUIET OPERATION

Typical whole house fans have a fan unit that sits close to the shutter (and thus your ceiling) when installed. With our new modern whole house fan design, the fan assembly is installed up to 12 feet away from the plenum box with the included duct, all but eliminating noise when in use.

FRESH AIR IN YOUR HOME

Whole house fans pull cool air from open windows and doors throughout the house and push stale, warm air upwards to escape through your attic, making them a perfect alternative to an air conditioner in moderate climates. Feel instantly refreshed with this energy-saving cooling measure!
