24 In. 2-Speed Direct Drive Whole House Fan with Shutter and Wi-Fi Controls
Login to view price.DESCRIPTION:
Maxx Air Whole House Fans are ideal for residential use in mild to moderate climates as a supplement to air conditioning. This electric fan's low vibration direct drive design and galvanized steel fan assembly contribute to a quiet, efficient performance alongside an automatic shutter in a powder-coated white finish to blend in seamlessly with your home's ceiling. Install in a joist-in or joist-out configuration and control the fan from anywhere in your home from your smart device. Whole house fans offer an efficient way to reduce cooling costs by pulling fresh air in from the outside, expelling the warm air up into the attic, and pushing it out through the attic exhaust vents to create a cool and comfortable living environment. Save on energy costs by taking advantage of the timer setting available only on Wi-Fi hub smart fans, which will automatically turn your fan off after your desired time setting has been reached.
PERFECT FOR:
Home
-
FOR ATTICS
1,200 - 1,800
SQ. FT. -
2-SPEED & ON/OFF
WI-FI OPERATION -
REDUCES
COOLING COSTS -
JOIST-IN & JOIST-OUT
COMPATIBLE
| Circulation: | Designed for houses with 1,200 - 1,800 sq. ft. attics |
| Installation: | Joist-in or joist-out installation. For ceiling install only - not for wall exhaust use. |
| Controls: | 2-speed operation with timer controlled via free Wi-Fan app using a smart device |
| Material: | Steel venturi, fan blade assembly, and motor struts with automatic shutter and pre-wired Wi-Fi hub |
| Safety: | Requires 8 - 10 sq. ft. (1,152 - 1,440 sq. in.) of NFA |
| Primary Color | White |
| Secondary Color | Mill |
| CFM | 2,090 Low / 2,985 High |
| Material Details | Steel Venturi, Galvanized Steel Fan Blades |
| Motor Details | 2-Speed Thermally Protected PSC Motor |
| Motor Specs | 1/3 HP 3.2 Amps 120 Volts, 60 Hz 150 Watts |
| Dimensions | 11 in. H x 28.5 in. L x 28.5 in. W Rough Opening: 26 in. W x 28 in. L Outside Shutter Dimensions: 27.75 in. x 29.75 in |
| Unit Weight | 40 lbs. |
| Box Dimensions | 29.5 in. H x 31 in. W x 11 in. D |
| Alias SKU(s) | CX242DDWTHUB |
| Single Product UPC | 047242024265 |
| Country of Origin - Assembly |
US from Domestic and Imported Components |
| Sold Under |
Maxx Air, Cool Attic |

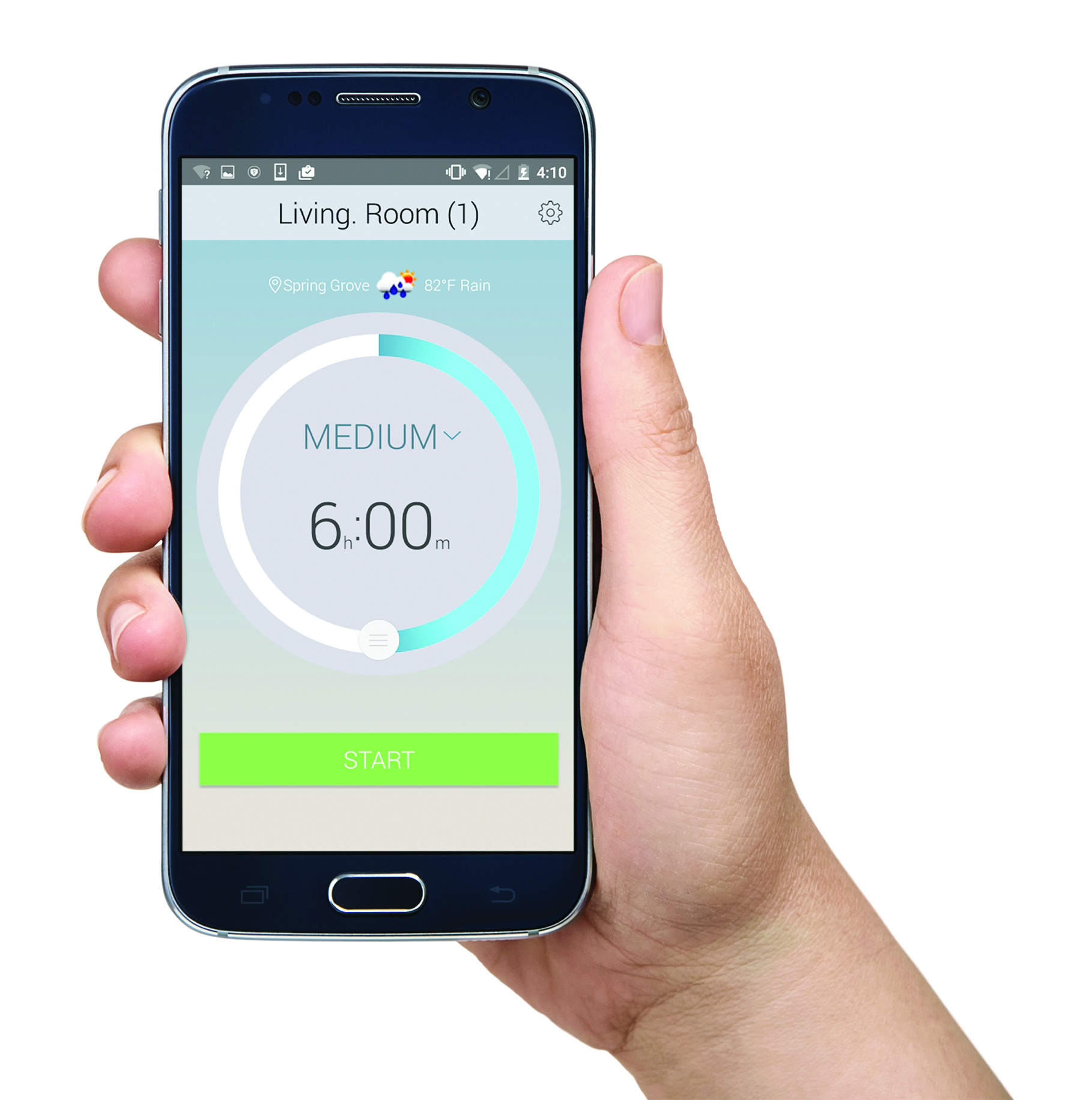

CONTROL AT YOUR FINGERTIPS
Our Wi-Fi whole house fans are controlled using our free Wi-Fan app, which can be downloaded on any smart device. Control multiple fans independently, set the speed or place the fan on a timer, or turn the fan off without ever getting up to flip a switch.

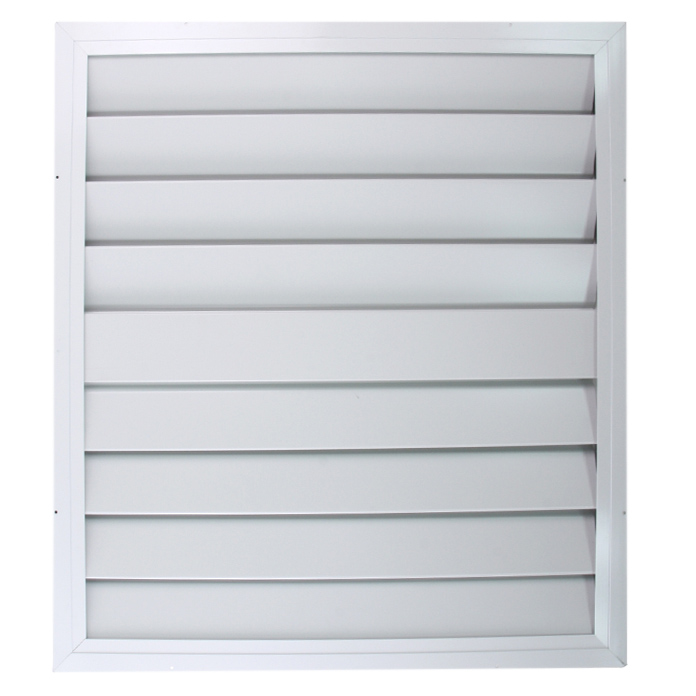

AUTOMATIC SHUTTER
Our whole house fan line features a shutter that opens and closes automatically with the fan's operation, making startup a breeze. In winter when the fan is not in use, the shutter maintains a 95%+ air closure to keep heated air in your living areas and out of your attic space.
FRESH AIR IN YOUR HOME
Whole house fans pull cool air from open windows and doors throughout the house and push stale, warm air upwards to escape through your attic, making them a perfect alternative to an air conditioner in moderate climates. Feel instantly refreshed with this energy-saving cooling measure!
