24 In. 2-Speed Direct Drive Whole House Fan with Shutter
Login to view price.DESCRIPTION:

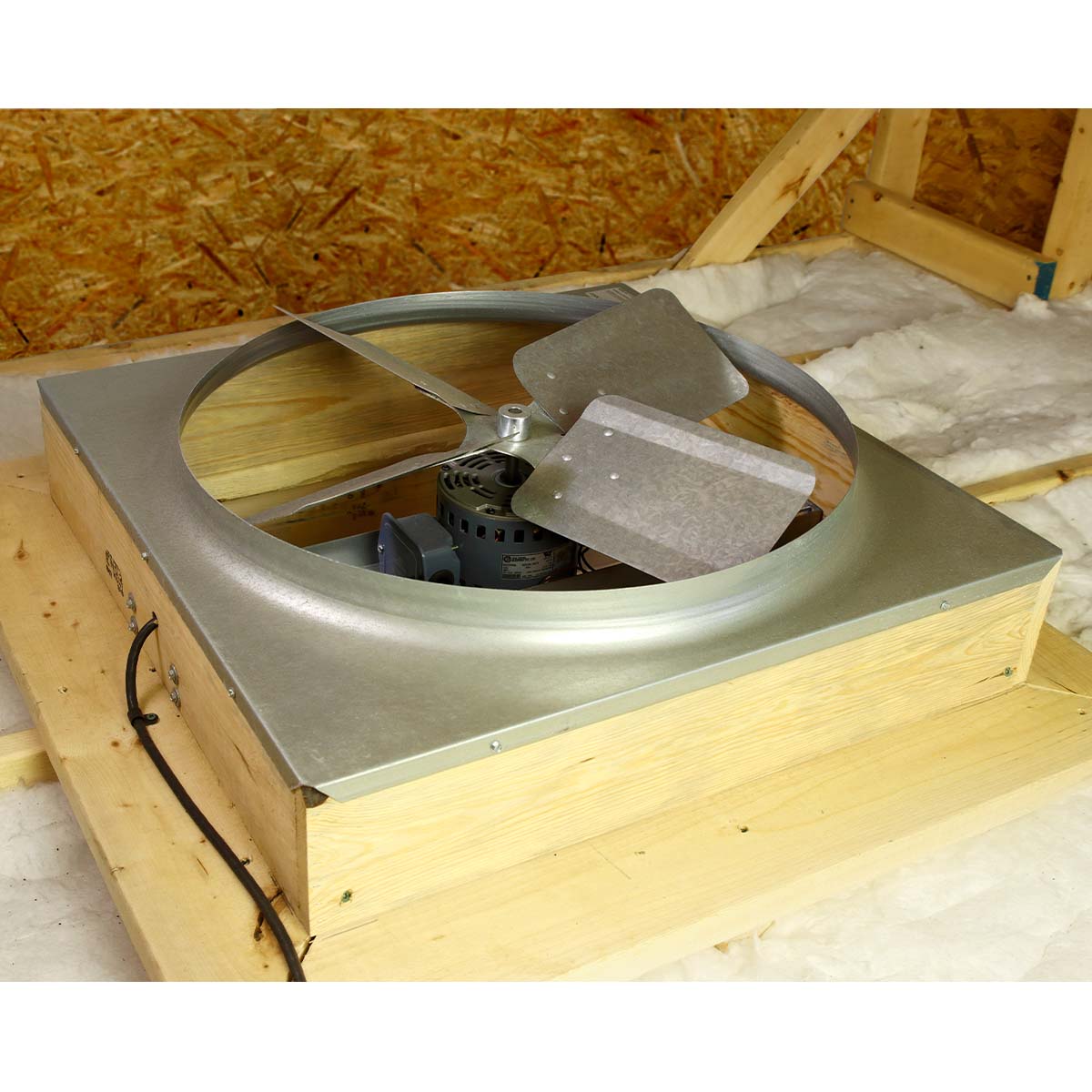

Maxx Air Whole House Fans are ideal for residential use in mild to moderate climates as a supplement to air conditioning. Our direct drive fans use a precision-balanced blade assembly and a re-engineered bracing system for quiet, efficient air movement with low vibration, alongside an automatic shutter in a powder-coated white finish to blend in seamlessly with your home's ceiling. Install this electric fan in a joist-in or joist-out configuration. Whole House Fans offer an efficient way to reduce cooling costs by pulling fresh air in from the outside, expelling the warm air up into the attic, and pushing it out through the attic exhaust vents to create a cool and comfortable living environment.

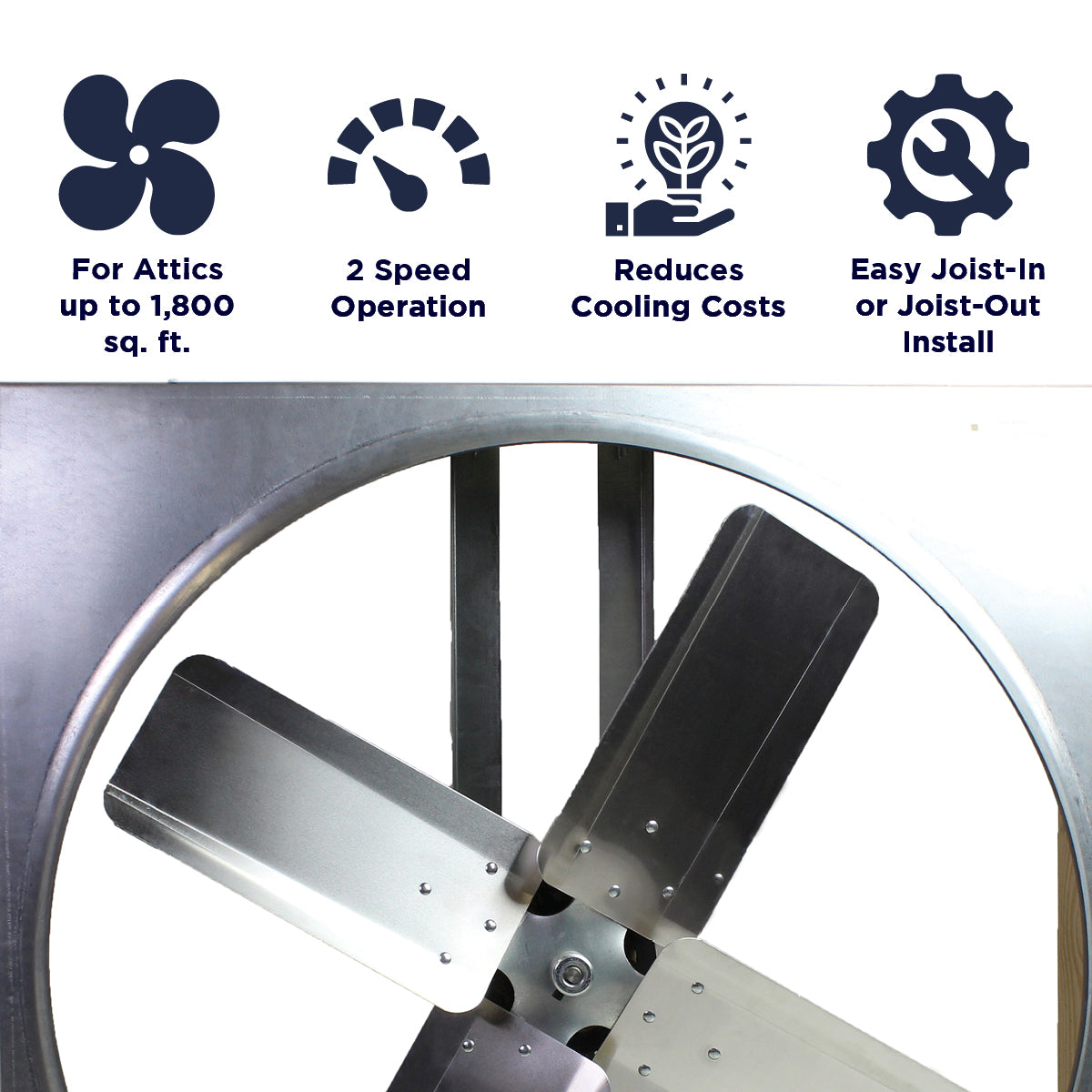

PERFECT FOR:
Home
-
FOR ATTICS
UP TO 1,800
SQ. FT. -
2-SPEED & ON/OFF
WALL SWITCH -
REDUCES
COOLING COSTS -
JOIST-IN & JOIST-OUT
COMPATIBLE
| Circulation: | Designed for houses with 1,200 - 1,800 sq. ft. attics |
| Installation: | Joist-in or joist-out installation. For ceiling install only - not for wall exhaust use. |
| Controls: | 2-speed operation with included dual high/low and on/off wall switch |
| Material: | Steel venturi, fan blade assembly, and motor struts with automatic shutter |
| Safety: | Requires 8 - 10 sq. ft. (1,152 - 1,440 sq. in.) of NFA |
| Primary Color | White |
| Secondary Color | Mill |
| CFM | 2,090 Low / 2,985 High |
| Material Details | Steel Venturi, Galvanized Steel Fan Blades |
| Motor Details | 2-Speed Thermally Protected PSC Motor |
| Motor Specs | 1/3 HP 3.2 Amps 120 Volts, 60 Hz 150 Watts |
| Dimensions | 11 in. H x 28.5 in. L x 28.5 in. W Rough Opening: 26 in. W x 28 in. L Outside Shutter Dimensions: 27.75 in. x 29.75 in |
| Unit Weight | 40 lbs. |
| Box Dimensions | 32 in. H x 36 in. W x 16 in. D |
| Ship Weight | 50 lbs. |
| Alias SKU(s) | CX242DDWT |
| Multi UPC Info | CX242DDWT: 047242024227; 047242990065 (QTY 10) |
| Country of Origin - Assembly |
US from Domestic and Imported Components |
| Sold Under |
Maxx Air, Cool Attic |
 |
|
 |
|
 |
|
 |
|
 |
|
 |
|
 |

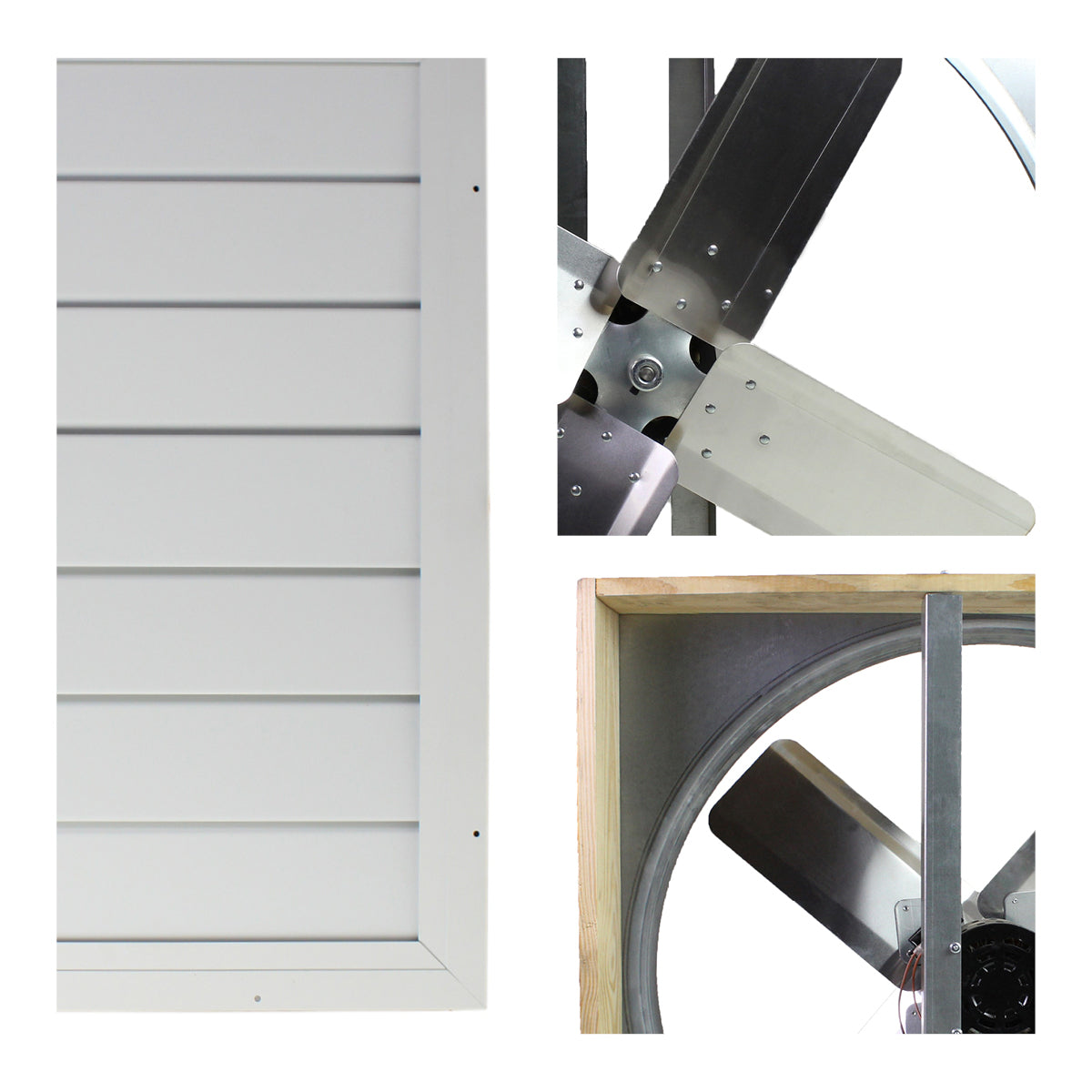

QUALITY COMPONENTS

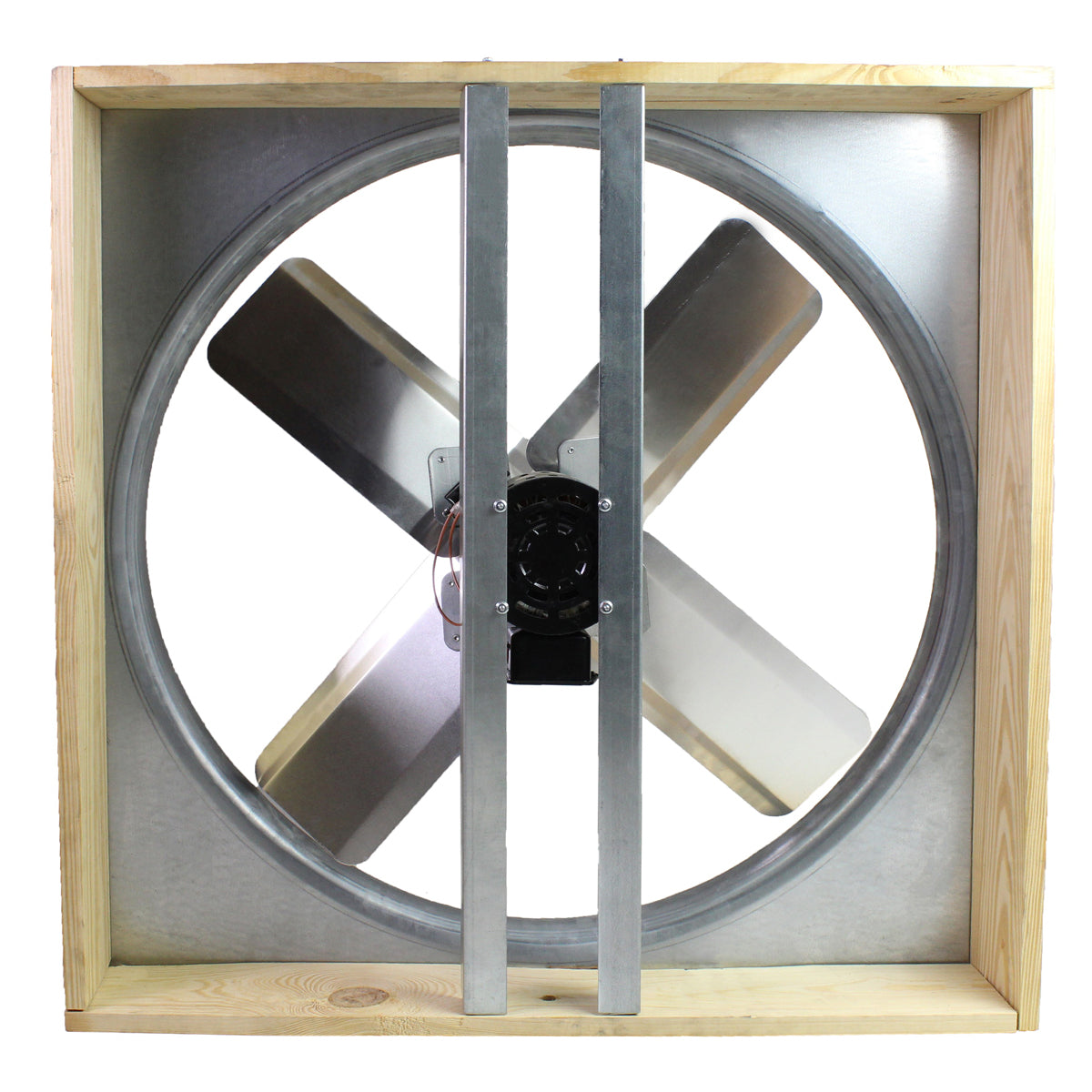

Invest in a whole house fan with quality engineering from a trusted source. Our direct drive units use a precision-balanced fan blade assembly, steel venturi for enhanced durability, and a thermally protected PSC motor for a safe, quiet, and reliable operation.

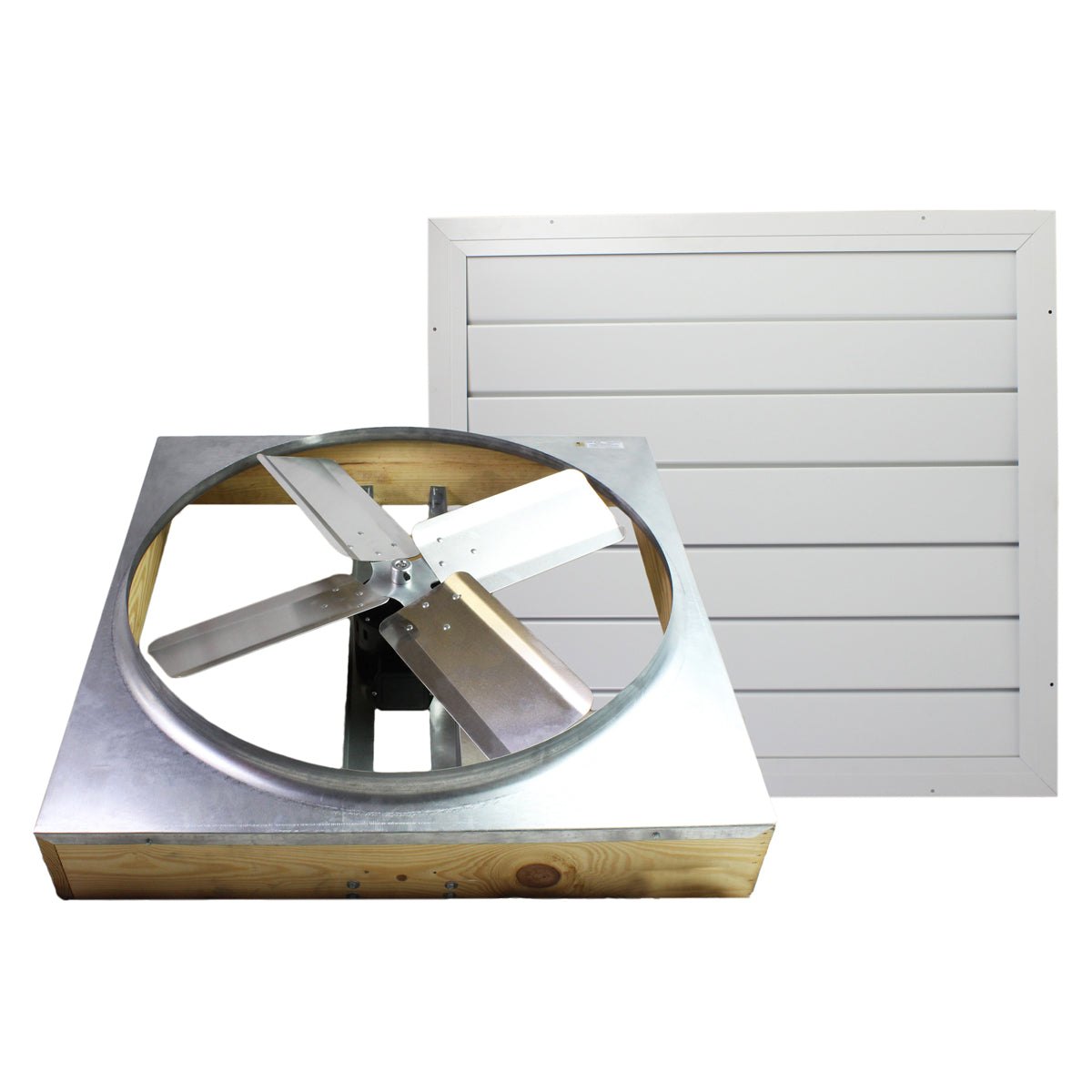

AUTOMATIC SHUTTER
Our whole house fan line features a shutter that opens and closes automatically with the fan's operation, making startup a breeze. In winter when the fan is not in use, the shutter maintains a 95%+ air closure to keep heated air in your living areas and out of your attic space.
FRESH AIR IN YOUR HOME
Whole house fans pull cool air from open windows and doors throughout the house and push stale, warm air upwards to escape through your attic, making them a perfect alternative to an air conditioner in moderate climates. Feel instantly refreshed with this energy-saving cooling measure!
