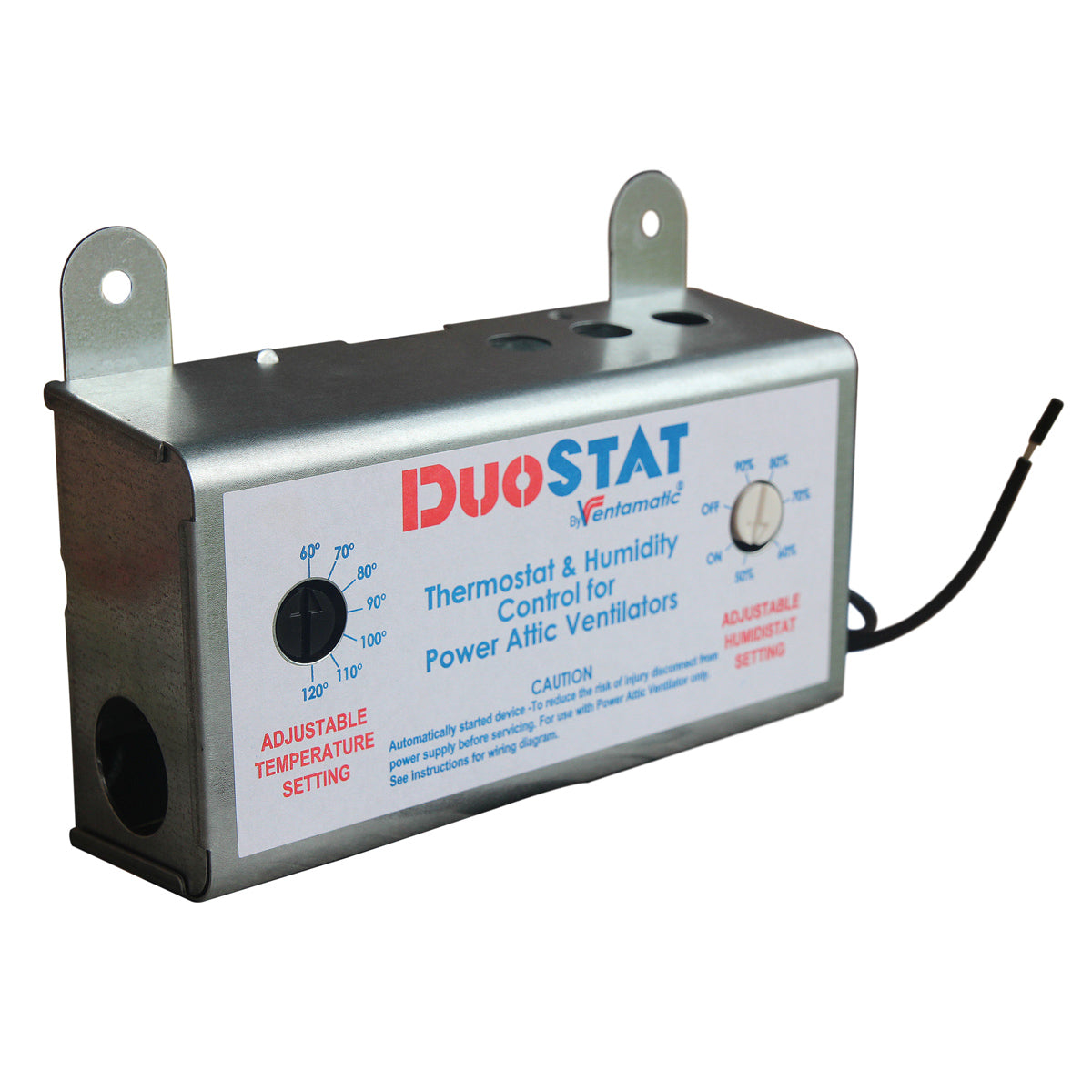

Angled view of thermostat-humidity controller, compatible with Maxx Air electric roof and gable attic fans.

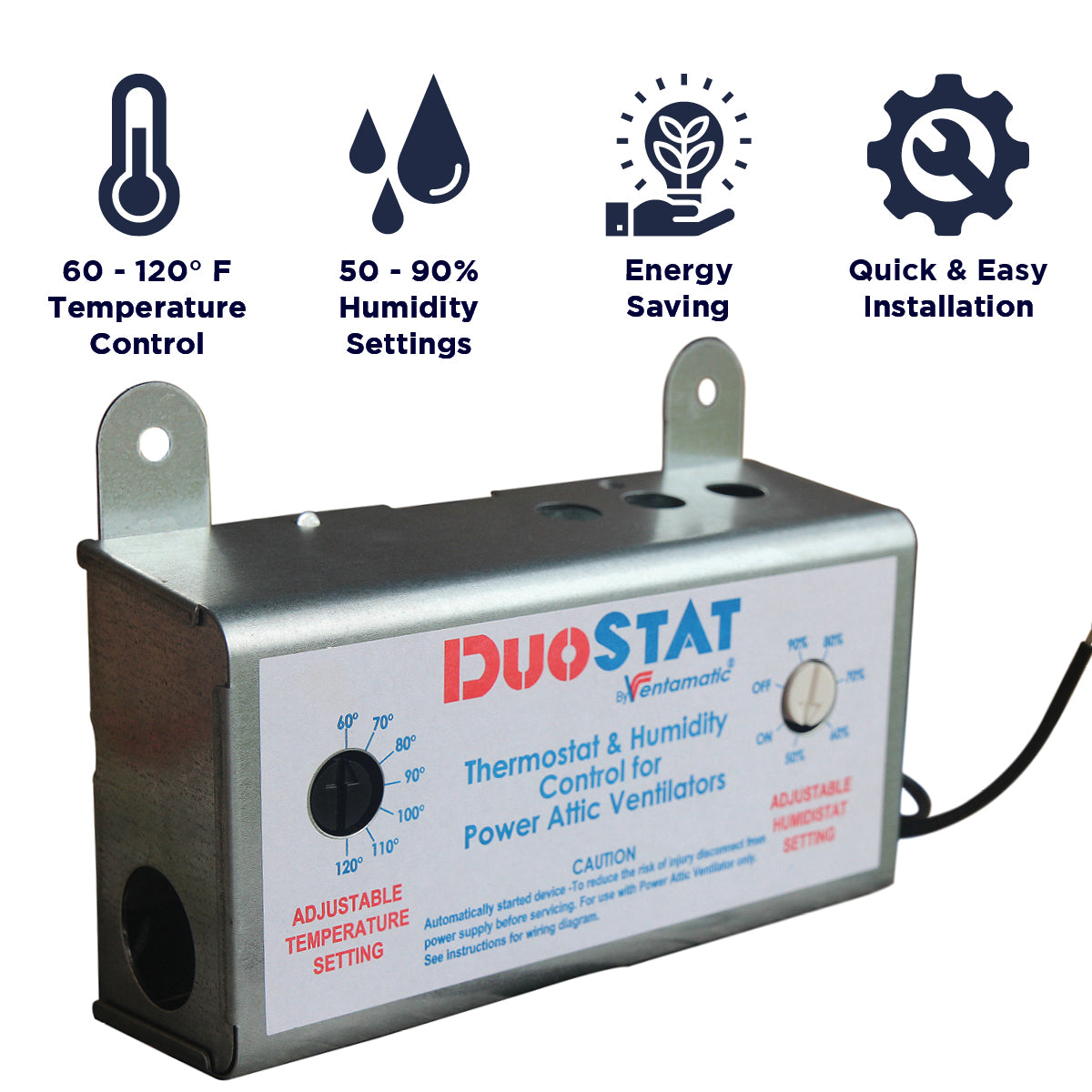

The XXDUOSTAT has 60 -120 degree Fahrenheit and 50 - 90% humidity settings, is an energy saving measure, and installs quickly to your existing power attic fan.

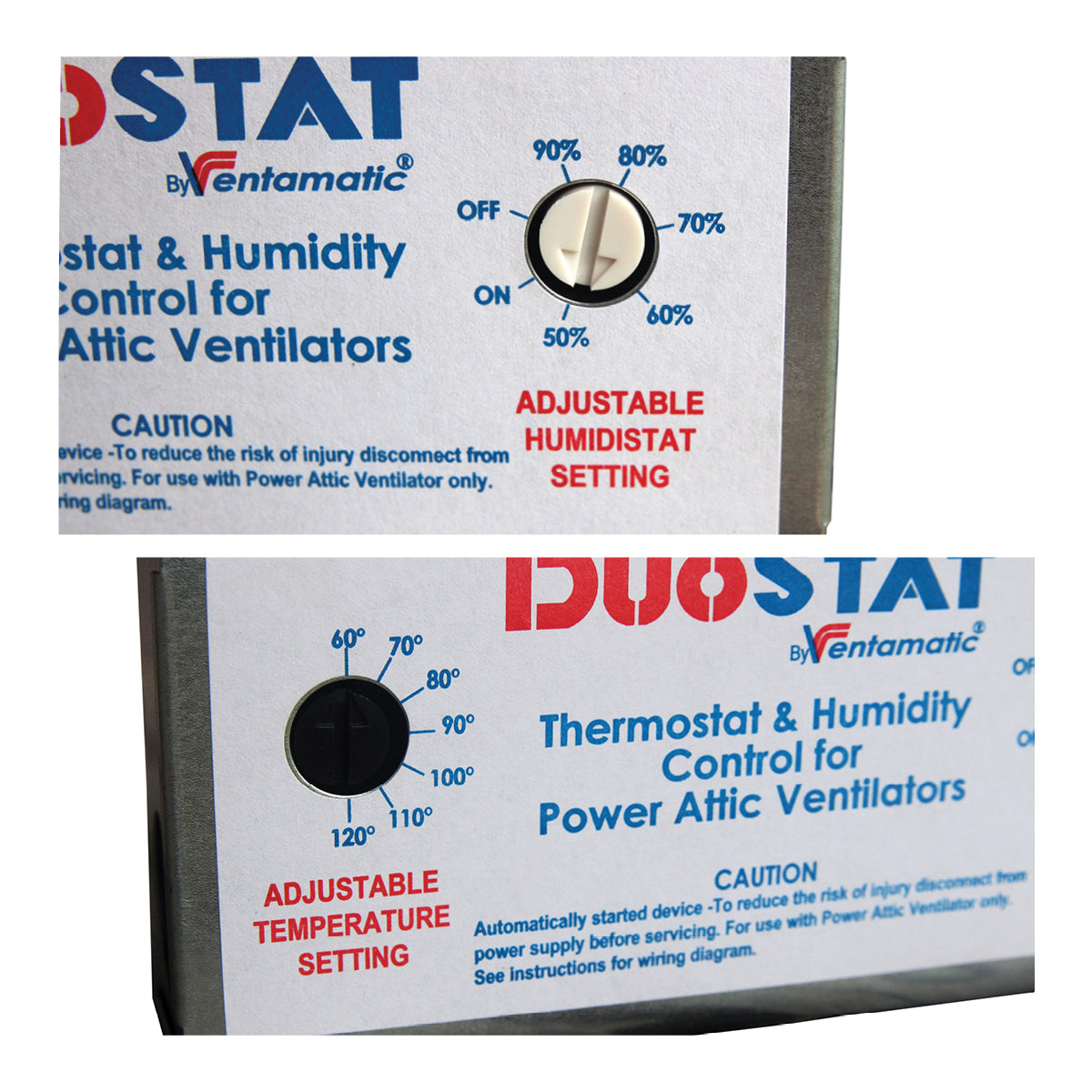

Close-up of humidity and temperature knobs with clearly labeled temperature and humidity percentage settings, which can be adjusted with a flathead screwdriver.

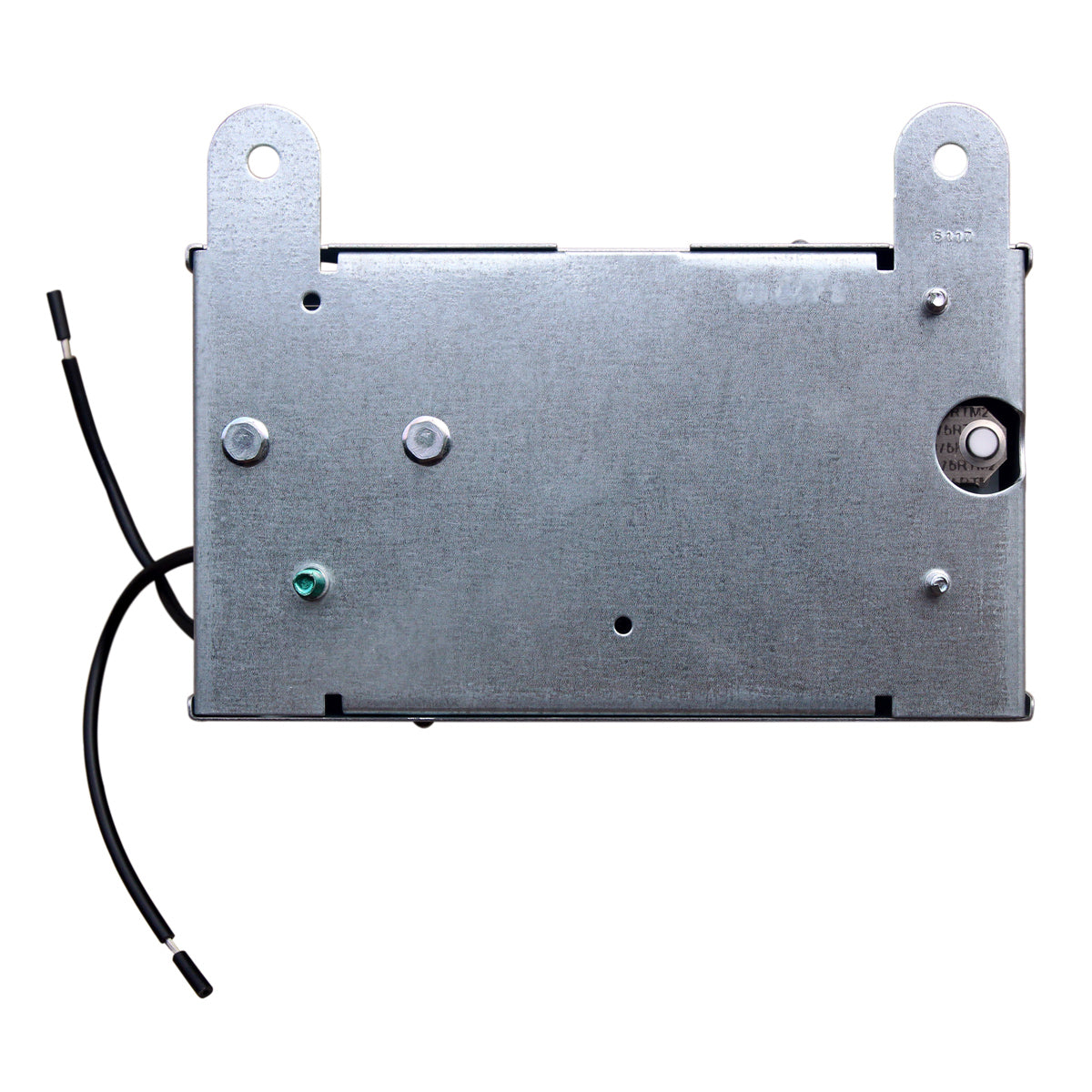

Back of duostat unit showing the mounting design to the attic rafter and the switch sensor.

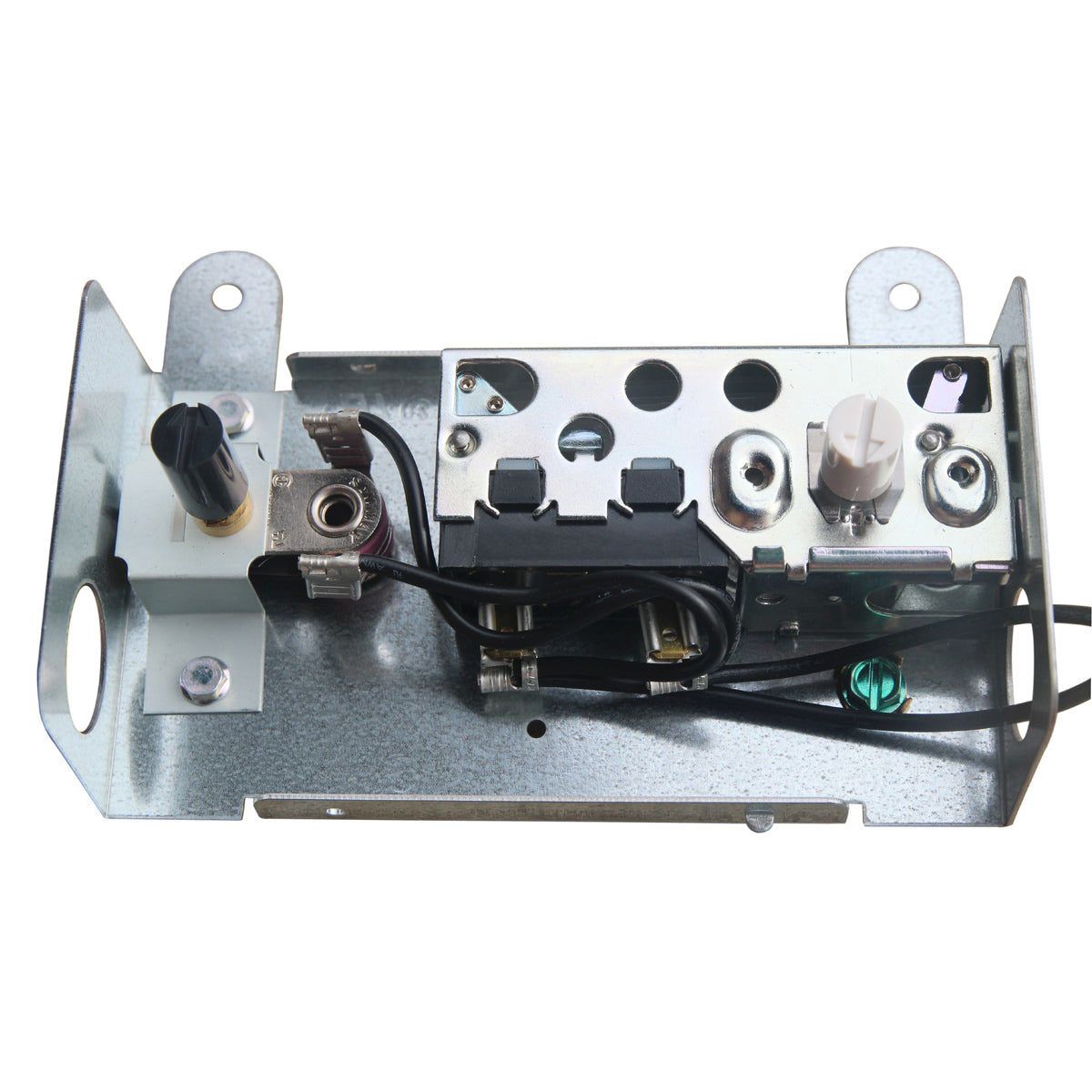

Themostat/Humidistat unit open showing the internal wiring for the controller.

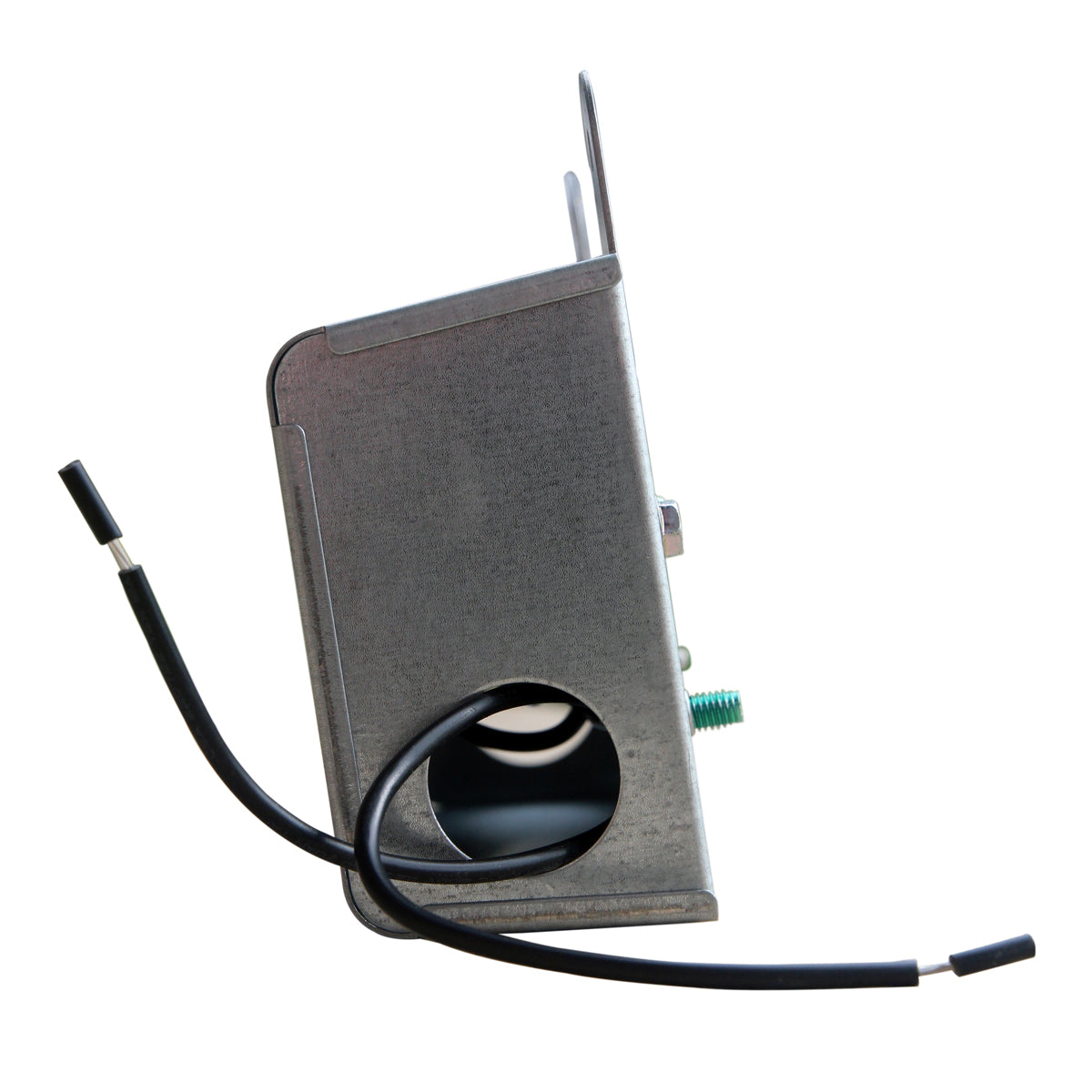

Left side profile view of the controller showing the wiring opening.
Angled view of thermostat-humidity controller, compatible with Maxx Air electric roof and gable attic fans.
The XXDUOSTAT has 60 -120 degree Fahrenheit and 50 - 90% humidity settings, is an energy saving measure, and installs quickly to your existing power attic fan.
Close-up of humidity and temperature knobs with clearly labeled temperature and humidity percentage settings, which can be adjusted with a flathead screwdriver.
Back of duostat unit showing the mounting design to the attic rafter and the switch sensor.
Themostat/Humidistat unit open showing the internal wiring for the controller.
Left side profile view of the controller showing the wiring opening.

Dual Thermostat/Humidistat Control for Power Attic Ventilators

Login to view price.
Buy Now Buy From Home Depot
DESCRIPTION:
Reduce both moisture and excess heat in your attic with this dual thermostat-humidistat control to avoid mold and mildew issues, prolong the life of your roofing components, and reduce your energy costs when paired with your electric attic fan. This controller mounts to a rafter using wood screws and has a wiring diagram provided to complete installation. As a general rule for power attic vents, your normal temperature setting will range from 95 - 115° F and humidity setting from 60 - 70% depending on average regional temperatures and local humidity levels—a setting too low will run the fan continuously, and a setting too high will result in inadequate ventilation.

This control is compatible with our roof and gable mount power attic ventilators (excluding solar vents). Not for use with whole house fans.
PERFECT FOR:

  • Home

Installation:

Mounts to attic rafter with wood screws

Controls:

Adjustable temperature from 60 - 120° F. Adjustable humidistat setting from 50 - 90%.

Energy Efficiency:

Controls the operation of your power attic ventilator, running the fan only when needed

Other Features:

Controls up to 3 units, not to exceed 10 amps

Primary Color

Mill

Unit Weight

1 lb.

Box Dimensions

8.25 in. H x 5.25 in. W x 3 in. D

Alias SKU(s)

XXDUOSTAT

Single Product UPC

047242153835

Other Details

10 Amps, 120 Volts AC
