Maxx Air | SKU:
XE420

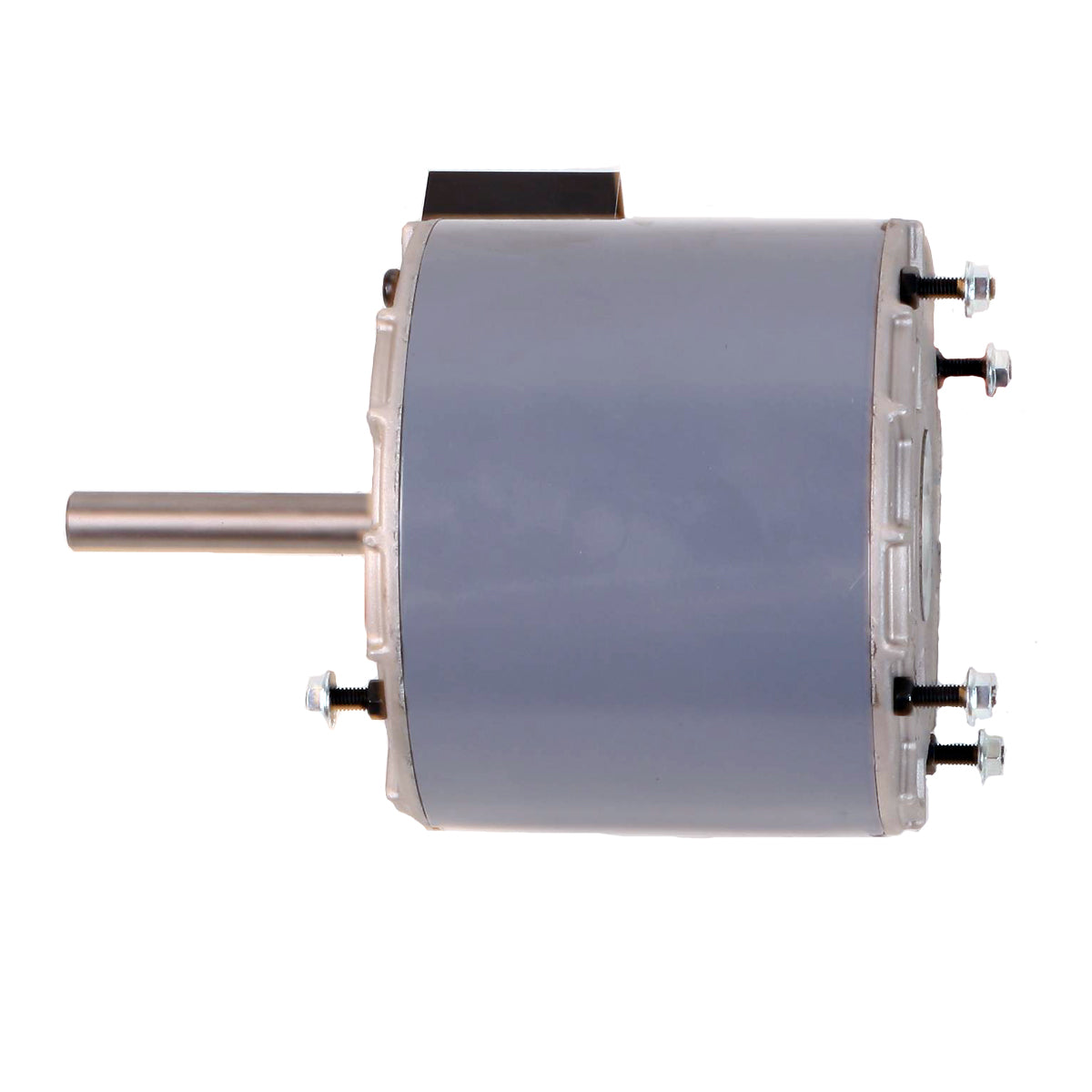

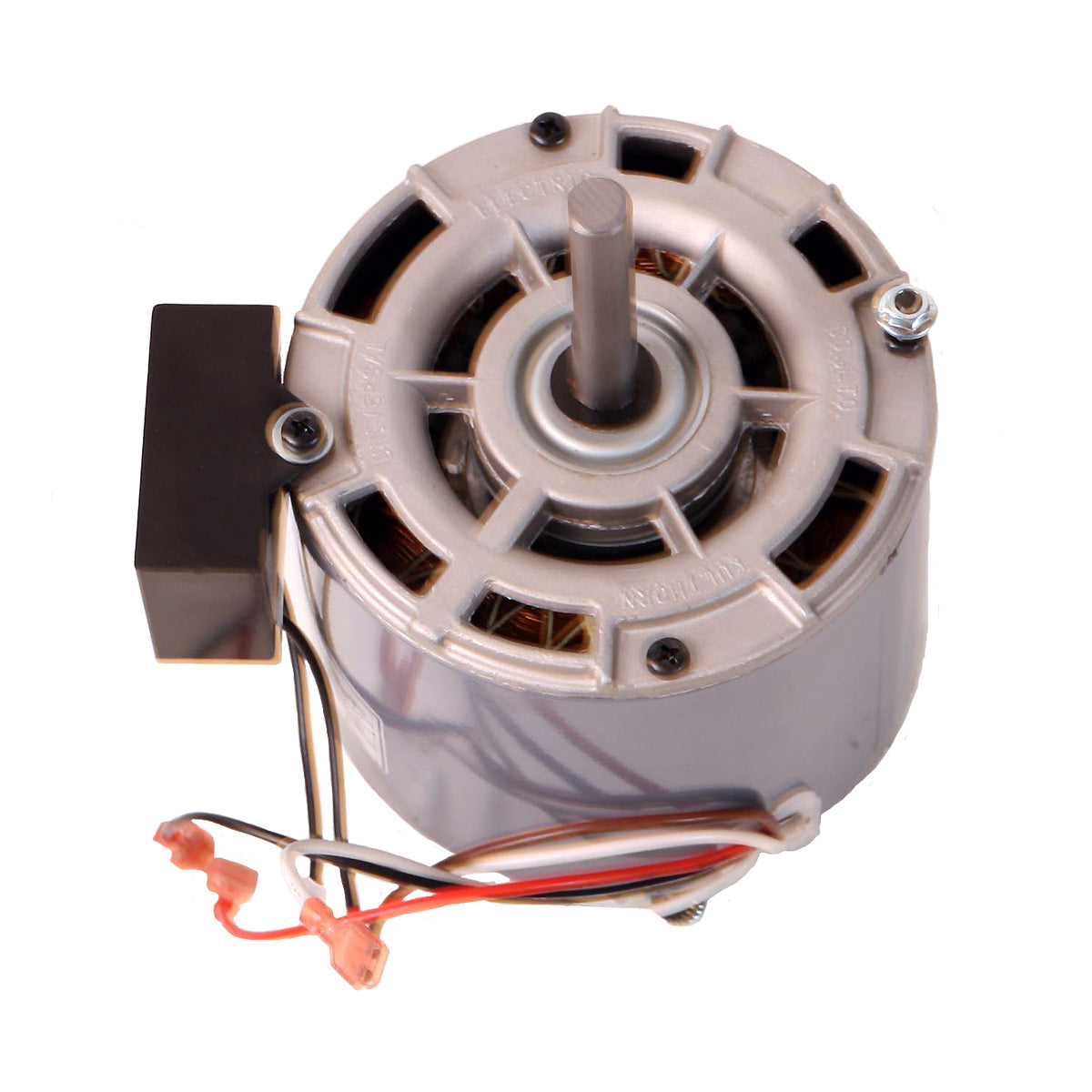

Motor for 24 In. Tilting Direct Drive Drum Fans
$98.50 USD
Unit price
/
Unavailable
Motor for 24 In. Tilting Direct Drive Drum Fans is backordered and will ship as soon as it is back in stock.

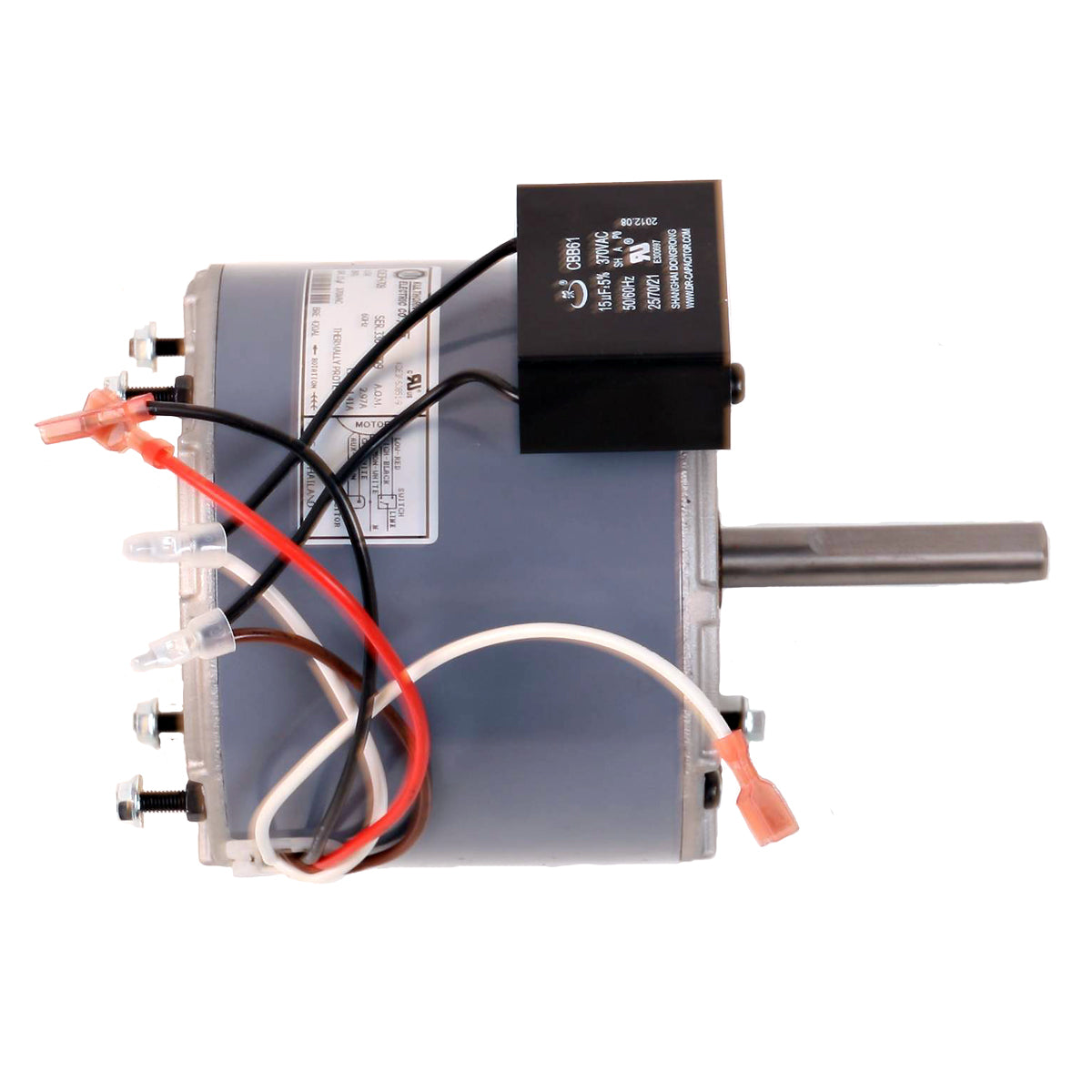

This 2 speed direct drive motor is for indoor use only and is easily rewired to your existing fan switch using the pre-installed terminal clips.
For use only with Maxx Air 24 in. drum fans. This motor is compatible with fan models beginning in BF24TF, BF24TF2N1, and BF24DD, excluding 3-speed NP (narrow profile) units.
For use only with Maxx Air 24 in. drum fans. This motor is compatible with fan models beginning in BF24TF, BF24TF2N1, and BF24DD, excluding 3-speed NP (narrow profile) units.
Couldn't load pickup availability
| Controls: | 2 speed direct drive design |
| Use: | Suitable for indoor usage |
| Energy Efficiency: | Energy efficient PSC motor |
| Other Features: | Reference numbers KDE3F4708, A0820B3899, BRE 420 |
| Primary Color | Black |
| Motor Details | 2-Speed Thermally Protected Direct Drive PSC Motor |
| Motor Specs | 1.87 Low / 2.97 High Amps 115 Volts, 60 Hz Rated at 51 / 158 Watt Output 850 Low / 1,050 High RPM |

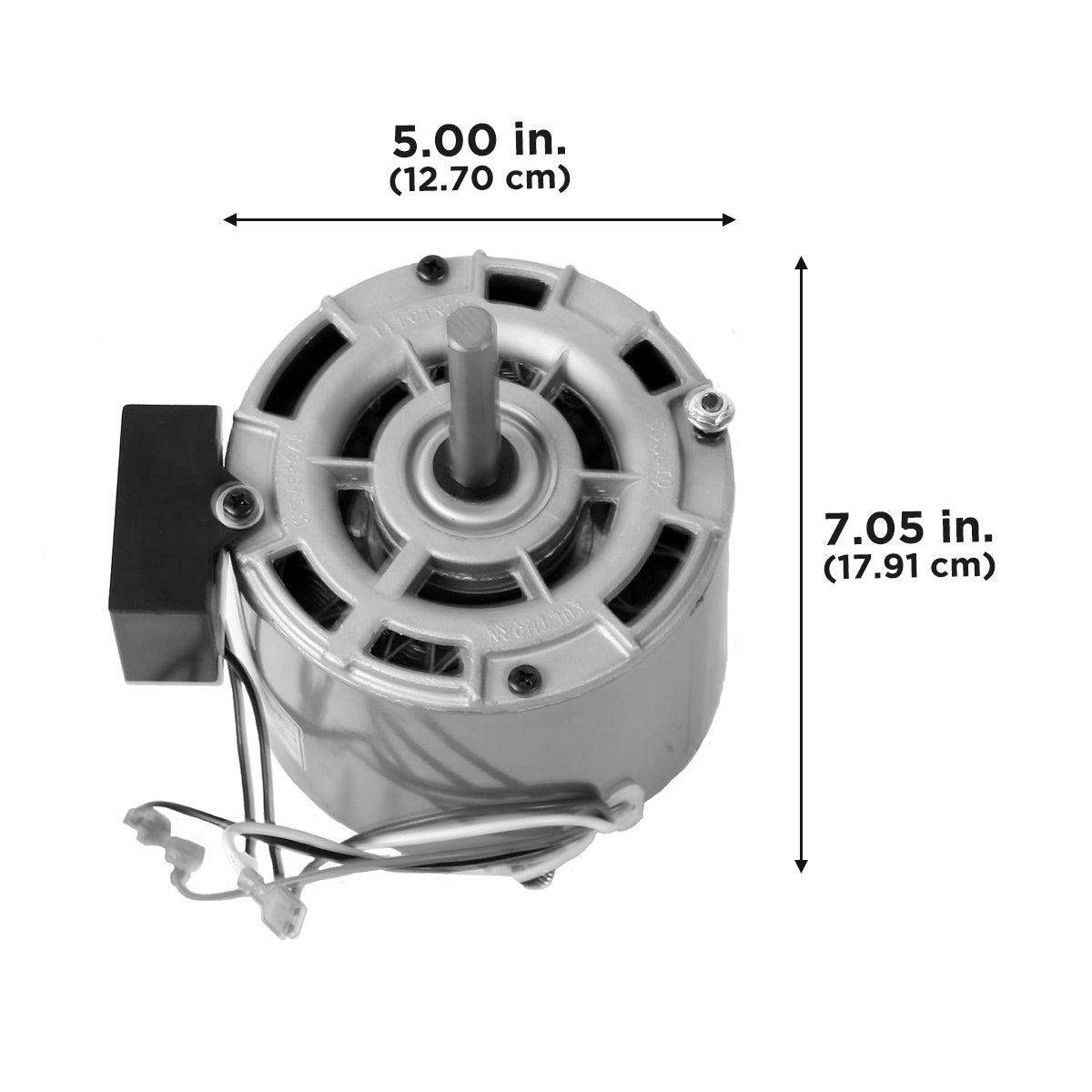

| Dimensions | 5 in. H x 5 in. W x 7 in. D (including shaft) |
| Unit Weight | 7.5 lbs. |
| Box Dimensions | 11.625 in. H x 10.375 in. W x 10.625 in. D |
| Alias SKU(s) | XE420 |
| Single Product UPC | 047242140637 |
| Sold Under |
Maxx Air |
