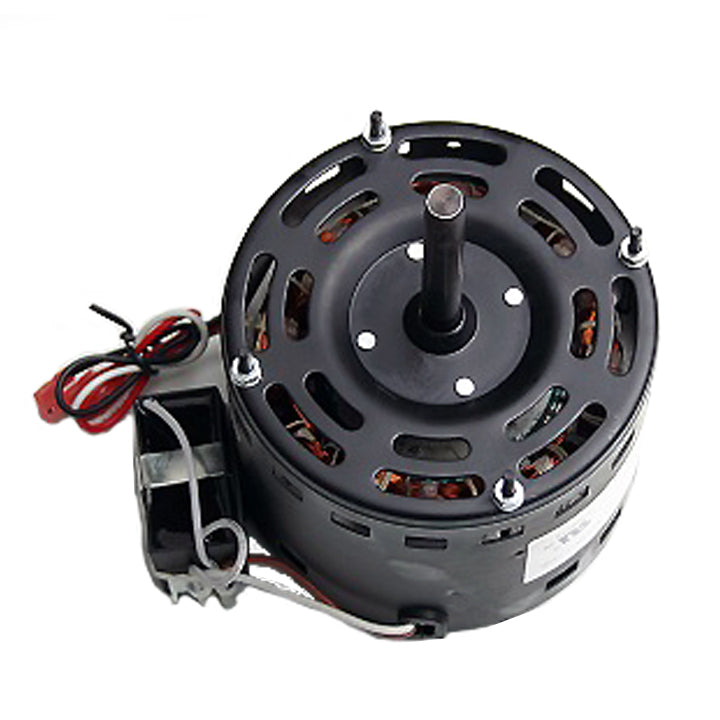

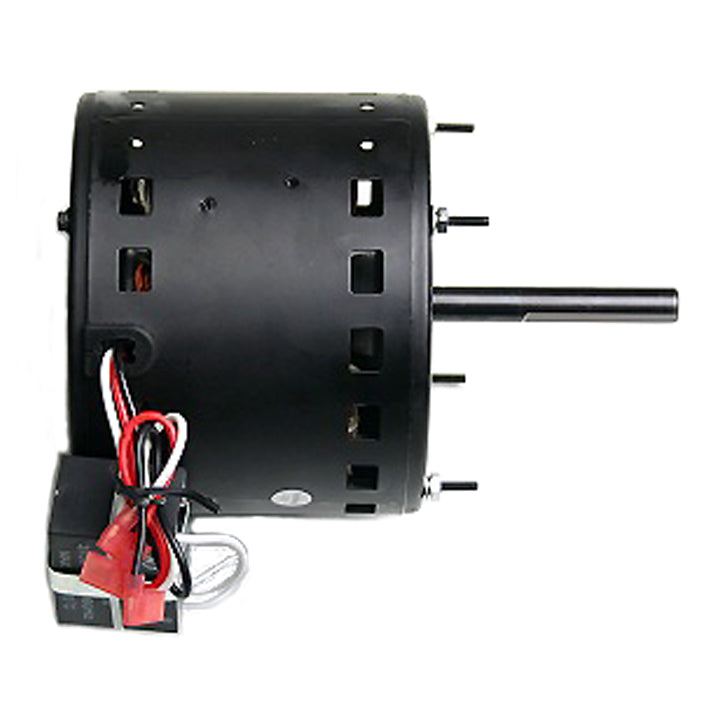

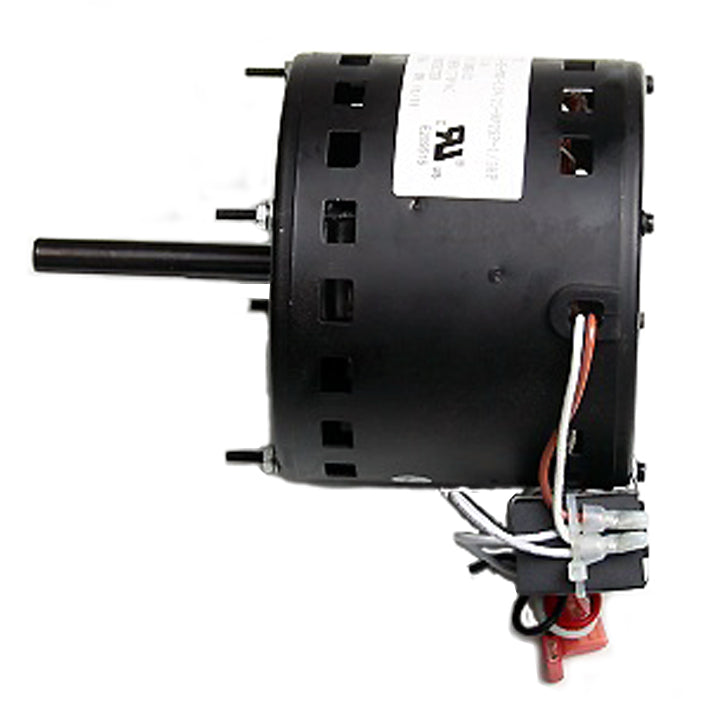

Maxx Air  |  SKU: XE421

Motor for 30 In. Direct Drive Drum Fans

$111.54 USD
Bolt Pattern

This 2 speed direct drive motor is for indoor use only and is easily rewired to your existing fan switch using the pre-installed terminal clips.


For use only with Maxx Air 30 in. direct drive drum fans. This motor is compatible with fan models beginning in BF30DD.



*IMPORTANT:

Order a smaller diameter motor if your motor struts have circular holes, you have a Kulthorn brand motor, and/or your measurement between adjacent motor bolts is 3.275 in. across.

Order a larger diameter motor if your motor struts have obround or slotted holes, you have a DM Asia or Nanfeng brand motor, and/or your measurement between adjacent motor bolts is 3.6 in. across.
Controls:

2 speed operation

Use:

Suitable for indoor usage

Energy Efficiency:

Energy efficient design

Other Features:

Reference numbers: BRE 421, BRE 421A, KDE3H4705, D-RE-PSC-139/25-8P2SP-1/3HP

Primary Color

Black

Motor Details

2-Speed Thermally Protected, Direct Drive PSC Motor

Motor Specs
ModelHPAmpsV, HzWattsRPM
XE4211/3Rated at 5.2
Draws 5.2 / 4.05		120 V
60 Hz		Input: 412 Low, 550 High
Output: 86 Low, 197 High		600 Low
825 High
XE421A1/3Rated at 4.2120 V
60 Hz		--
Dimensions

XE421: 5 in. H x 5 in. W x 7.8 in. D (including shaft)

XE421A: 5.6 in. H x 5.6 in. W x 8 in. D

Unit Weight

11 lbs.

Box Dimensions

12 in. H x 10.5 in. W x 10.5 in. D

Ship Weight

12 lbs.

Alias SKU(s)

XE421: Small diameter, replacement unit

XE421A: Large diameter, production unit

Multi UPC Info

XE421: 047242140712

XE421A: 047242140811

Sold Under

Maxx Air
