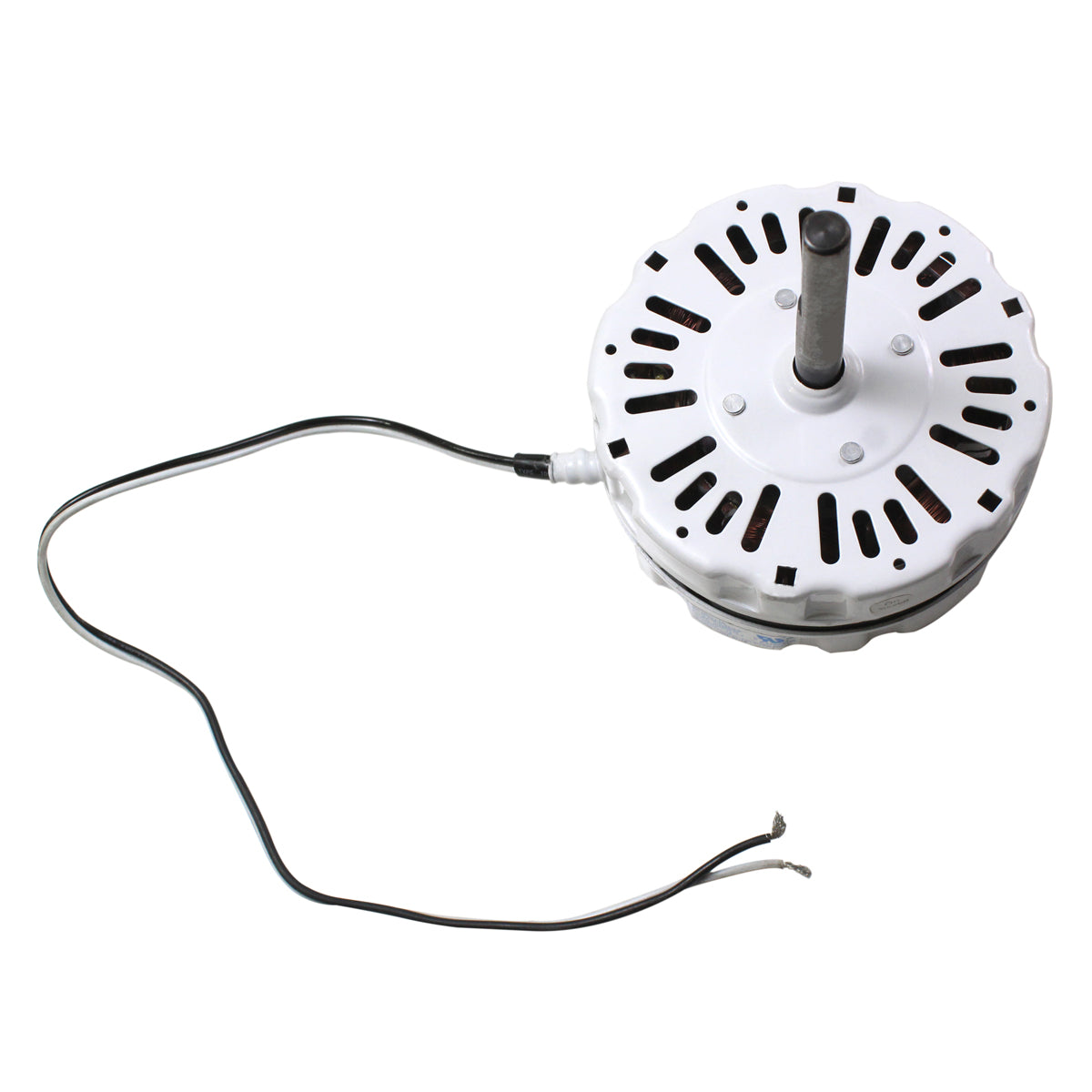

Angled view of power attic vent motor with wiring.

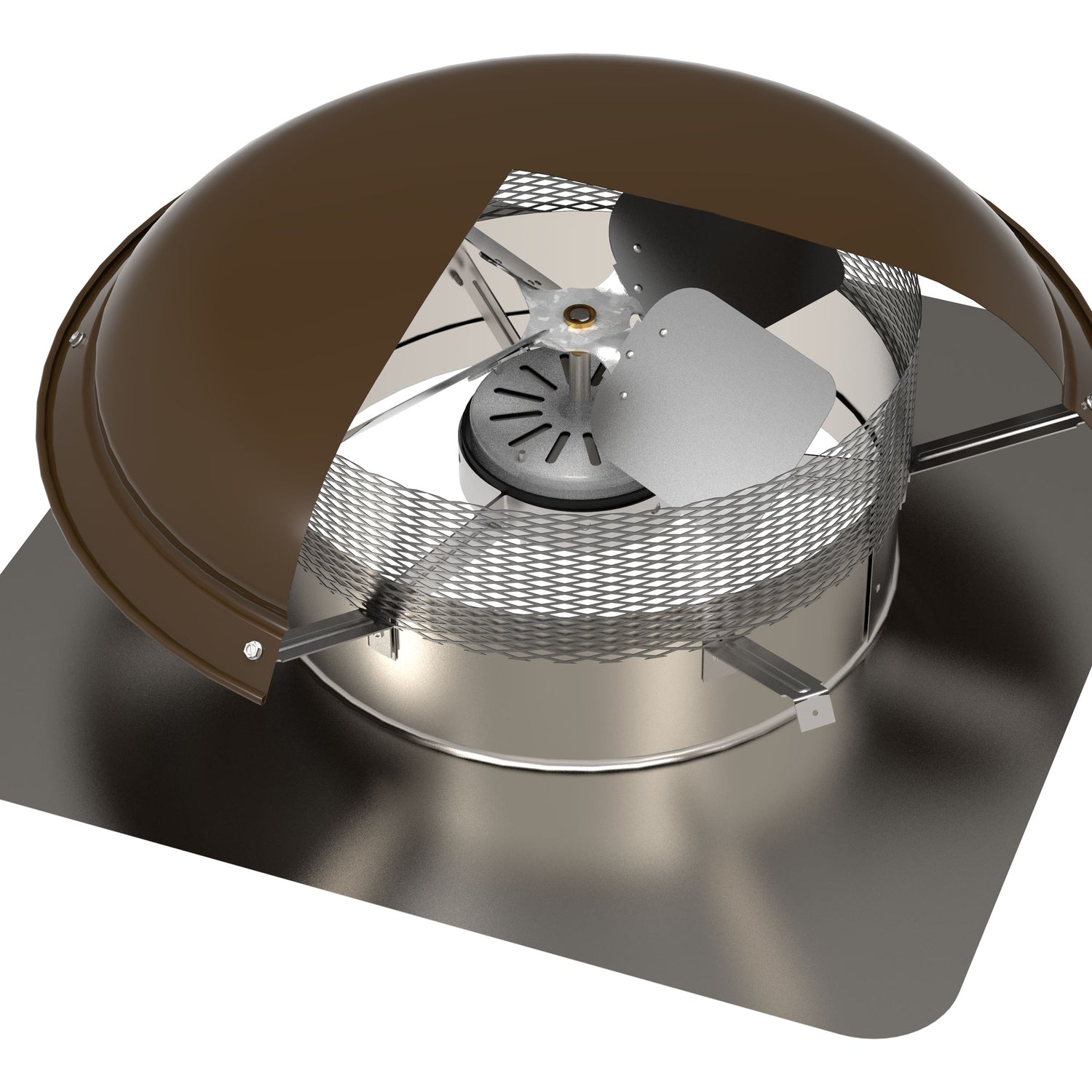

XE401 installed in a roof mount power attic ventilator.

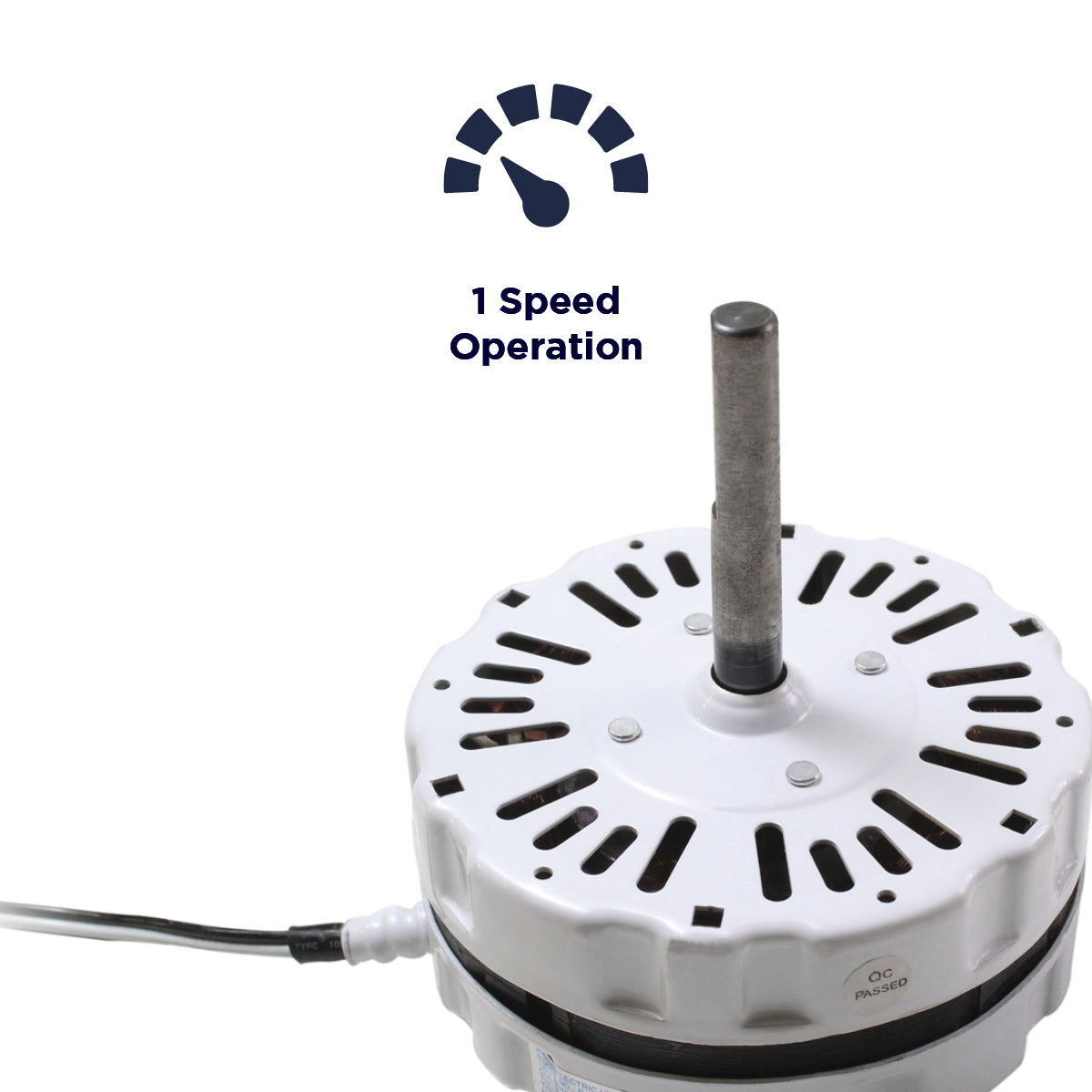

The XE401 has a 1 speed operation.

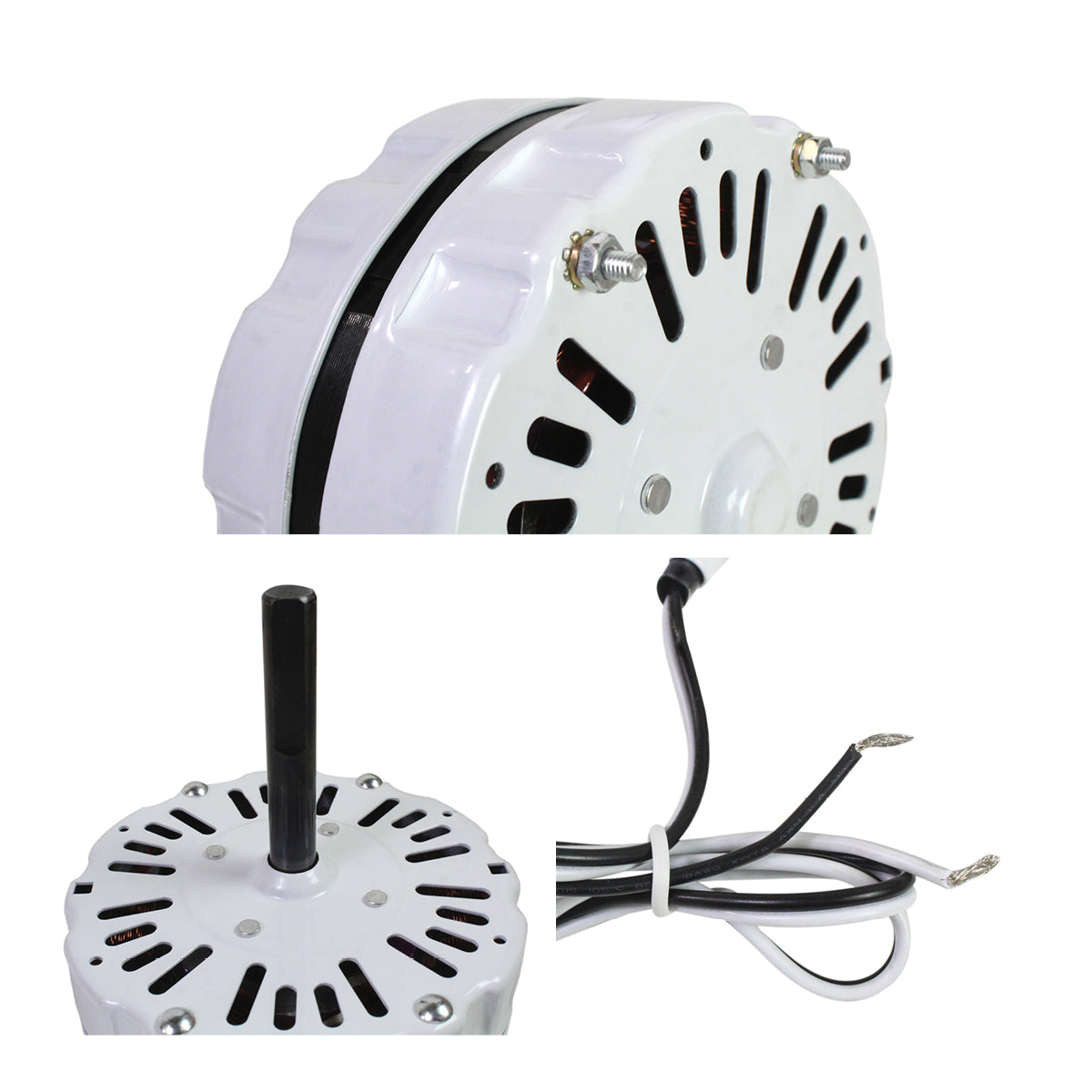

Close-up of motor bolts, shaft, and wiring.

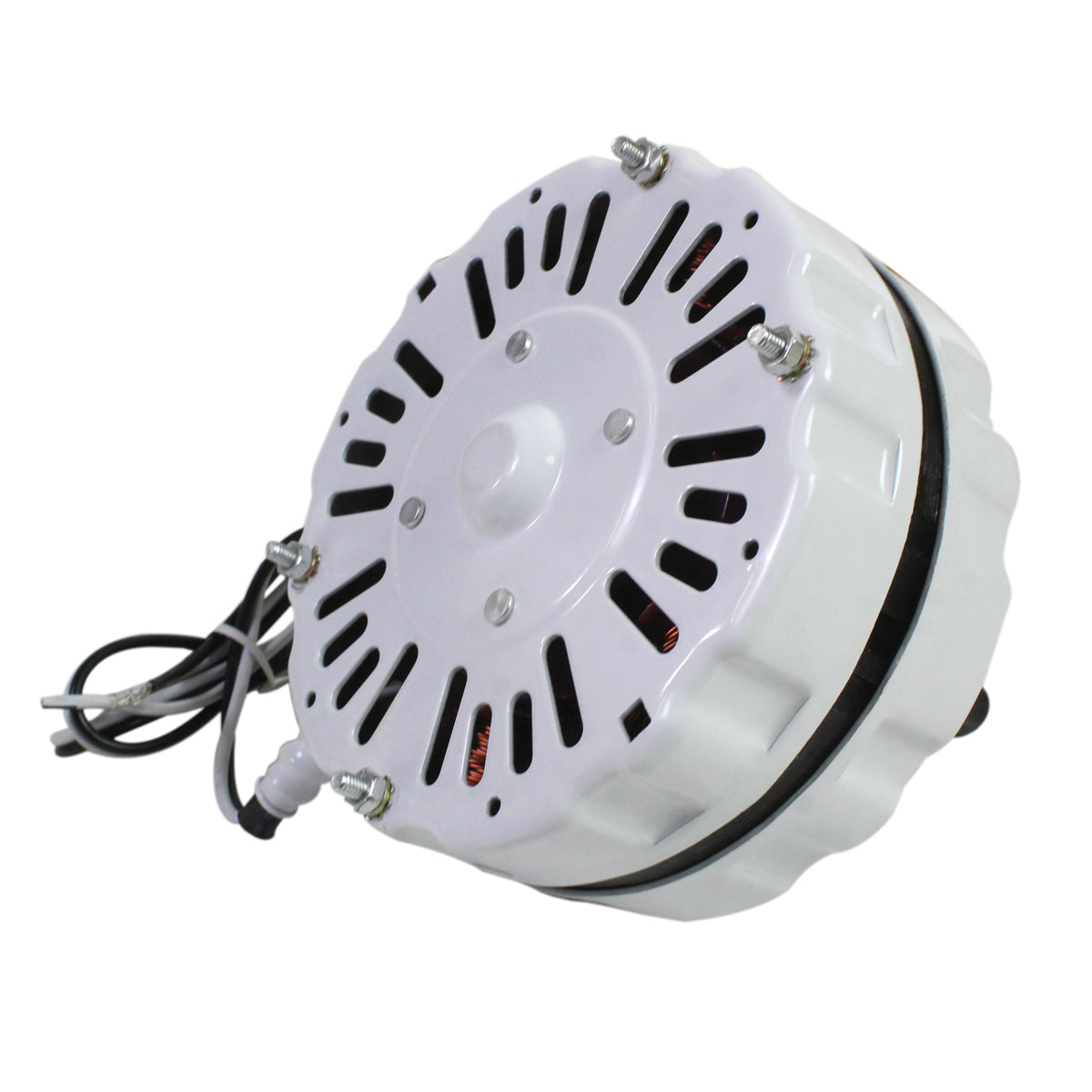

Back of vented motor.

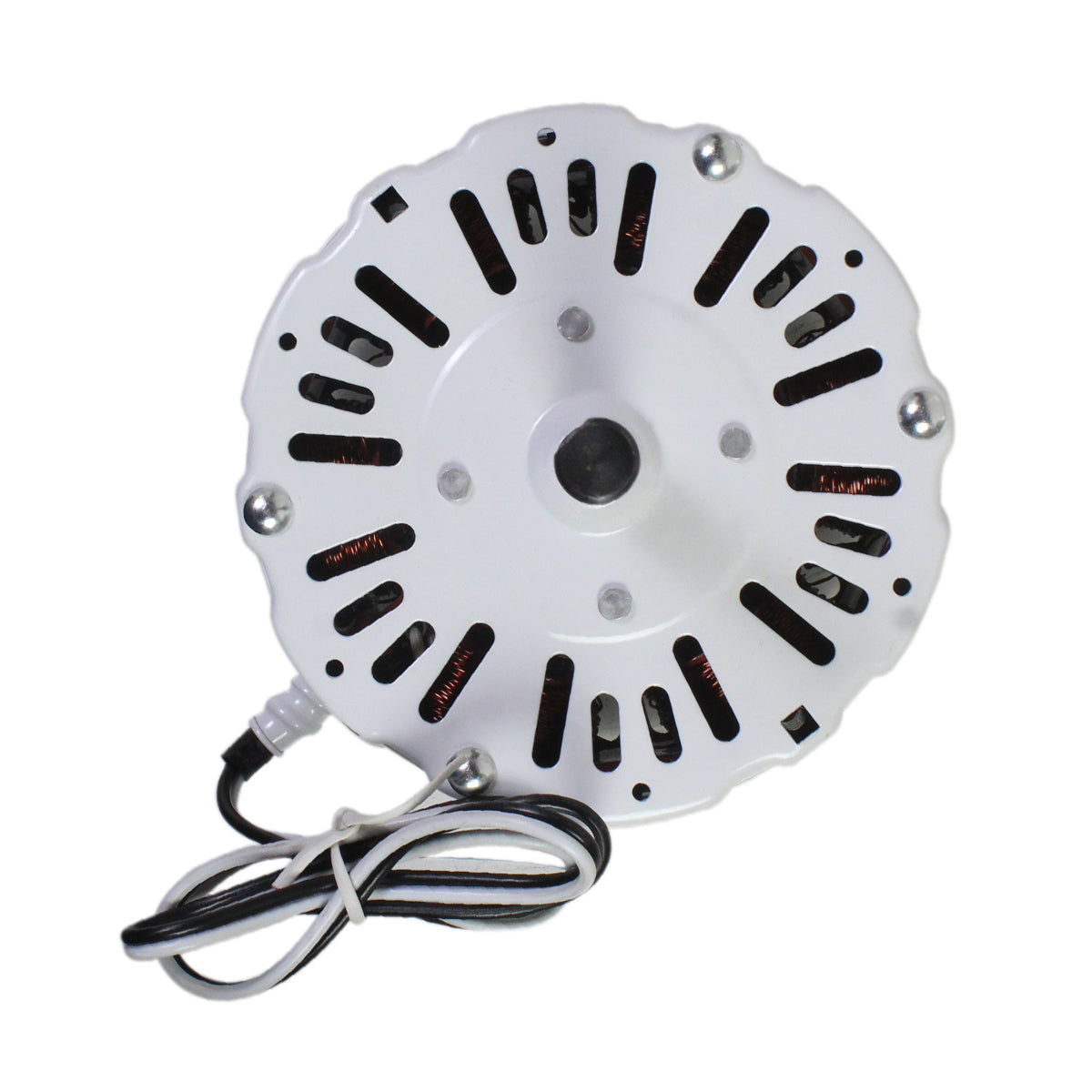

Front of vented motor.
Angled view of power attic vent motor with wiring.
XE401 installed in a roof mount power attic ventilator.
The XE401 has a 1 speed operation.
Close-up of motor bolts, shaft, and wiring.
Back of vented motor.
Front of vented motor.

3.4 Amp Motor for Power Attic Ventilators

Login to view price.
Buy Now
DESCRIPTION:
Replace your old motor using only a hex key and wrench to complete installation. This motor is compatible with select roof mount and gable mount vents.

*IMPORTANT: To replace an older motor with a 3/8 in. shaft, order this motor and fan blade assembly XX14FBLD.

This motor is compatible with VX2414 series, VX1000 series, VX009, VX2515, VX007, CX1000, CX009, CX1500, and CX007.
PERFECT FOR:

  • Home

Controls:

1 speed operation

Safety:

Thermally protected

Other Features:

Reference numbers: A0510B2001, F0510B2536, PRE 4013.4, A0510B2258, A0510B2684, PRE 4031.9

Primary Color

White

Secondary Color

Black

Motor Details

1-Speed Thermally Protected Direct Drive Motor

Motor Specs

1/12 HP

Rated at 3.4 Amps - Draws 2.6 Amps in Operation

120 Volts, 60 Hz

Rated at 1,075 RPM

Dimensions

5 in. diameter

Unit Weight

4 lbs.

Box Dimensions

6 in. H x 6 in. W x 6 in. D

Ship Weight

5 lbs.

Alias SKU(s)

XE401
XE401 UPS: Plain Carton

Multi UPC Info

XE401: 047242401356
XE401 UPS: 047242133066

Country of Origin - Assembly

China

Sold Under

Maxx Air, Cool Attic, Ventamatic
