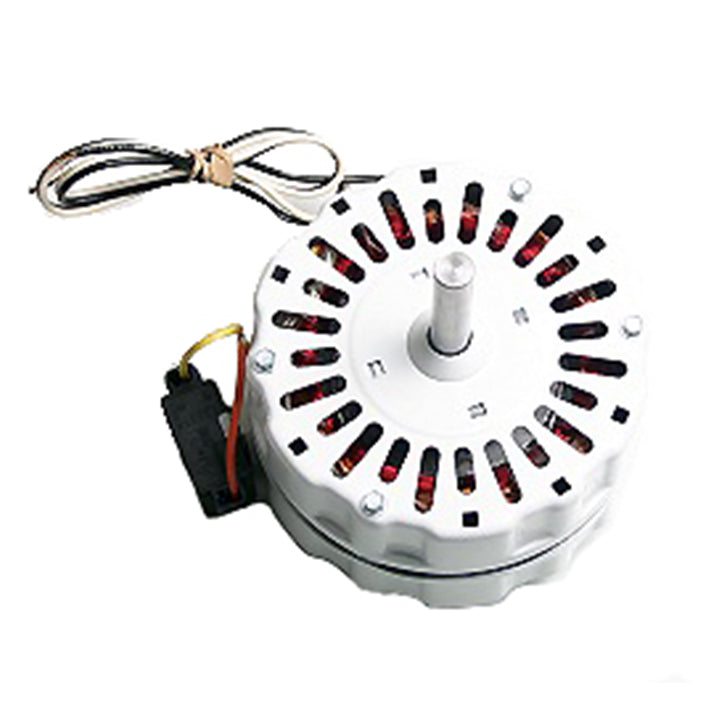

Angled view of the vented power attic motor.

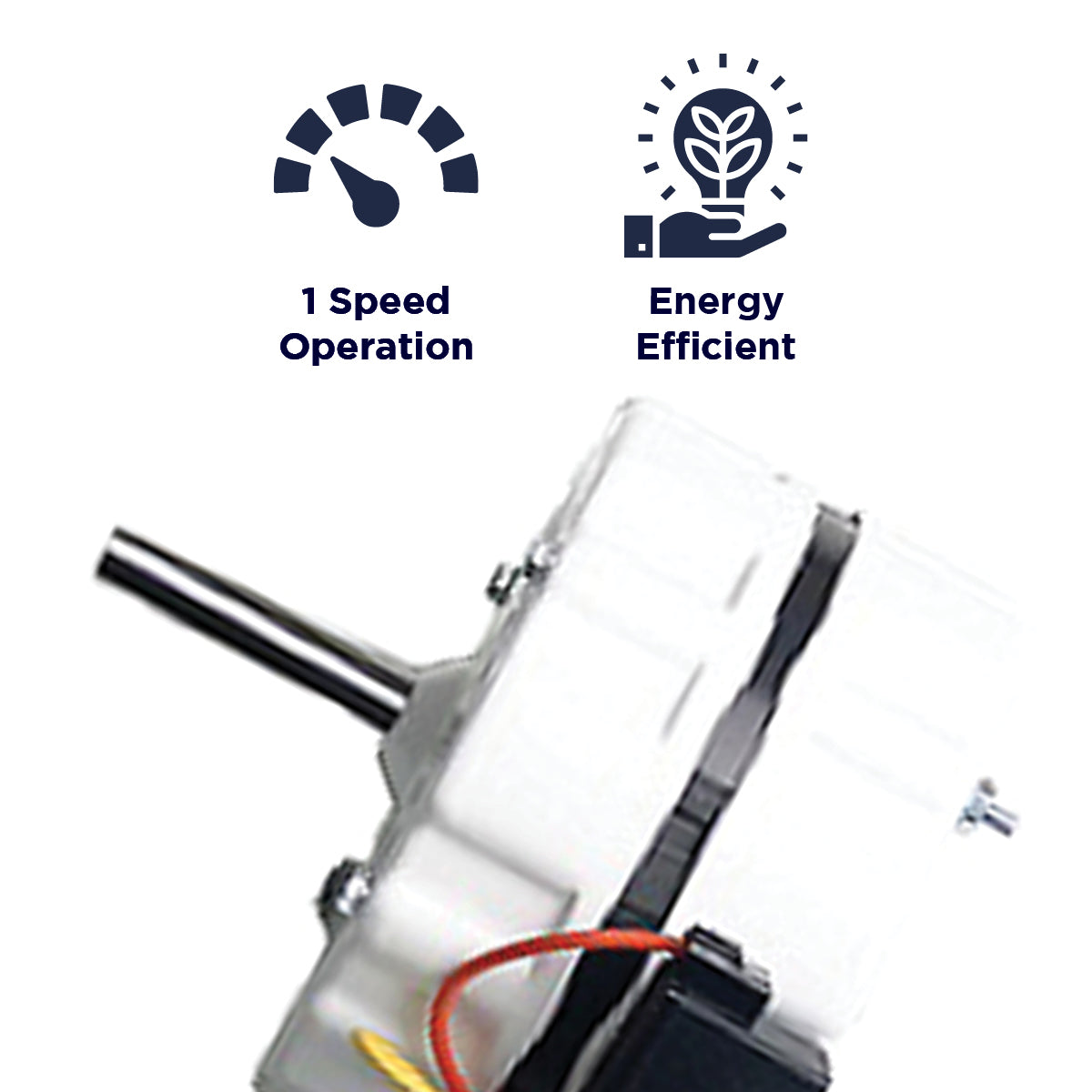

The XE404 offers a 1 speed operation and is energy efficient.

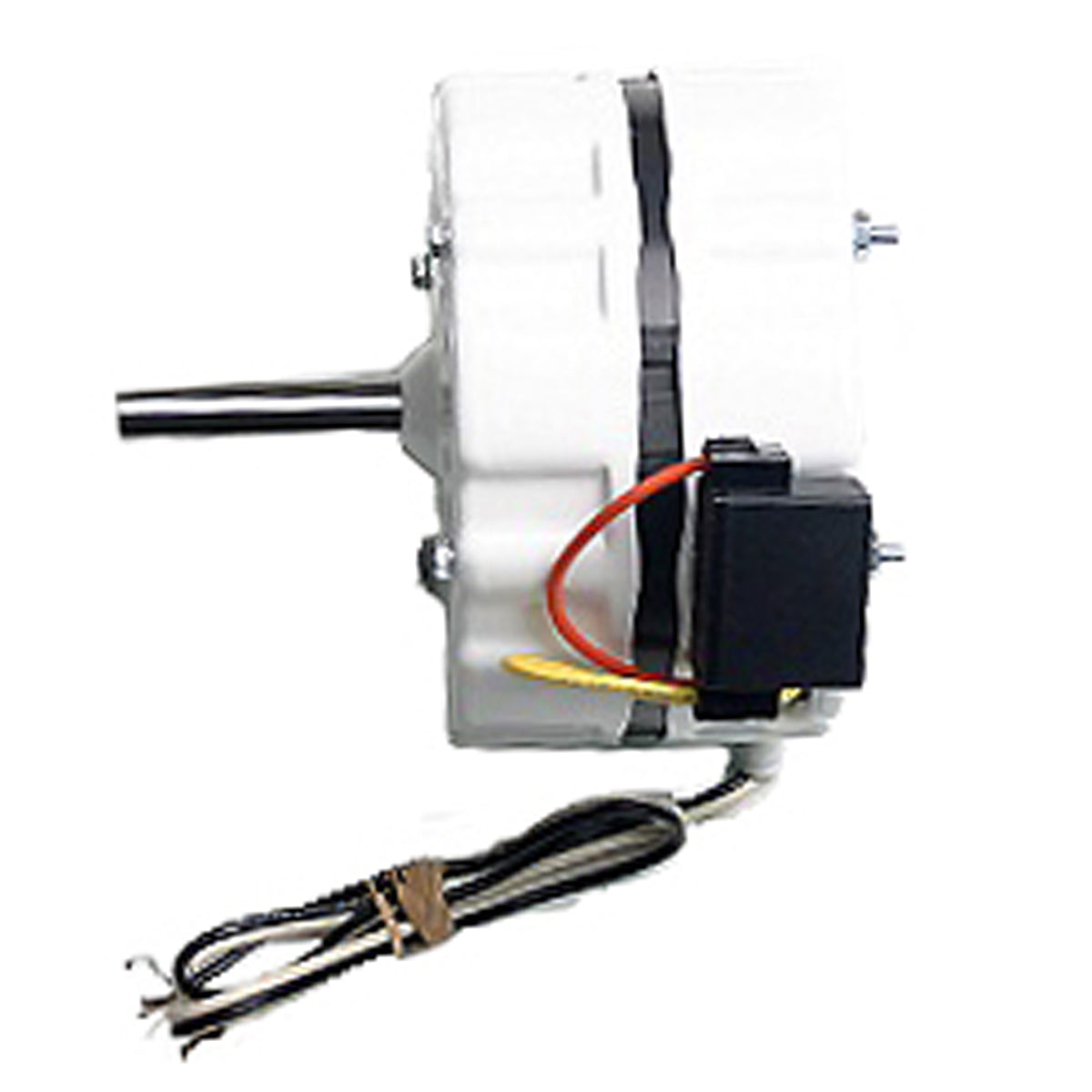

Right side profile view of the motor showing the wiring.

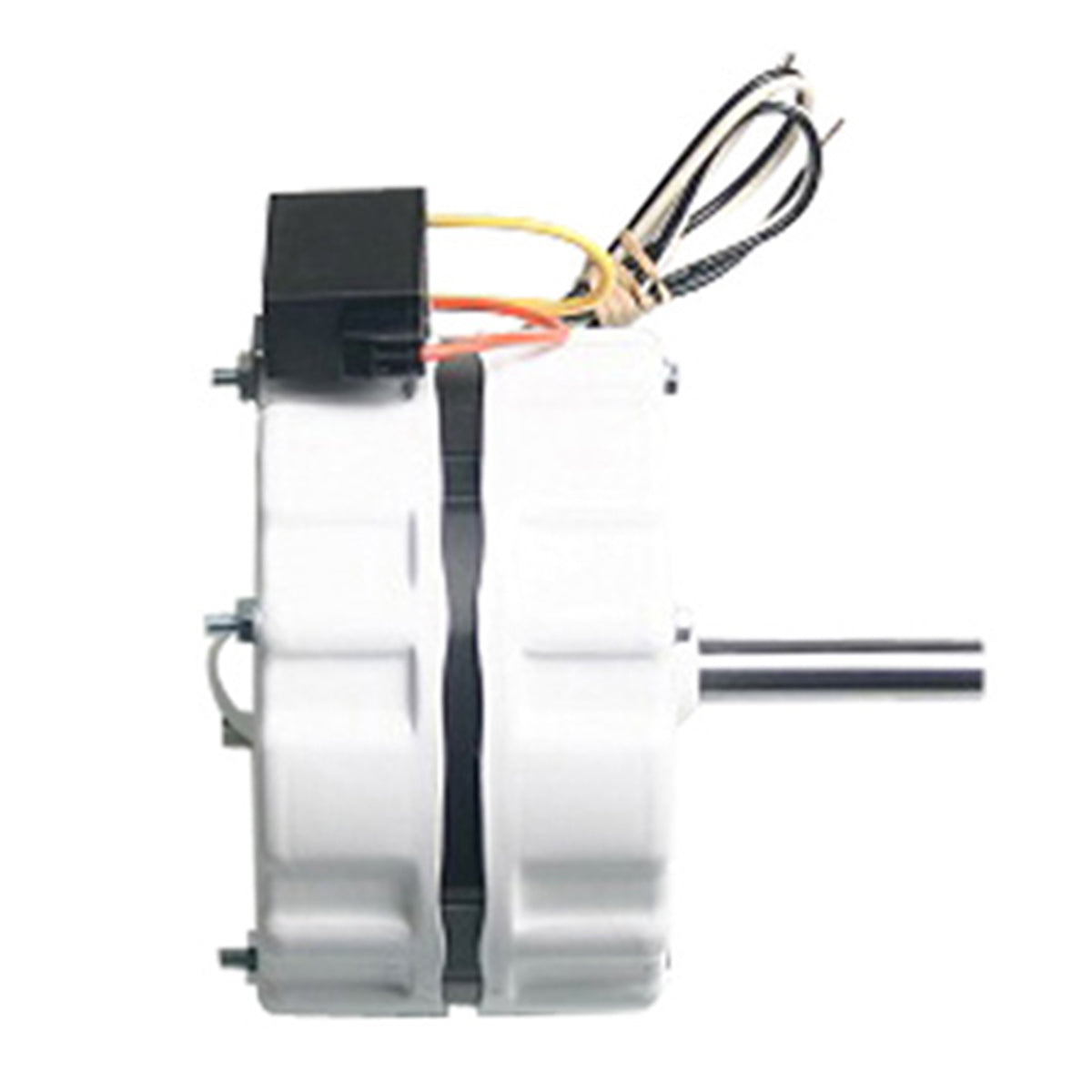

Left side view of the motor showing the capacitor.
Angled view of the vented power attic motor.
The XE404 offers a 1 speed operation and is energy efficient.
Right side profile view of the motor showing the wiring.
Left side view of the motor showing the capacitor.

3 Amp Motor for Power Attic Ventilators

$74.25

DESCRIPTION:
Replace your old motor using only a hex key and wrench to complete installation. This motor is compatible with select roof mount and gable mount vents and can be used to upgrade any other single speed power attic ventilator into an energy efficient unit with a lifetime warranty.

This motor is compatible with VXNRG series, VXNRGT series, VX2500, CX3000EE series and CX2500.
PERFECT FOR:

  • Home

Controls:

1 speed PSC operation

Energy Efficiency:

Energy efficient design

Safety:

Thermally protected

Other Features:

Reference numbers: PRE 4042.1, A0508B2258, F0508B2538

Primary Color

White

Secondary Color

Black

Motor Details

1-Speed Thermally Protected, Energy Efficient Direct Drive PSC Motor

2.5 in. Shaft

Motor Specs

Rated at 3 Amps

120 Volts, 60 Hz

Rated at 1,075 RPM

Dimensions

5.69 in. L x 6.13 in. W (with shaft and capacitor)

Unit Weight

5 lbs.

Box Dimensions

6 in. H x 6 in. W x 6 in. D

Ship Weight

6 lbs.

Alias SKU(s)

XE404
XE404 UPS: Plain Carton

Multi UPC Info

XE404: 047242404210
XE404 UPS: 047242133059

Sold Under

Maxx Air, Cool Attic, Ventamatic
