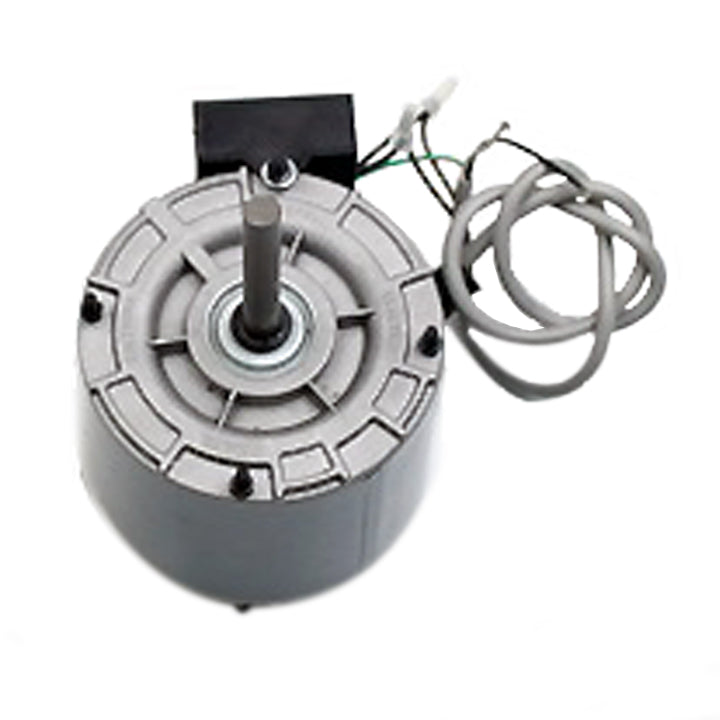

Angled view of the totally enclosed motor.

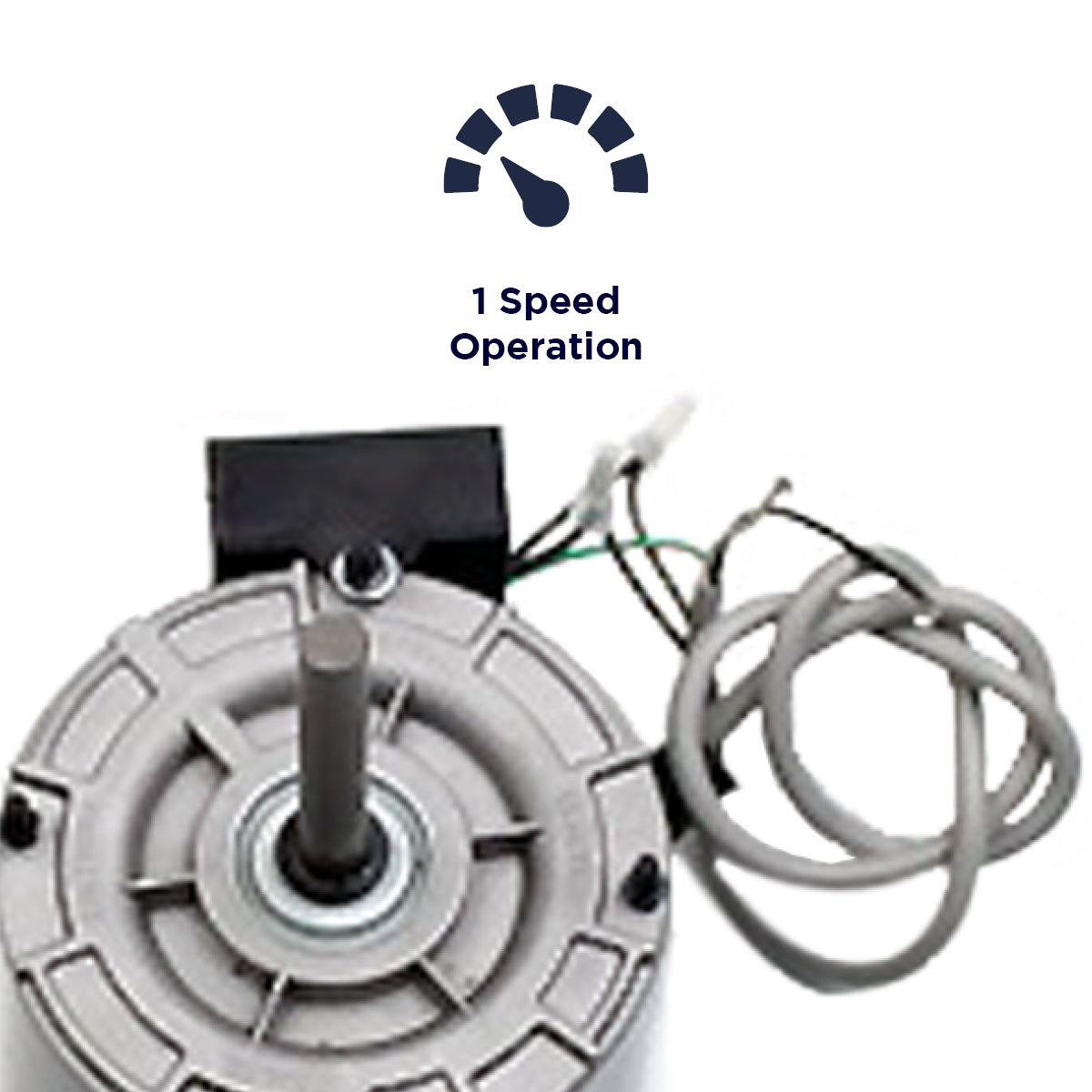

The XE418 provides a 1 speed operation.

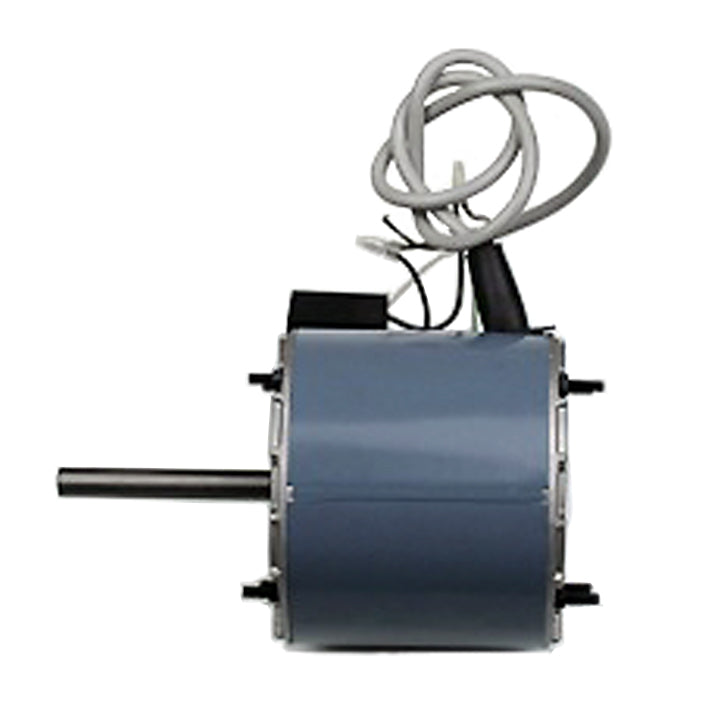

Right side profile view of motor showing the wiring.

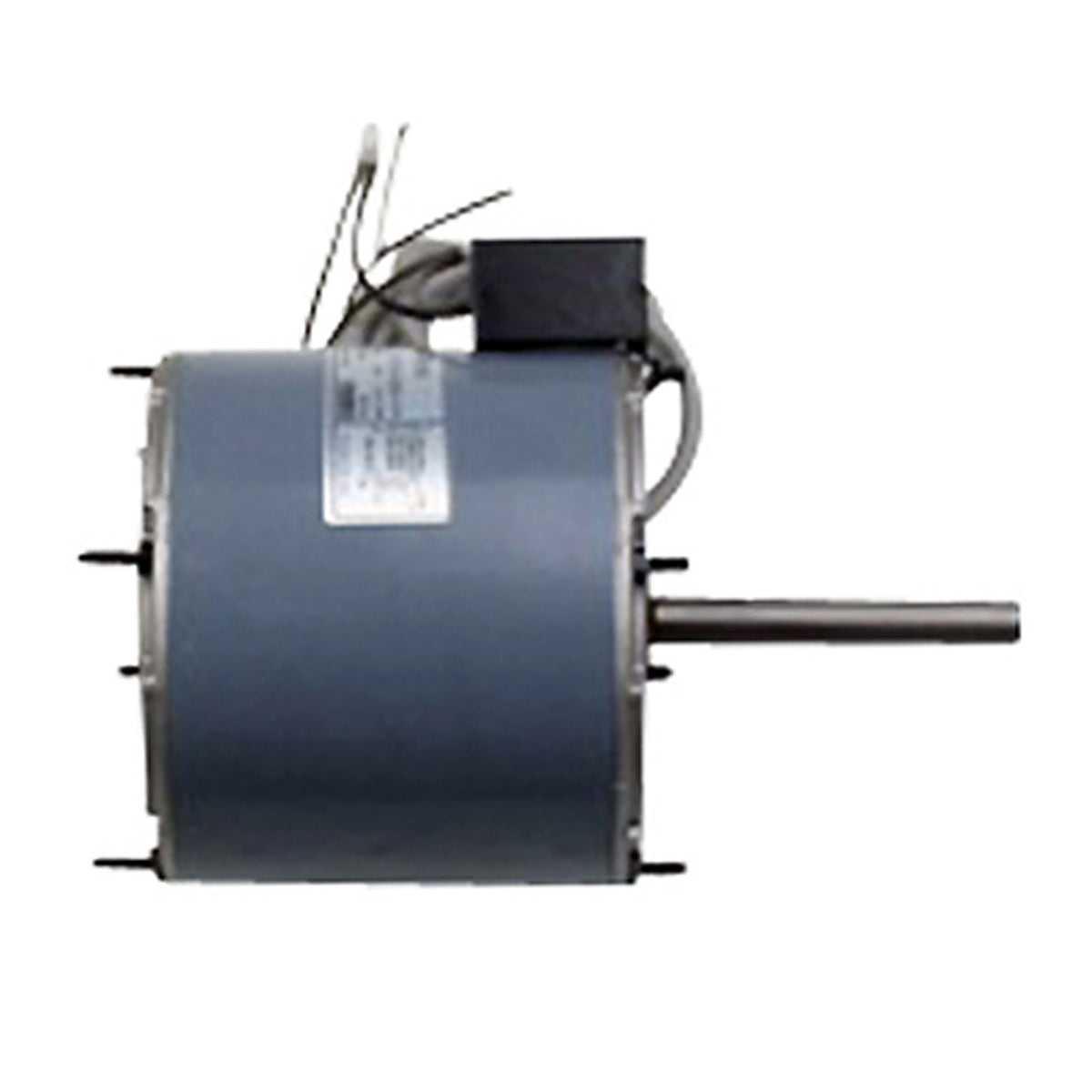

Right side profile view of the motor showing the capacitor.
Angled view of the totally enclosed motor.
The XE418 provides a 1 speed operation.
Right side profile view of motor showing the wiring.
Right side profile view of the motor showing the capacitor.

Motor for 18 In. Exhaust Fans

$0.00
DESCRIPTION:

This motor model is totally enclosed and has 1 speed setting for easy on/off ventilation needs.


*VERY IMPORTANT: For replacement of an IRE441 motor, you must also purchase a replacement rear grille (IRF GRILL18A).


This motor is compatible with fan models IF18 and IF18UPS.


PERFECT FOR:
  • Agriculture

  • Automotive

  • Industrial

  • Livestock

Controls:

1 speed operation

Safety:

Totally enclosed

Other Features:

Reference numbers: KDE3H4707 (IRE 418; after April 2010), KHF2K4710 (IRE 441; before April 2010)

Primary Color

Gray

Secondary Color

Mill

Motor Details

1-Speed Thermally Protected, Totally Enclosed Direct Drive PSC Motor

Motor Specs

1/3 HP

Rated at 5.34 Amps

120 Volts, 60 Hz

Rated at 825 RPM


Dimensions

5 in. H x 5 in. W x 8 in. D

Unit Weight

12 lbs.

Box Dimensions

11.625 in. H x 10.375 in. W x 10.625 in. D

Ship Weight

13 lbs.

Alias SKU(s)

XE418

Single Product UPC

047242140729
