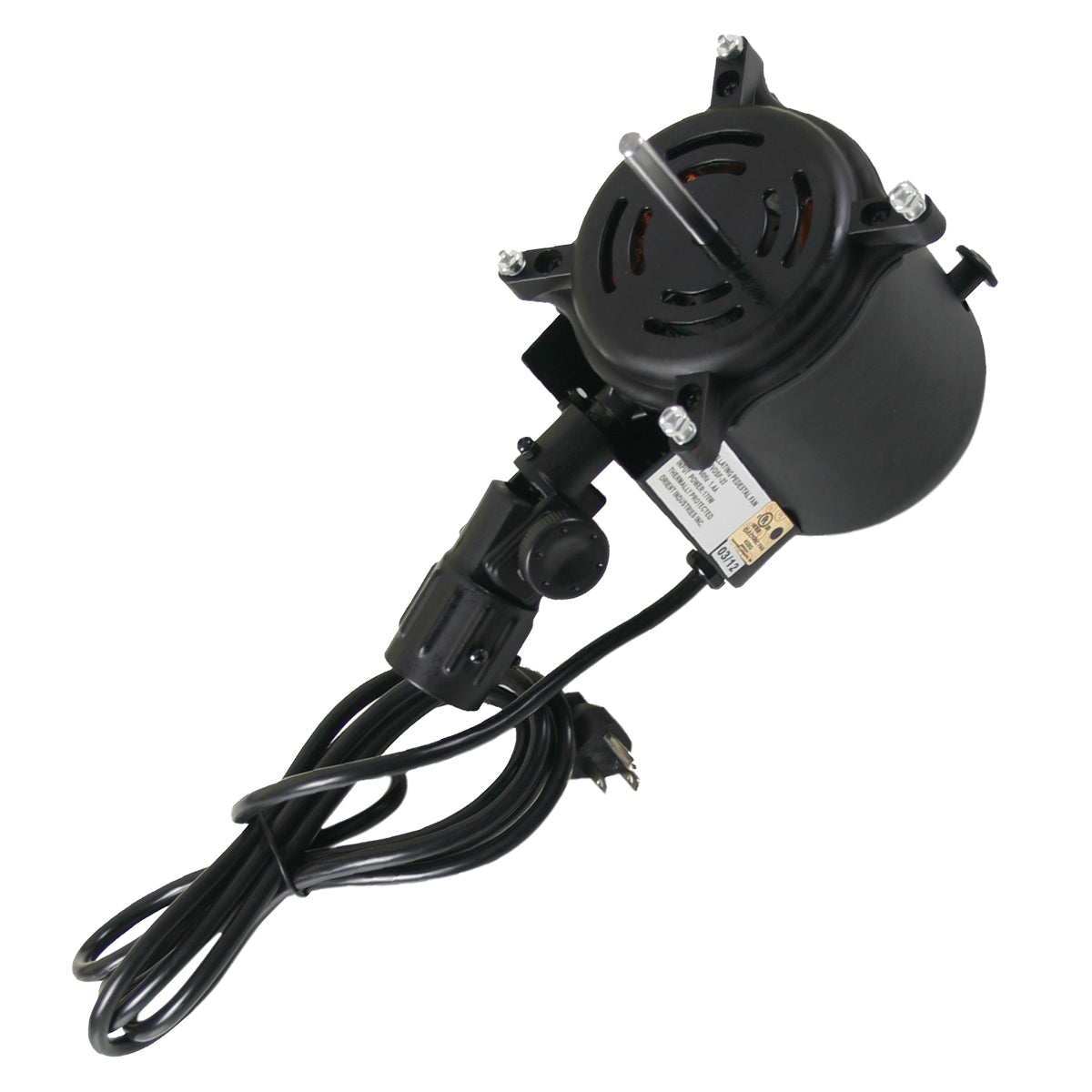

Motor for 22 in. stand fans with pre-wired power cord and plug..

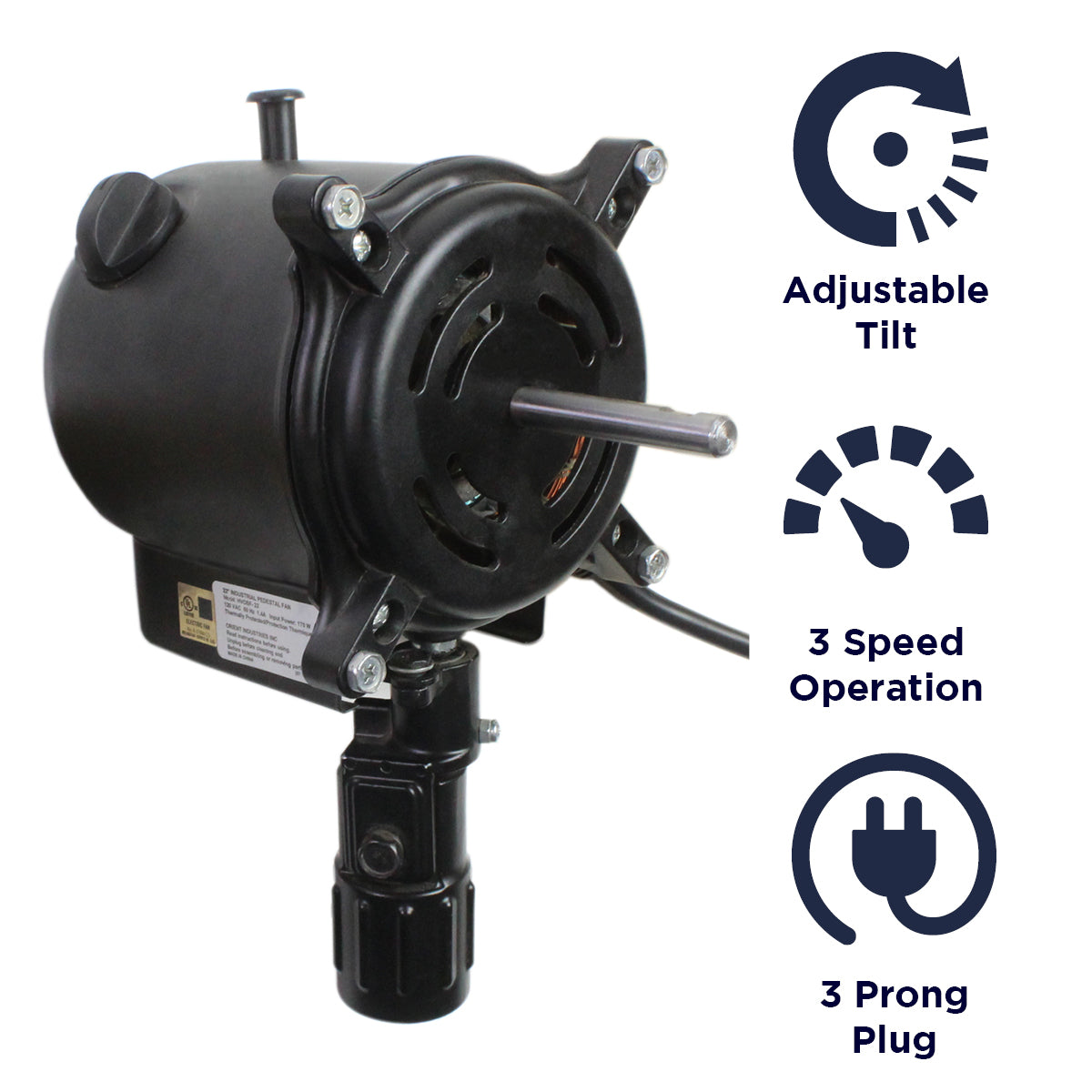

Features of the XE220350 include an adjustable tilt, 3 speed operation, and a 3 prong plug.

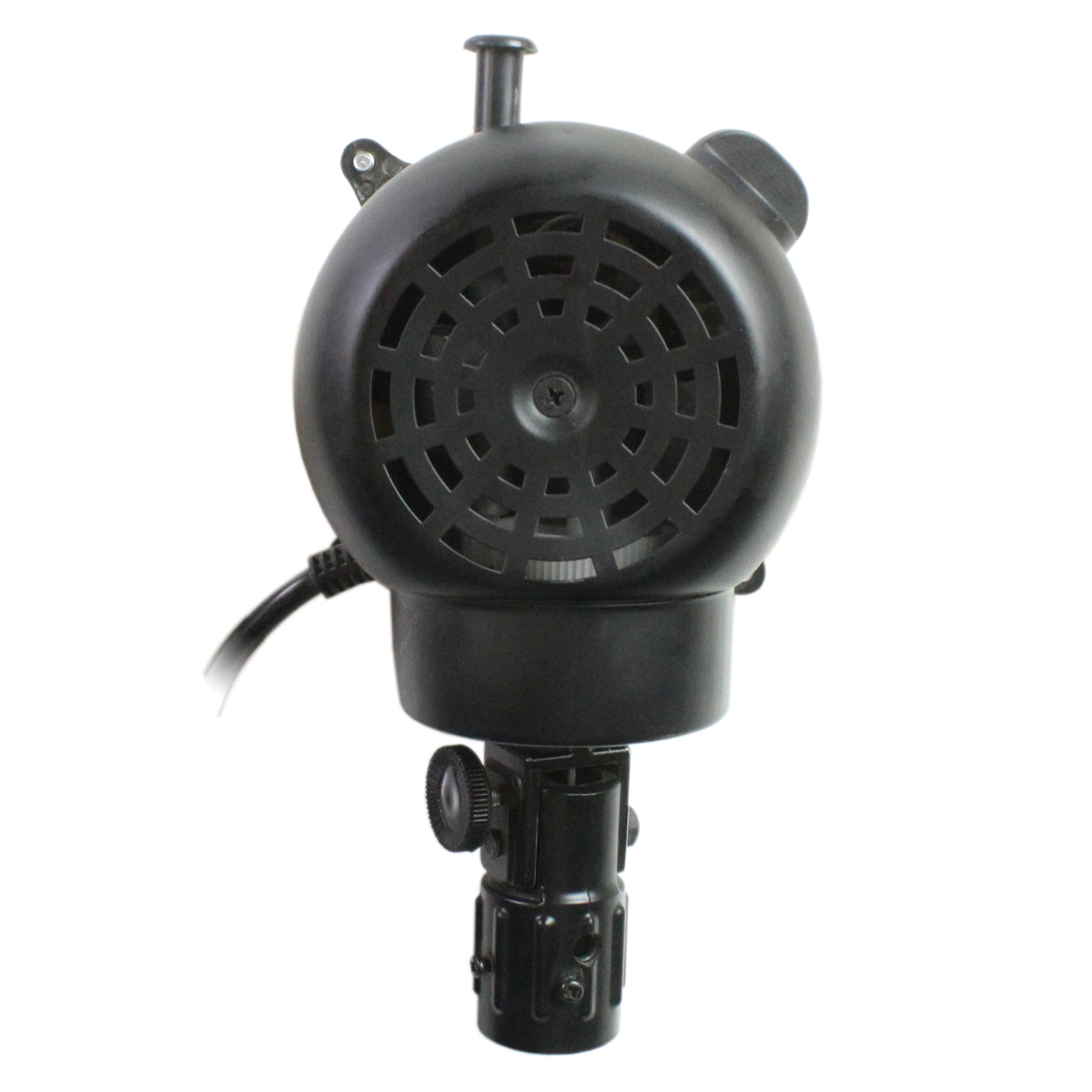

Back of vented motor with oscillation puller.

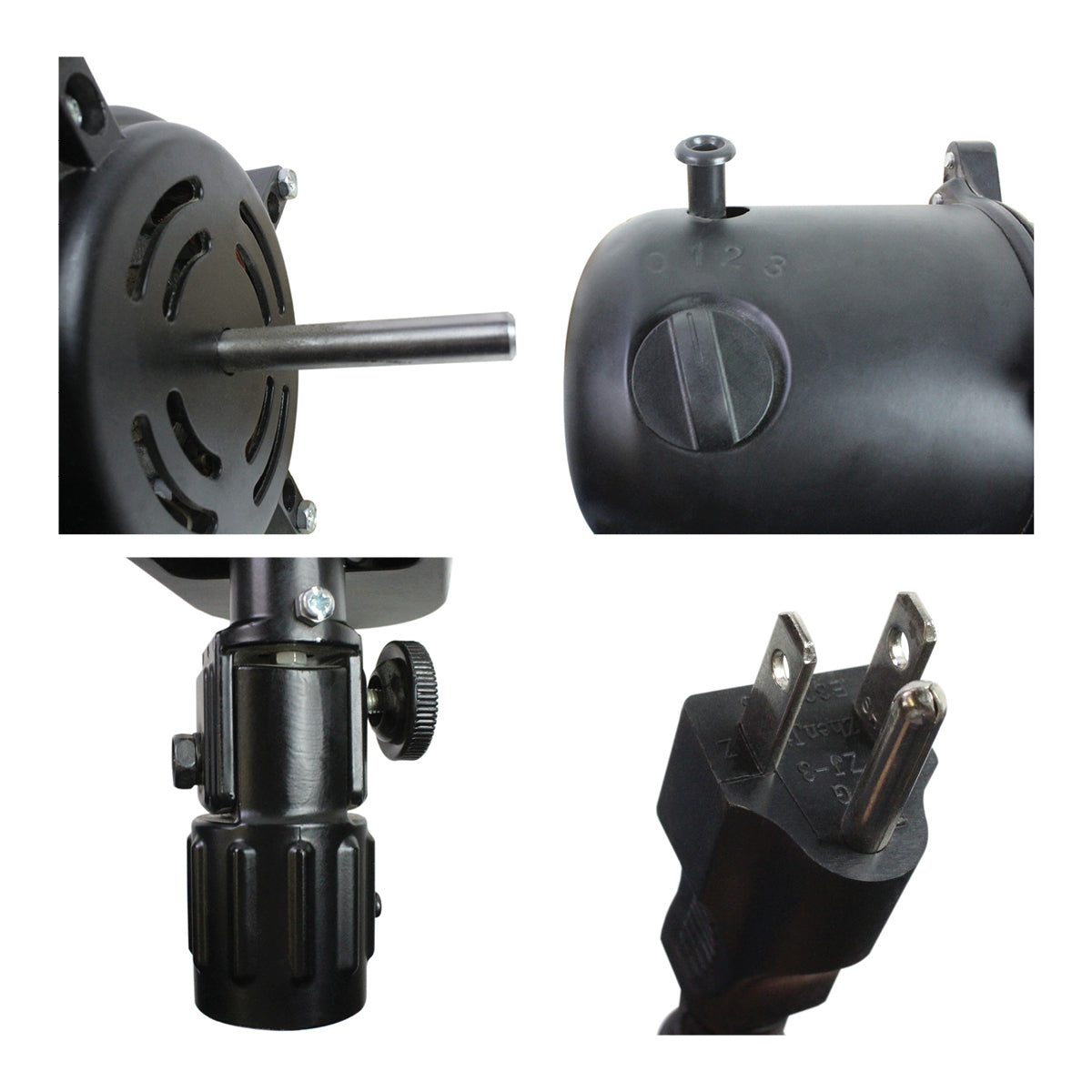

Detailed close up of motor shaft, rotary switch, tilt adjustment knob, and plug.

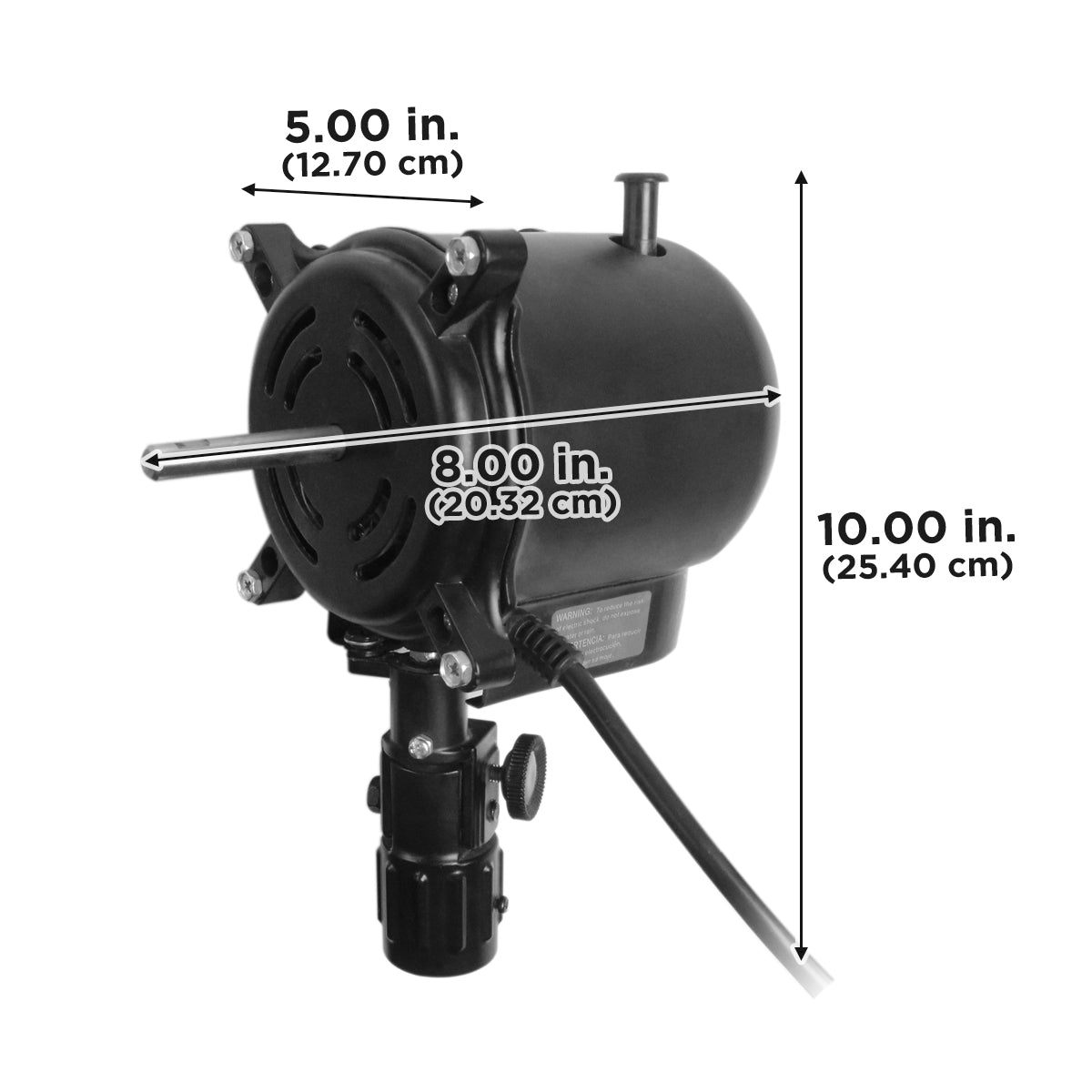

The motor assembly is 5 in. (12.7 cm) wide, 8 in. (20.32 cm) deep, and 10 in. (25.4 cm) tall.

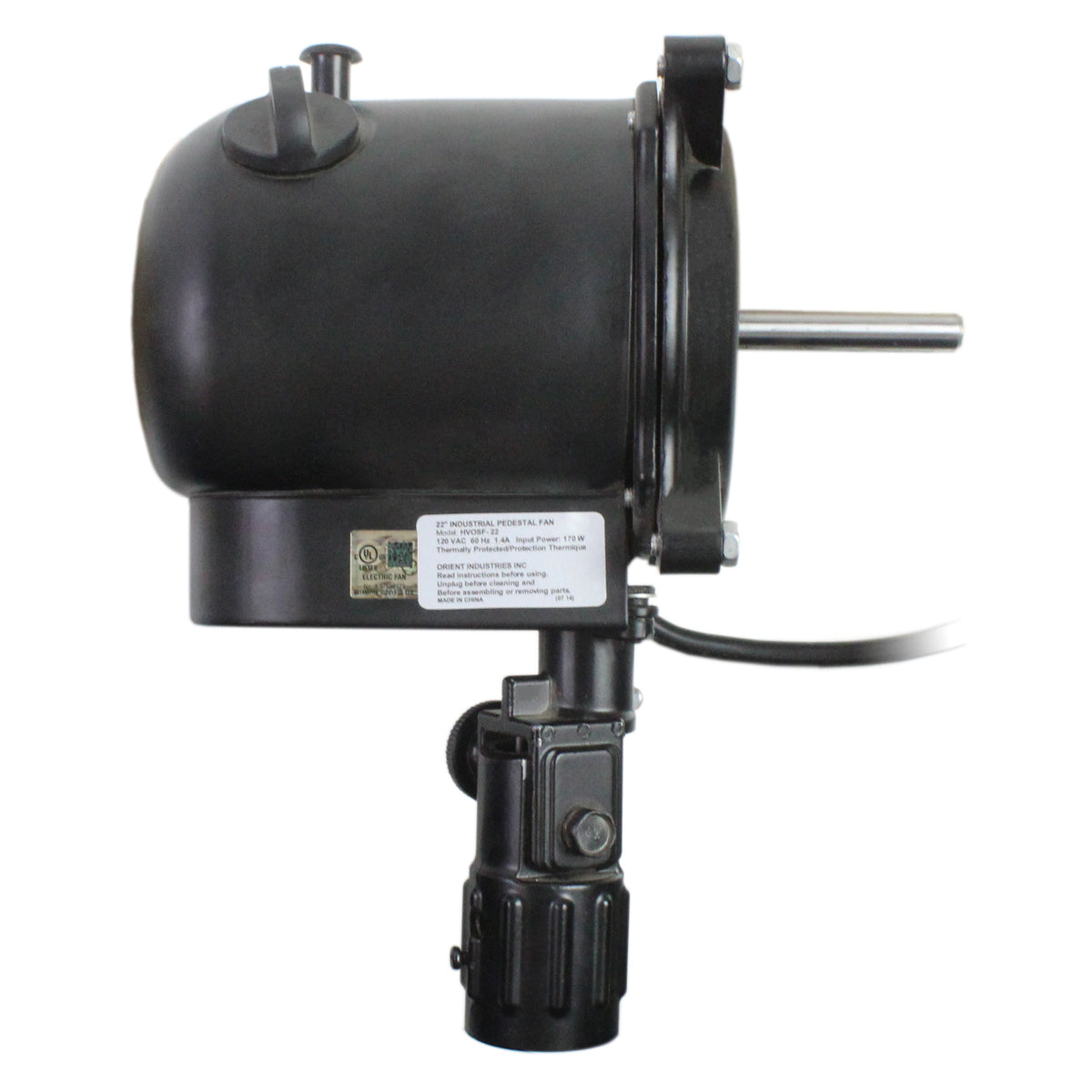

Left side profile view of the motor.
Motor for 22 in. stand fans with pre-wired power cord and plug..
Features of the XE220350 include an adjustable tilt, 3 speed operation, and a 3 prong plug.
Back of vented motor with oscillation puller.
Detailed close up of motor shaft, rotary switch, tilt adjustment knob, and plug.
The motor assembly is 5 in. (12.7 cm) wide, 8 in. (20.32 cm) deep, and 10 in. (25.4 cm) tall.
Left side profile view of the motor.

Motor for 22 In. Oscillating Pedestal Fans

Login to view price.
DESCRIPTION:
This motor model includes a pre-installed 6 ft. power cord, is for indoor use only, and can be installed in place of your current motor using common household tools. Features 3 speeds and a tilt adjustment knob to achieve your perfect ventilation setting.

For use only with Maxx Air 22 in. oscillating pedestal fans. This motor is compatible with fan models HVPF 22 OSC and HVPF 22 OSCUPS.
PERFECT FOR:
  • Automotive

  • Commercial

  • Construction

  • Fitness

  • Home

  • Industrial

Adjustability:

Tilt adjustment knob

Installation:

Easy installation using household tools

Controls:

3 speed operation via rotary switch

Oscillation:

90° oscillation ability with on/off puller

Use:

Suitable for indoor usage

Safety:

Thermally protected

Other Features:

Reference numbers: HRE220350

Primary Color

Black

Secondary Color

Mill

Motor Details

3-Speed Thermally Protected Direct Drive Motor

Motor Specs

Rated at 1.4 Amps

115 Volts, 60 Hz

Rated at 170 Watt Input

Power Cord Length

6 ft.

Dimensions

10 in. H x 5 in. W x 8 in. D (including shaft)

Unit Weight

6 lbs.

Box Dimensions

11.625 in. H x 10.375 in. W x 10.625 in. D

Alias SKU(s)

XE220350

Single Product UPC

047242970005

Country of Origin - Assembly

China

Sold Under

Maxx Air
