Maxx Air  |  SKU: CX3000EEAMWGUPS

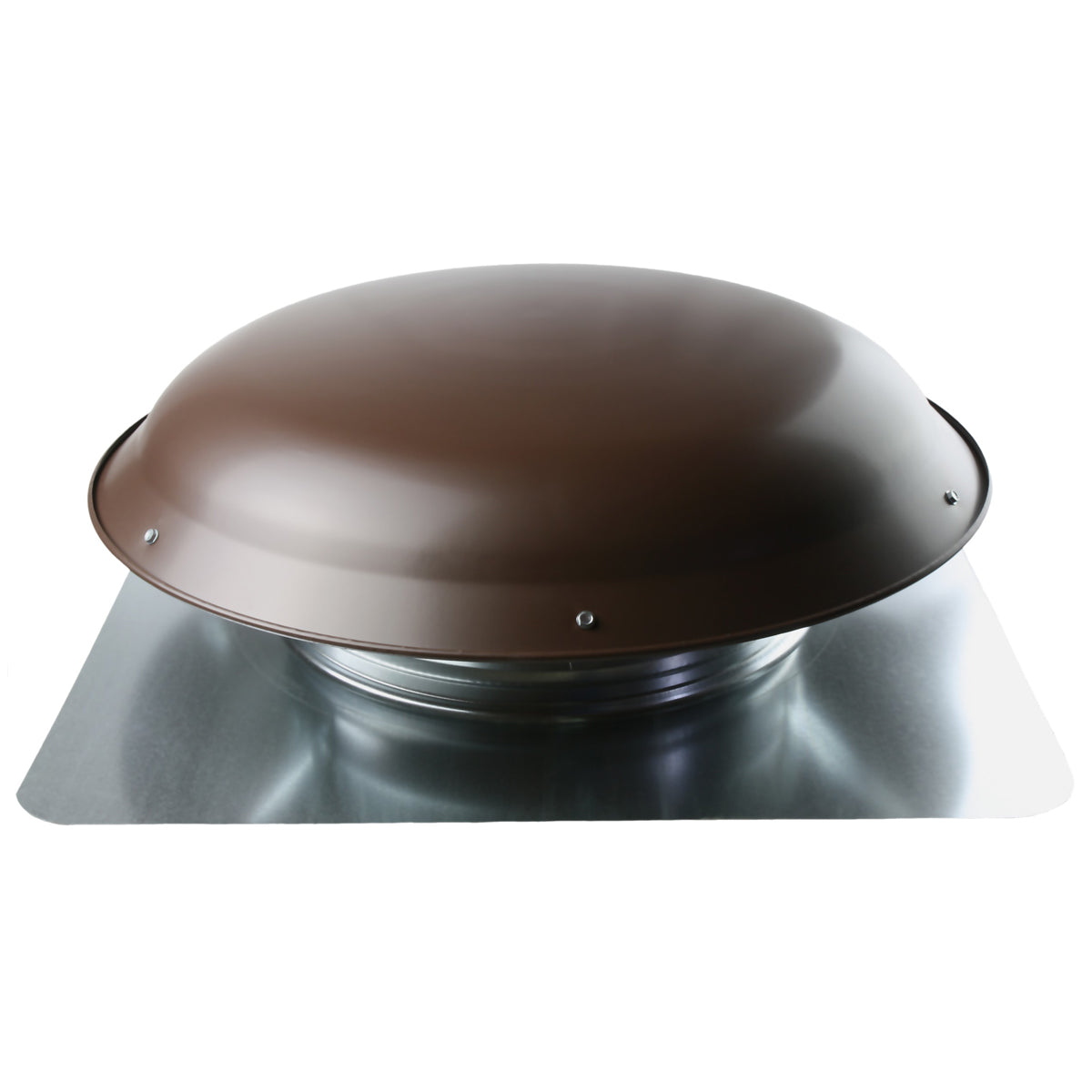

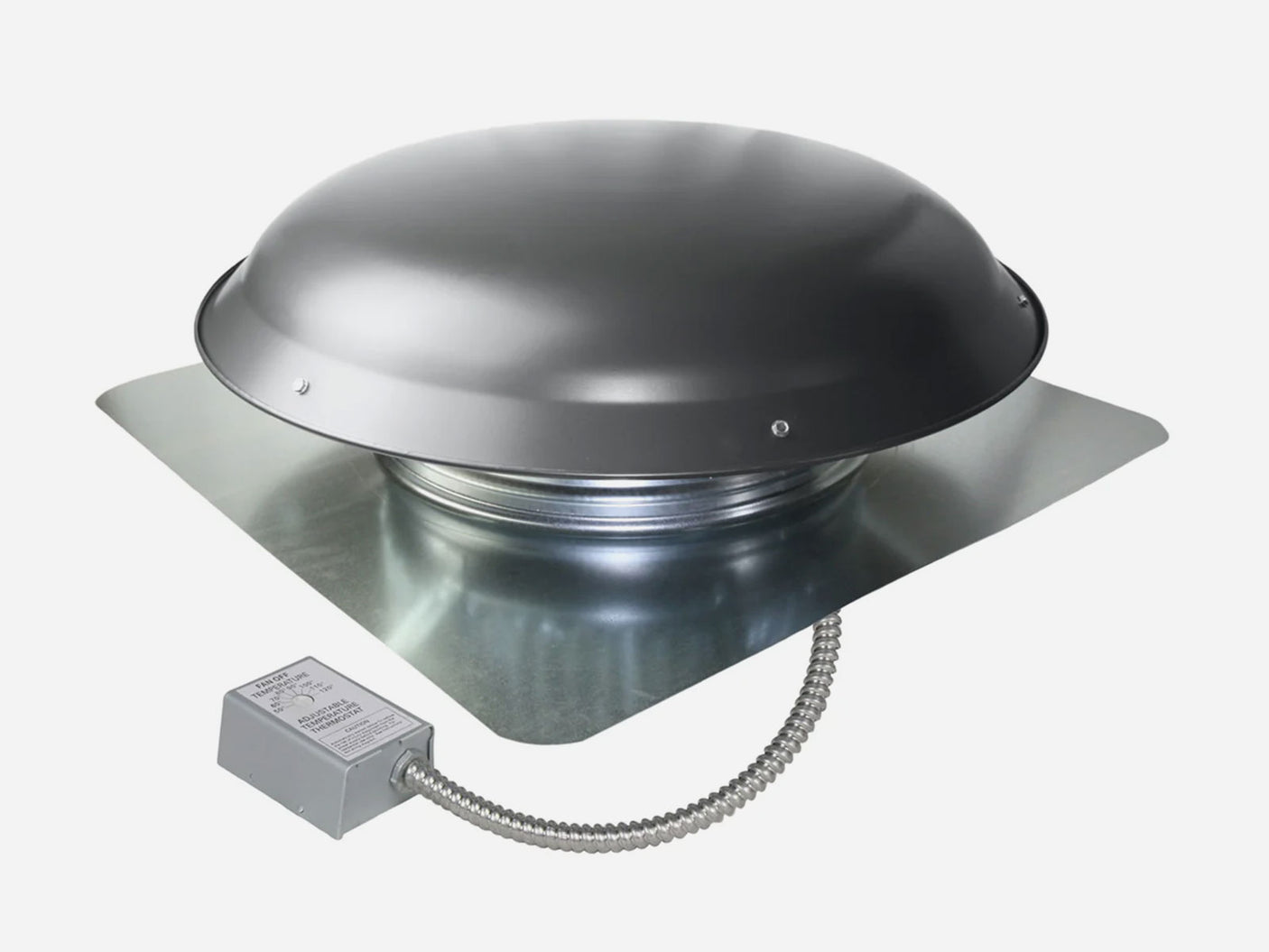

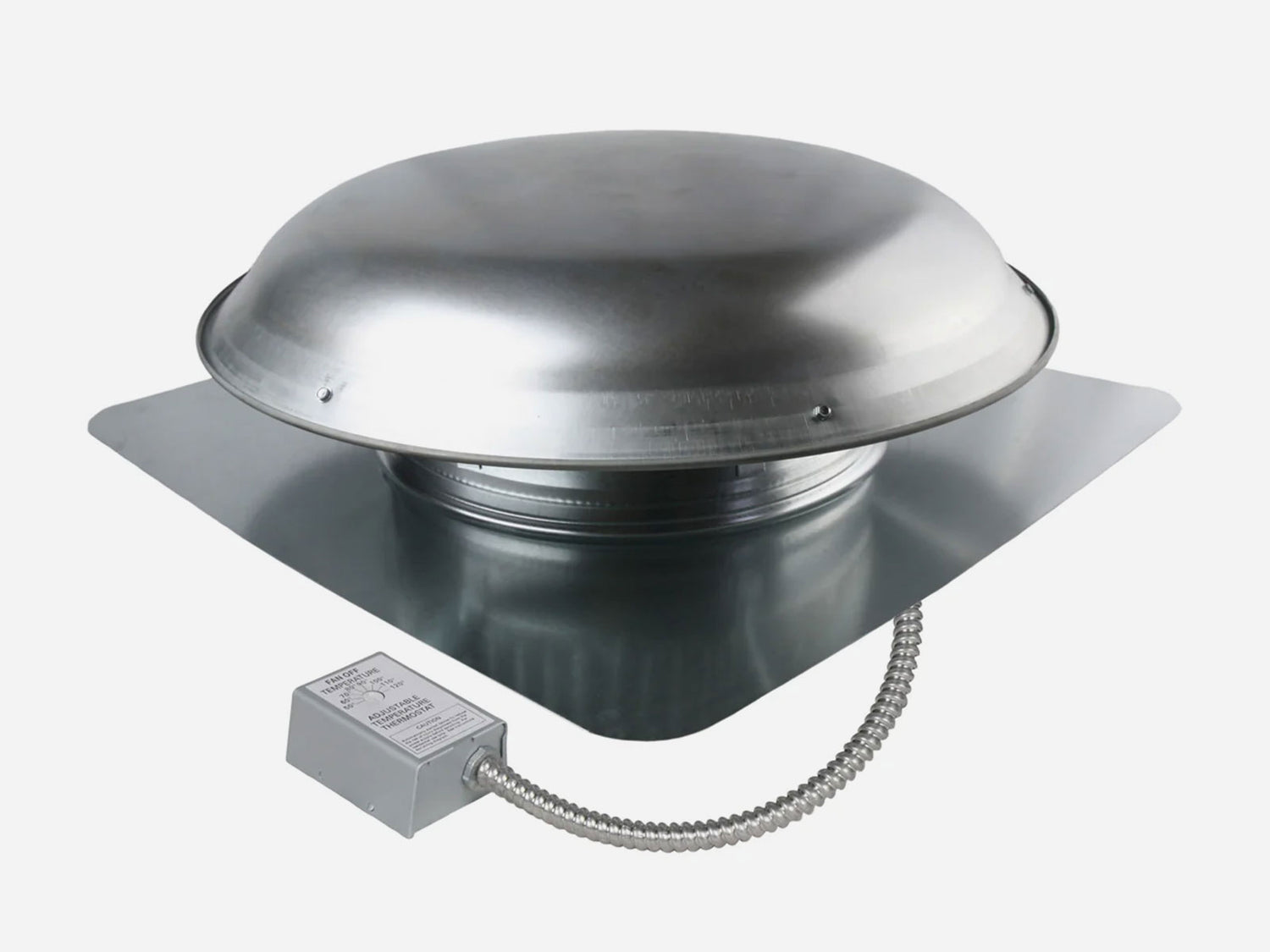

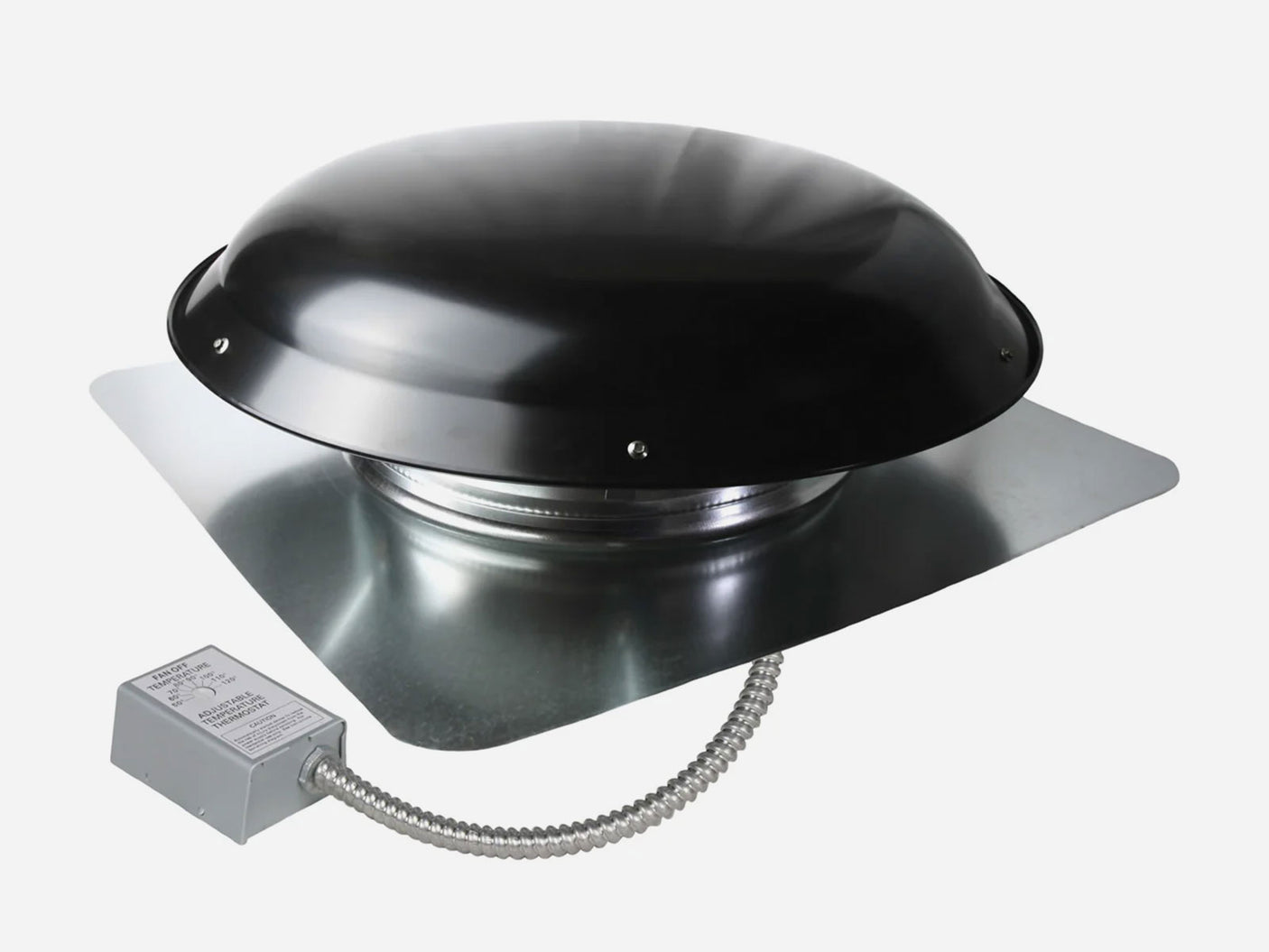

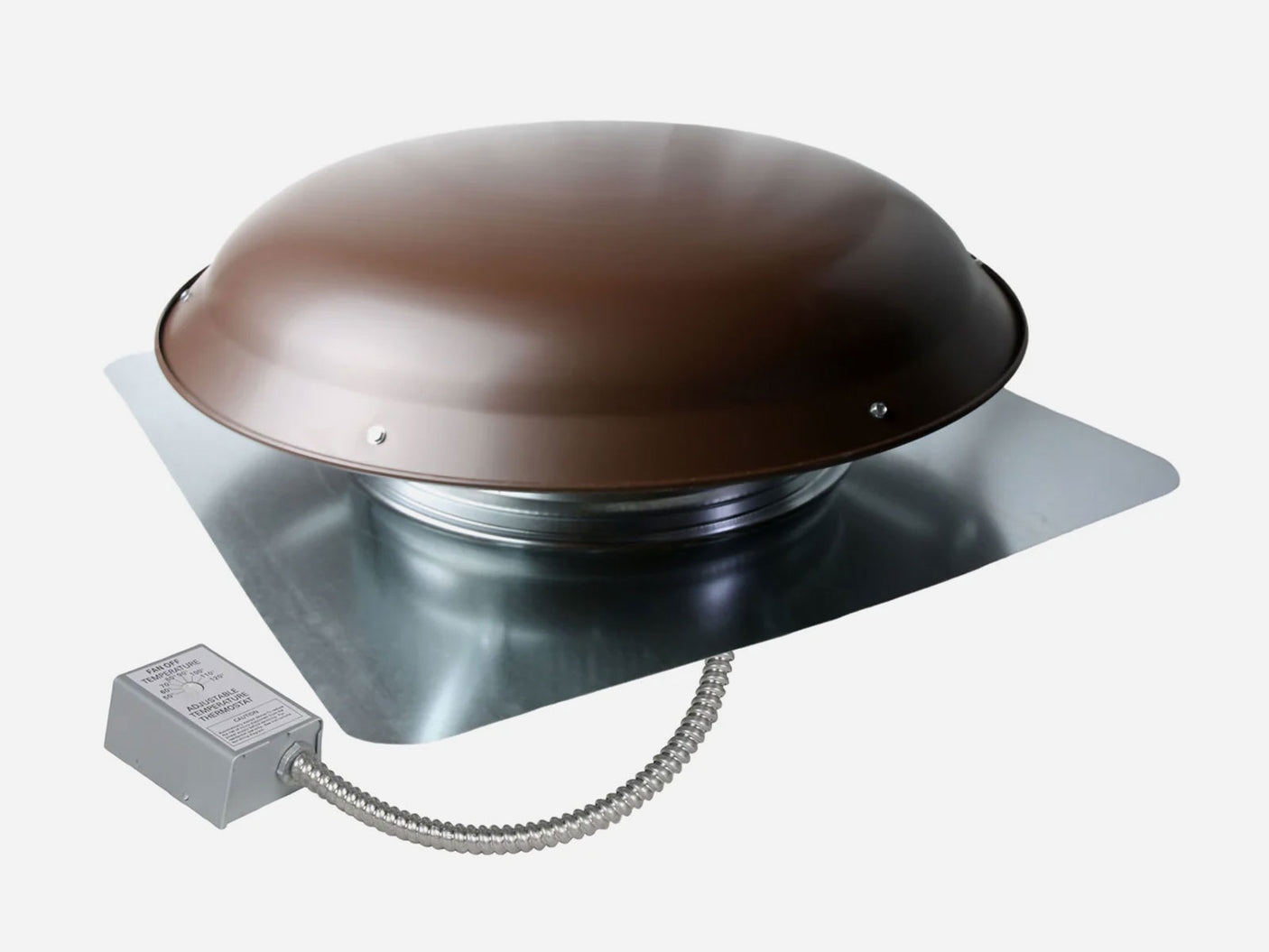

3000 Series 1,400 CFM Roof Mount Power Attic Ventilators

$293.11

Color: Weathered Gray
Material

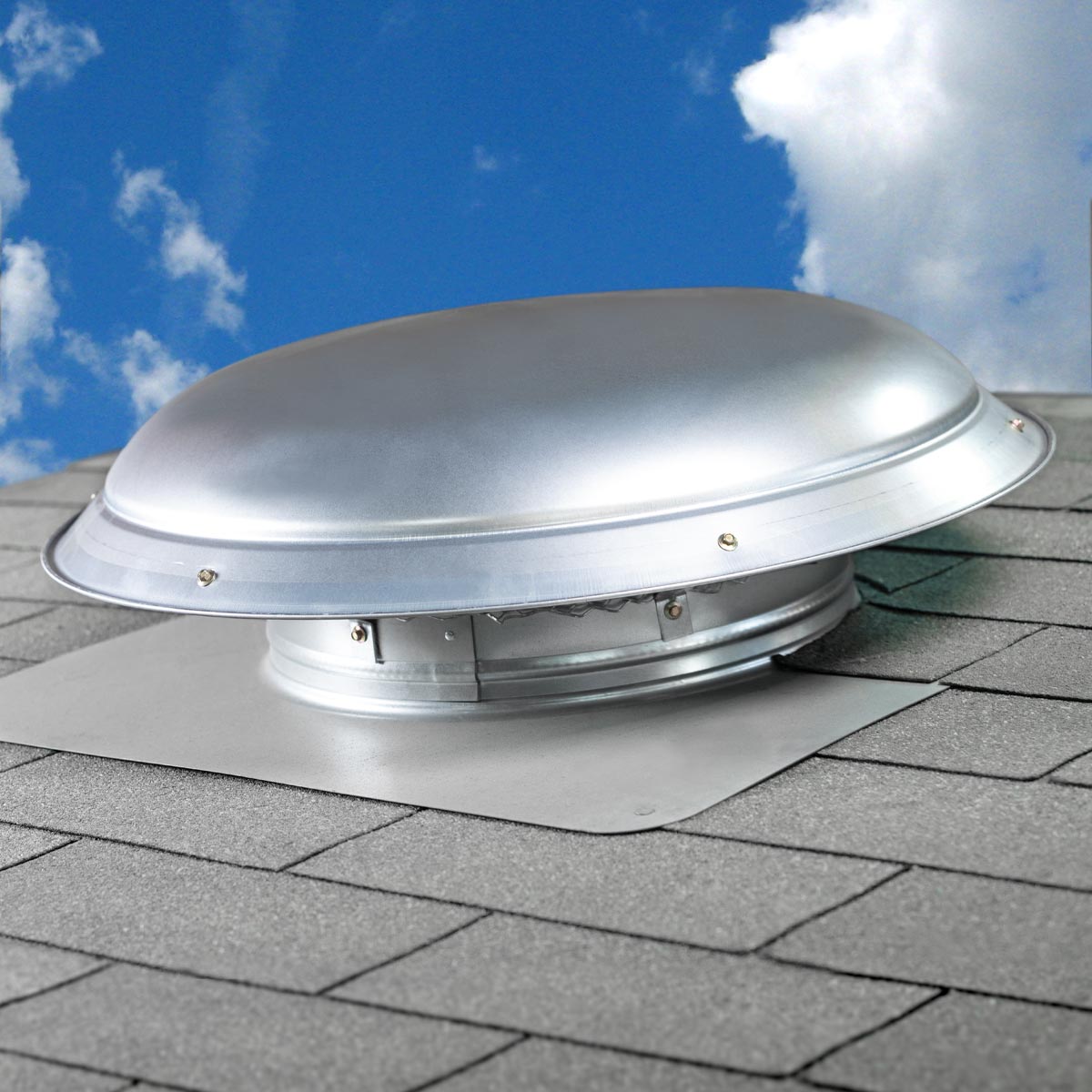

Maxx Air 3000 Series Power Attic Vents are built for ventilating residential attic spaces up to 2,000 sq. ft. The ventilator's low profile dome is aesthetically pleasing on the roofline, withstands impacting wind, debris, and hail, and has a galvanized steel mesh screen to protect against insects, birds, and rodents. Install is straightforward and requires no special tools to complete. This electric roof mount attic fan is designed to ventilate hot air from the attic and pull in cooler air through under eave or soffit vents, prolonging the life of composite roof shingles, helping to prevent weather-induced home deterioration, and making living areas more comfortable. Swap your pre-wired thermostat for a thermostat/humidistat combo (XXDUOSTAT) or add a rain guard (XXRAINGUARD) for installs on steeper roof pitches.

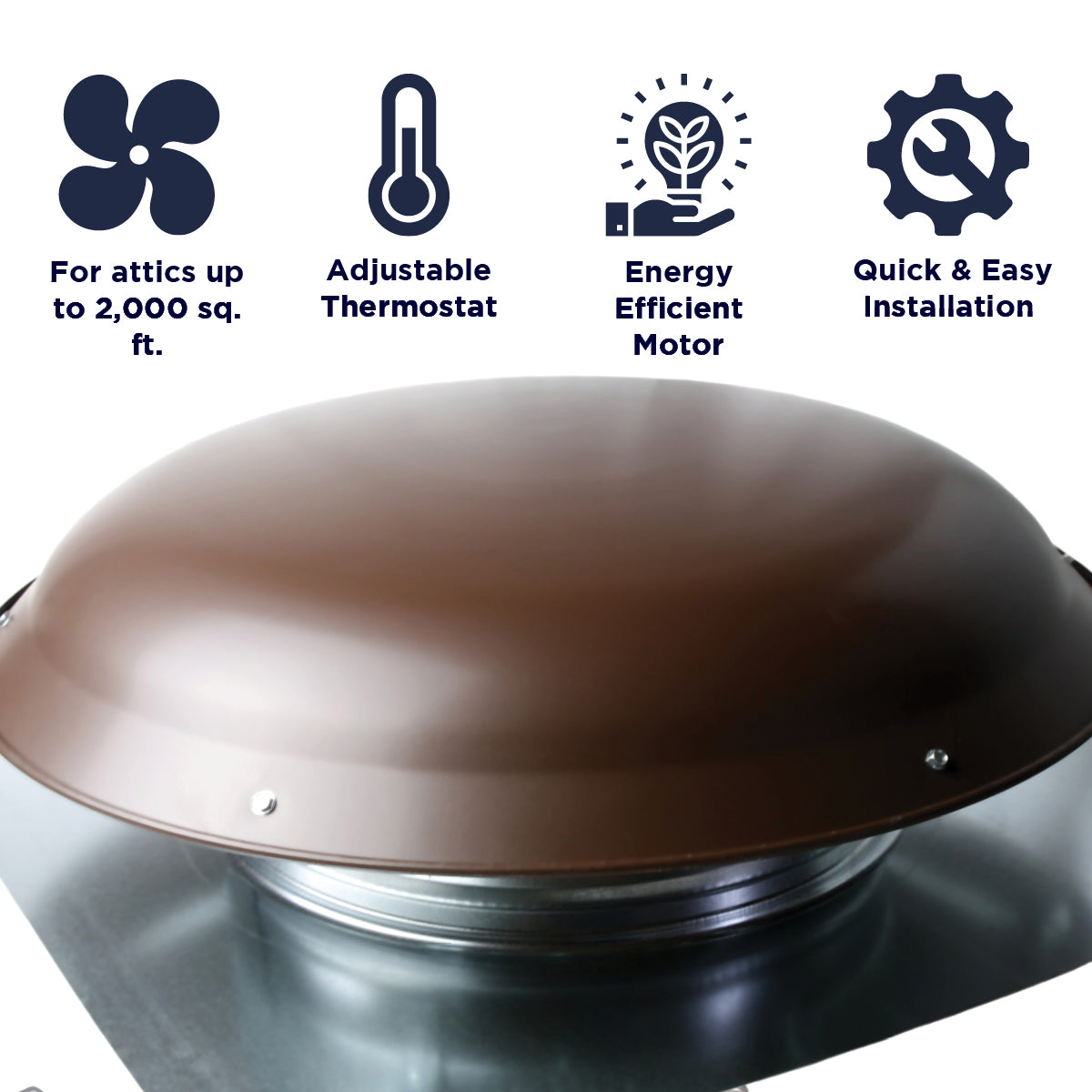

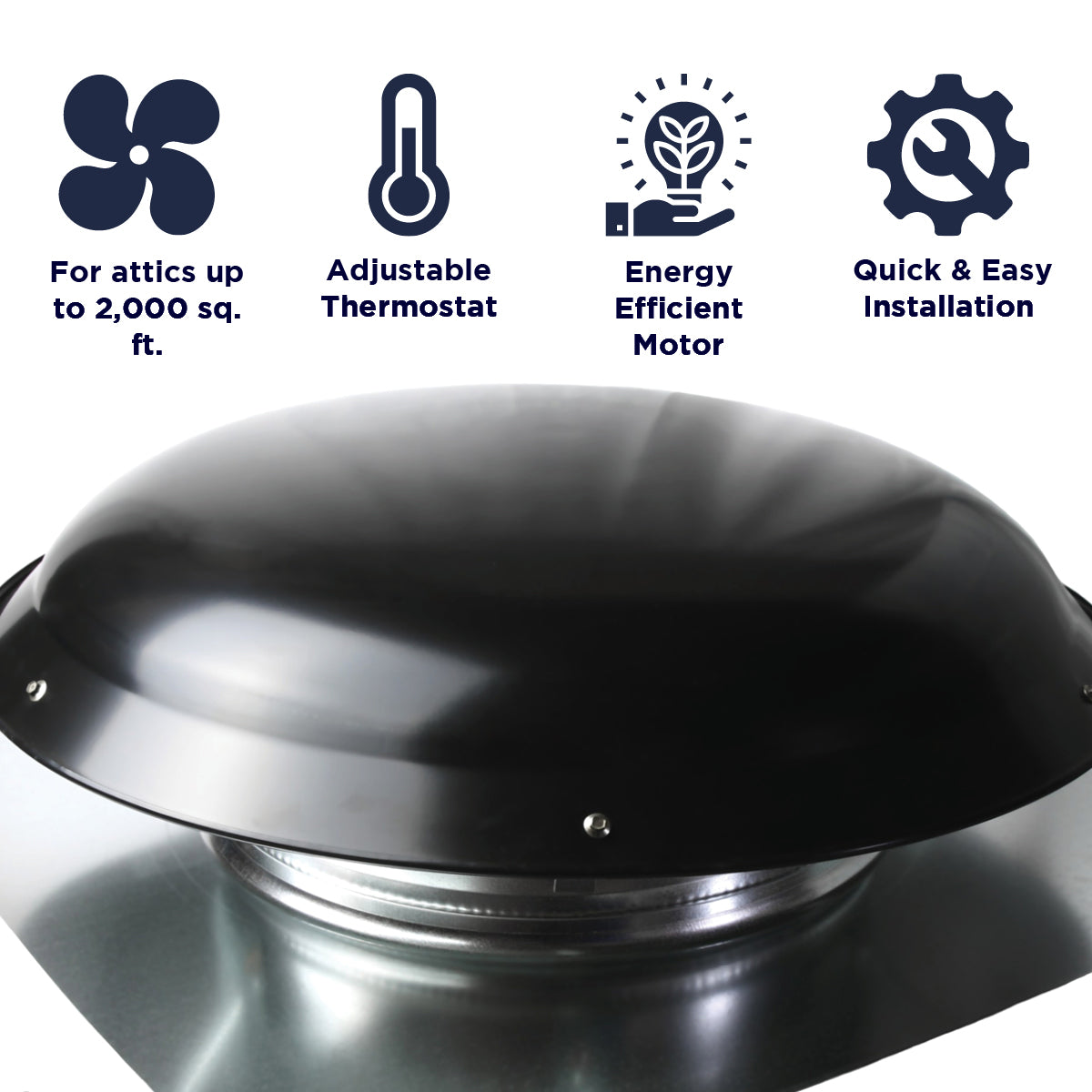

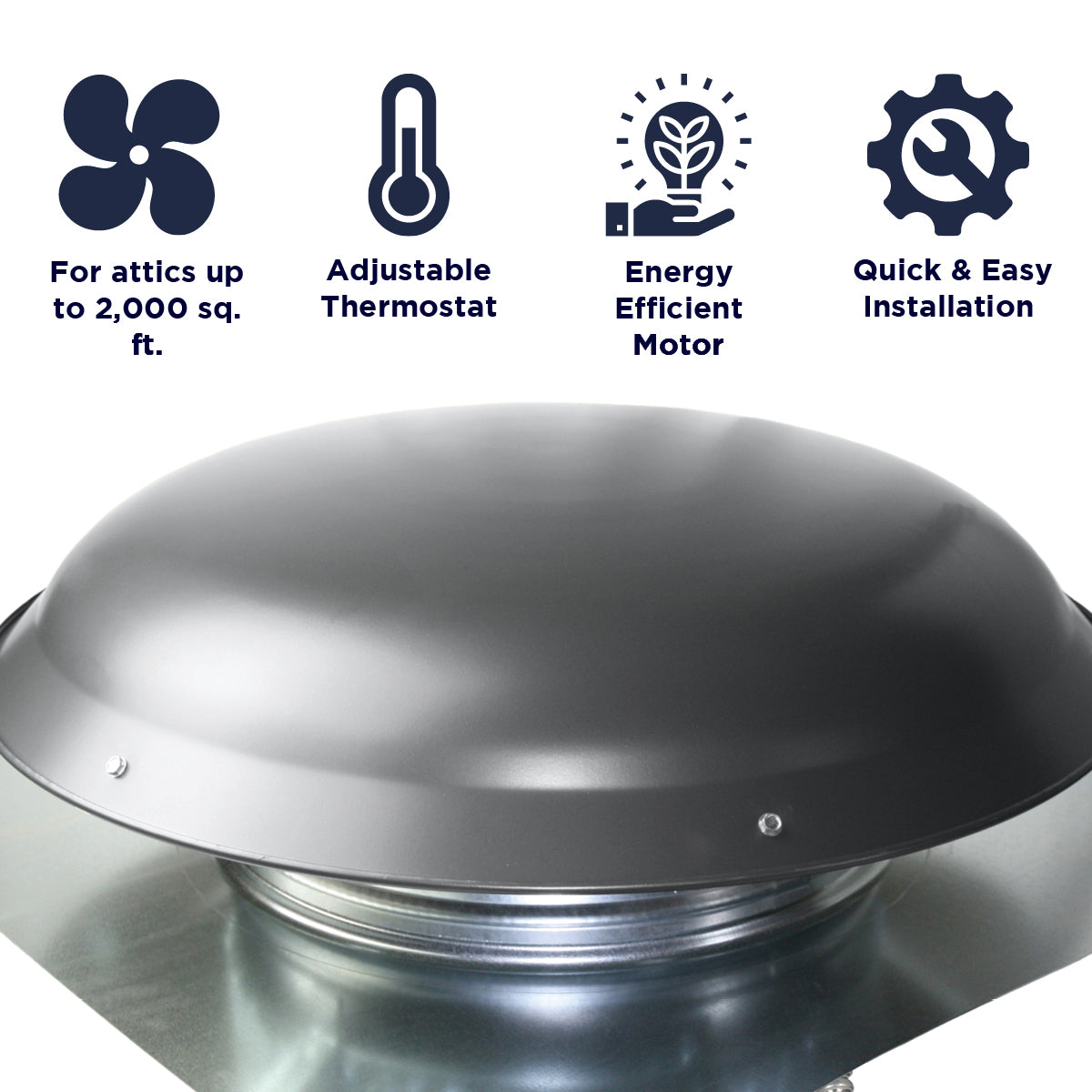

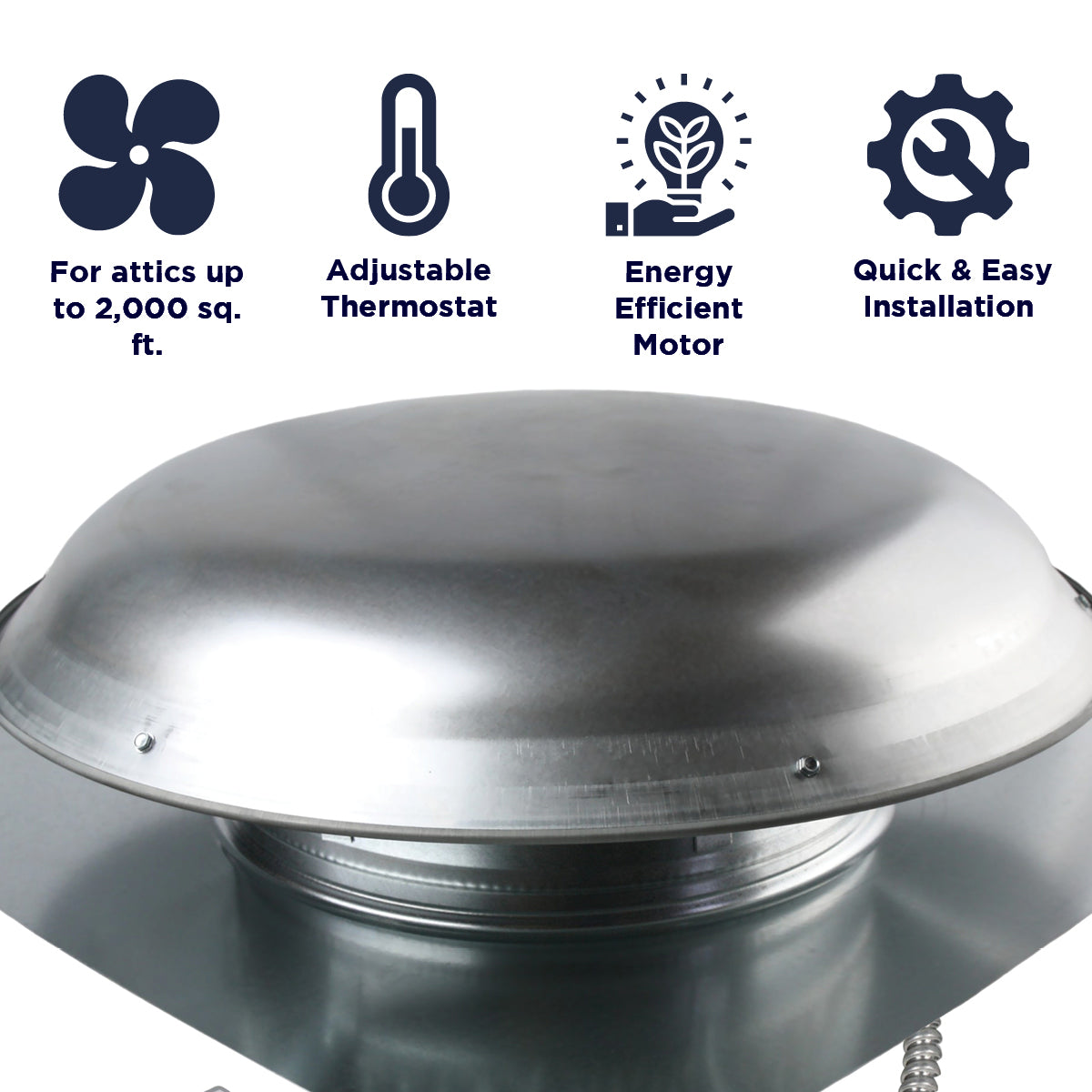

  • FOR ATTICS UP TO
    2,000 SQ. FT.

  • ADJUSTABLE
    THERMOSTAT

  • QUIET
    OPERATION

  • FACTORY ASSEMBLED FOR
    EASY INSTALL

Circulation:

Ventilates attic spaces up to 2,000 sq. ft.

Installation:

Factory assembled for easy install. Suitable for installs up to an 8/12 roof pitch.

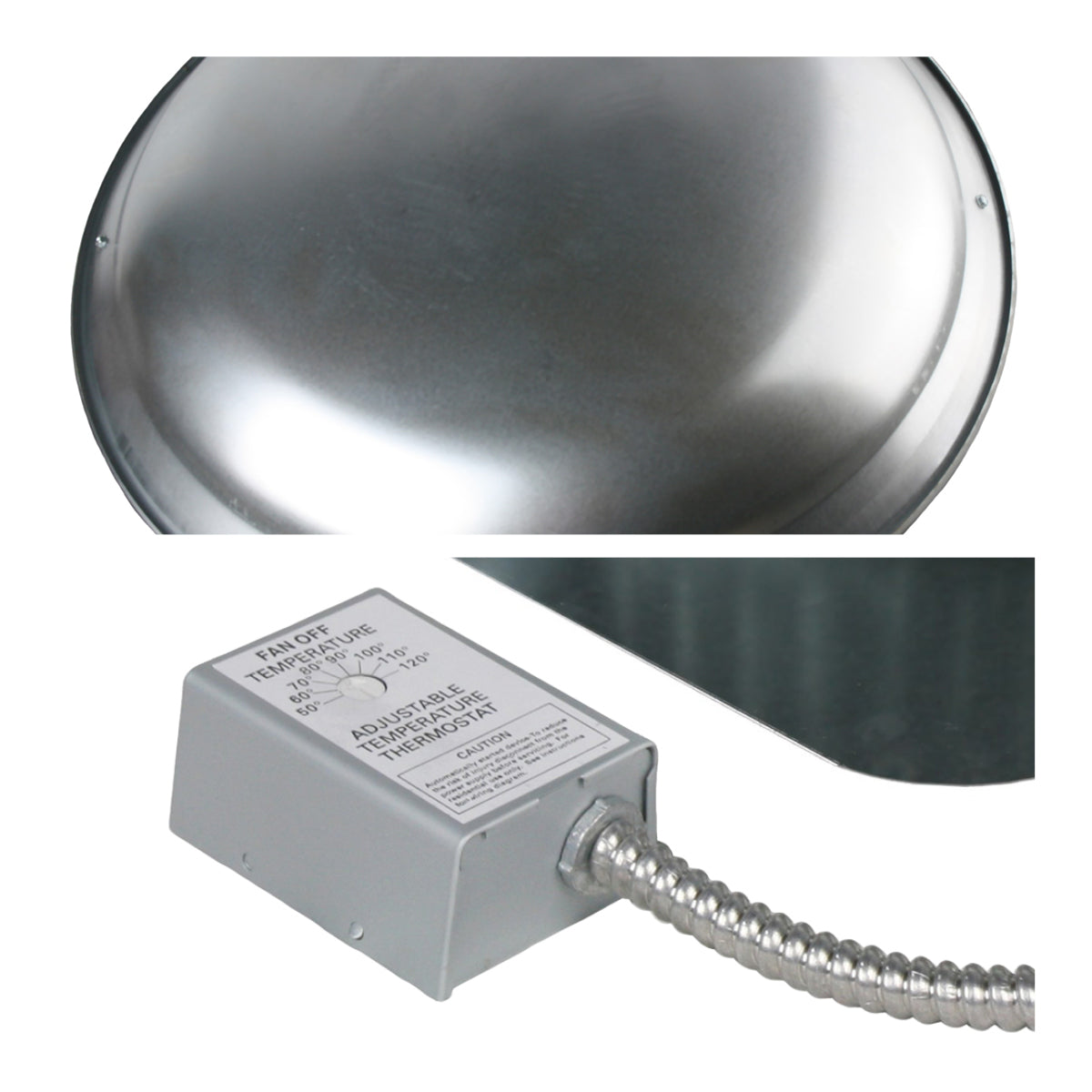

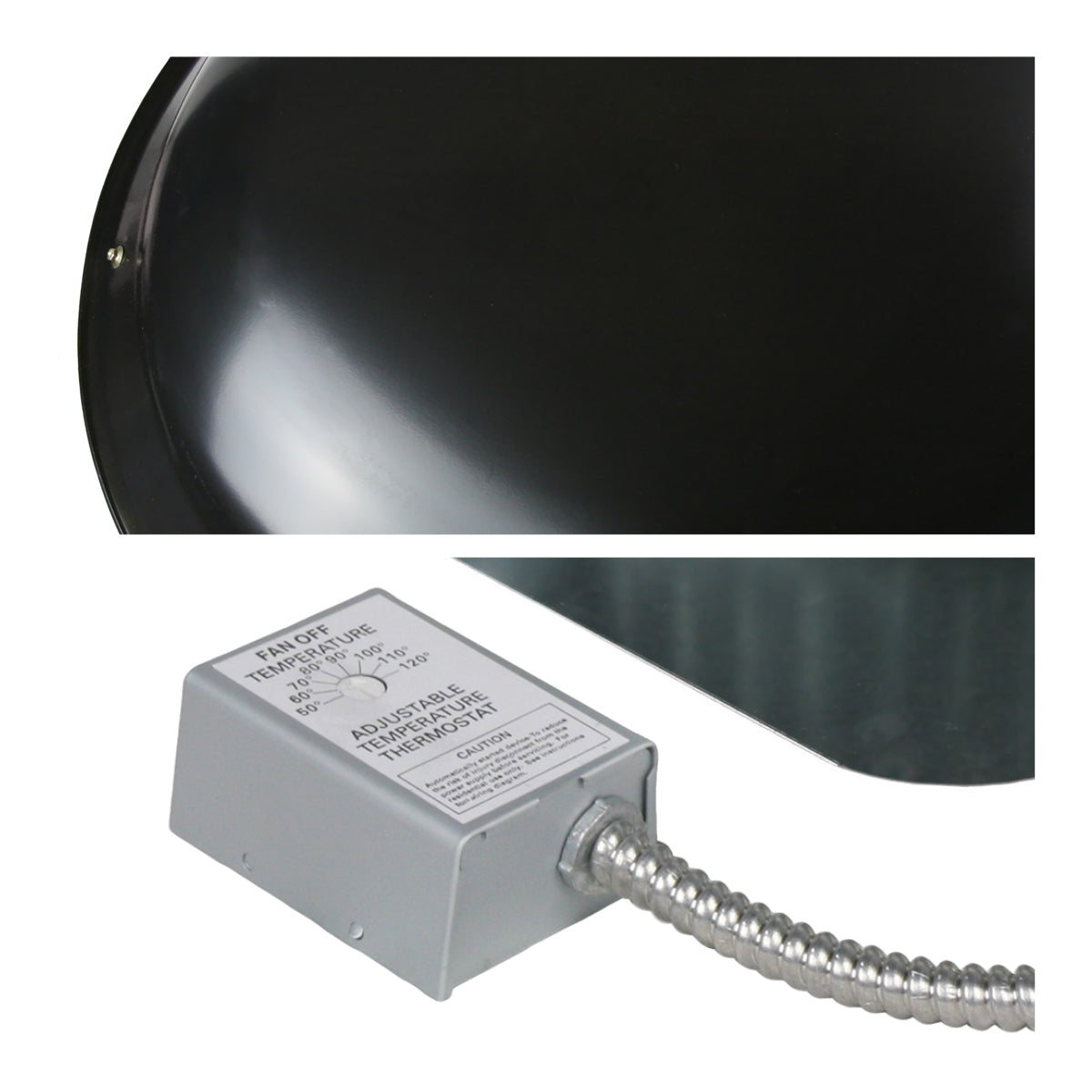

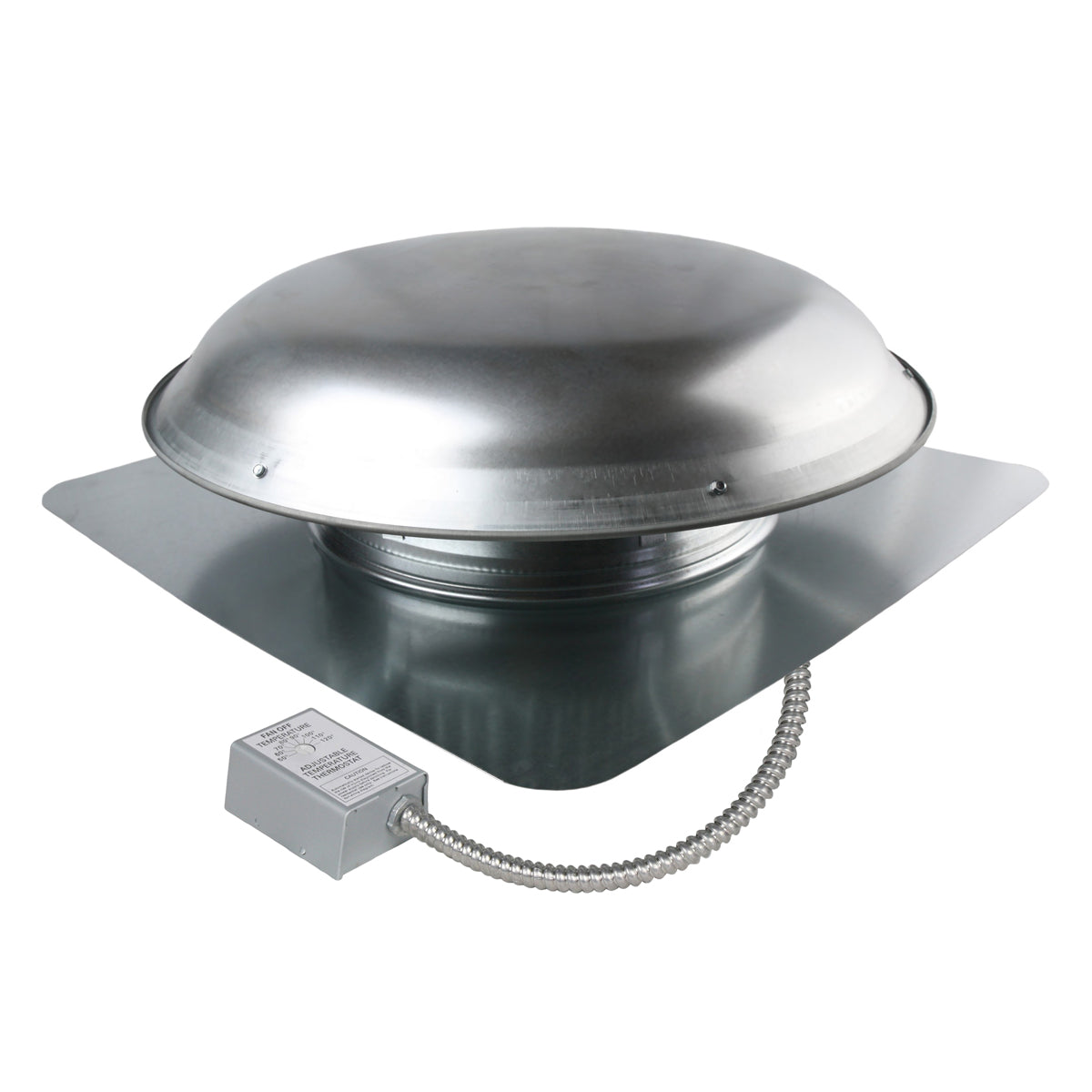

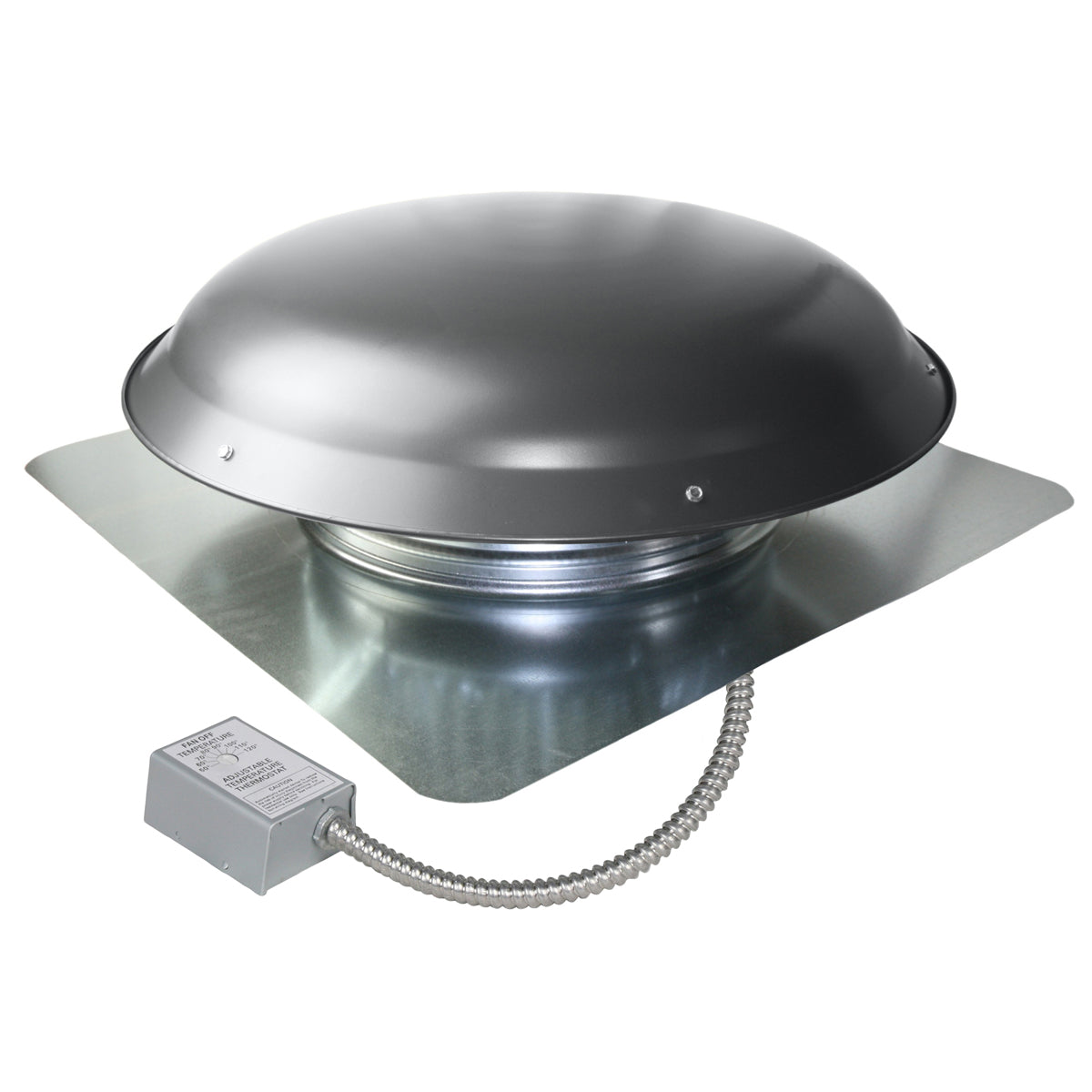

Thermostat or Timer:

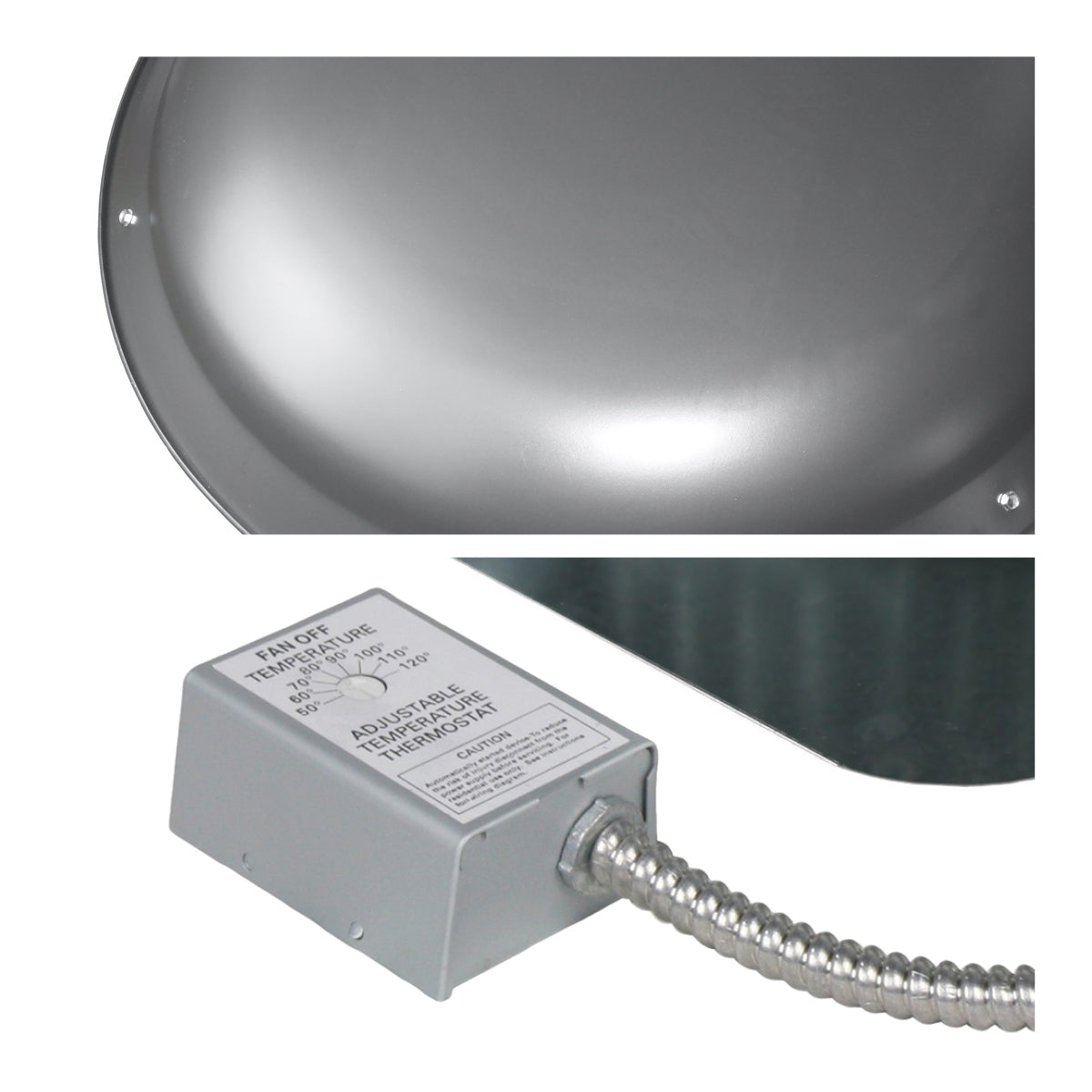

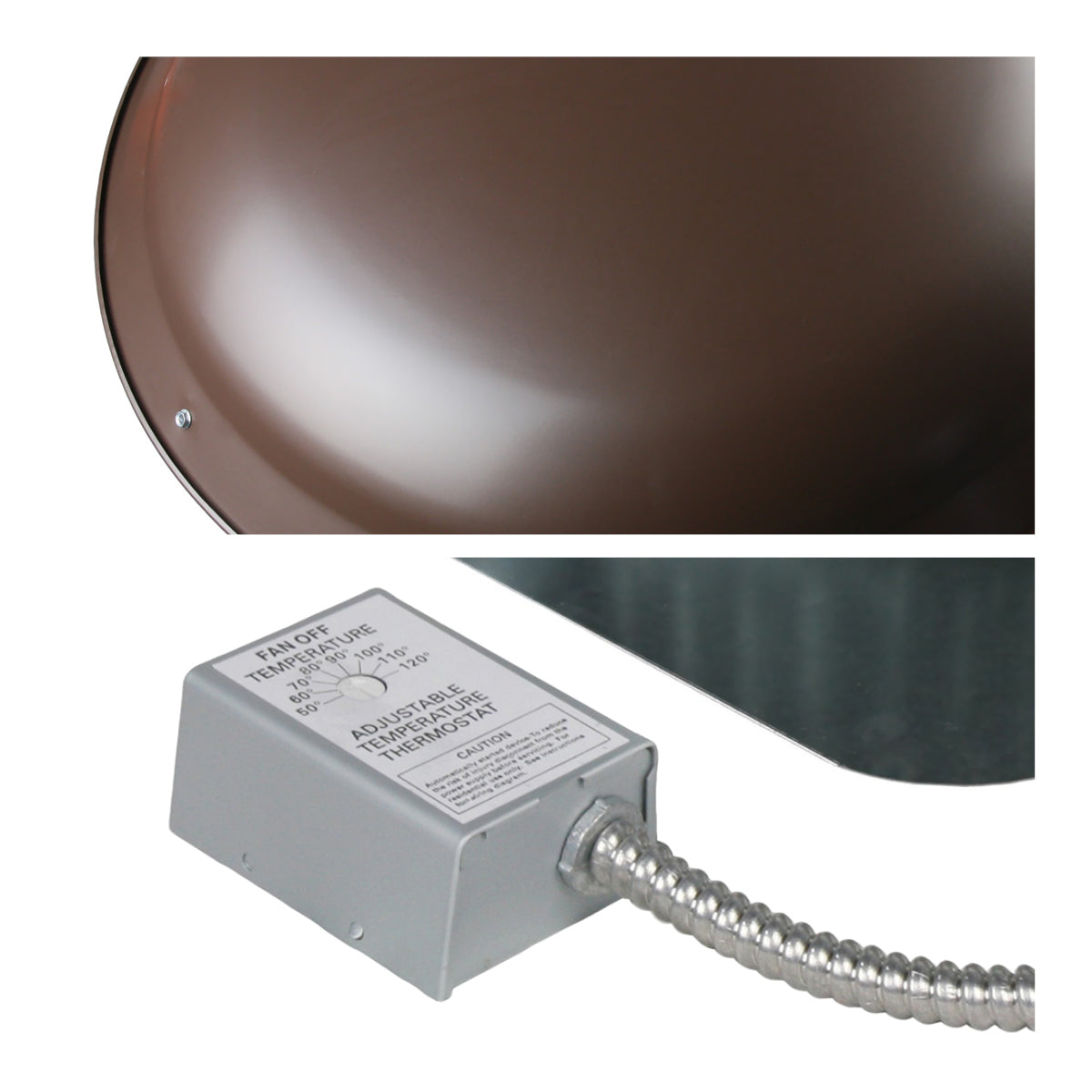

Adjustable thermostat settings from 50 - 120°F to run only when needed

Material:

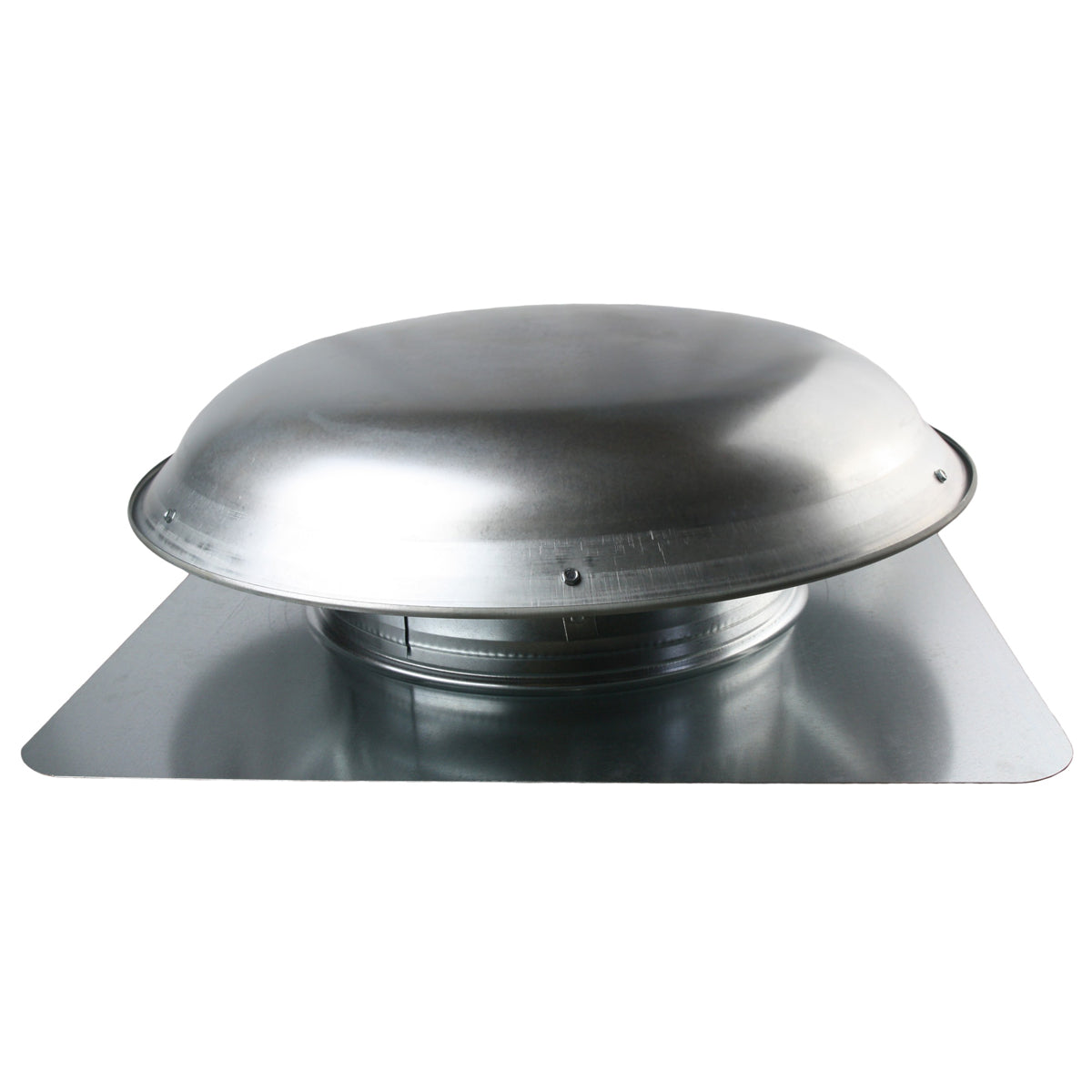

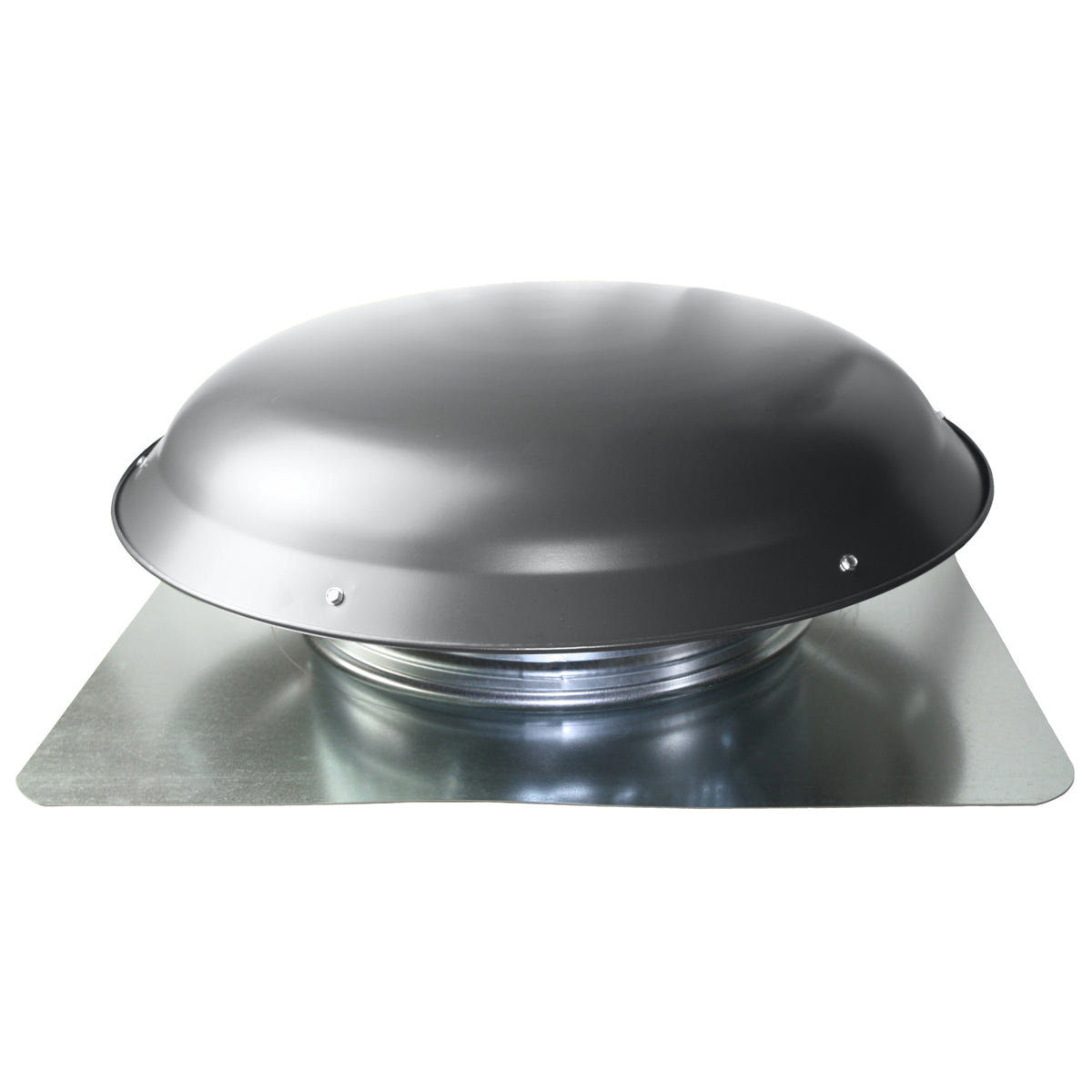

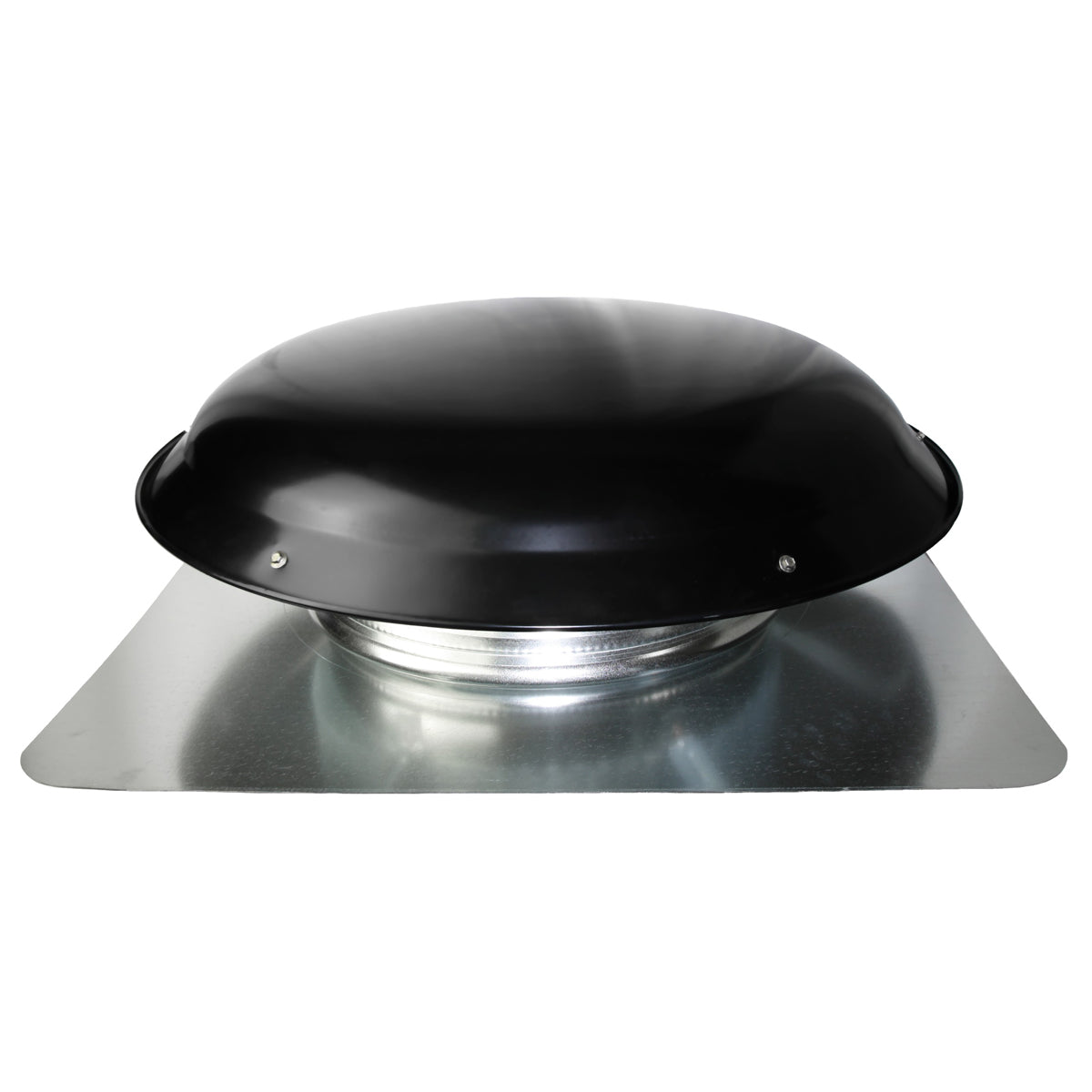

Low profile aluminum or steel dome with galvanized steel mesh screen and 6 anchor points for stability and wind resistance

Energy Efficiency:

Heavy-duty PSC motor keeps your home attic cooler and reduces air conditioning costs

Safety:

Requires 670 sq. in. of NFA intake ventilation

Primary Color

Mill, Black, Brown or Weathered Gray

Secondary Color

Mill

CFM

1,400

Material Details

Galvanized Steel or Aluminum Dome and Venturi

Motor Details

Energy Efficient PSC Motor

Motor Specs

Rated at 3 Amps

120 V, 60 Hz

Dimensions

9 in. H x 25.375 in. W x 25.375 in. D

26 in. Diameter Dome

Unit Weight

14.5 lbs. (Aluminum Unit)

18 lbs. (Galvanized Steel Unit)

Box Dimensions

26 in. H x 26 in. W x 9 in. D

Alias SKU(s)

STEEL

CX3000EEAM, VXNRGTAM: Mill, Printed Carton
CX3000EEAMBL, VXNRGTAMBL: Black, Printed Carton
CX3000EEAMBR, VXNRGTAMBR: Brown, Printed Carton
CX3000EEAMWG, VXNRGTAMWG: Weathered Gray, Printed Carton
CX3000EEAMWGUPS: Weathered Gray, Plain Carton

ALUMINUM

CX3000EEAA, VXNRGTAA: Mill, Printed Carton
CX3000EEAABL, VXNGRTAABL: Black, Printed Carton
CX3000EEAABR, VXNGRTAABR: Brown, Printed Carton
CX3000EEAAWG, VXNGRTAAWG: Weathered Gray, Printed Carton

Multi UPC Info
CX3000EEAM: 047242031119
CX3000EEAMUPS: 047242949339
CX3000EEAMBL: 047242051230
CX3000EEAMBR:047242051223
CX3000EEAMBRUPS: 047242949346
CX3000EEAMWG: 047242051216
CX3000EEAMWGUPS:047242949254


VXNRGTAM: 047242700039
VXNRGTAMBL: 047242750058
VXNRGTAMBR: 047242750041
VXNRGTAMWG: 047242750102

CX3000EEAA: 047242580006
CX3000EEAABL: 047242580020
CX3000EEAABR: 047242580013
CX3000EEAAWG: 047242580037

VXNRGTAA: 047242750072
VXNGRTAABL: 047242750096
VXNGRTAABR: 047242750089
VXNGRTAAWG: 047242750065

Country of Origin - Assembly

US from Domestic and Imported Components

Sold Under

Maxx Air, Cool Attic, Ventamatic

ENERGY SAVING DESIGN

An attic fan running all day can quickly eat into your pocketbook, which is why all electric Maxx Air roof mount fans have a pre-wired thermostat to give you control over when your fan runs.

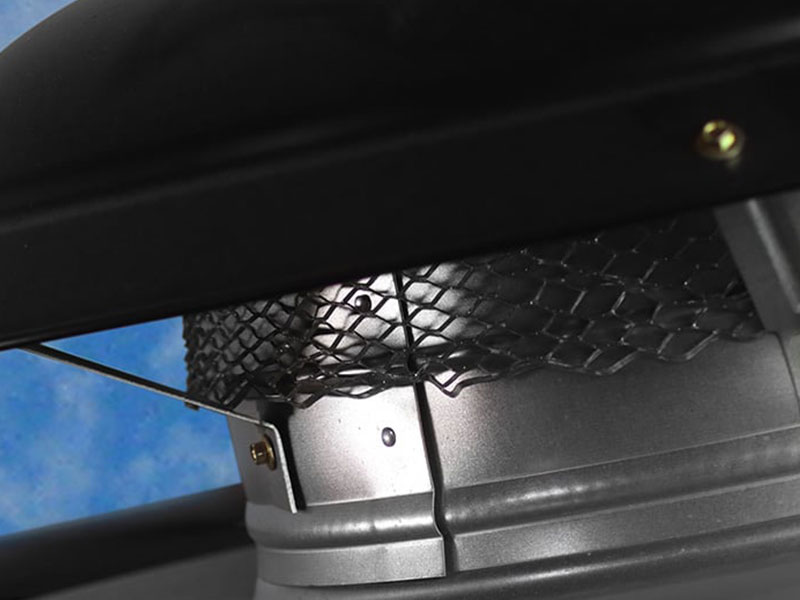

BUILT-IN MESH SCREEN

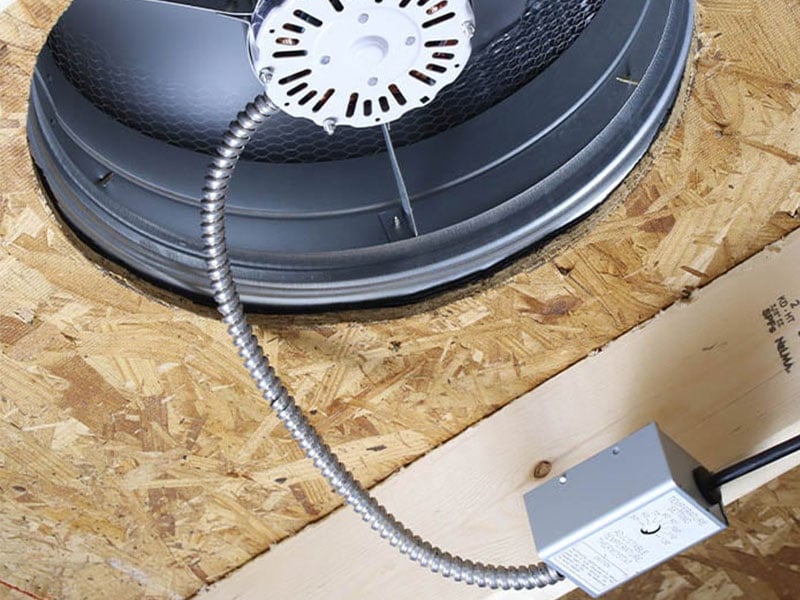

Pests can wreak havoc in your attic, damaging electrical wiring, insulation, and other critical components of your home. All Maxx Air roof mount power attic vents come standard with a built-in metal screen to keep insects, birds, and rodents at bay.

Offers Year-Round Home Benefits

Creating a balanced attic ventilation system is necessary for the overall health of any home. When your attic space is properly ventilated, your air conditioner runs less in the summer, your roof shingles last longer, and your attic insulation is further protected from mold and mildew. A Maxx Air roof mount fan is one component that can help you reach this goal.
