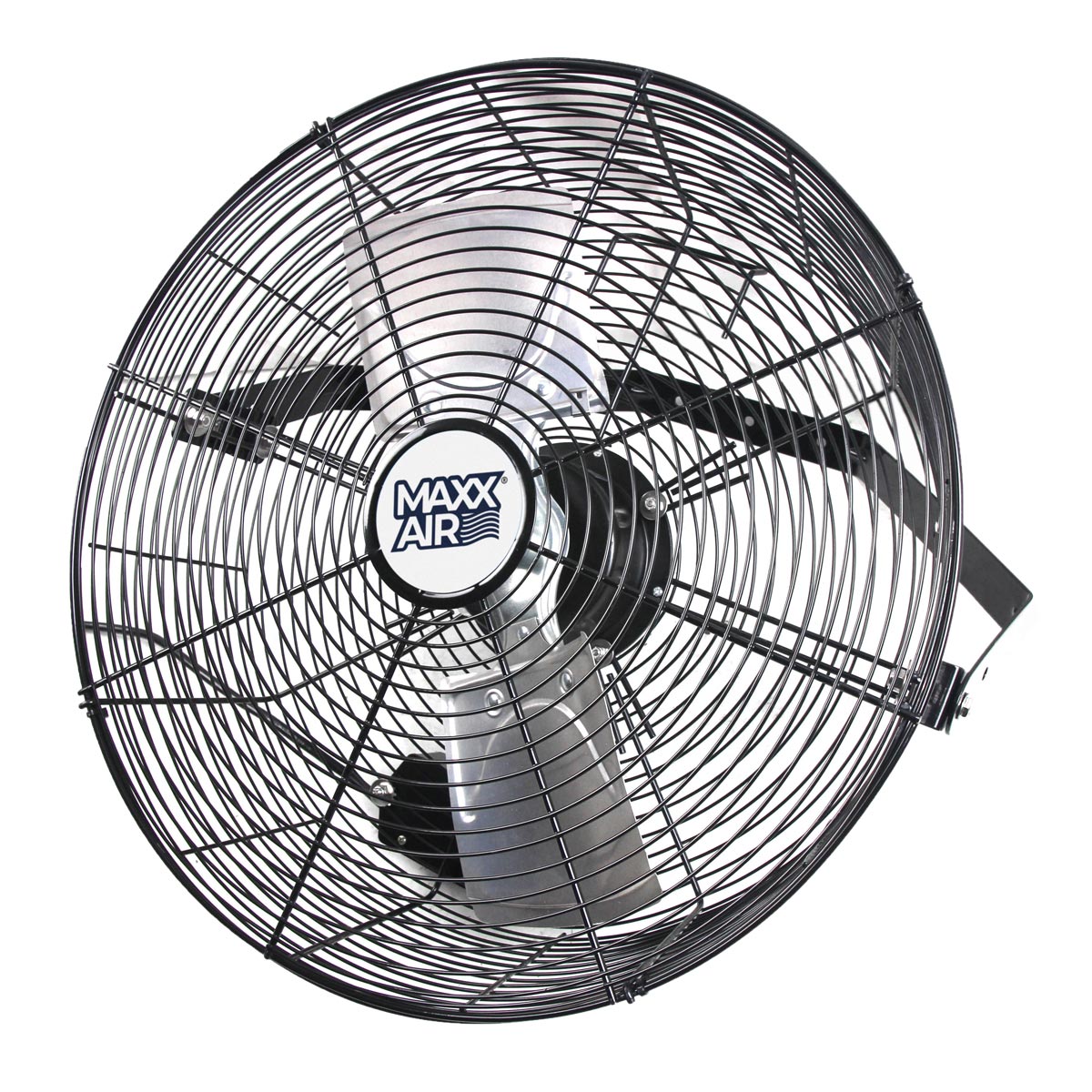

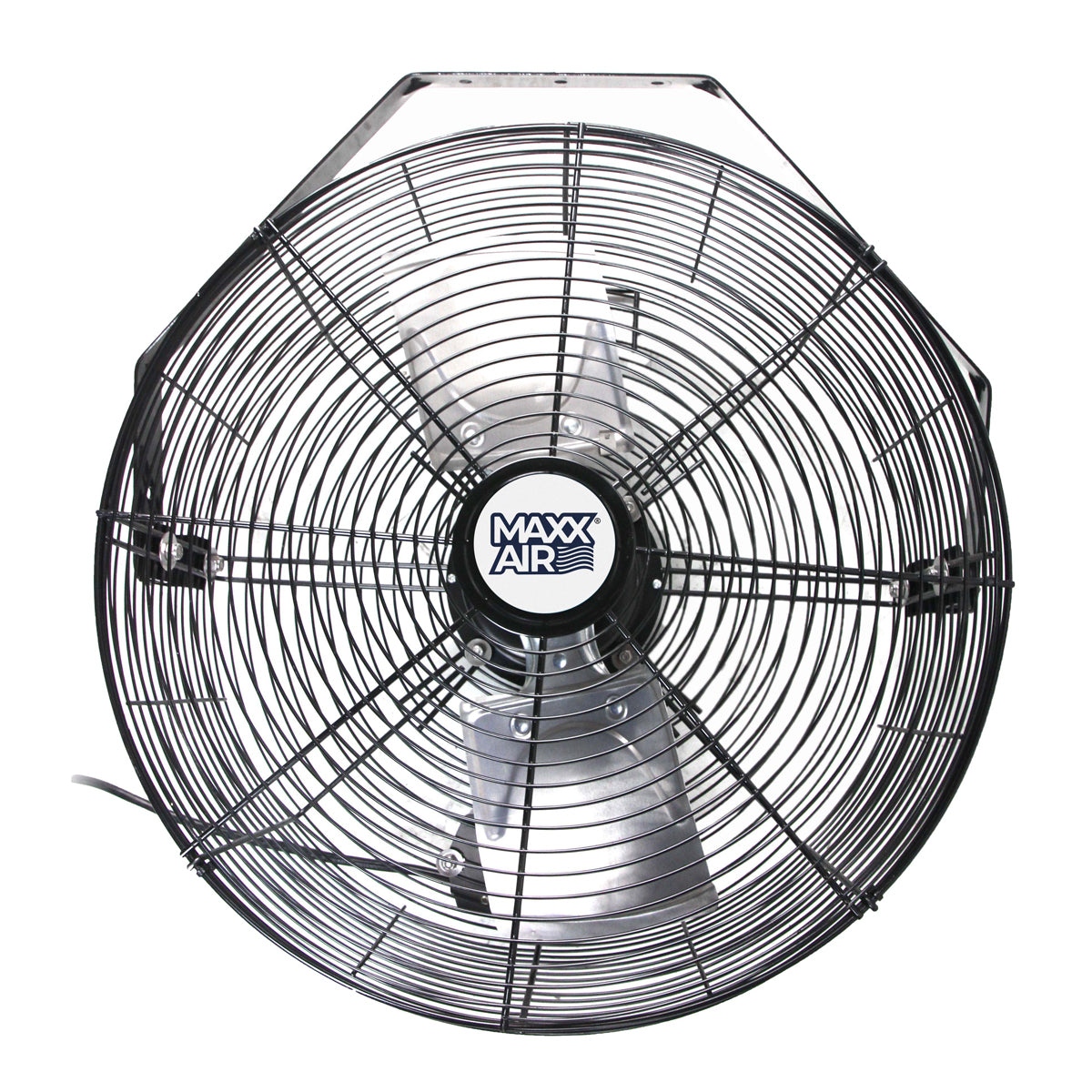

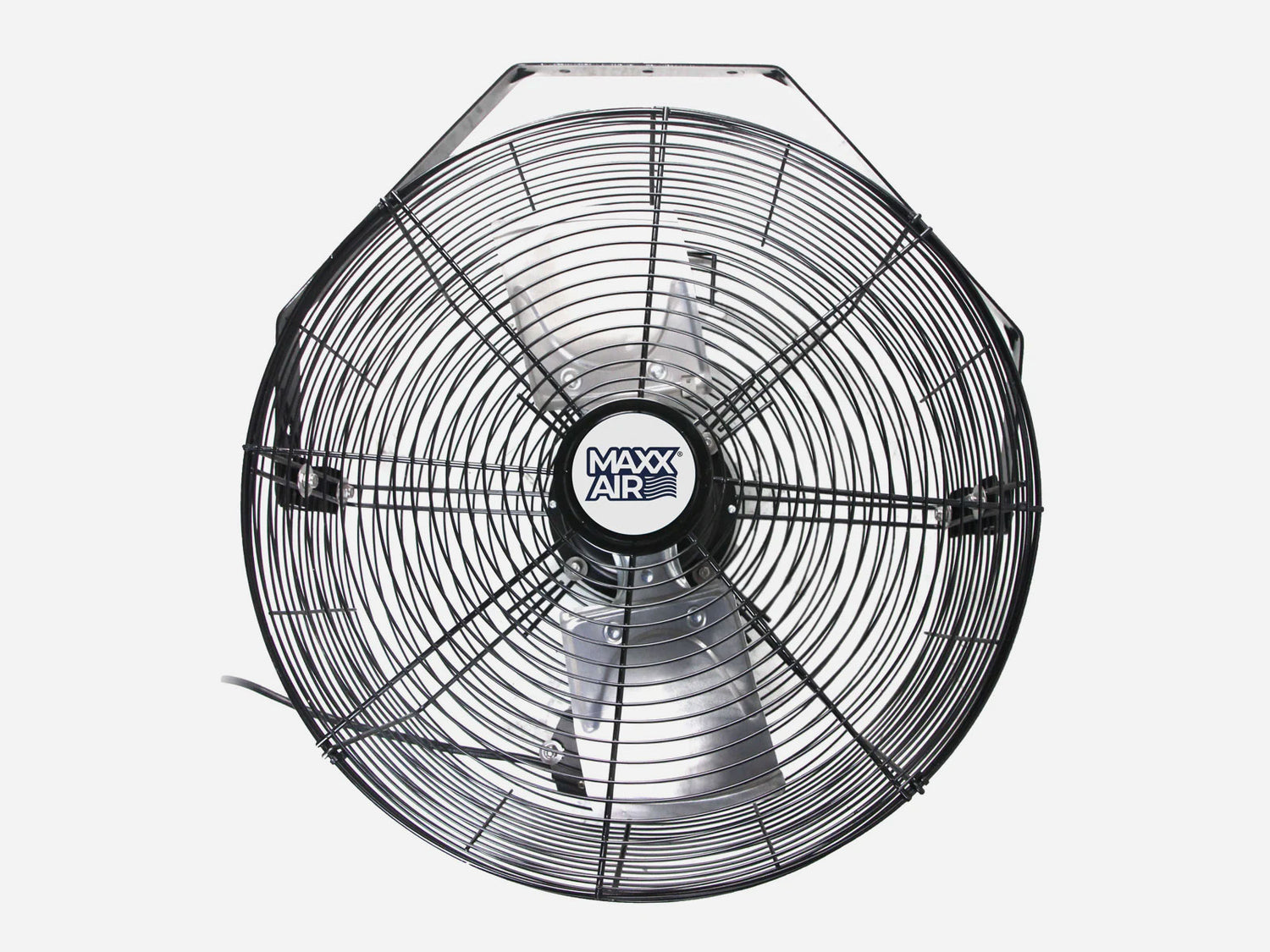

Front of the 18 in. wall mount fan with powder-coated steel construction in black finish.

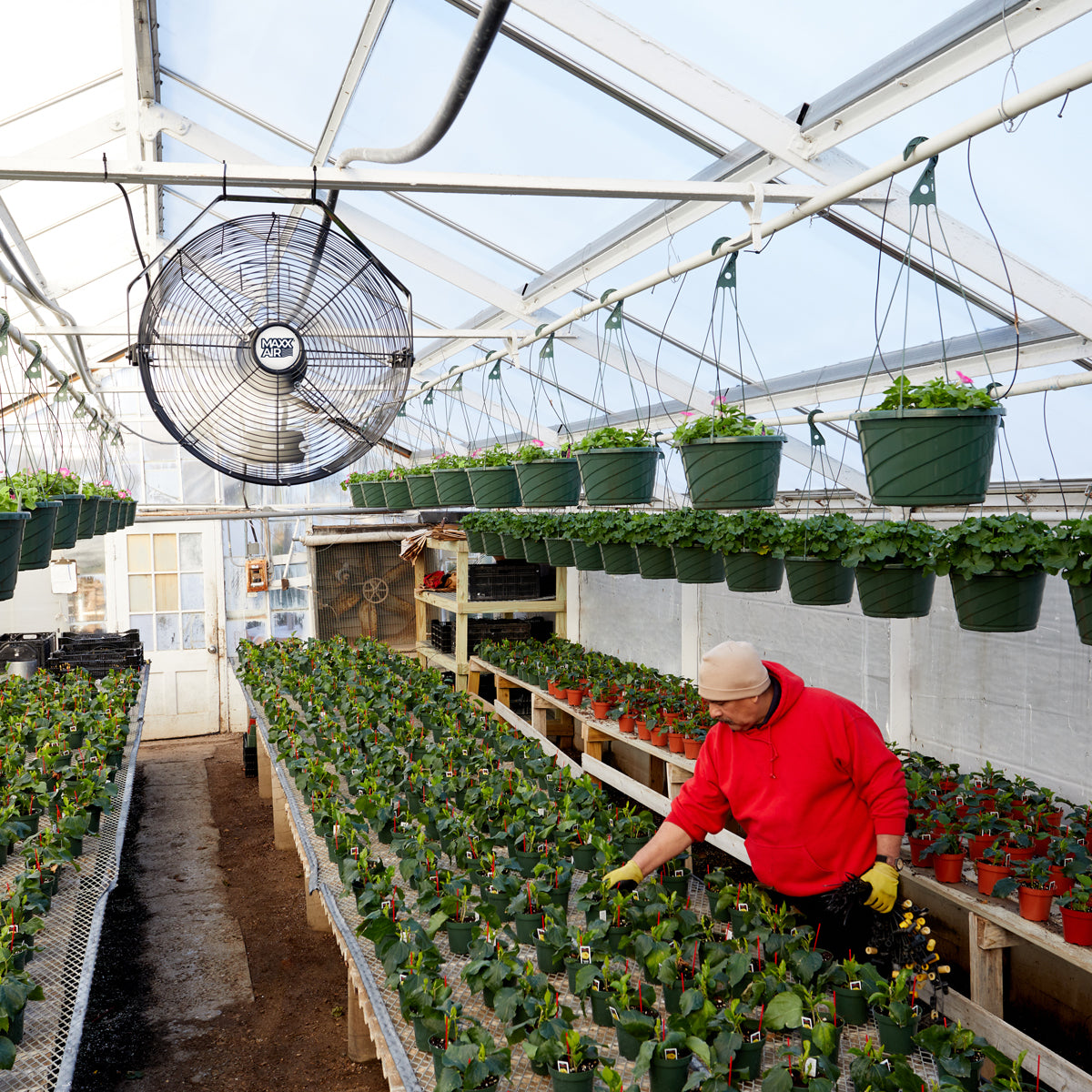

The 18 in. cooling fan aids in temperature control in a greenhouse where humidity can be high.

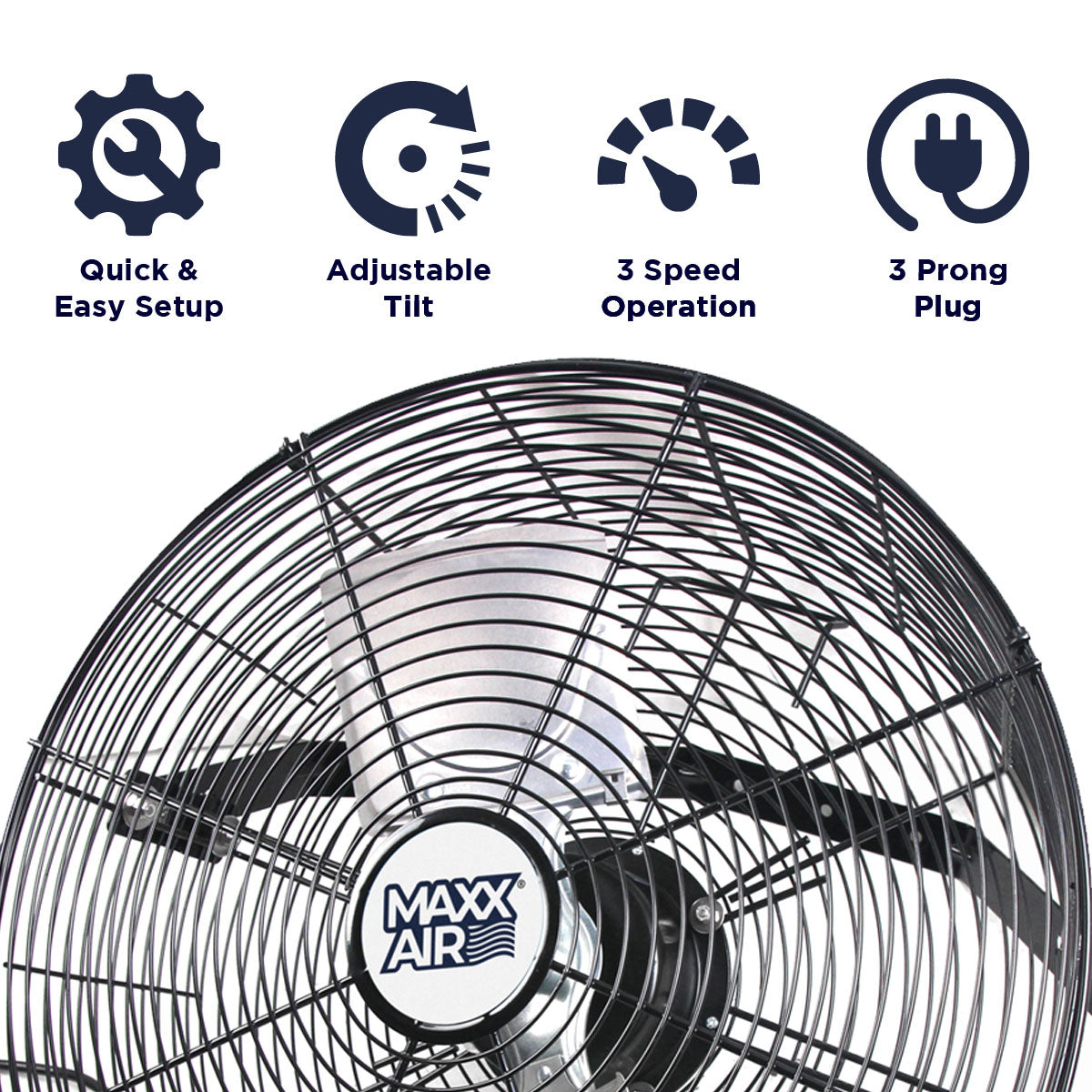

Features of the HVWM 18CD include quick and easy setup, adjustable tilt, 3 speed operation, and a 3 prong electric plug.

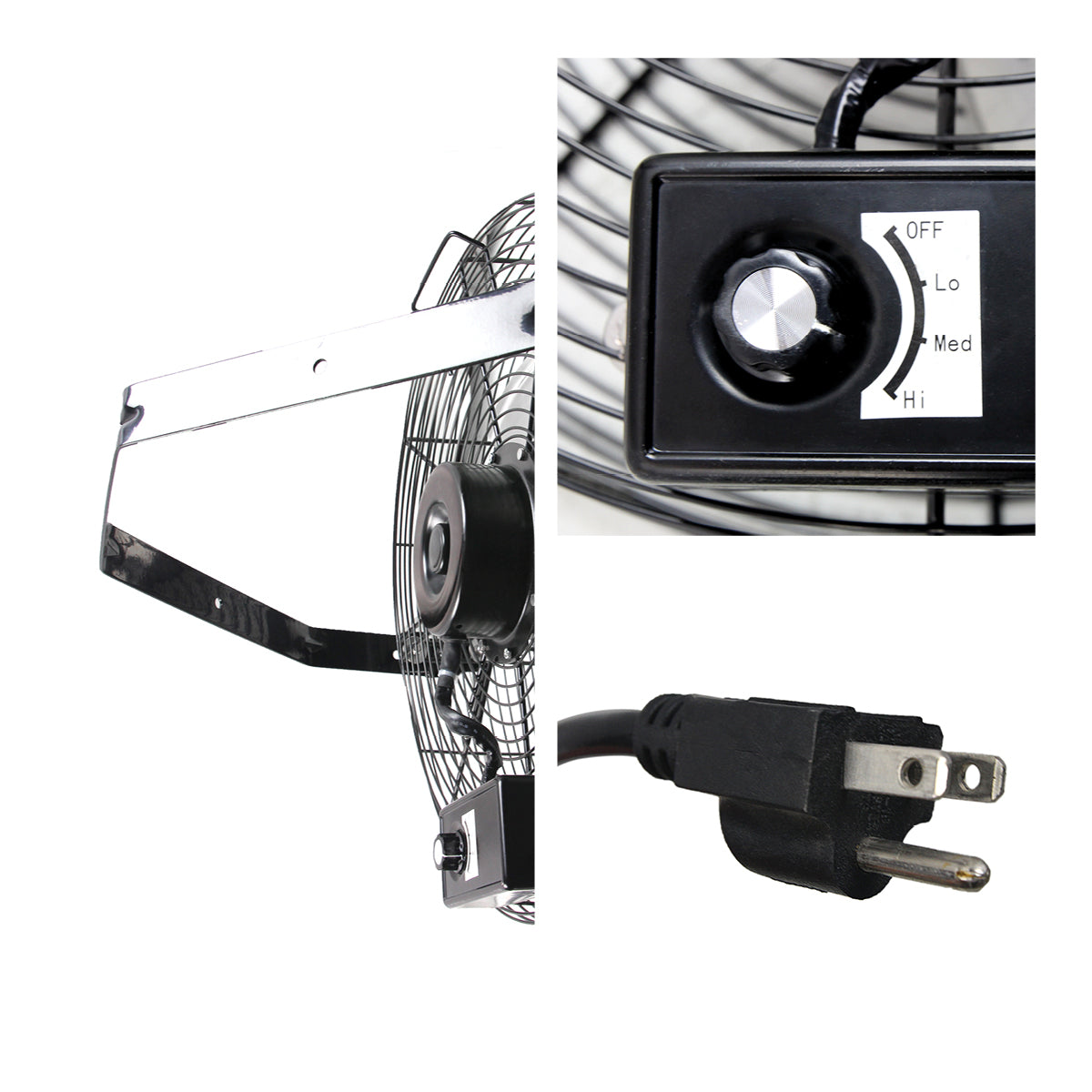

Detailed close-up of the hanging bar, rotary switch, and plug on the ceiling or wall mountable fan.

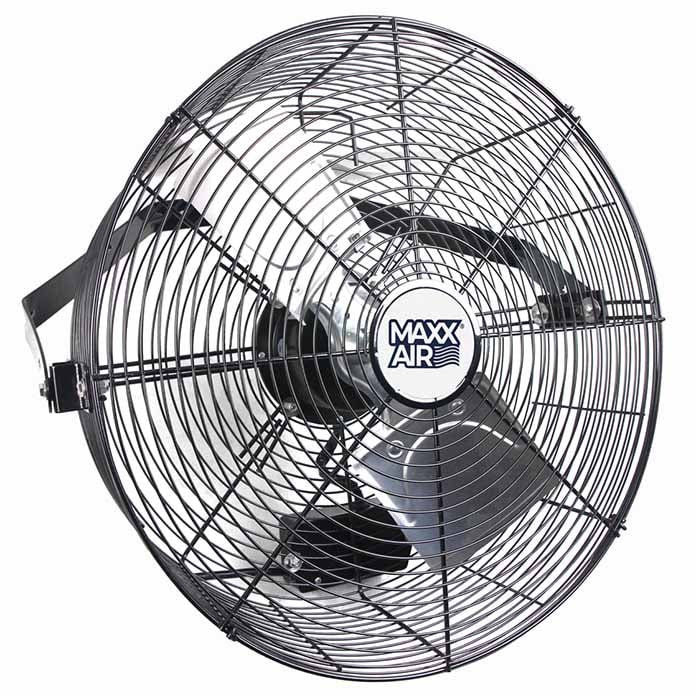

Right side angled view of the 18 in. high velocity fan.

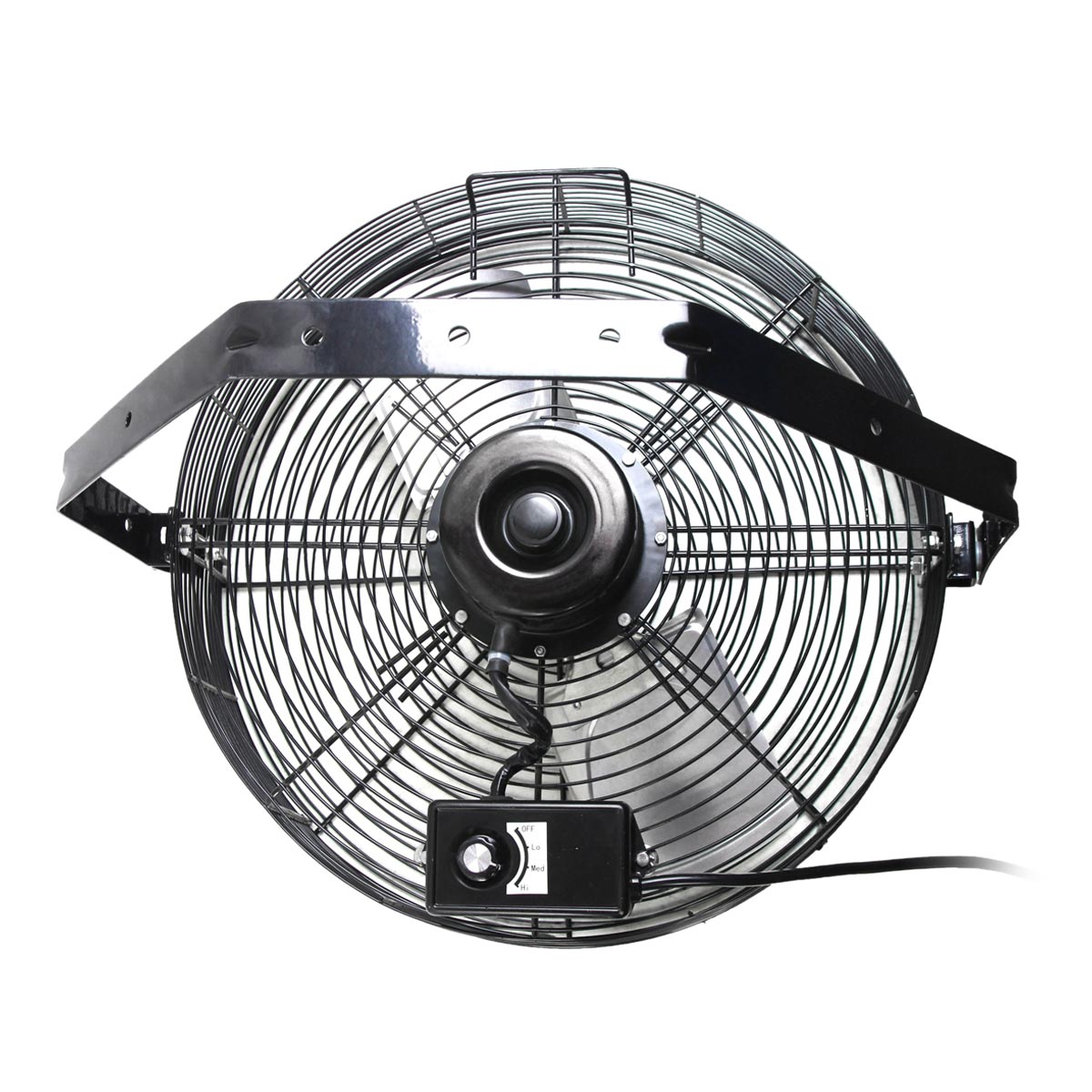

Back of the 18 in. heavy duty shop fan showing the mounting bracket and motor switch with enclosed motor.

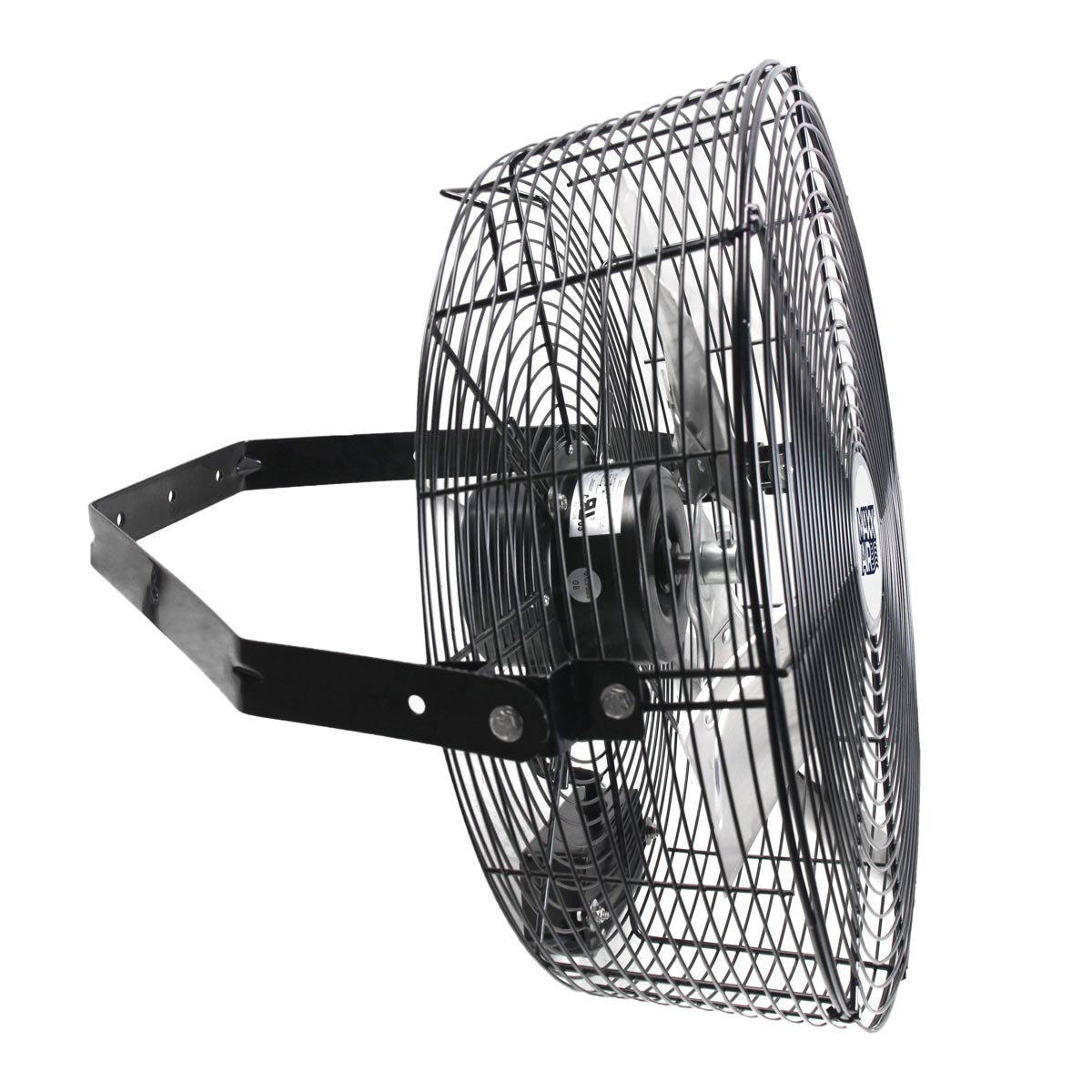

Left side profile view of the tilting wall fan.

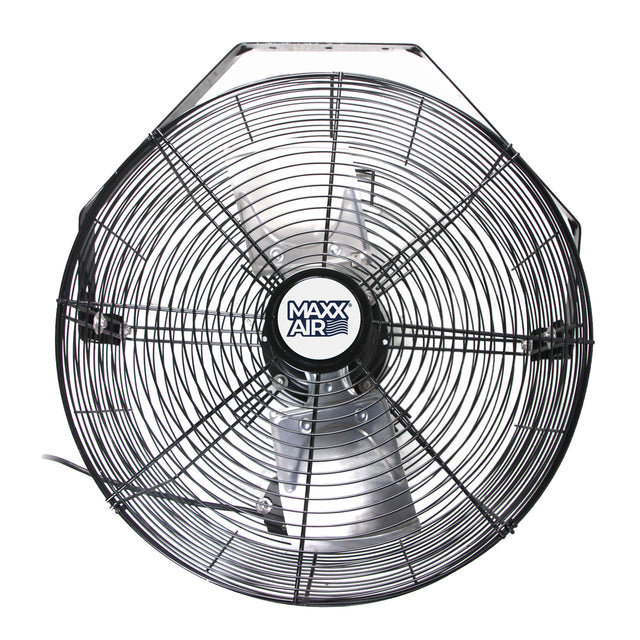

Front of the 18 in. wall mount fan with powder-coated steel construction in black finish.
The 18 in. cooling fan aids in temperature control in a greenhouse where humidity can be high.
Features of the HVWM 18CD include quick and easy setup, adjustable tilt, 3 speed operation, and a 3 prong electric plug.
Detailed close-up of the hanging bar, rotary switch, and plug on the ceiling or wall mountable fan.
Right side angled view of the 18 in. high velocity fan.
Back of the 18 in. heavy duty shop fan showing the mounting bracket and motor switch with enclosed motor.
Left side profile view of the tilting wall fan.

18 In. 3-Speed Tilting Wall Mount Fan for Heavy-Duty Use

$169.99
Plug

DESCRIPTION:

This 18 In. High Velocity Wall Mount Fan is a great choice for a large barn, workshop, garage, factory, commercial warehouse, or gym where industrial grade air circulation is required. It's built tough with a powder-coated steel housing in black finish and features a totally enclosed motor to prevent dust and other particles from clogging and damaging the motor and other critical components. This ensures a longer life in the field in challenging indoor locations. The electric wall fan arrives to you fully assembled for your convenience—it's mountable on a wall or ceiling to save your floor space, and takes advantage of 3 powerful speeds operated via rotary switch on the rear grille. Ensure the airflow is properly dispersed through your space with 180° of tilt. Choose between a 3 prong plug model for typical indoor situations or a GFCI plug to operate safely in covered locations like a restaurant or home patio.

PERFECT FOR:
  • Agriculture

  • Automotive

  • Commercial

  • Fitness

  • Home

  • Industrial

  • Livestock

  • Restaurant

  • 3,500 CFM HIGH

  • 3-SPEED ROTARY
    WITH OFF SWITCH

  • QUICK & EASY
    INSTALLATION

  • POWDER-COATED
    STEEL CONSTRUCTION

Circulation:

High velocity airflow up to 3,500 CFM on high

Adjustability:

Fan head tilts up to 180°

Installation:

Rugged hanging bar for wall or ceiling mount installations

Controls:

3 speed operation via rotary switch

Material:

Powder-coated steel construction

Use:

For indoor usage

Energy Efficiency:

Totally enclosed, energy efficient PSC motor

Safety:

OSHA compliant grilles

Primary Color

Black

Secondary Color

Mill

CFM

Up to 3,500

Material Details

Powder-Coated Steel

Motor Details

3-Speed Totally Enclosed, Thermally-Protected, Dust-Proof, and Energy Efficient PSC Motor

Motor Specs

1/3 HP

3.6 A

120 V, 60 Hz

1,480 RPM

Power Cord Length

7.5 ft.

Dimensions

23.25 in. H x 23.75 in. W x 8.75 in. D

Unit Weight

22.5 lbs.

Box Dimensions

23.25 in. H x 25 in. W x 9.5 in. D

Ship Weight

26.7 lbs.

Alias SKU(s)

HVWM 18CD: Fan with Standard Plug

HVWM 18CD GFCI: Fan with GFCI Plug

Multi UPC Info

HVWM 18CD: 047242950403

HVWM 18CD GFCI: 047242950540

Country of Origin - Assembly

US from Domestic and Imported Components

Sold Under

Maxx Air

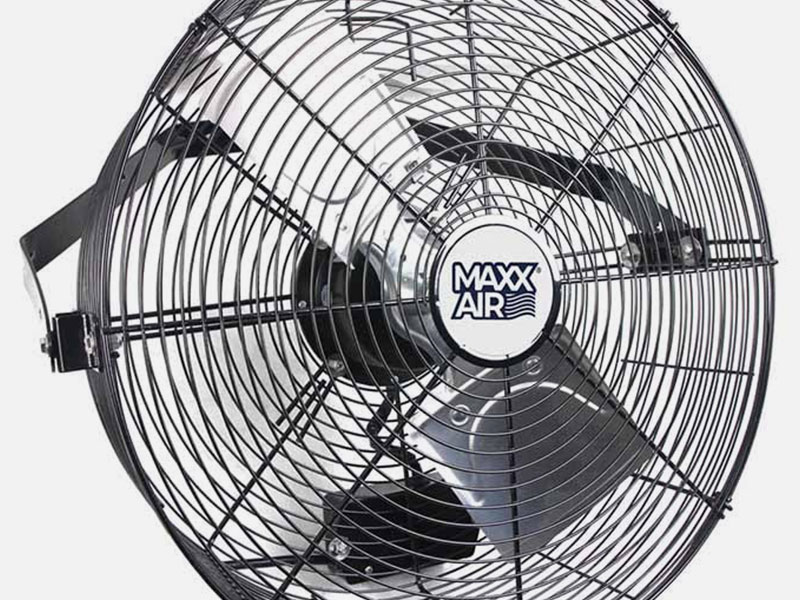

HEAVY-DUTY CONSTRUCTION

The HVWM 18CD is built using powder-coated steel to resist rust and wear-and-tear over it's lifetime, and features OSHA compliant grilles for safety in operation.

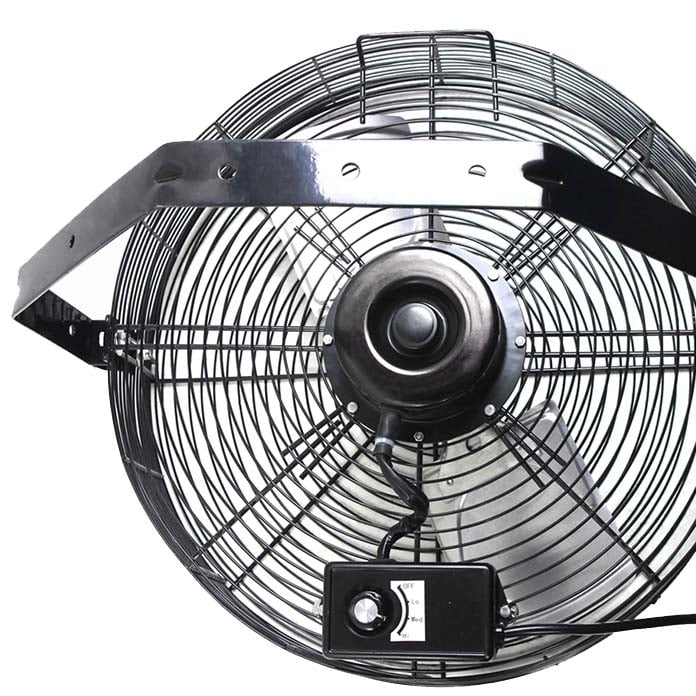

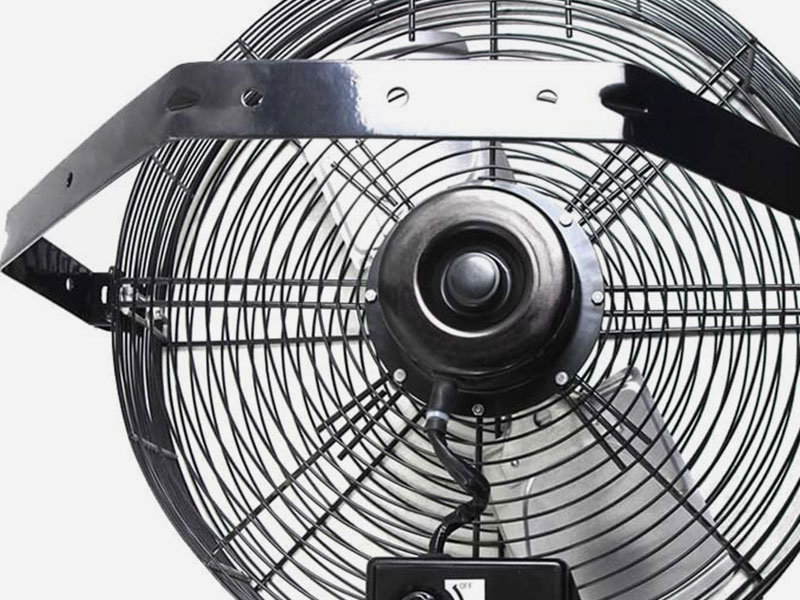

SECURE WALL BRACKET

This unit has a pre-installed hanging bracket that has three punched holes for a secure installation. Install on a wall or ceiling (horizontally or vertically), and still retain use of the tilting fan head for spot cooling an area.

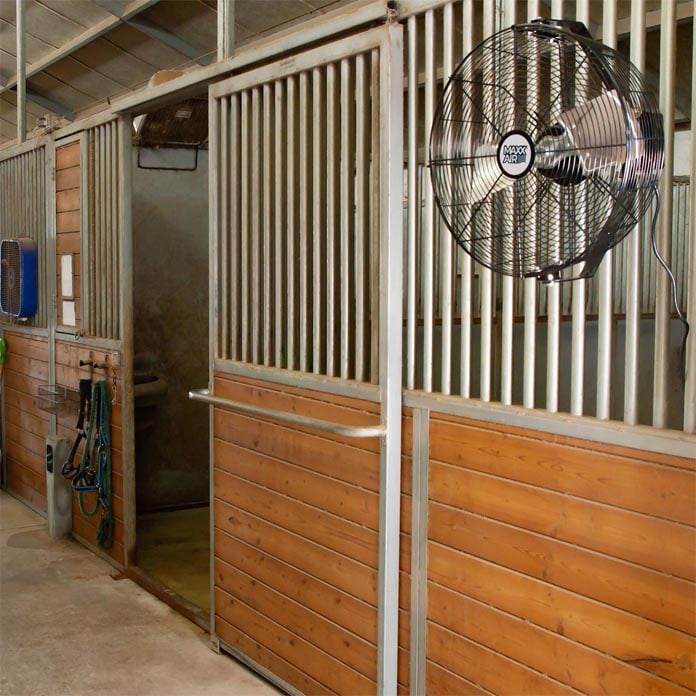

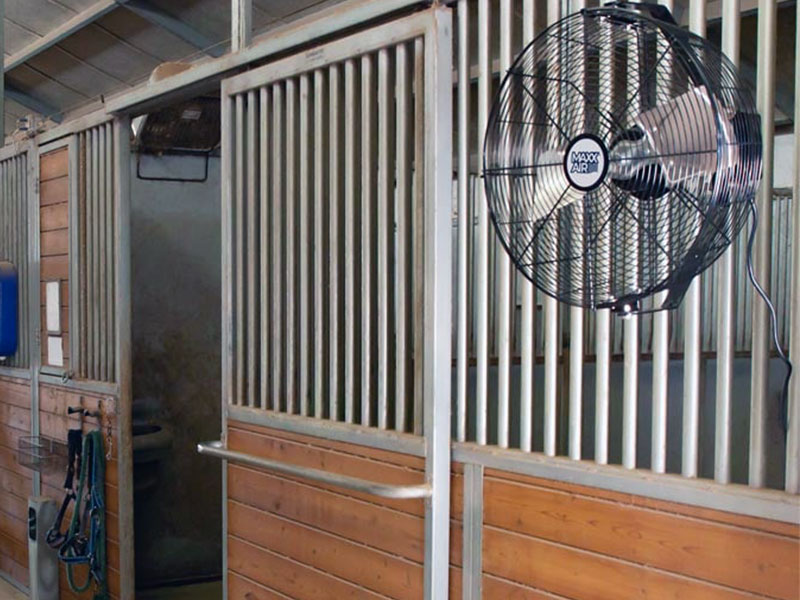

Safe for Dusty Environments

Fans with open motors often have a short lifespan in a horse or cattle barn due to the dust and debris that is common in these areas. Save your money and invest in a fan with a totally enclosed motor like our 18 in. wall mount fan, which is not only designed to withstand these environments but saves your floor space and keeps aisles clear with the wall or ceiling mount design.
