18 In. 3-Speed Tilting Wall Mount Fan with Wide Guard for Heavy-Duty Use
18 In. 3-Speed Tilting Wall Mount Fan with Wide Guard for Heavy-Duty Use is backordered and will ship as soon as it is back in stock.
- Specialized "wide guard" design with wider grille openings that allow feathers, hay, and other airborne debris to pass through rather than clogging the fan, ensuring it continues to operate at peak performance in high-debris areas like poultry coops and horse barns.Agricultural-grade durability built to be a "workhorse," featuring a
- totally enclosed, dust-resistant motor and powder-coated steel construction with corrosion-resistant fasteners to prevent internal damage and rust, significantly extending the fan's life in dusty agricultural settings.

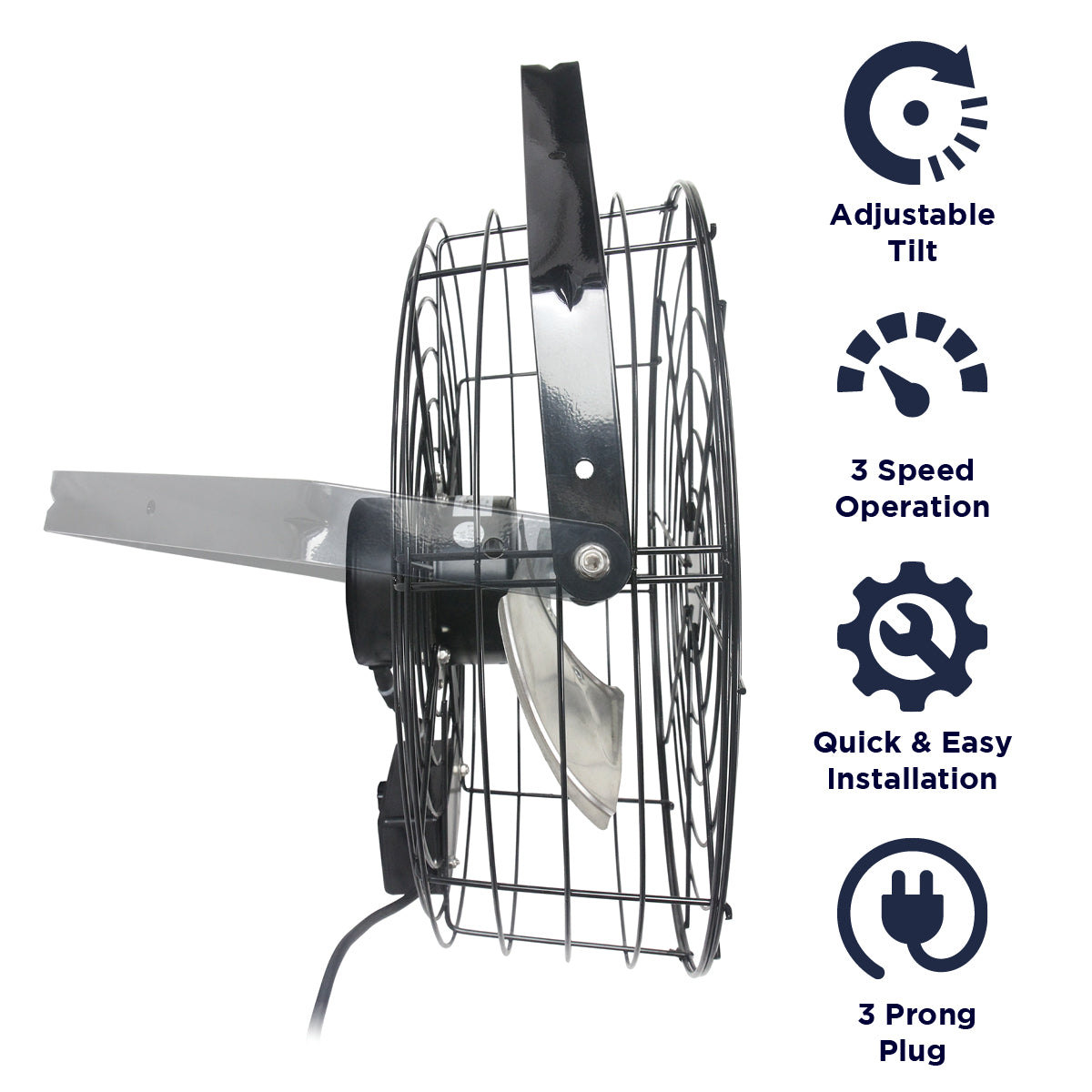

- High-velocity air circulation delivering airflow up to 3,500 CFM with a 180-degree tilting head and the ability to be mounted on both walls and ceilings, effectively reducing heat stress and regulating temperature for developing livestock and poultry.
- Must be mounted at least 7 ft. high.
- Install as a ceiling or wall mount unit

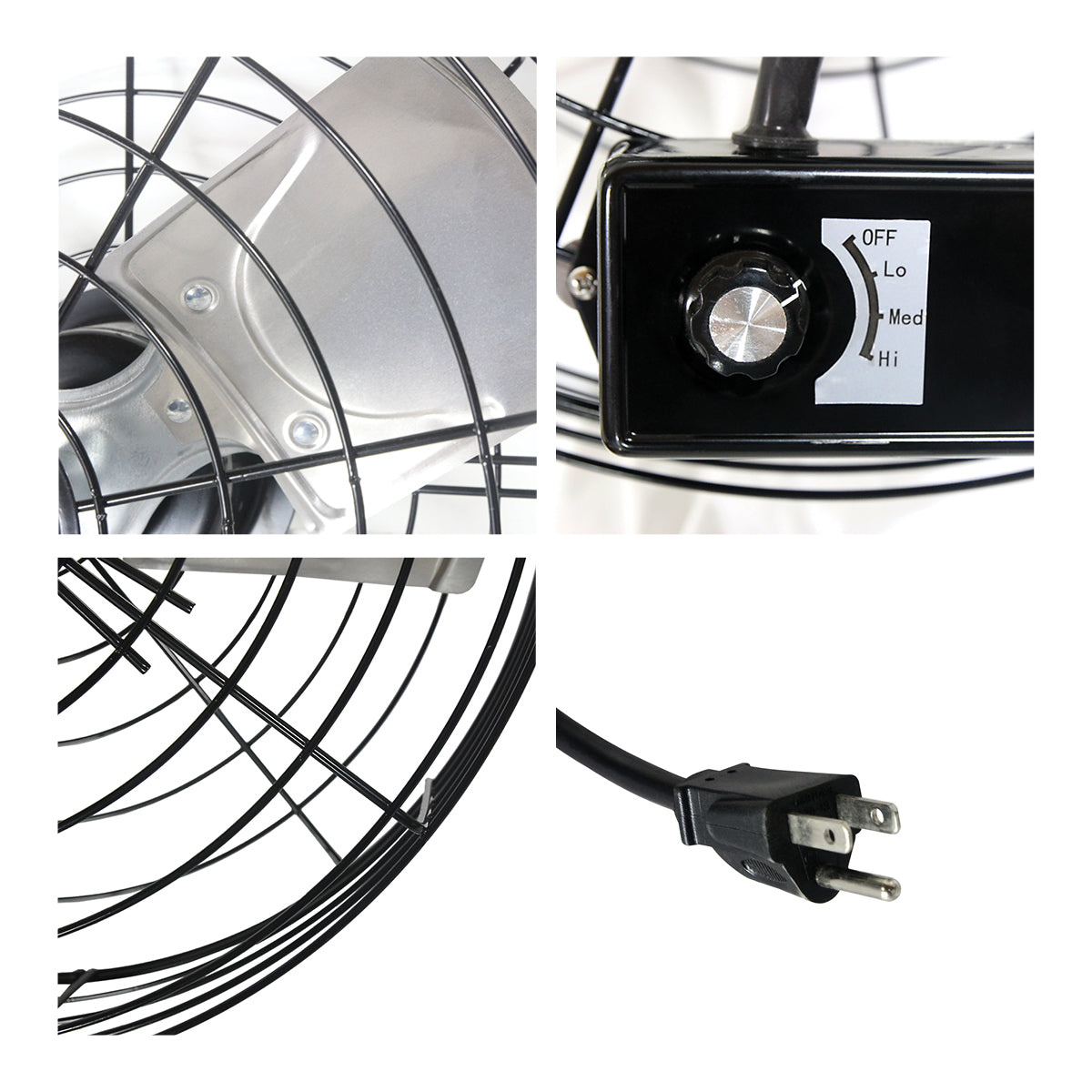

- 3 speed design with rotary switch speed selection
- Powder-coated steel construction with corrosion resistant fasteners. For indoor use.
- UL Listed
- 1-year limited warranty
Couldn't load pickup availability
Product Description

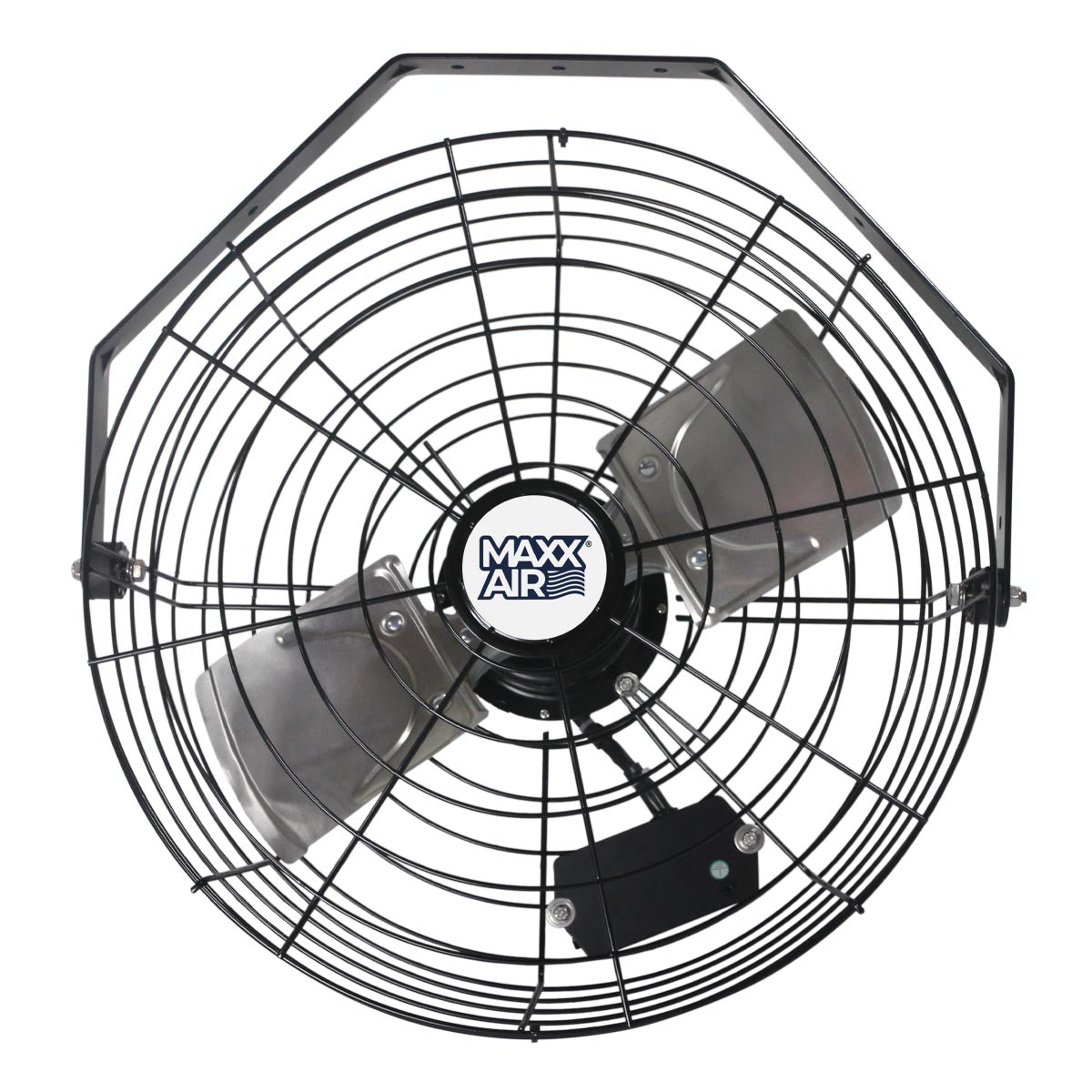

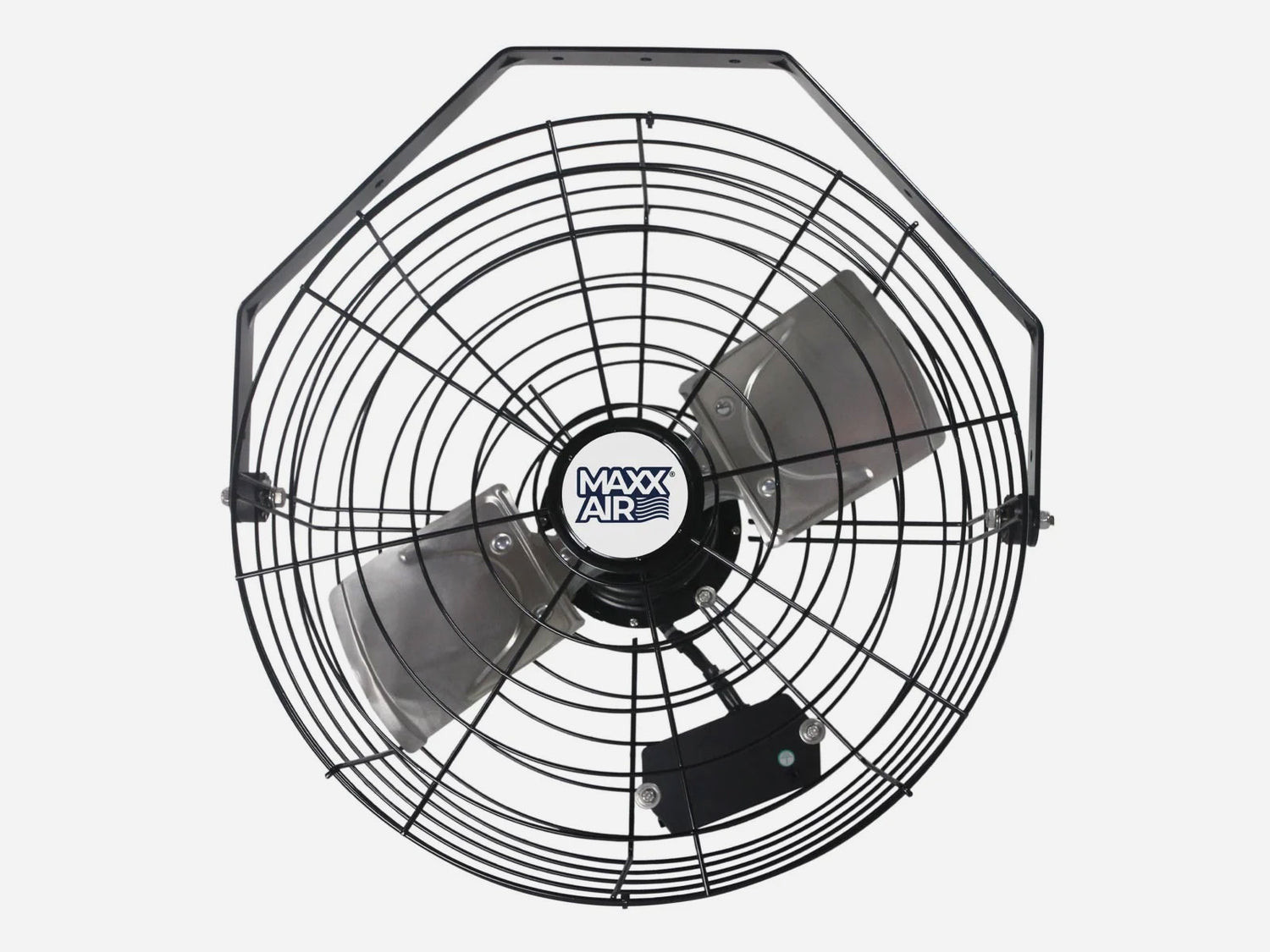

This 18 In. Wall Mount Fan features wide grille openings that allow airborne debris to pass through, keeping the high velocity fan operating at top performance and making it a perfect choice for cooling indoor areas such as a commercial livestock barn, horse barn, or in a poultry coop to keep developing chickens and laying hens at their most productive. Mount the air circulator to a ceiling or wall in a large room using the pre-installed heavy-duty bracket. This commercial grade fan tilts up to 180° for focused airflow with your choice of 3 speeds and uses a totally enclosed motor to protect from dust and other particles and ensure a longer life in the field.
Features and Benefits
- Specialized "wide guard" design with wider grille openings that allow feathers, hay, and other airborne debris to pass through rather than clogging the fan, ensuring it continues to operate at peak performance in high-debris areas like poultry coops and horse barns.Agricultural-grade durability built to be a "workhorse," featuring a
- totally enclosed, dust-resistant motor and powder-coated steel construction with corrosion-resistant fasteners to prevent internal damage and rust, significantly extending the fan's life in dusty agricultural settings.
- High-velocity air circulation delivering airflow up to 3,500 CFM with a 180-degree tilting head and the ability to be mounted on both walls and ceilings, effectively reducing heat stress and regulating temperature for developing livestock and poultry.
- Must be mounted at least 7 ft. high.
- Install as a ceiling or wall mount unit
- 3 speed design with rotary switch speed selection
- Powder-coated steel construction with corrosion resistant fasteners. For indoor use.
- UL Listed
- 1-year limited warranty
HEAVY-DUTY CONSTRUCTION

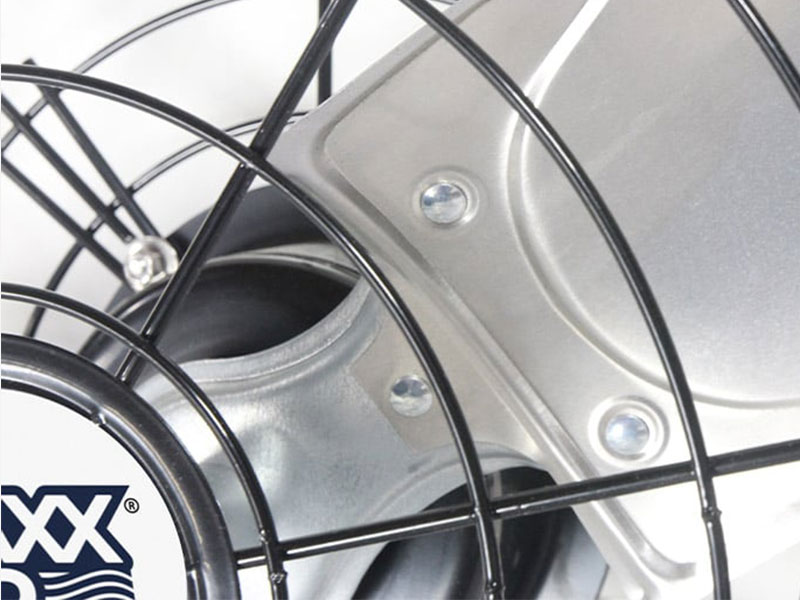

The HVWM 18CDPF has wide grille spacings to allow feathers or other debris like hay to pass through without incident, is powder-coated for rust-resistance, and uses corrosion-resistant fasteners and a totally-enclosed, dustproof motor to create the ultimate workhorse in ag environments.

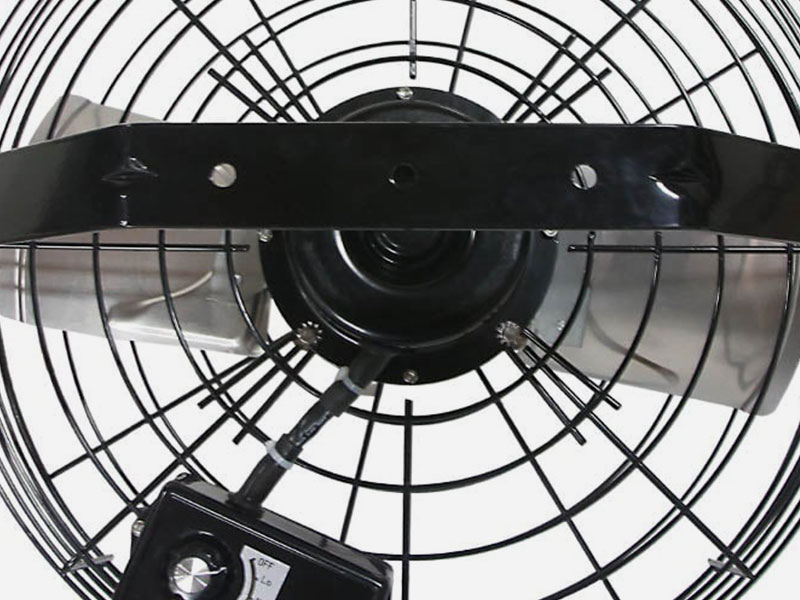

SECURE WALL BRACKET

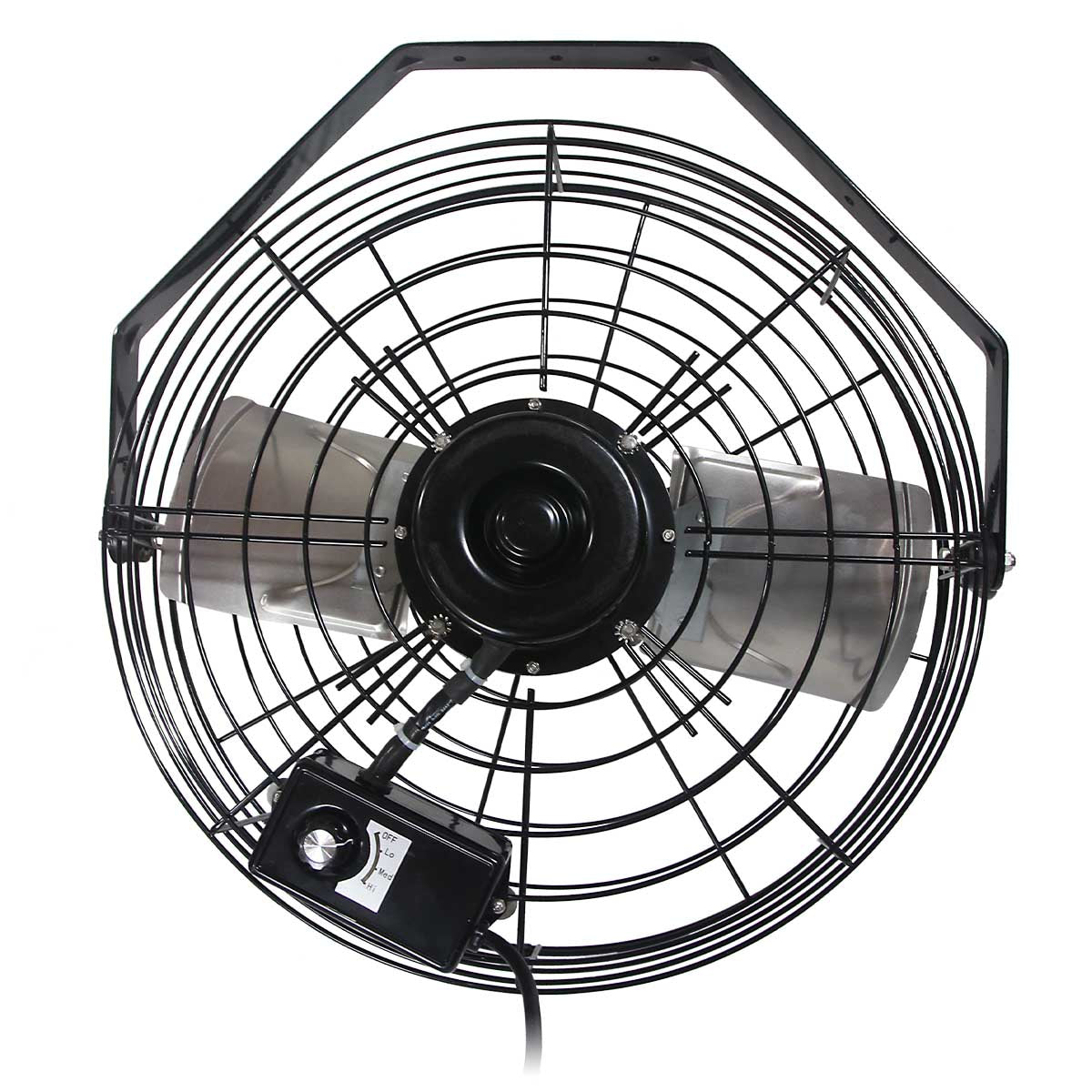

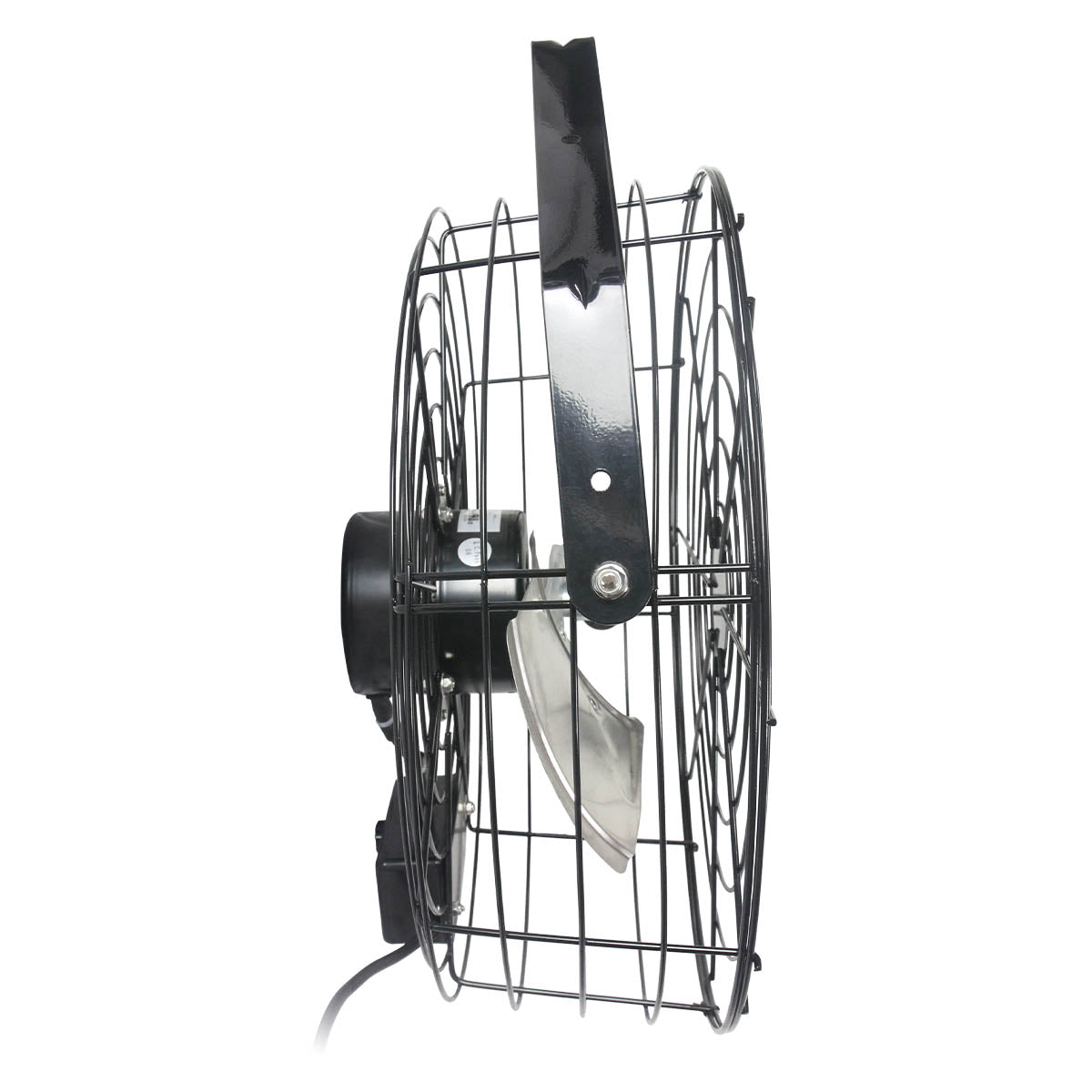

This unit has a pre-installed hanging bracket that has three punched holes for a secure installation. Install on a wall or ceiling (horizontally or vertically), and still retain use of the tilting fan head.
For Healthy, Hearty Livestock
A comfortable barn climate aids in the growth and production of all types of livestock and poultry. Our wide guard wall mount fans are specially engineered to perform in agricultural and livestock areas to reduce heat stress, regulate temperature and humidity, and create overall better living conditions through all stages of an animal's development.
Specifications
- Primary Color
-
Black
- Secondary Color
-
Mill
- CFM
-
Up to 3,500
- Material Details
-
Powder-Coated Steel
- Motor Details
-
3-Speed Thermally Protected, Totally Enclosed Motor
- Motor Specs
-
1/3 HP
Rated at 3 A
120 V, 60 Hz
Rated at 220 Watts
Rated at 1,480 RPM
- Power Cord Length
-
7.5 ft.
- Dimensions
-
23.75 in. H x 23.25 in. W x 8.75 in. D
- Unit Weight
-
22.5 lbs.
- Box Dimensions
-
23.25" H x 25" W x 9.5" D
- Ship Weight
-
26.7 lbs.
- Alias SKU(s)
-
HVWM 18CDPF
HVWM 18CDPFUPS: Plain carton
- Multi UPC Info
-
HVWM 18CDPF: 047242950809
HVWM 18CDPFUPS: 047242950830
- Country of Origin - Assembly
-
US from Domestic and Imported Components
- Sold Under
- Maxx Air
Warranty & Certifications
Downloads
Frequently Asked Questions
What is the purpose of a wall mount fan?
A wall mount fan is designed to provide strong, directional airflow while saving floor and ceiling space. Wall mount fans are commonly used in garages, workshops, warehouses, gyms, and commercial spaces where space is limited or where a fan needs to be positioned above equipment or work areas. Mounting the fan on the wall also helps distribute air more efficiently across the room.
When should you use a wall mount fan instead of a pedestal or ceiling fan?
A wall mount fan is best used when floor space needs to be kept clear or when airflow needs to be directed at a specific area. Compared to pedestal fans, wall mount fans are more permanent and space-saving. Compared to ceiling fans, wall mount fans provide more targeted airflow and are easier to install in spaces where ceiling mounting is not practical.
Are wall mount fans effective for cooling large spaces like garages or workshops?
Yes. High velocity wall mount fans are designed to move a large volume of air, making them effective for cooling larger spaces such as garages, workshops, warehouses, barns, and gyms. Their elevated position allows airflow to travel farther and circulate more efficiently throughout the space.
How much electricity does a wall mount fan use?
Wall mount fans are generally energy efficient and use significantly less electricity than air conditioning systems. Power usage depends on the motor size and speed setting, but most wall mount fans are designed to provide strong airflow with relatively low energy consumption, making them a cost-effective cooling solution for continuous use.
What are the benefits of using a wall mount fan?
Wall mount fans offer several key benefits, including saving floor space, improving safety by reducing trip hazards, and providing strong, directional airflow. Many models also feature adjustable tilt heads for precise airflow control and durable construction for use in demanding environments such as workshops, garages, and commercial spaces.
