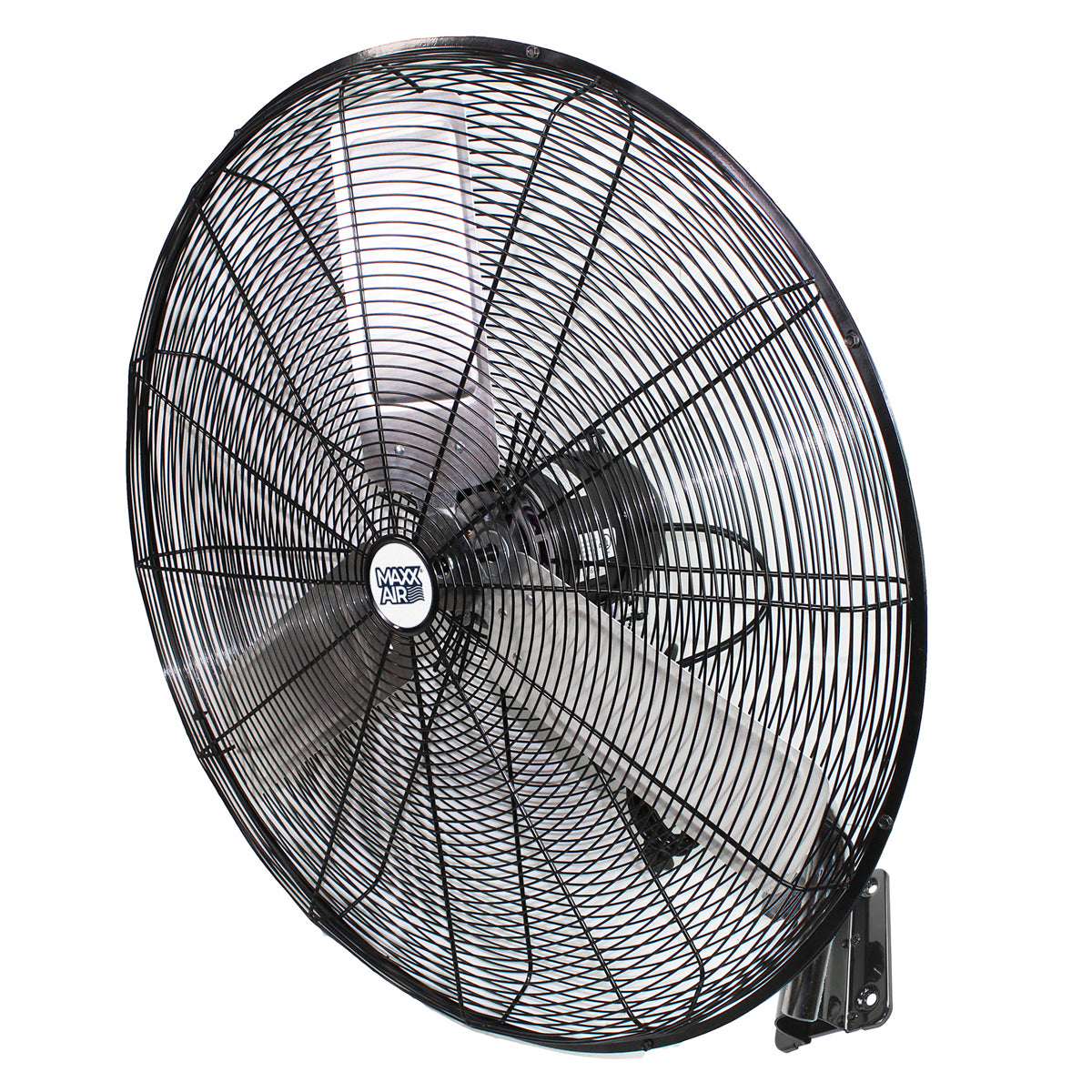

30 in. wall mount fan with powder-coated steel construction.

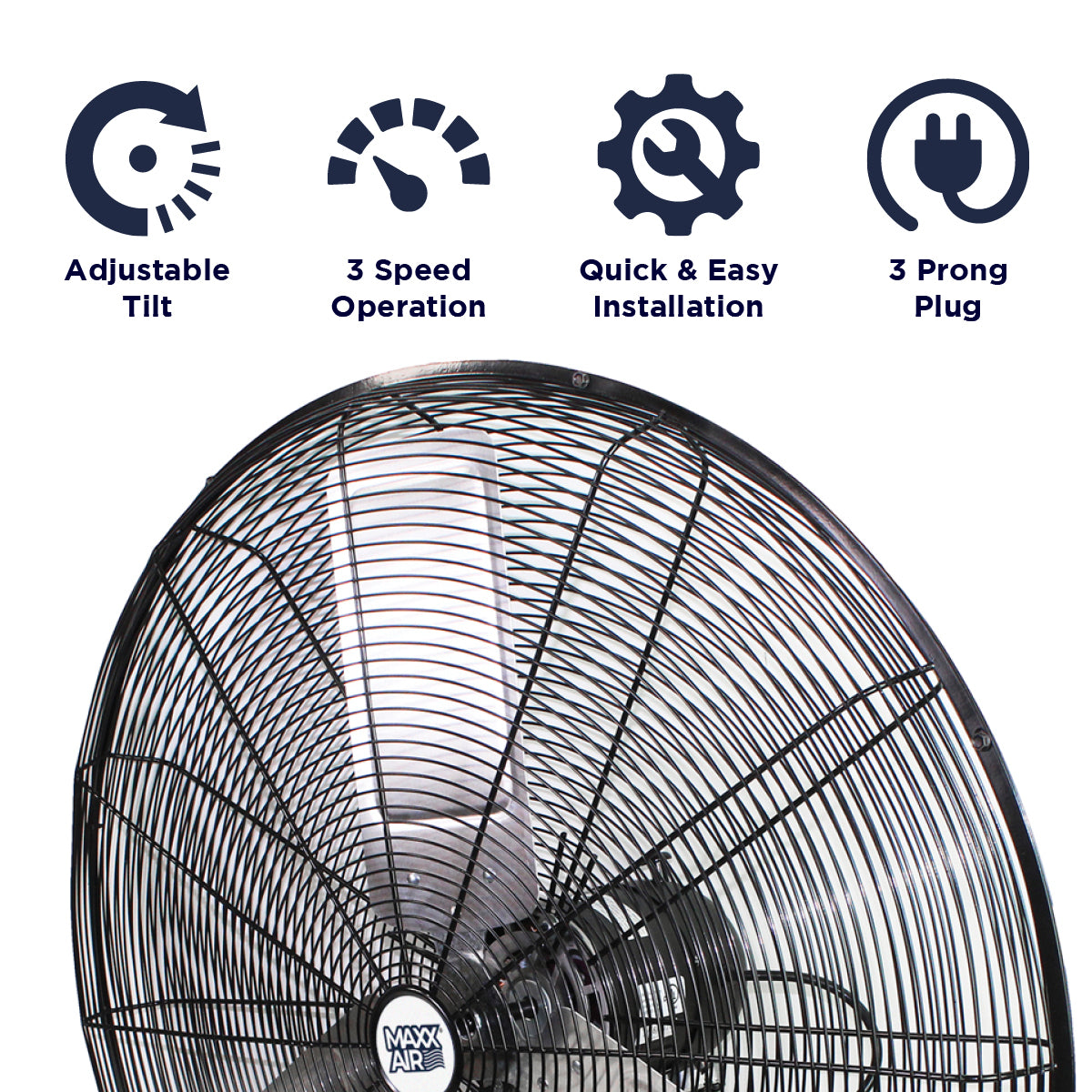

Features of the HVWM 30 include adjustable tilt, 3 speed operation, a quick and easy install, and a 3 prong plug.

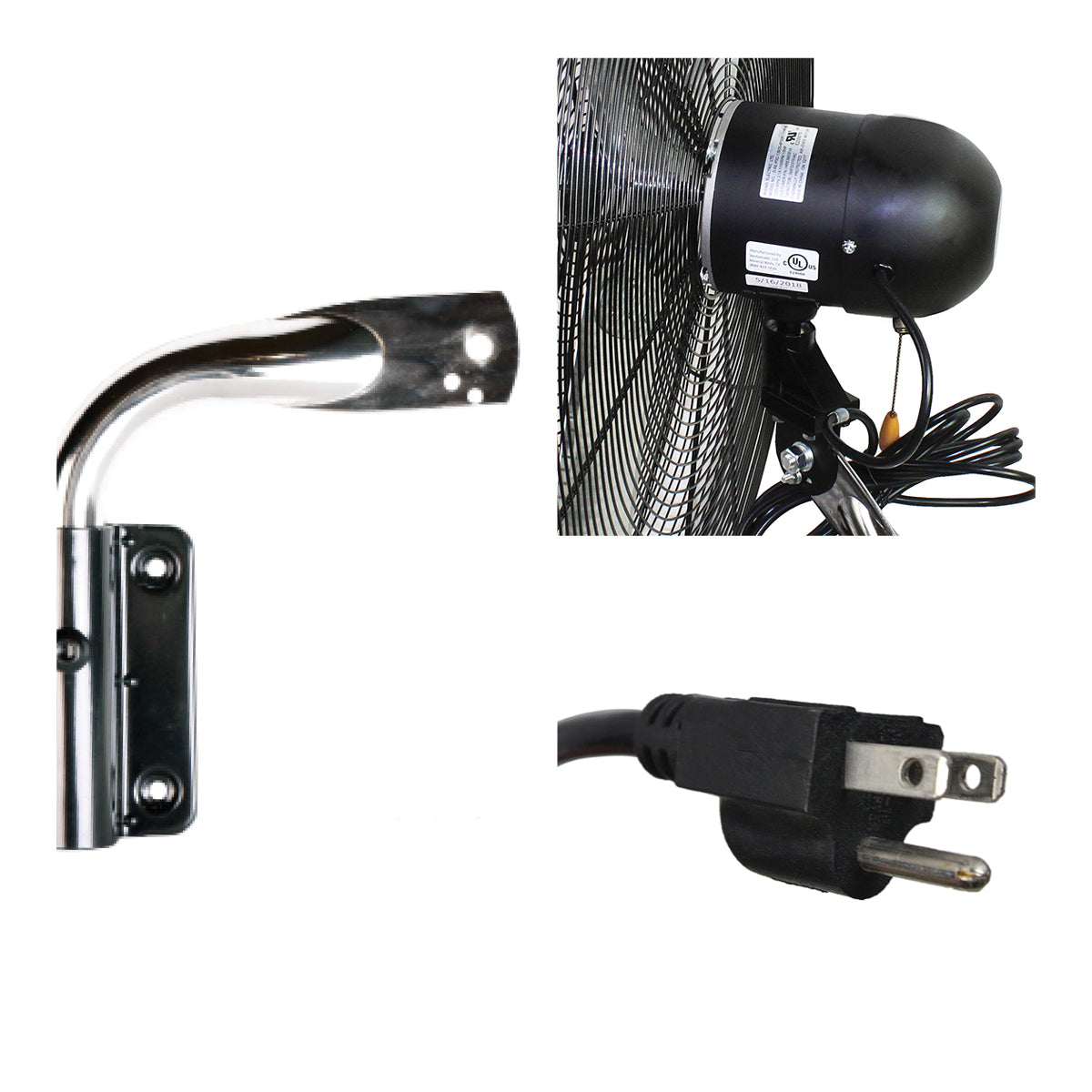

Close-up of wall bracket, motor and pull chain, and 3 prong plug.

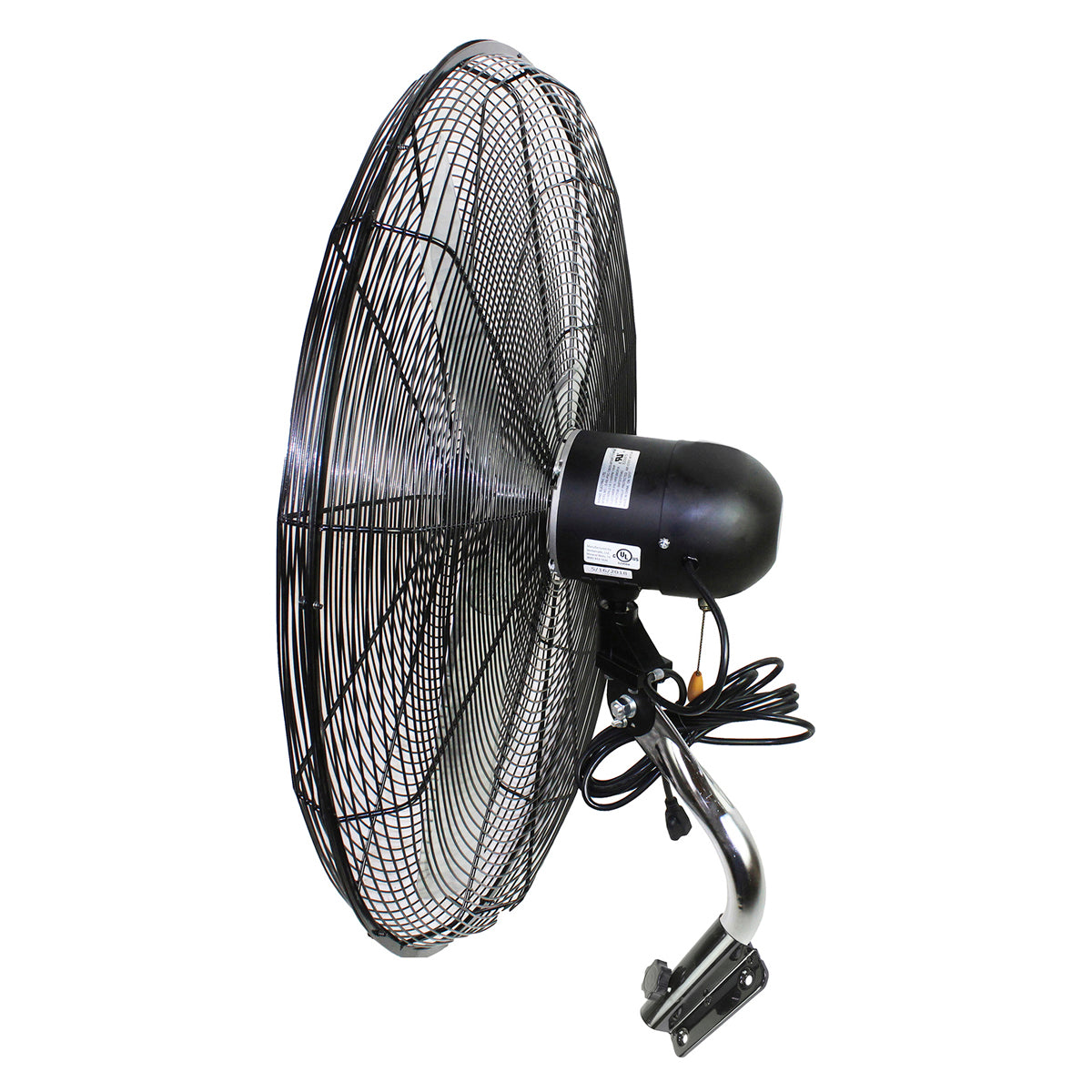

Right side view of the 30 in. wall mount fan showing the mounting bracket.

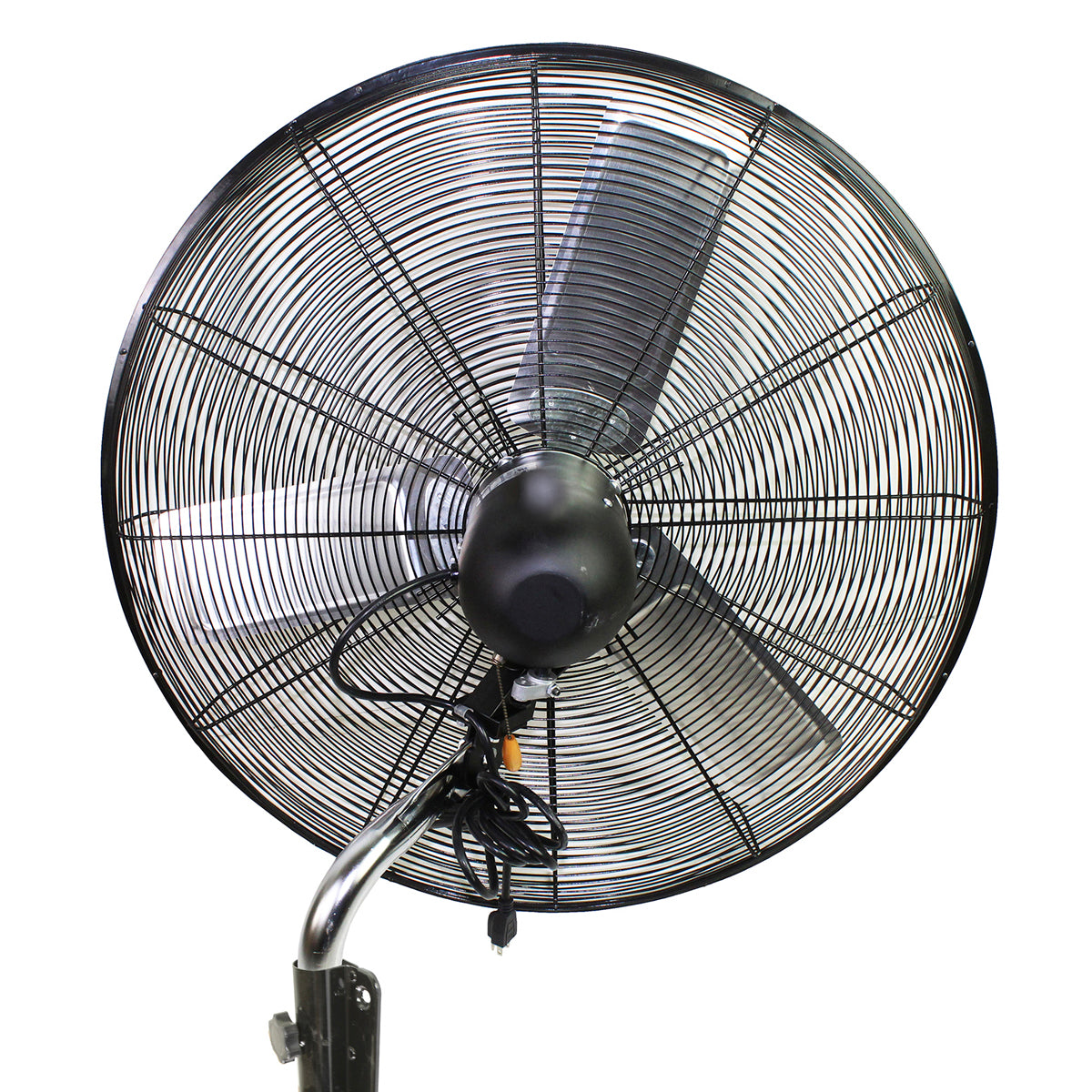

Back view of the HVWM 30 showing the PSC motor with pull chain.

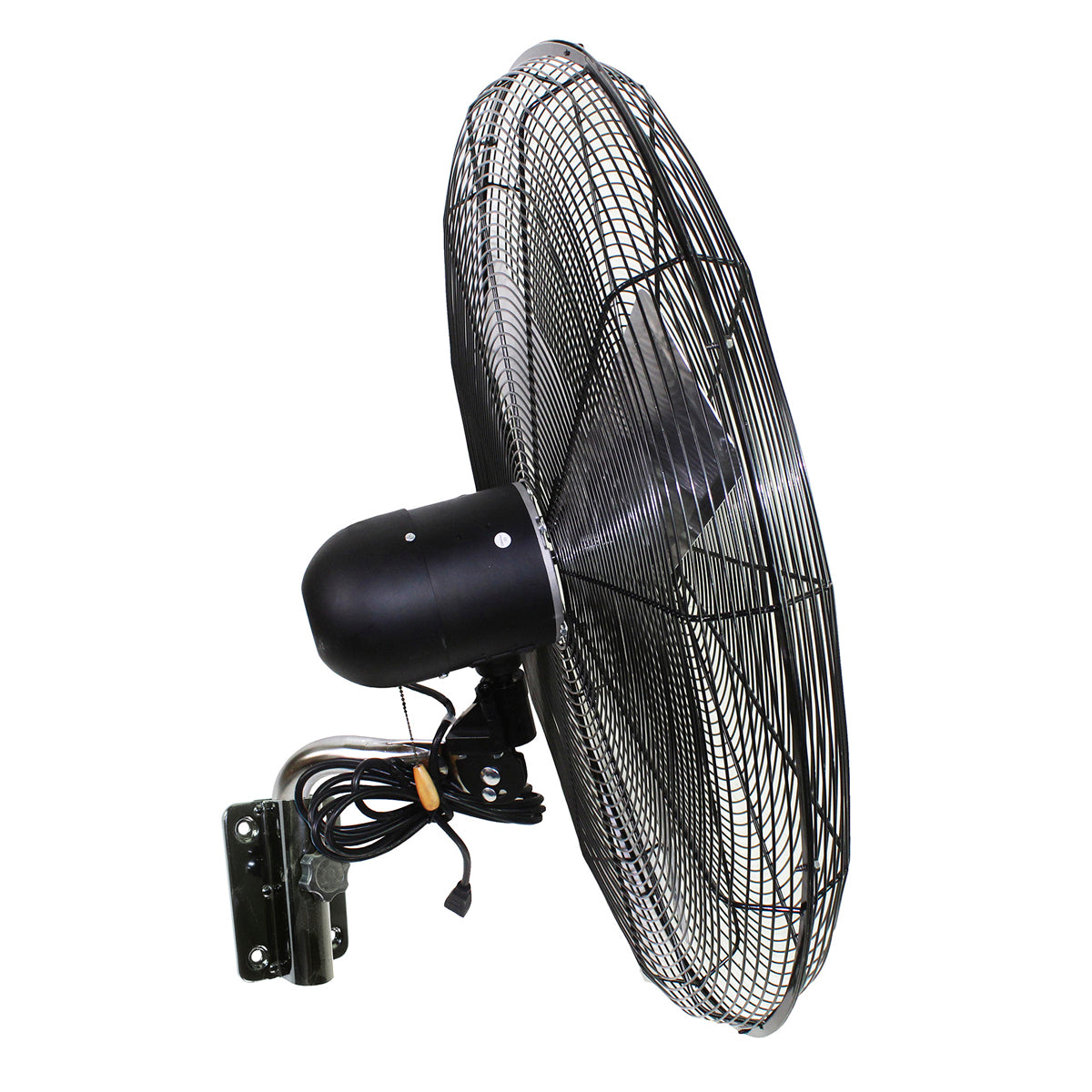

Left side profile view of the 30 in. wall mount fan.
30 in. wall mount fan with powder-coated steel construction.
Features of the HVWM 30 include adjustable tilt, 3 speed operation, a quick and easy install, and a 3 prong plug.
Close-up of wall bracket, motor and pull chain, and 3 prong plug.
Right side view of the 30 in. wall mount fan showing the mounting bracket.
Back view of the HVWM 30 showing the PSC motor with pull chain.
Left side profile view of the 30 in. wall mount fan.

30 In. 3-Speed Tilting Wall Mount Fan

DESCRIPTION:

Circulate large amounts of air in commercial and industrial settings with this 30 In. High Velocity Wall Mount Fan. Built for rugged use with a powder-coated steel housing and premium thermally protected motor, this product is a perfect solution for ventilating warehouse stations, gyms, shops, garages, and other large indoor spaces during harsh summer months. The unique wall mounting feature ventilates hard to reach corners with 3 powerful speeds, allows for tilt angle adjustments, and preserves valuable floor space when it's at a premium. Easy to assemble with household tools and mounts to a variety of surfaces using the provided wall bracket with pre-punched holes.

PERFECT FOR:
  • Automotive

  • Commercial

  • Fitness

  • Home

  • Industrial

  • 4,100 CFM LOW
    4,400 CFM MEDIUM
    4,800 CFM HIGH

  • 3-SPEED WITH OFF
    PULL CHAIN OPERATION

  • QUICK & EASY
    INSTALLATION

  • POWDER-COATED
    STEEL CONSTRUCTION

Circulation:

Moves up to 4,800 CFM on high

Adjustability:

Tilting fan head and swivel adjustment arm

Installation:

Pre-punched holes on wall bracket for easy mounting

Controls:

3 speed pull chain operation

Material:

Powder-coated steel construction

Use:

Suitable for indoor usage

Safety:

OSHA compliant grilles

Primary Color

Black

Secondary Color

Mill

CFM

4,100 Low / 4,400 Medium / 4,800 High

Material Details

Powder-Coated Steel

Motor Details

3-Speed Heavy Duty Thermally Protected Open PSC Motor

Motor Specs

1/5 HP

2.1 A

120 V, 60 Hz

200 Watts

660 Low / 890 Medium / 1,050 High RPM

Power Cord Length

6 ft.

Dimensions

33.5 in. H x 33.5 in. W x 12 in. D

Unit Weight

36 lbs.

Box Dimensions

34 in. H x 41 in. W x 7 in. D

Alias SKU(s)

HVWM 30

Multi UPC Info

047242061314; 047242950274 (QTY 14)

Country of Origin - Assembly

China

HEAVY-DUTY CONSTRUCTION

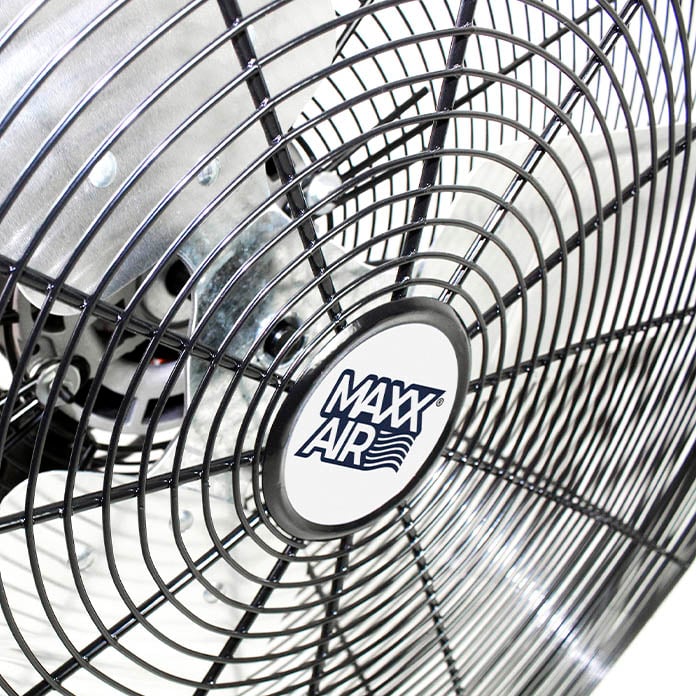

The HVWM 30 is built using powder-coated steel to resist rust and wear-and-tear over it's lifetime, and features OSHA compliant grilles for safety in operation.

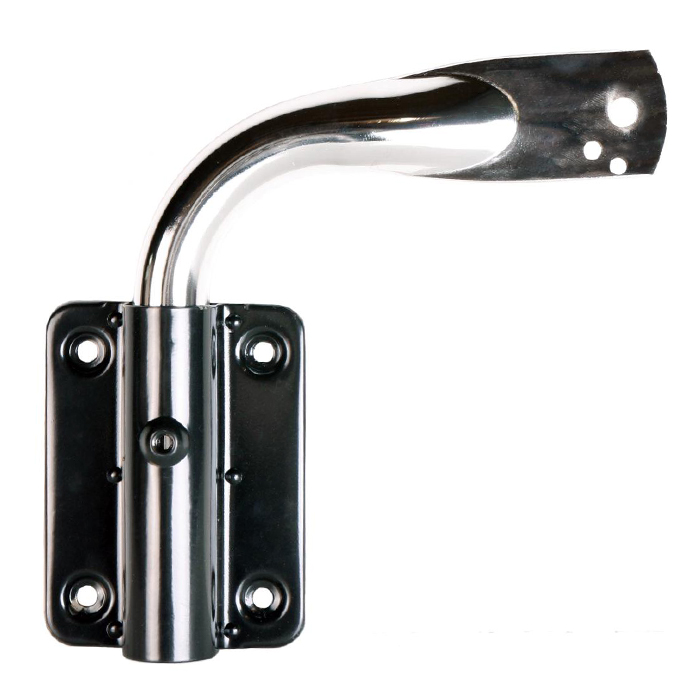

SECURE WALL BRACKET

This unit's wall bracket mounts independently to a wall stud using lag screws for precise, secure placement. Once placed, the swivel arm slips into the bracket and is tightened using the tool-free knob to position the fan assembly.
