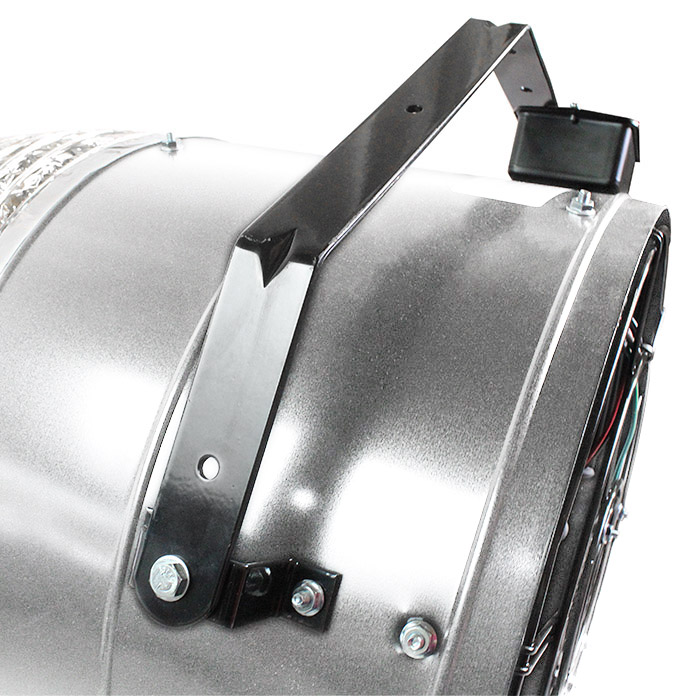

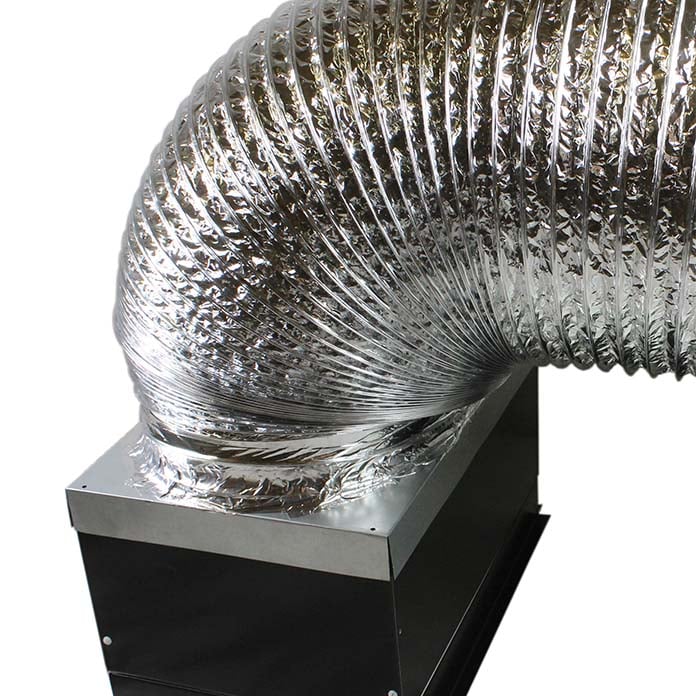

Detailed close-up of the damper box, motor, and hanging bracket on the exhaust fan,
Front of 14" modern whole house fan with included ceiling damper box and duct.
Features of the CX1401 include ventilation for spaces up to 533 sq. ft., quiet operation, reduced cooling costs, an no joist cutting required.
Detailed close-up of the damper box, motor, and hanging bracket on the exhaust fan,

14 In. 2-Speed Modern Whole House Fan with Ceiling Grid

$549.99

DESCRIPTION:

The Maxx Air 14 in. ventilation fan is ideal for use in mild climates during the morning or evening, efficiently pulling in fresh air through open windows and removing hot, stale air from your home through the attic exhaust vents for a cool and comfortable living environment. Unlike a standard whole house fan, our ducted fans feature a damper box that is sealed with R5 insulation to prevent heat transfer back into your home, and a 12 ft. duct for maximum ventilation potential and noise reduction. The fan head mounts to an attic rafter with the included hanging bracket for an easier, faster install than a traditional whole house fan. It's a cost-effective solution to improving your indoor air quality while relieving strain on your house's air conditioning equipment. Upgrade this quiet electric fan with a wireless hub (XXWREWIFIHUB) to control your fan via a local Wi-Fi connection on most smart devices.

PERFECT FOR:
  • Home

  • FOR HOME
    SPACES UP TO
    533 SQ. FT.

  • 2-SPEED & ON/OFF
    WALL SWITCH

  • REDUCES
    COOLING COSTS

  • QUIET
    OPERATION

Circulation:

Designed for home spaces up to 533 sq. ft.

Installation:

No cutting of ceiling joists required. Damper box fits between 16 in. or 24 in. on-center ceiling joists.

Controls:

2-speed operation with included dual high/low and on/off wall switch

Material:

Galvanized steel fan housing and plenum box with R5 insulation

Energy Efficiency:

Save money on your cooling bills and reduce stress on A/C equipment

Safety:

Requires 306 sq. in. of NFA

Primary Color

White

Secondary Color

Silver

CFM

1,600

Material Details

Galvanized Steel Fan Housing and Plenum Box

Motor Details

2-Speed Thermally Protected Motor

Motor Specs

Rated for 6 Amps - Draws 2.5 Low / 4.65 High Amps in operation

120 Volts, 60 Hz

Dimensions

Fan: 17.75 in. H x 19 in. W x 13.25 in. D

Damper Box: 12 in. H x 23 in. W x 15 in. D

Unit Weight

36 lbs.

Box Dimensions

Ships in two boxes

Box 1 (Damper): 24.375 in. H x 16.625 in. W x 13.563 in. D

Box 2 (Fan): 24.25 in. H x 23.75 in. W x 25.25 in. D

Ship Weight

Box 1: 17 lbs.

Box 2: 41 lbs.

Alias SKU(s)

CX1401
CX1401UPS: Plain carton

Multi UPC Info

CX1401: 047242540000
CX1401UPS: 047242540017

Country of Origin - Assembly

US from Domestic and Imported Components

Other Details

Includes fan, hanging bracket, duct and transition assembly, damper assembly box, intake grille with mounting screws, rafter bracket, and hi/low and on/off switches

Noise: 6.6 sones

Sold Under

Maxx Air, Cool Attic

EASY INSTALLATION

This series is designed to fit between 16 or 24 inch on-center ceiling joists, eliminating the need for cutting and removing a joist during installation. Each fan has a pre-installed hanging bracket on the fan assembly and also includes a rafter bracket to make your install as simple as possible.

ULTRA-QUIET OPERATION

Typical whole house fans have a fan unit that sits close to the shutter (and thus your ceiling) when installed. With our new modern whole house fan design, the fan assembly is installed up to 12 feet away from the plenum box with the included duct, all but eliminating noise when in use.

FRESH AIR IN YOUR HOME

Whole house fans pull cool air from open windows and doors throughout the house and push stale, warm air upwards to escape through your attic, making them a perfect alternative to an air conditioner in moderate climates. Feel instantly refreshed with this energy-saving cooling measure!
