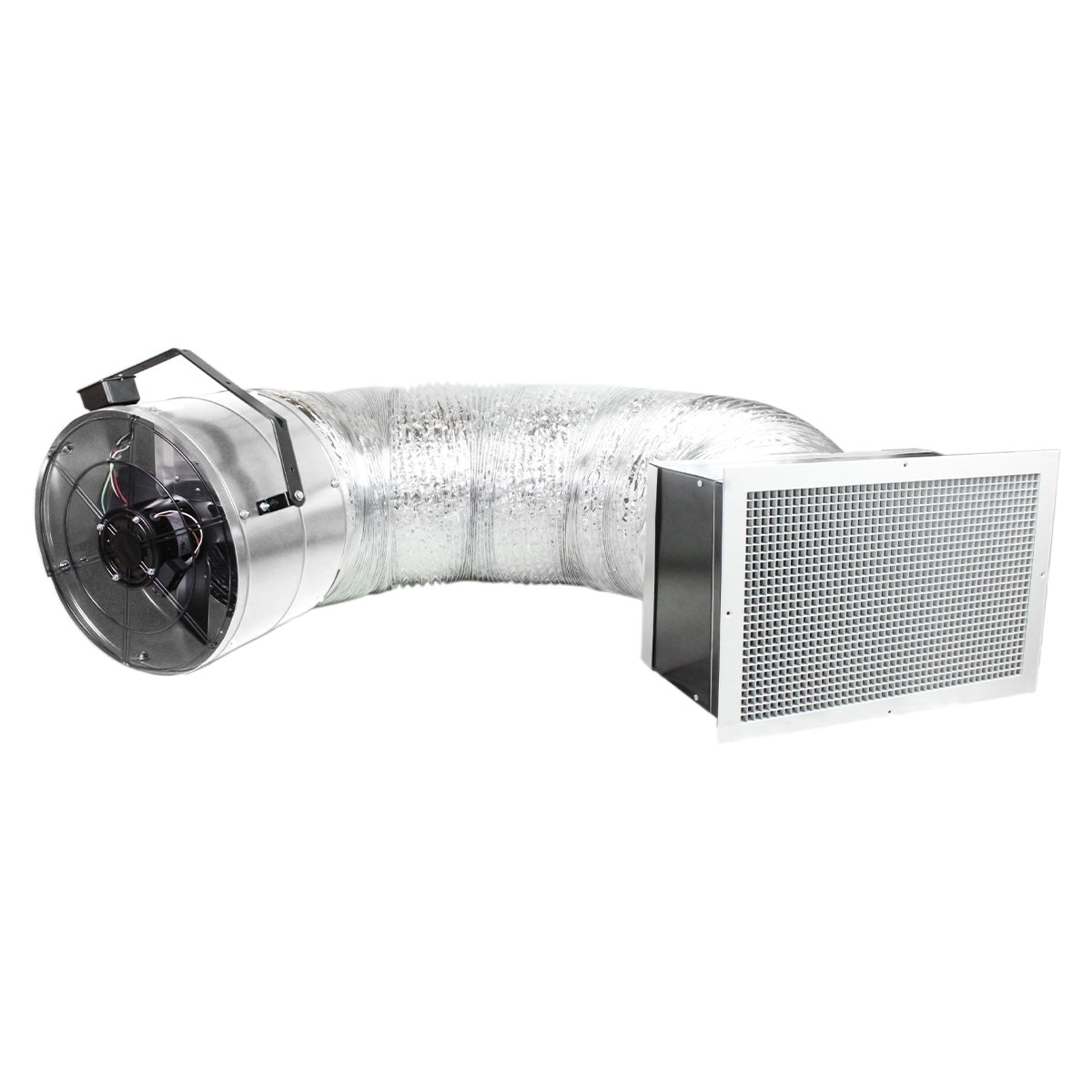

18 In. 2-Speed Modern Whole House Fan with Ceiling Grid
Login to view price.DESCRIPTION:
The Maxx Air 18 in. ventilation fan is ideal for use in mild climates during the morning or evening, efficiently pulling in fresh air through open windows and removing hot, stale air from your home through the attic exhaust vents for a cool and comfortable living environment. Unlike a standard whole house fan, our ducted fans feature a damper box that is sealed with R5 insulation to prevent heat transfer back into your home, and a 12 ft. duct for maximum ventilation potential and noise reduction. The fan head mounts to an attic rafter with the included hanging bracket for an easier, faster install than a traditional whole house fan. It's a cost-effective solution to improving your indoor air quality while relieving strain on your house's air conditioning equipment. Upgrade this quiet electric fan with a wireless hub (XXWREWIFIHUB) to control your fan via a local Wi-Fi connection on most smart devices.
PERFECT FOR:
Home
-
FOR HOME
SPACES UP TO
930 SQ. FT. -
2-SPEED & ON/OFF
WALL SWITCH -
REDUCES
COOLING COSTS -
QUIET
OPERATION
| Circulation: | Designed for home spaces up to 930 sq. ft. |
| Installation: | No cutting of ceiling joists required. Damper box fits between 16 in. or 24 in. on-center ceiling joists. |
| Controls: | 2-speed operation with included dual high/low and on/off wall switch |
| Material: | Galvanized steel fan housing and plenum box with R5 insulation |
| Energy Efficiency: | Save money on your cooling bills and reduce stress on A/C equipment |
| Safety: | Requires 535 sq. in. of NFA |
| Primary Color | White |
| Secondary Color | Silver |
| CFM | 2,700 |
| Material Details | Galvanized Steel Fan Housing and Plenum Box |
| Motor Details | 2-Speed Thermally Protected Motor |
| Motor Specs | Rated for 6 Amps - Draws 5.2 (HI) and 3.1 (LOW) in operation 120 Volts, 60 Hz |
| Dimensions | Fan: 22.5 in. H x 22.75 in. W x 13.25 in. D Damper Box: 12 in. H x 23 in. W x 15 in. D |
| Unit Weight | 41.5 lbs. |
| Box Dimensions | Box 1, Damper: 24.375 in. H x 16.625 in. W x 13.563 in. D Box 2, Fan: 24.25 in. H x 23.75 in. W x 25.25 in. D |
| Ship Weight | Box 1: 17 lbs. Box 2: 46.5 lbs. |
| Alias SKU(s) | CX1801 |
| Multi UPC Info | CX1801: 047242540215 |
| Country of Origin - Assembly | US from Domestic and Imported Components |

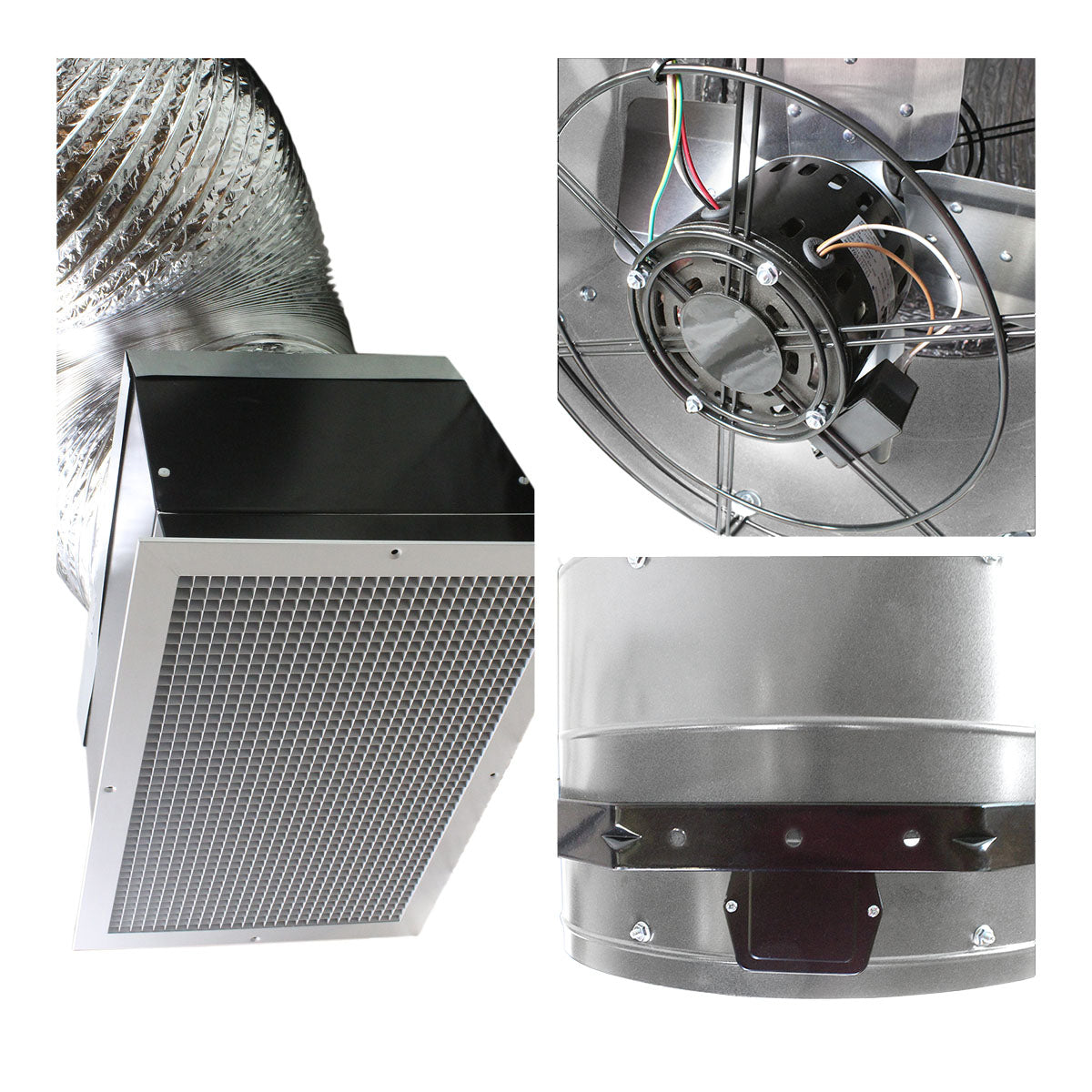

| Other Details | Includes fan, hanging bracket, duct and transition assembly, damper assembly box, intake grille with mounting screws, rafter bracket, and hi/low and on/off switches Noise: 9.1 sones |
| Sold Under |
Maxx Air, Cool Attic |
EASY INSTALLATION
This series is designed to fit between 16 or 24 inch on-center ceiling joists, eliminating the need for cutting and removing a joist during installation. Each fan has a pre-installed hanging bracket on the fan assembly and also includes a rafter bracket to make your install as simple as possible.
ULTRA-QUIET OPERATION

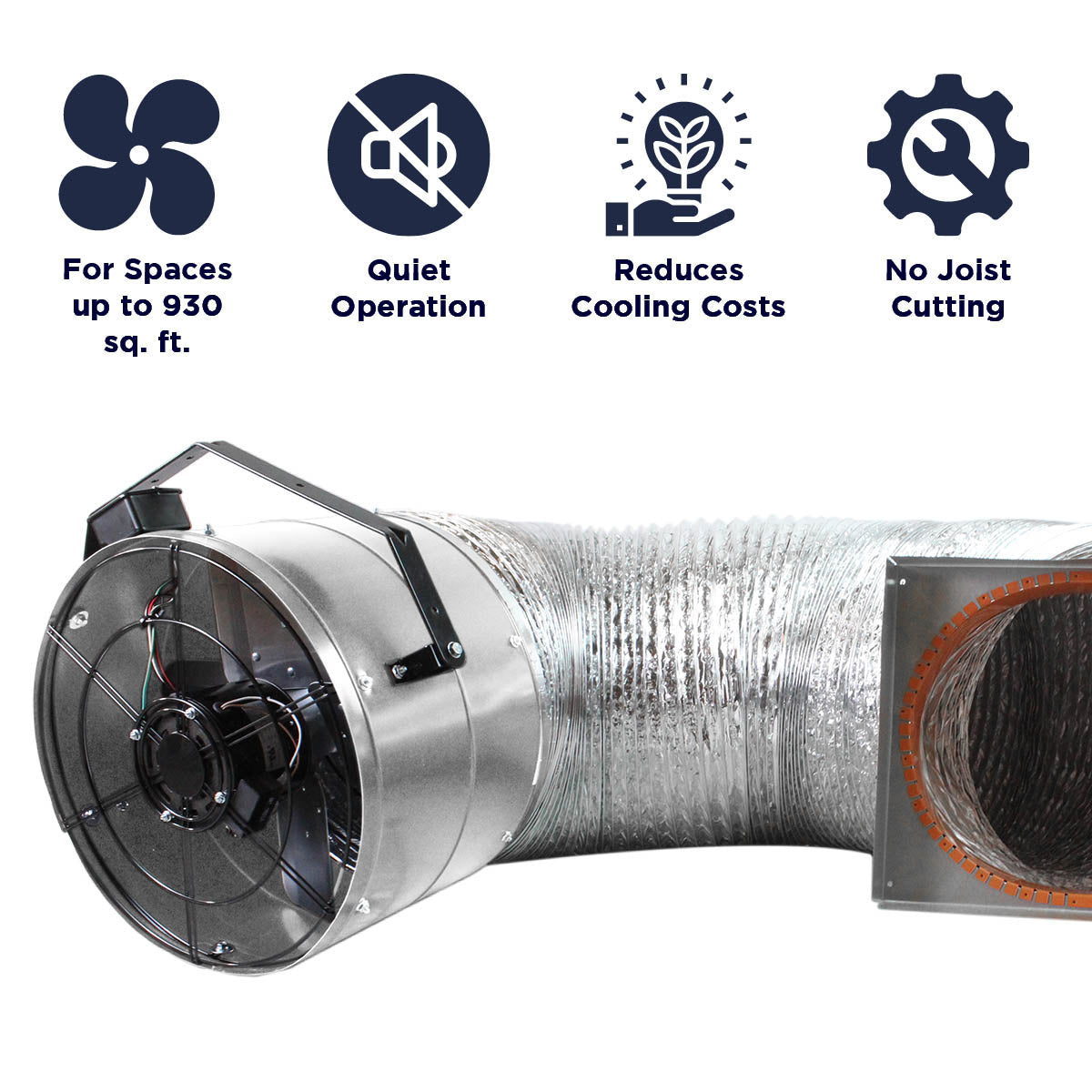

Typical whole house fans have a fan unit that sits close to the shutter (and thus your ceiling) when installed. With our new modern whole house fan design, the fan assembly is installed up to 12 feet away from the plenum box with the included duct, all but eliminating noise when in use.
FRESH AIR IN YOUR HOME
Whole house fans pull cool air from open windows and doors throughout the house and push stale, warm air upwards to escape through your attic, making them a perfect alternative to an air conditioner in moderate climates. Feel instantly refreshed with this energy-saving cooling measure!
