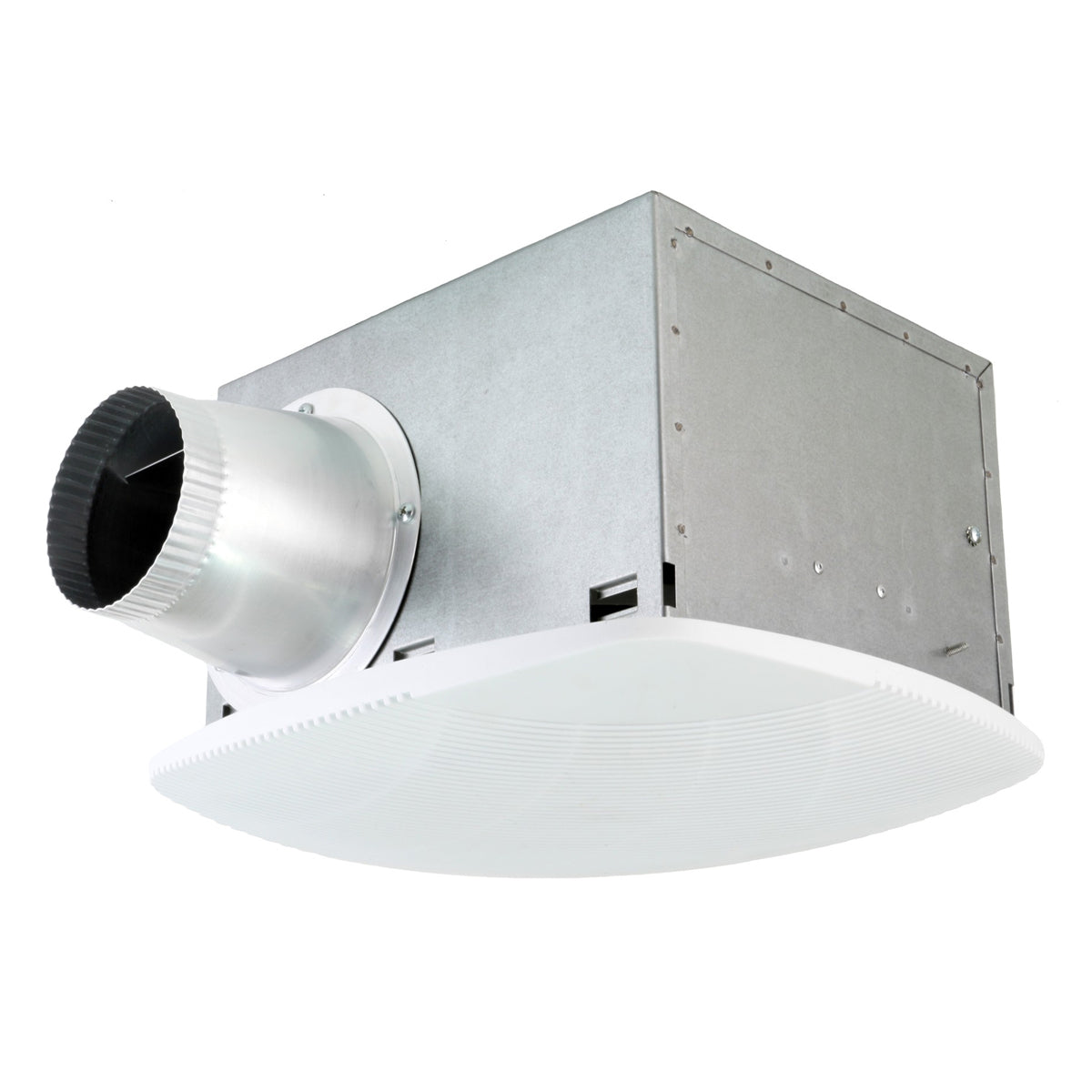

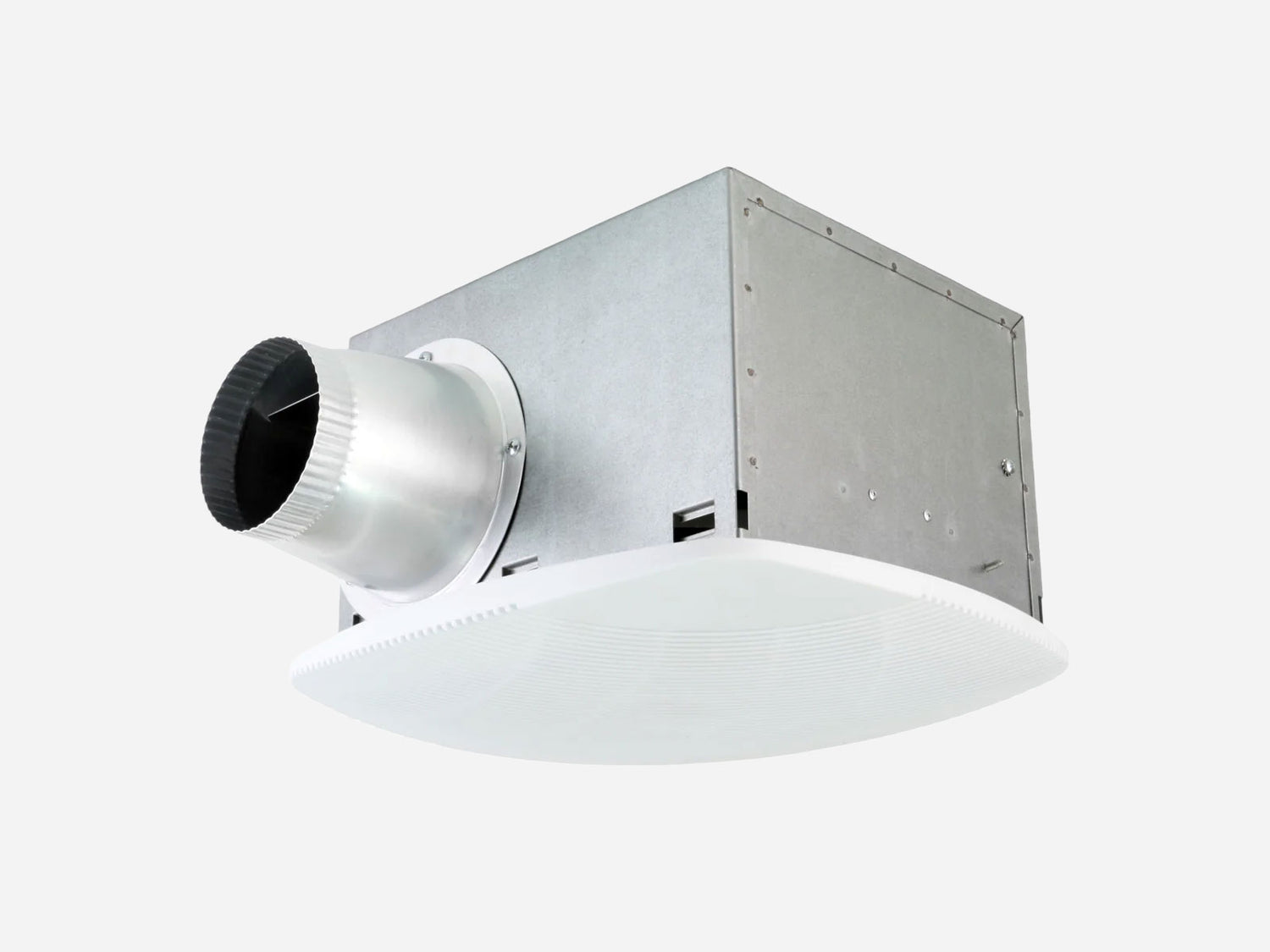

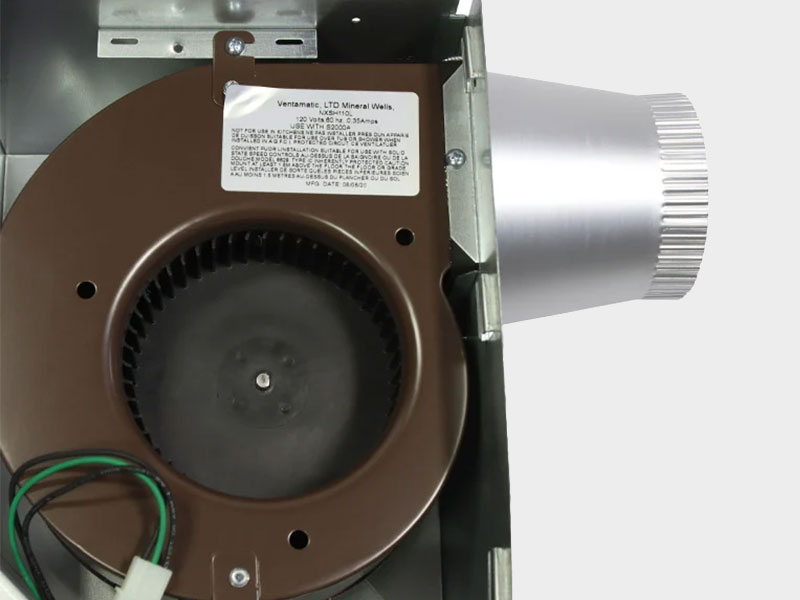

Our SH Series Bathroom Exhaust Fans and Fan-Lights are a great value for use at home or in a business where continuous operation is required in a bathroom, laundry room, or utility room. Enjoy an exceptionally quiet performance and low energy consumption using our resilient ball bearing motor and forward curved blower wheel within a sturdy galvanized steel housing for efficient odor removal and moisture reduction in your space. This ventilation fan features a removable blower assembly and wiring compartment for a hassle-free install, and an extended discharge collar with backdraft damper for easy attachment to a 4 in. duct.
BUILD-UP IN BATHROOMS
NON-LIGHTED, 100W INCANDESCENT, &
21W FLUORESCENT MODELS
HANGER BARS & ELECTRICAL
KNOCKOUTS FOR EASY INSTALL
Designed for ventilating bathrooms from 45 - 120 sq. ft. and other rooms from 60 - 160 sq. ft.
Heavy gauge mounting tabs with 4 in. extended duct collar and knockouts on side and top of housing for quicker installation
Choose from models with or without a built-in light
Gracefully curved grille for efficient airflow
Sturdy 22-gauge steel housing with 4 in. extended duct collar
UL Listed and approved for use over tub/shower enclosures when installed in a GFCI protected branch circuit
|Primary Color|| |
|Secondary Color|| |
50, 80, 110, or 130
|Material Details|| |
22 ga. Steel Housing, Plastic Grille
|Light Details|| |
L Models: 100W Incandescent Bulb (A-19)
FL Models: 21W 2-D Fluorescent Bulb; 1,350 Lumen Output
|Motor Details|| |
Permanently Lubricated, Ball-bearing, Plug-In
|Motor Specs|| |
14.4 in. H x 12.75 in. W x 7.62 in. D (Grille Size and Housing Depth)
|Unit Weight|| |
|Box Dimensions|| |
11.25 in. x 15 in. x 13.5 in.
15 in. x 16 in. x 15 in. (UPS)
|Alias SKU(s)|| |
NXSH50: 50 CFM, non-lighted

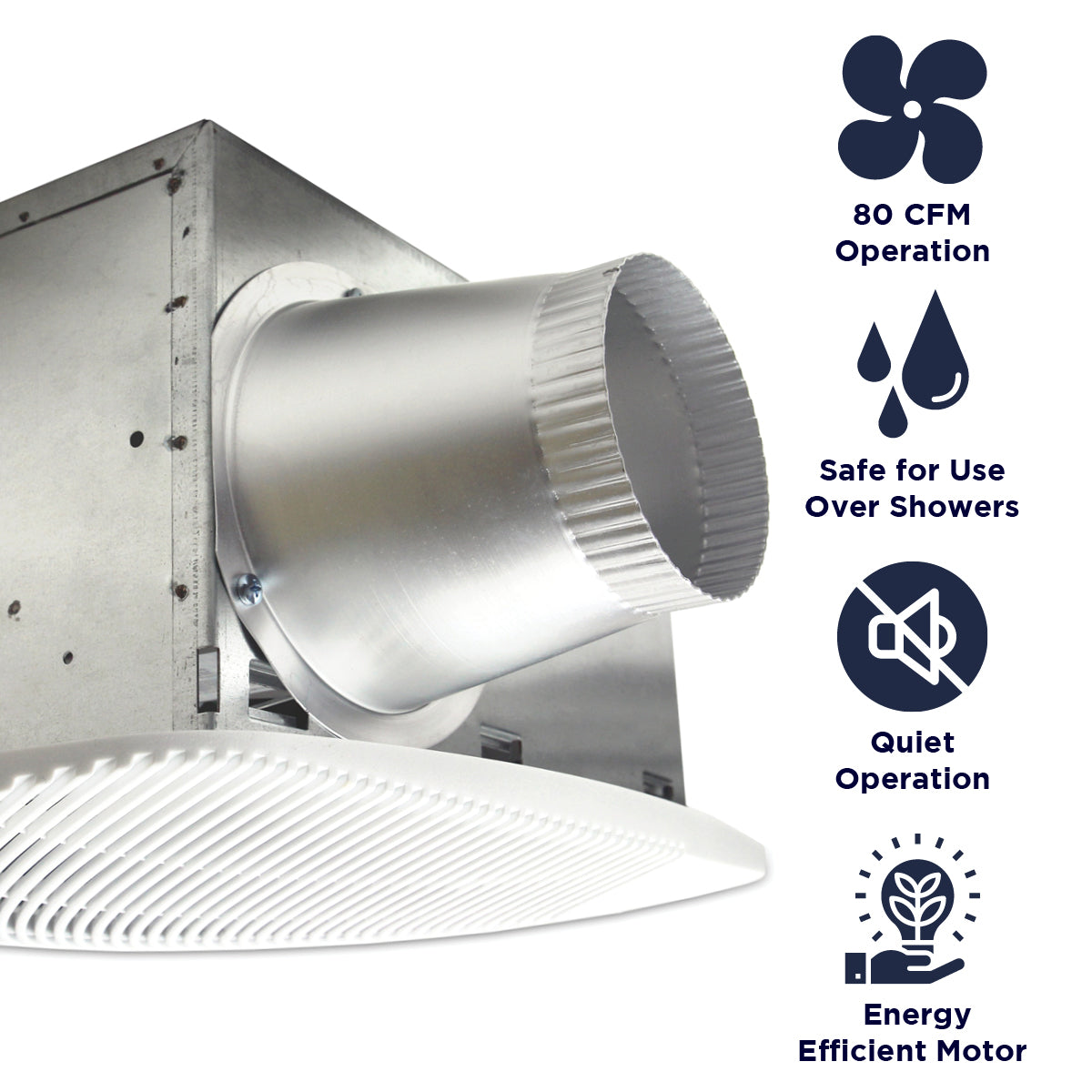

NXSH80: 80 CFM, Non-Lighted
NXSH110: 110 CFM, Non-Lighted

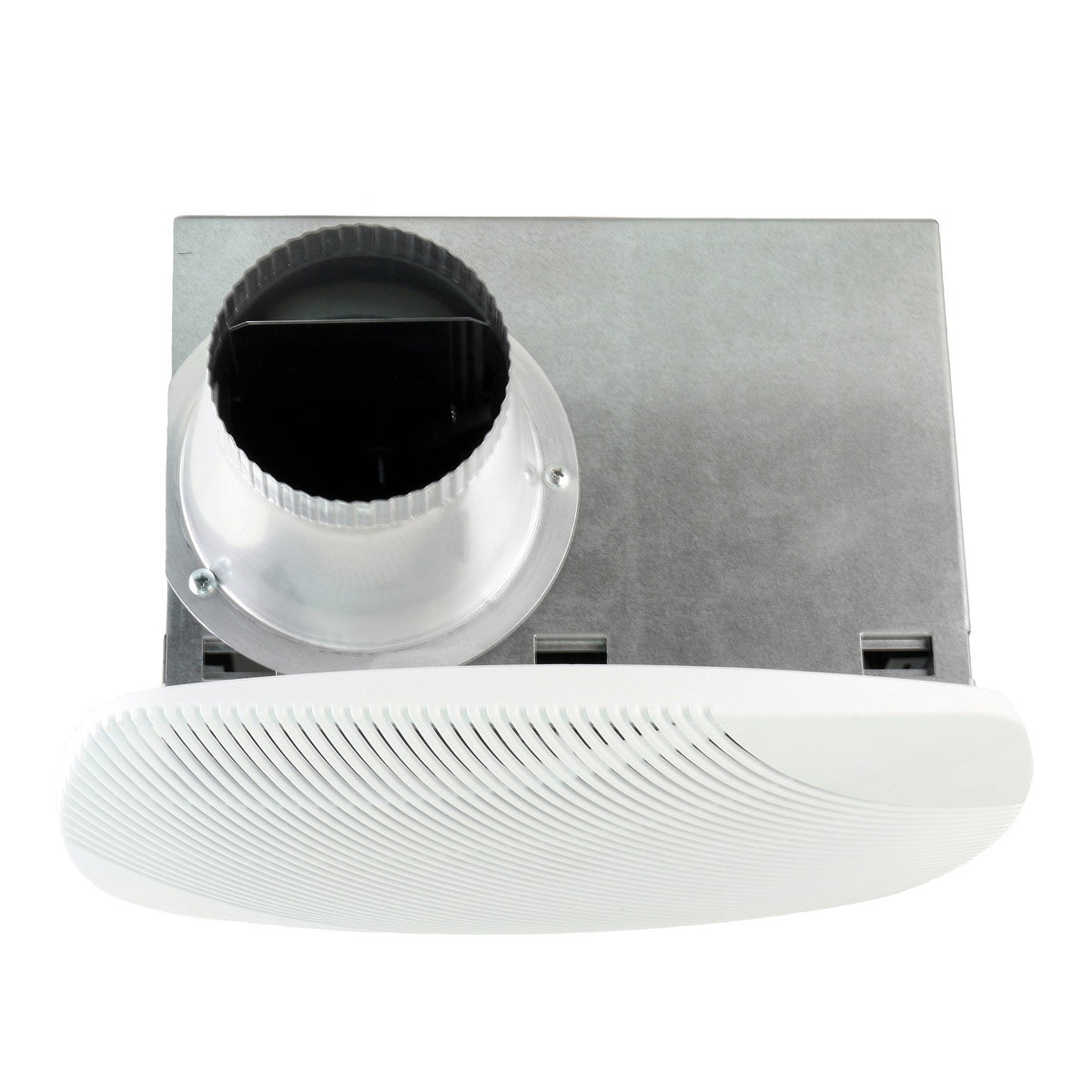

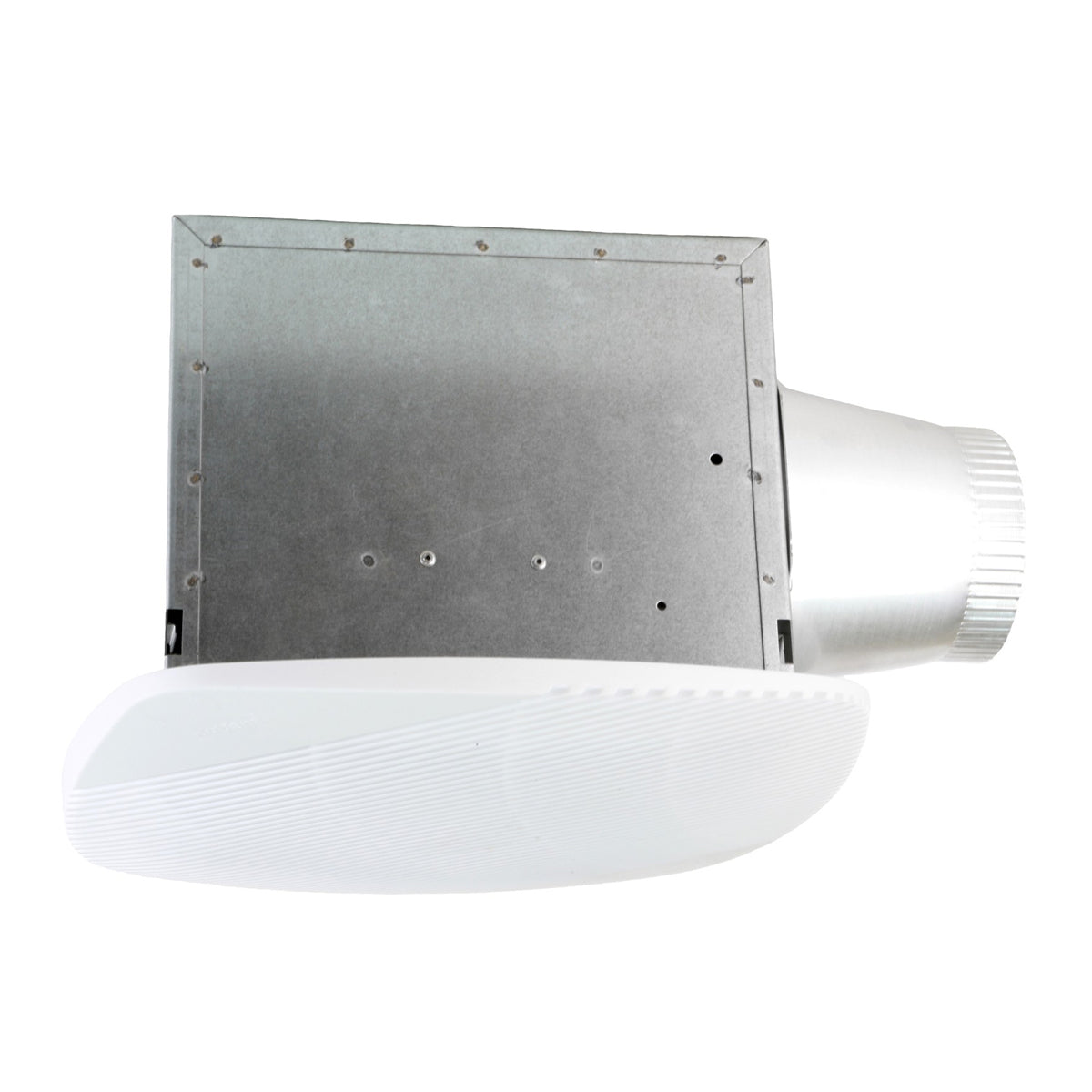

NXSH130: 130 CFM, Non-Lighted

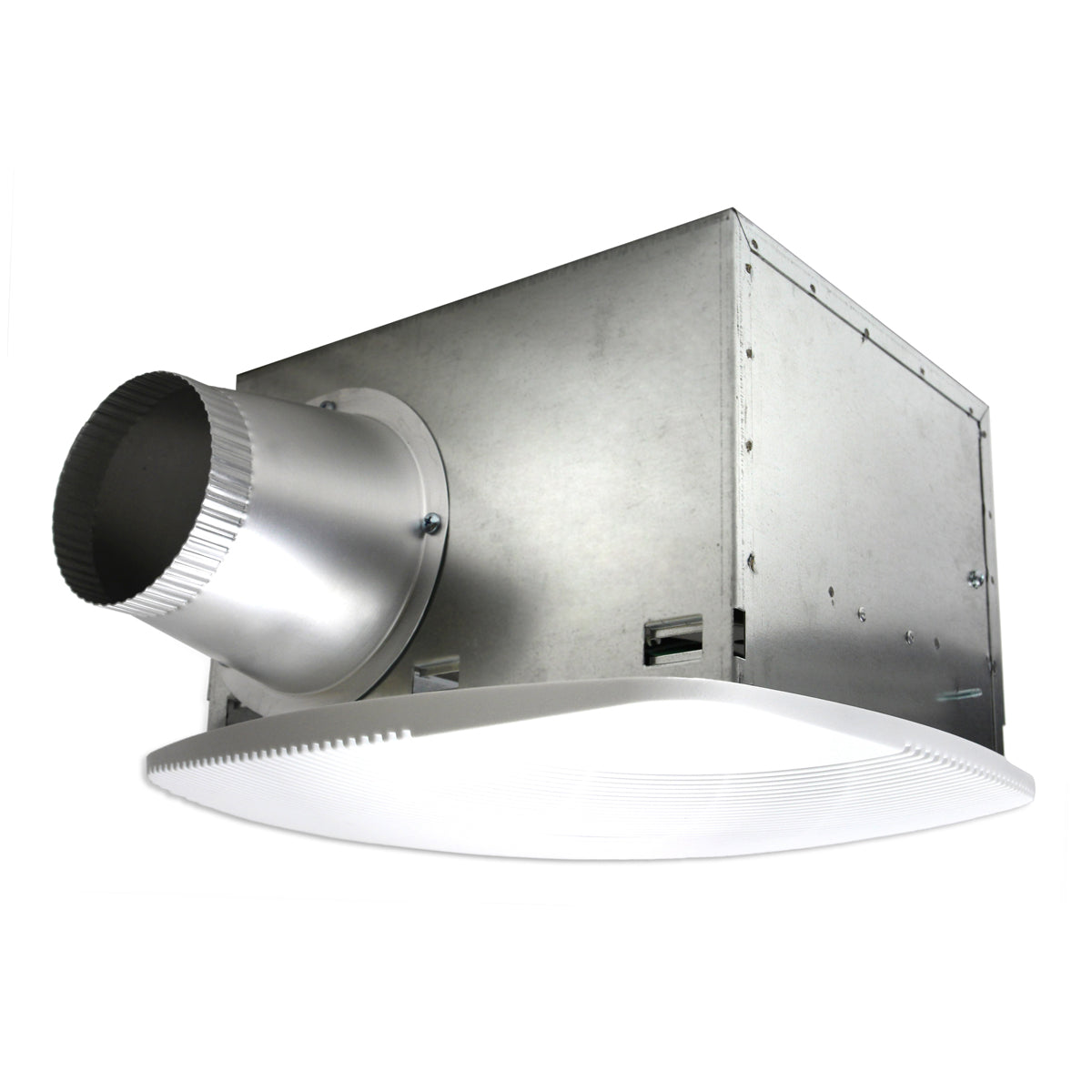

NXSH80L: 80 CFM, Incandescent

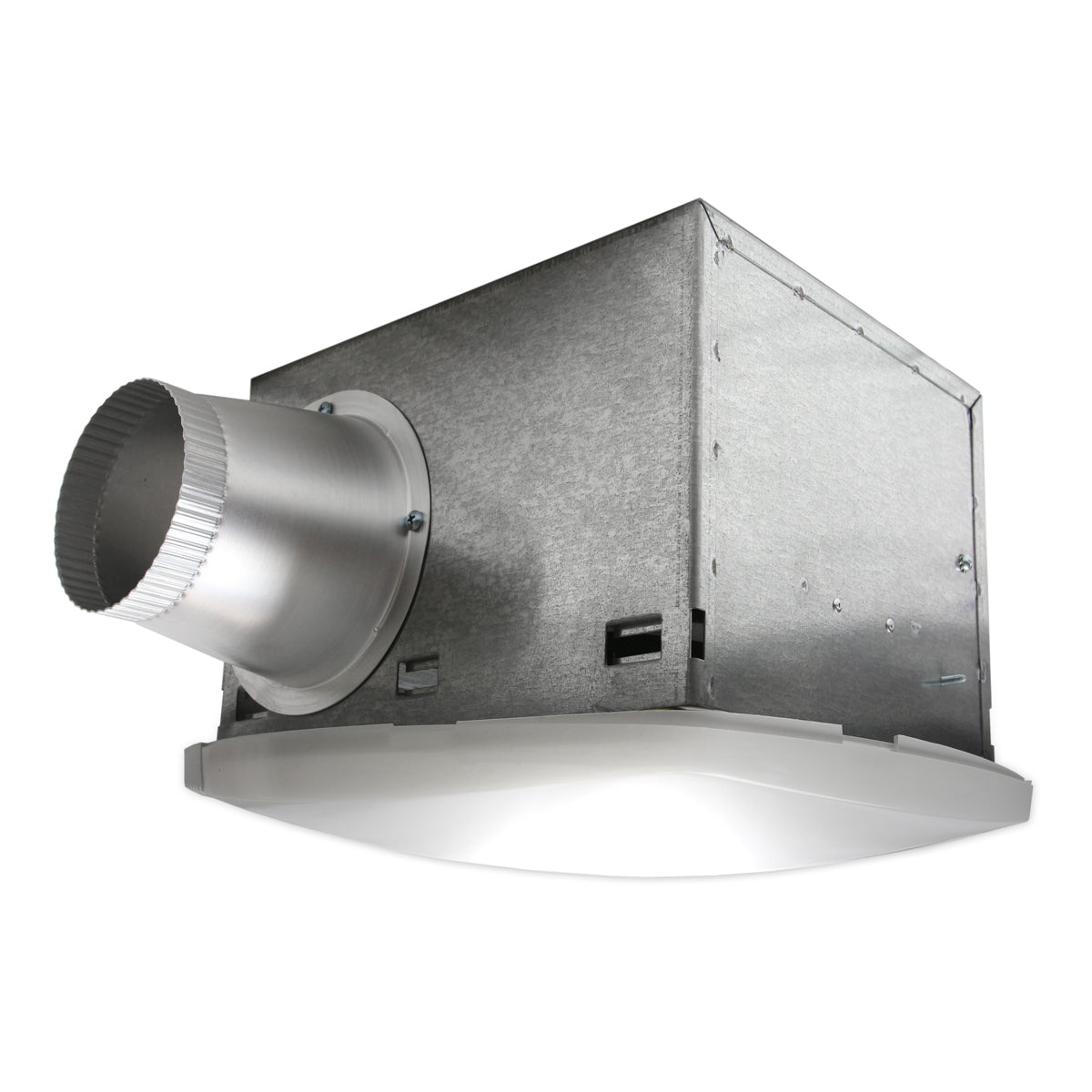

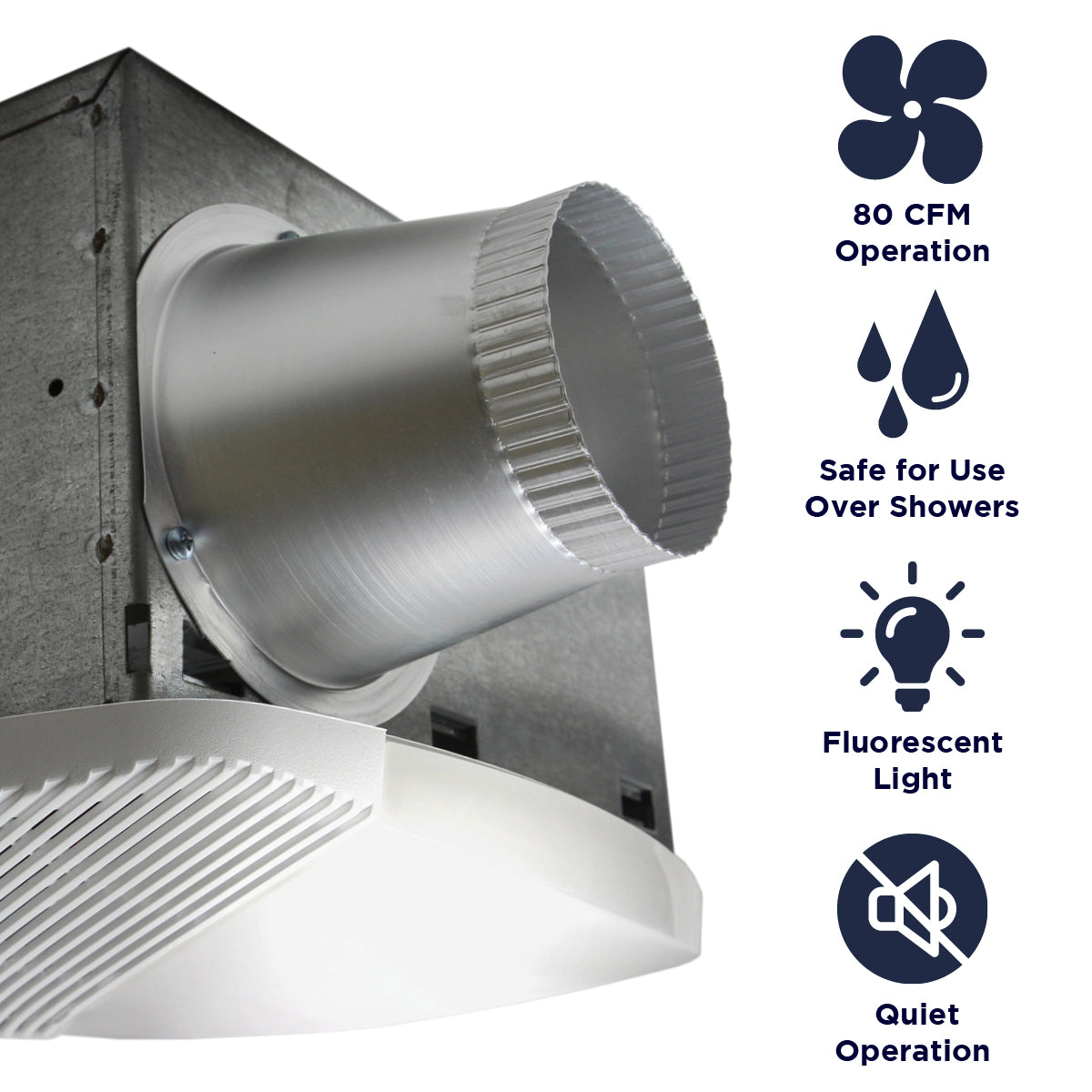

NXSH80FL: 80 CFM, Fluorescent

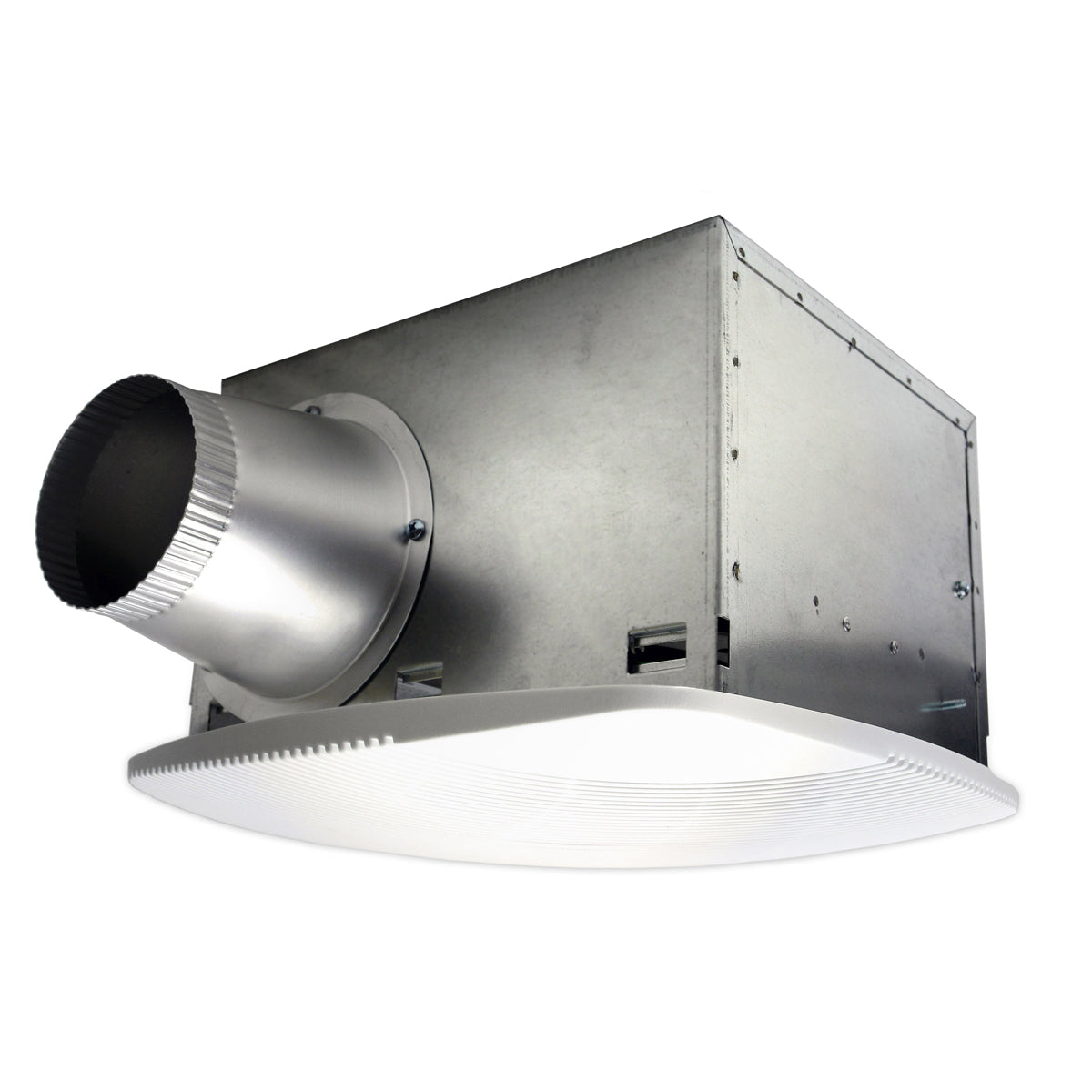

NXSH110L: 110 CFM, Incandescent
NXSH110FL: 110 CFM, Fluorescent
NXSH130L: 130 CFM, Incandescent
|Multi UPC Info|| |
|Country of Origin - Assembly|
US from Domestic and Imported Components
Maxx Air, NuVent

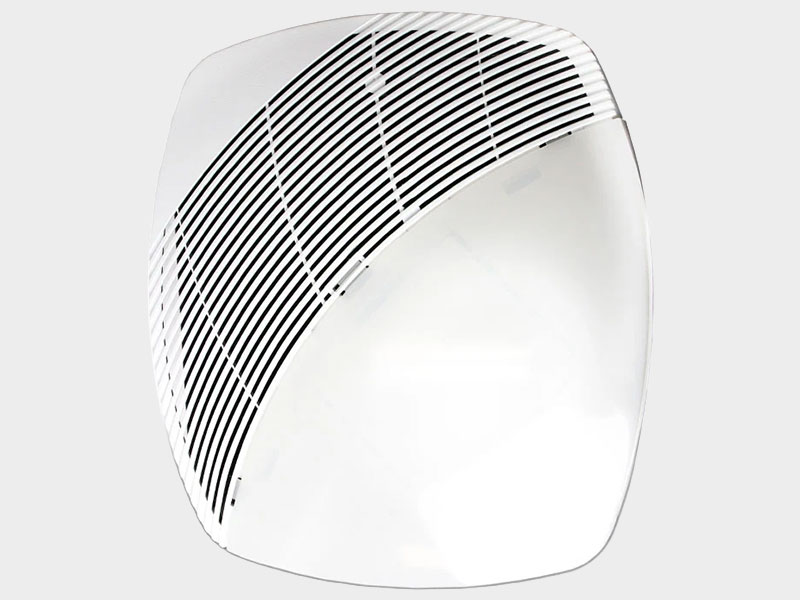

Our attractive grilles fit neatly into place and compliments any design style no matter your space. When your bulb requires replacement, simply push the center tab to remove the lens for access to the lamp holder. It's that easy!
Don't put up with the excess noise generated from old, clunky fans. With units operating from 0.8 - 2.0 sones, the SH series bath fans are so quiet you might not even know it's on.
A warm shower is great, but all that unventilated steam and moisture can set up your bathroom for mold and mildew (and the damaging after-effects of removing it). Installing an SH series bath fan aids in removing this moisture in bathrooms ranging from 45 - 120 sq. ft.
