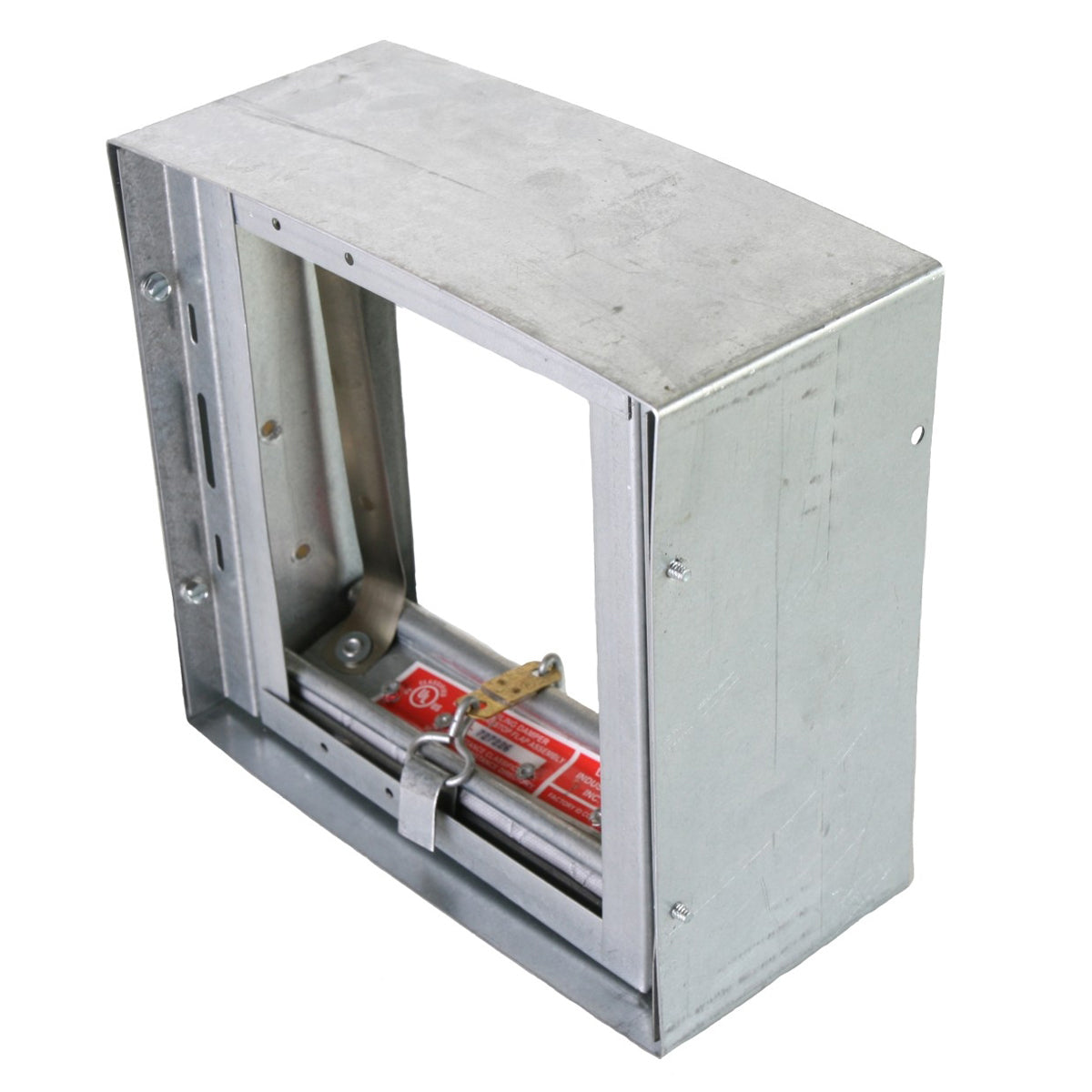

Contractor series radiation damper showing the fusible link.
Contractor series radiation damper installed on bath fan.

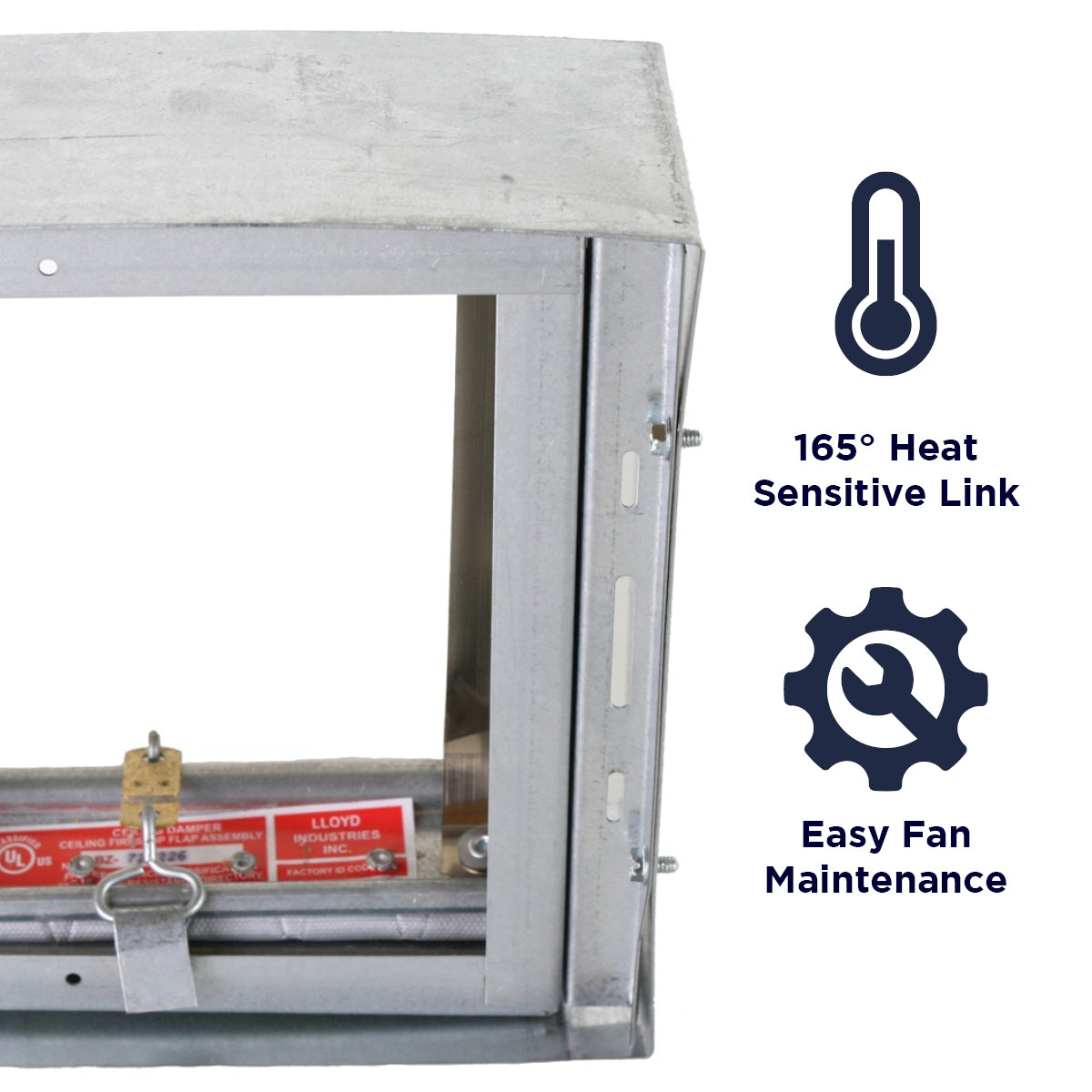

Features of the NXCFRD include a heat sensitive link and easy fan maintenance.

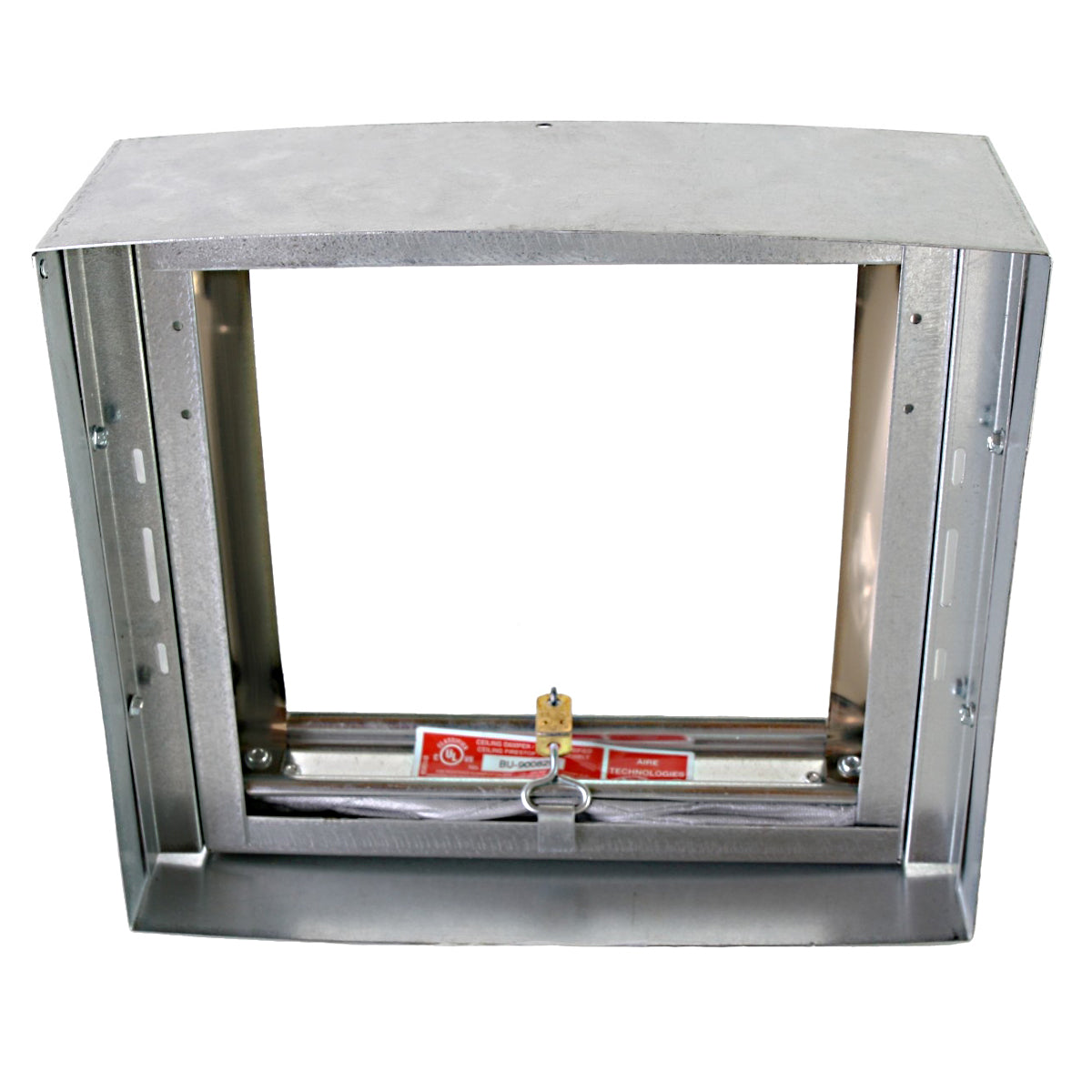

Front view of the SH series radiation damper showing the fusible link.

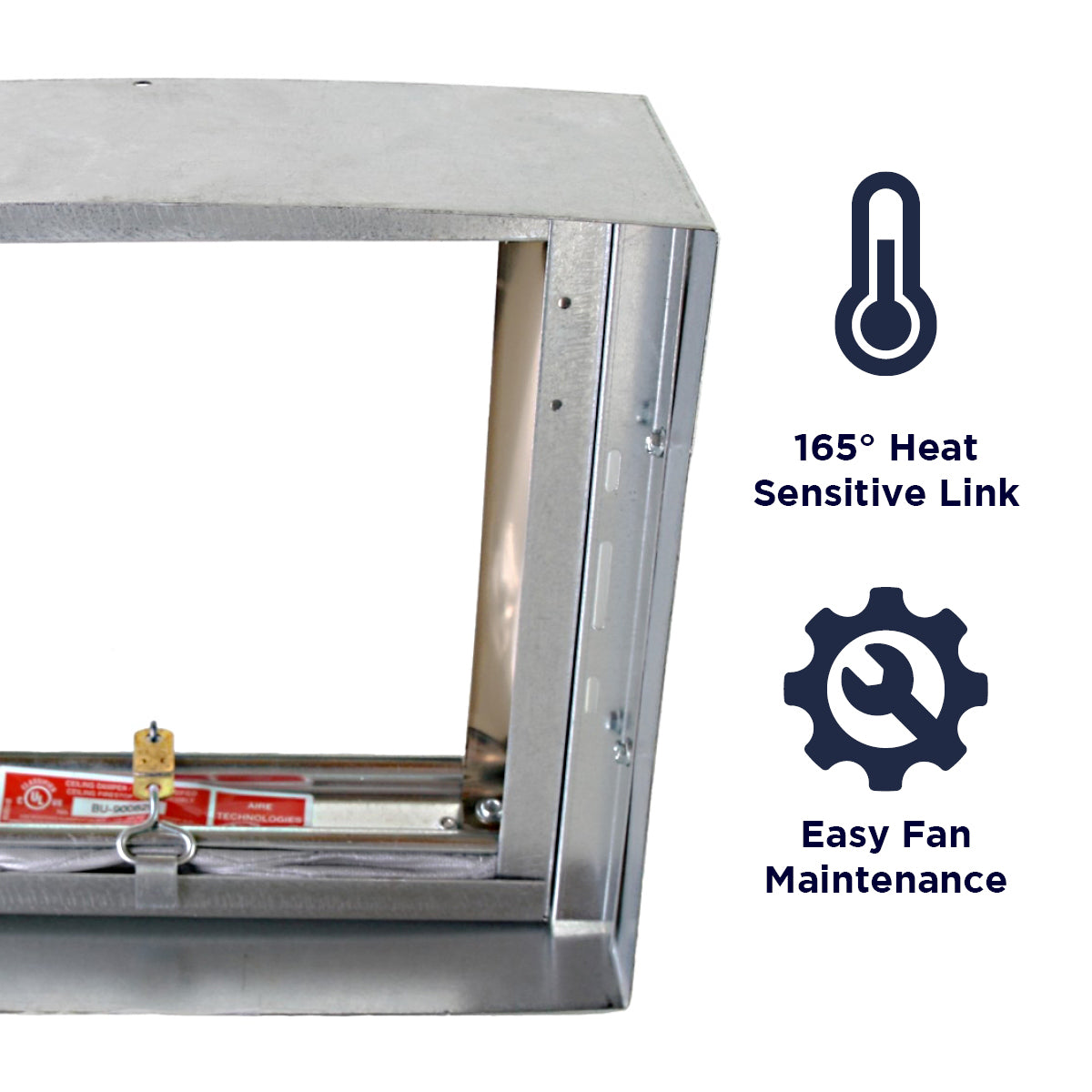

Features of the NXSRD include a heat sensitive link and easy fan maintenance.

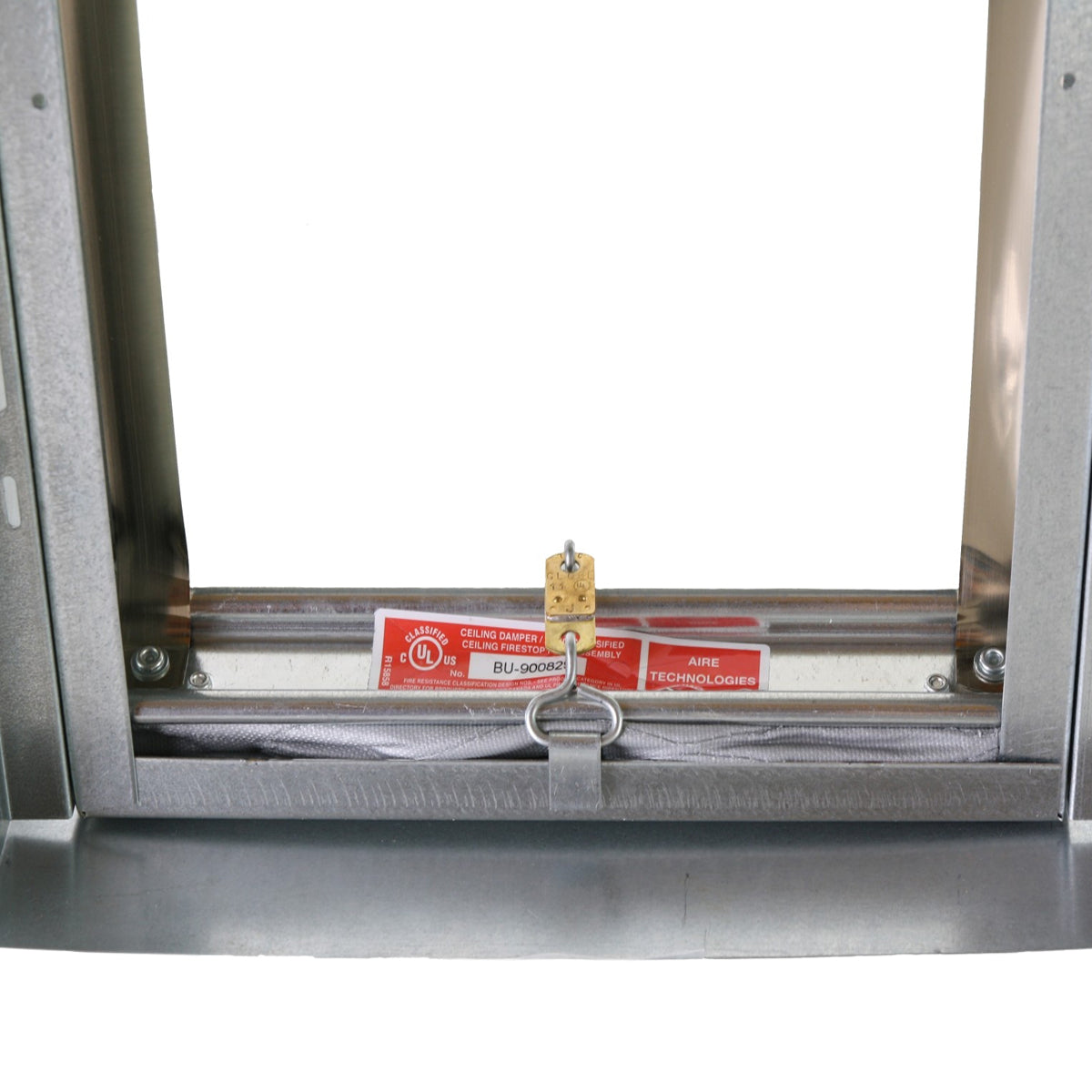

Detailed close-up of the fusible link.

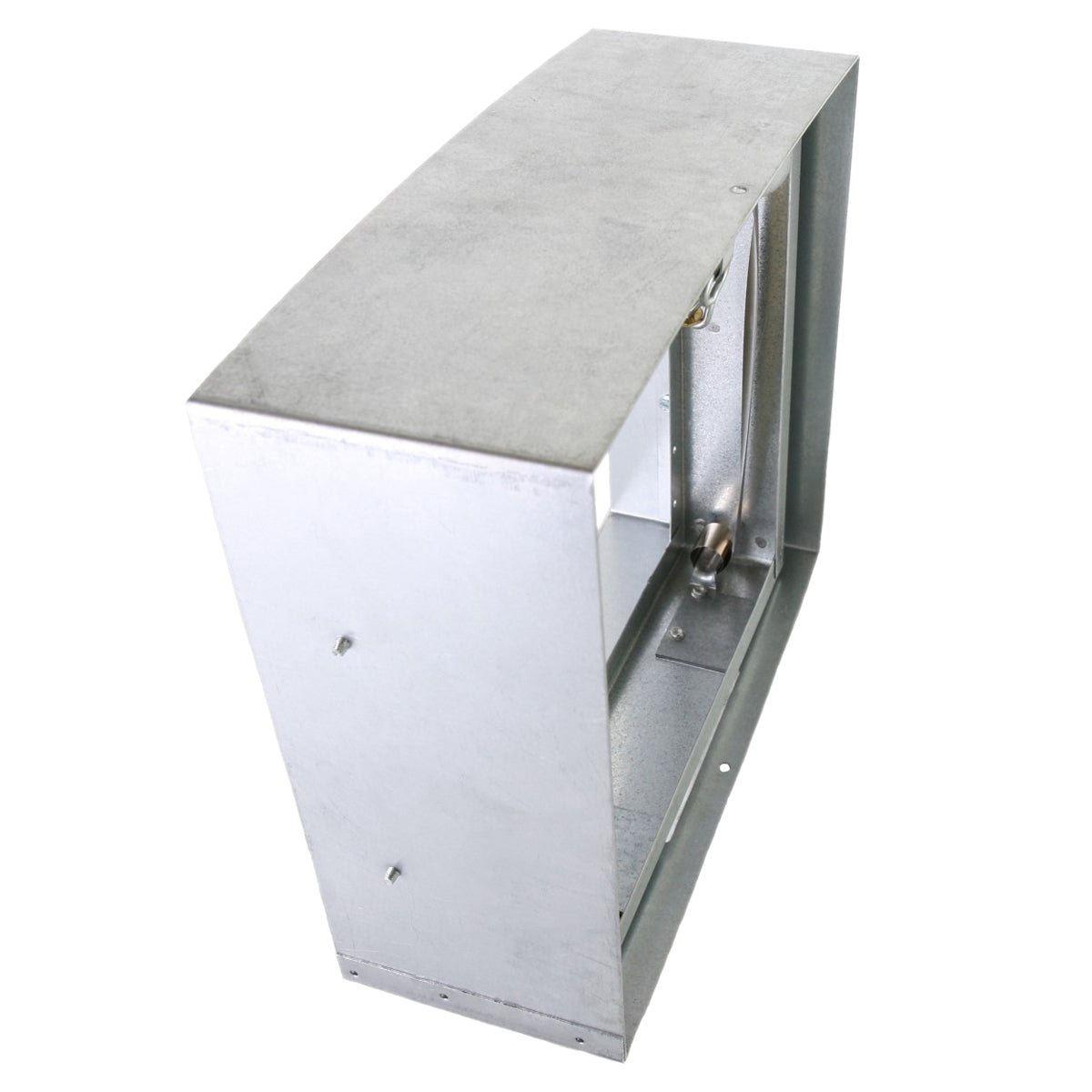

Side view of the NXSRD radiation damper.
Contractor series radiation damper showing the fusible link.
Contractor series radiation damper installed on bath fan.
Features of the NXCFRD include a heat sensitive link and easy fan maintenance.
Front view of the SH series radiation damper showing the fusible link.
Features of the NXSRD include a heat sensitive link and easy fan maintenance.
Detailed close-up of the fusible link.
Side view of the NXSRD radiation damper.

Bath Fan Radiation Dampers

Login to view price.
DESCRIPTION:

Many local codes require the installation of a ceiling radiation damper to protect the bath fan opening against the spread of heat and fire through the ductwork. Installed between the housing and grille, the damper employs an insulation blanket that closes off the opening in an emergency by means of a heat-sensitive fusible link. Our ceiling dampers meet UL Standard 555C and are labeled for use in fire-resistive floor/ceiling membranes.

PERFECT FOR:
  • Commercial

  • Home

  • HEAT SENSITIVE
    FUSIBLE LINK

  • STEEL FRAME & REINFORCED
    FIBER THERMAL CURTAIN

Controls:

Heat sensitive 165° replaceable fusible link

Material:

Galvanized steel frame with insulation blanket constructed of non-asbestos, high-temperature reinforced fiber thermal curtain

Safety:

UL tested and labeled (UL Standard 555C) for use in 1, 2, and 3-hour floor-ceiling and roof-ceiling construction

Primary Color

Mill

Material Details

.024 Galvanized Steel Frame; Insulation Blanket Constructed of Non-Asbestos, High-Temperature Reinforced Fiber Thermal Curtain

Dimensions
ModelSeriesH (in.)W (in.)D (in.)
NXCFRDContractor3.757.6258.0625
NXMRDMS3.009.509.375
NXSRDSH4.259.62511.375
Unit Weight

3 lbs.

Box Dimensions

NXCFRD: 23 in. x 9.25 in. x 8 in.

NXSRD: 22 in. x 18.25 in. x 13 in.

Alias SKU(s)

NXCFRD: Contractor Series Damper

NXMRD: MS Series Damper for Non-Lighted

NXMLRD: MS Series Damper for Lighted

NXSRD: SH Series Damper for Non-Lighted

NXSLRD: SH Series Damper for Lighted

Multi UPC Info

NXCFRD: 047242580983

NXMRD: 697453535700 ; 047242701609  (QTY 10)

NXMLRD: 697453535502 ; 697453535557 (QTY 4)

NXSRD: 697453535809 ; 047242581157  (QTY 4)

NXSLRD: 697453535755

Country of Origin - Assembly

US from Domestic and Imported Components

Sold Under

Maxx Air, NuVent

FOR A SAFER HOME

Radiation dampers work to restrict the spread of fire by closing off the bath fan opening. Install a damper with your contractor-grade, SH series, or MS series bath fan for added protection should an emergency occur.
