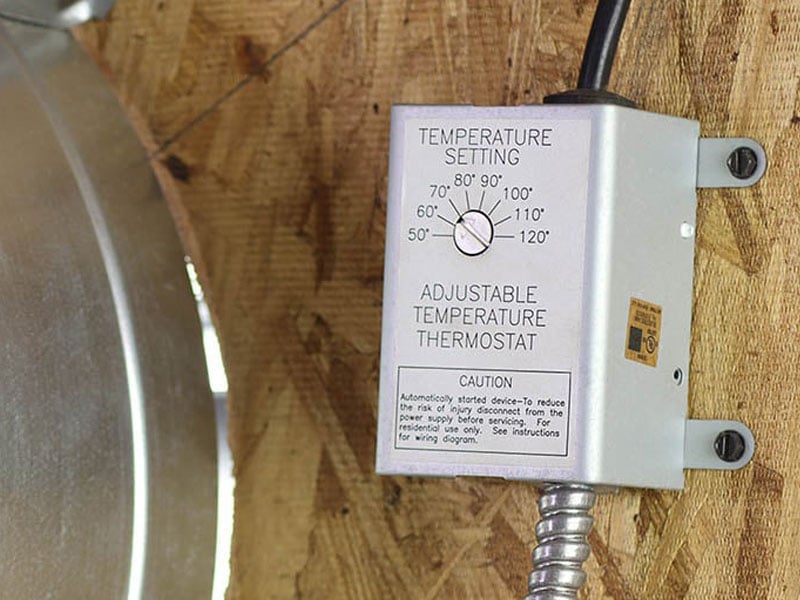

1,650 CFM gable fan showing the adjustable thermostat and heavy duty steel shroud housing.
A gable fan installed in an attic space exhausts hot air out of the attic, providing ventilation and protecting roofing components from heat damage.

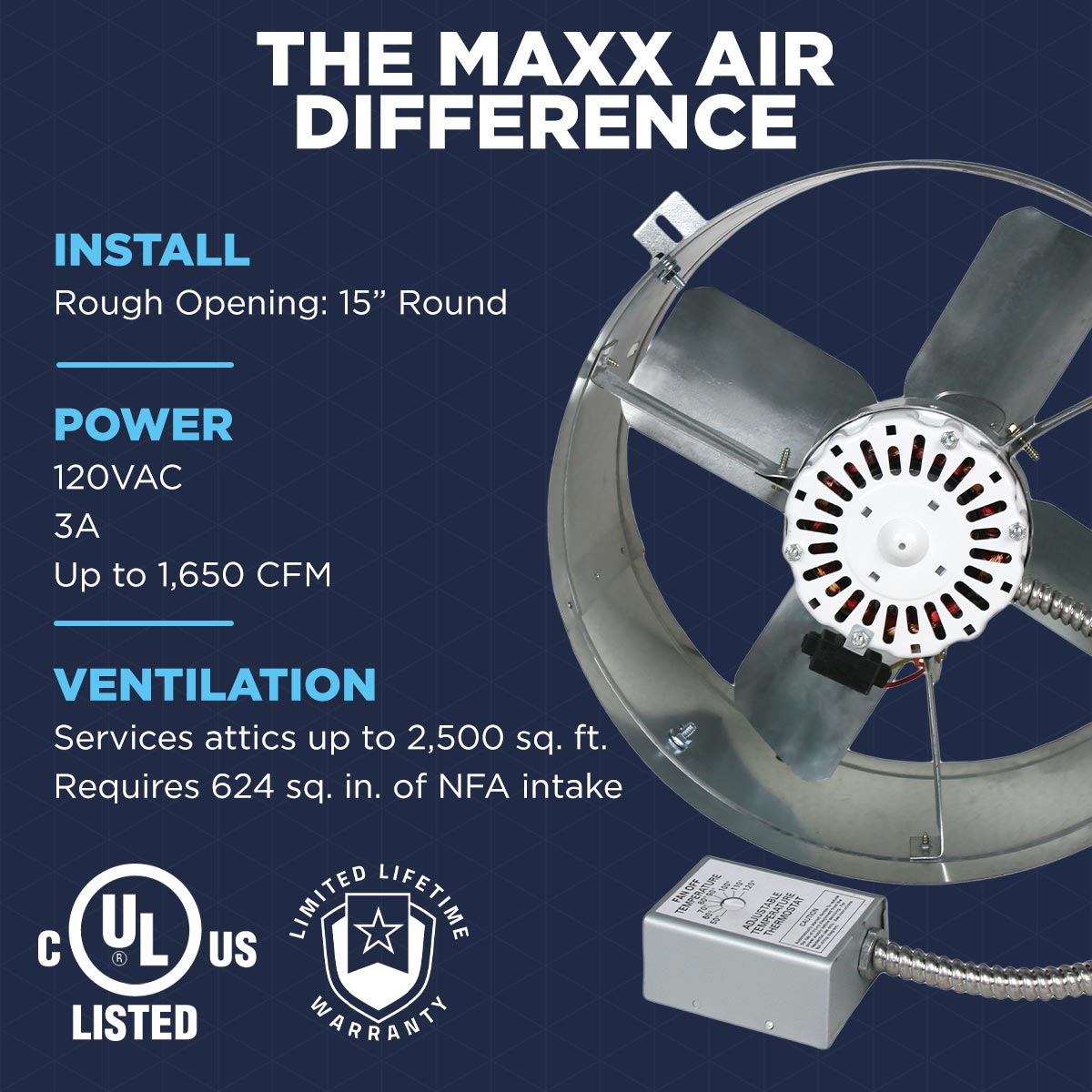

Features of the CX2500 include ventilation coverage up to 2,500 sq. ft., an adjustable thermostat, and quiet operation.
Detailed close-up of the motor, thermostat, and brackets on the residential exhaust fan.
Back view of the gable fan showing the precision balanced fan blades for high performance output.

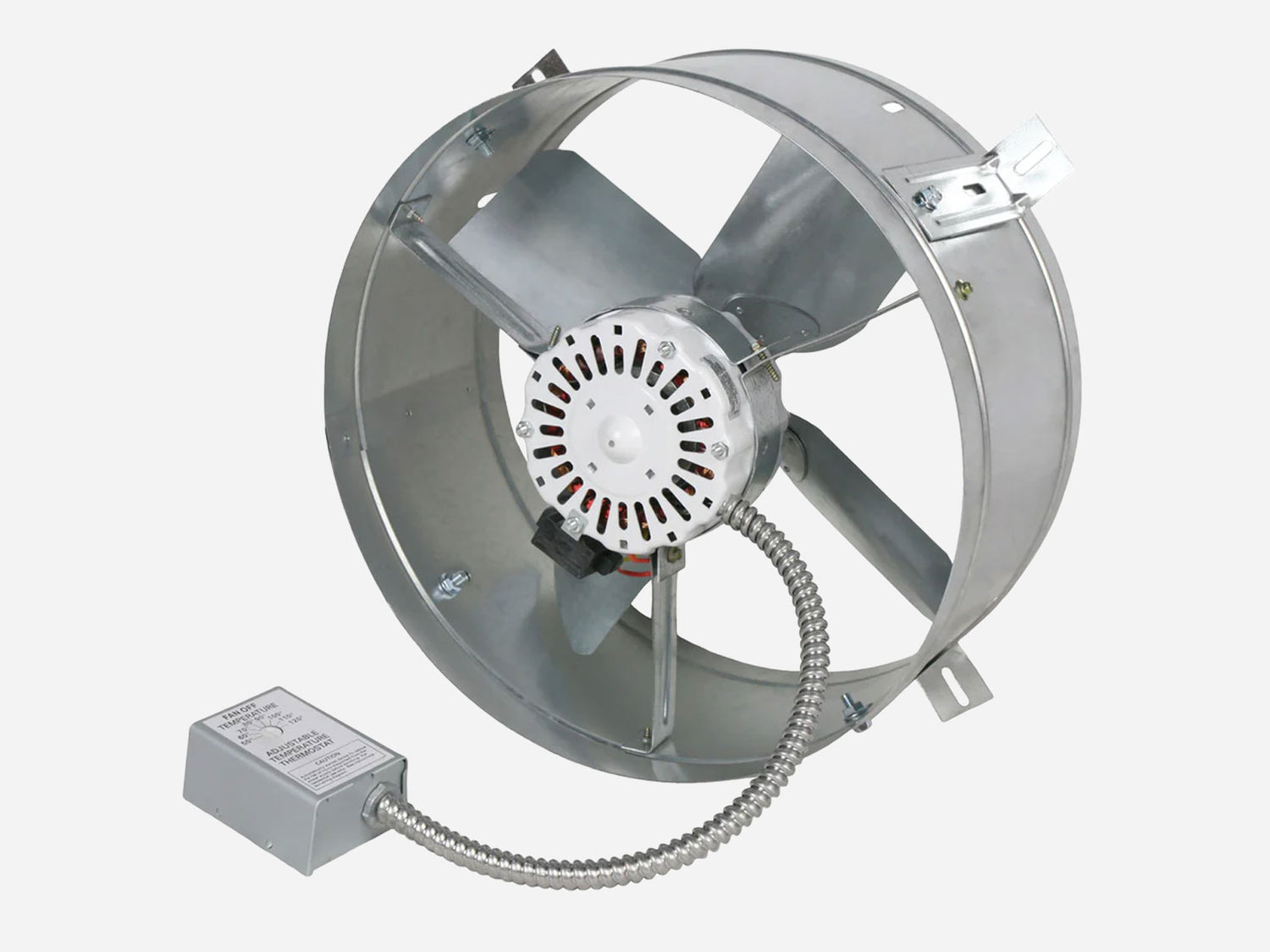

1,650 CFM gable fan showing the adjustable thermostat and heavy duty steel shroud housing.
A gable fan installed in an attic space exhausts hot air out of the attic, providing ventilation and protecting roofing components from heat damage.
Features of the CX2500 include ventilation coverage up to 2,500 sq. ft., an adjustable thermostat, and quiet operation.
Detailed close-up of the motor, thermostat, and brackets on the residential exhaust fan.
Back view of the gable fan showing the precision balanced fan blades for high performance output.

1,650 CFM Gable Mount Power Attic Ventilator

Login to view price.
DESCRIPTION:

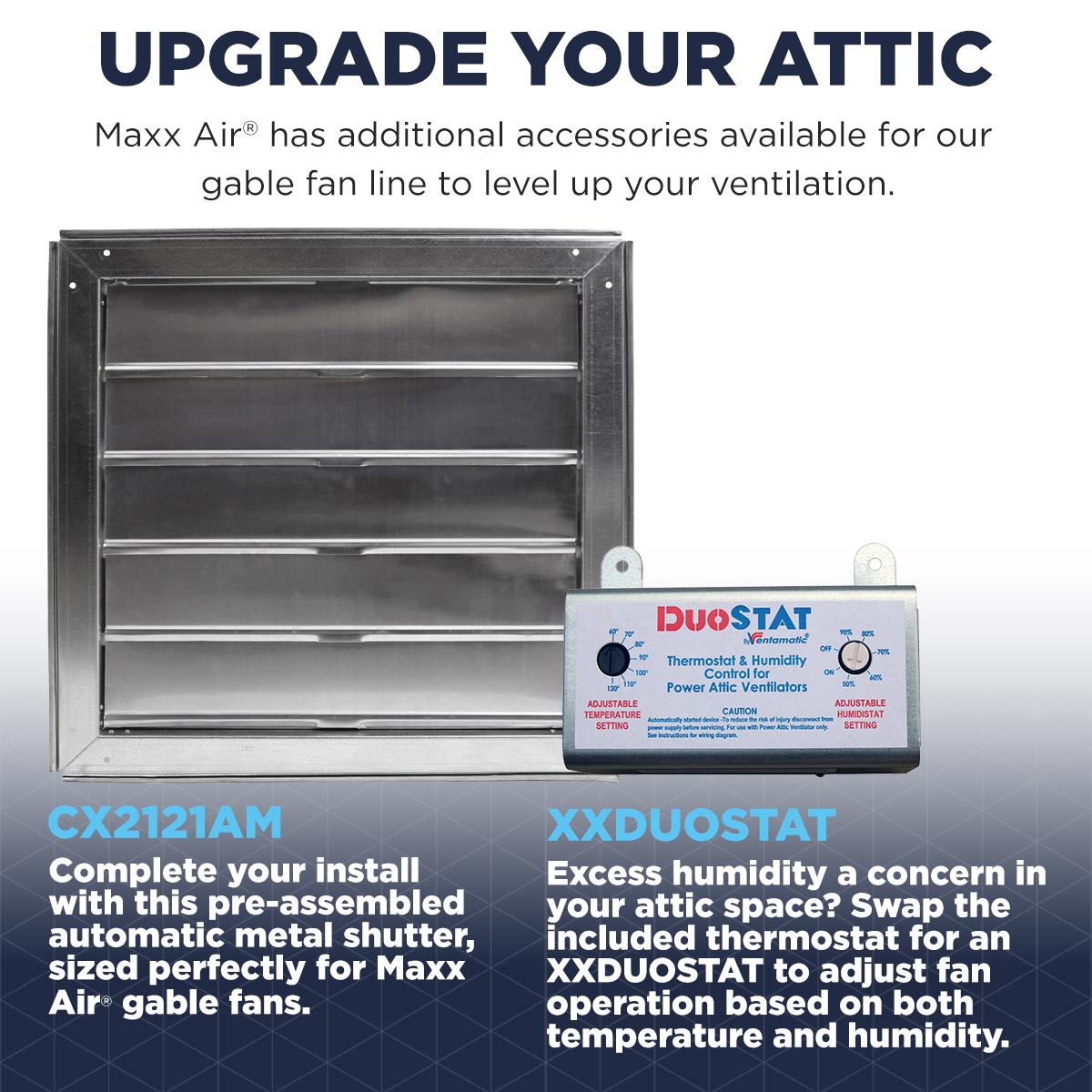

Our Maxx Air 1,650 CFM Gable Attic Fan is built to ventilate residential attic spaces up to 2,500 sq. ft. and is a great fit for situations in which roof-mounting is impractical. Constructed using a durable galvanized steel shroud and blades to resist heat distortion, and paired with a mounting system engineered to minimize vibration and ensure quiet operation. Install is straightforward with our easy to use mounting brackets and requires no special tools to complete. Our gable vent includes a pre-wired thermostat to run the exhaust fan only when you need it, minimizing it's operational cost. This electric fan is designed to prolong the life of composition roof shingles by lowering summer attic temperatures and helps to protect attic insulation against mold and mildew in the winter by removing moisure-filled air. Install behind existing louvers or purchase our shutter model (CX2121AM), and swap your pre-wired thermostat for a thermostat/humidistat combo (XXDUOSTAT) for greater control.

PERFECT FOR:
  • Home

  • FOR ATTICS UP TO
    2,500 SQ. FT.

  • ADJUSTABLE
    THERMOSTAT

  • QUIET
    OPERATION

  • FACTORY ASSEMBLED WITH
    BRACKET SYSTEM

Circulation:

Ventilates attic spaces up to 2,500 sq. ft.

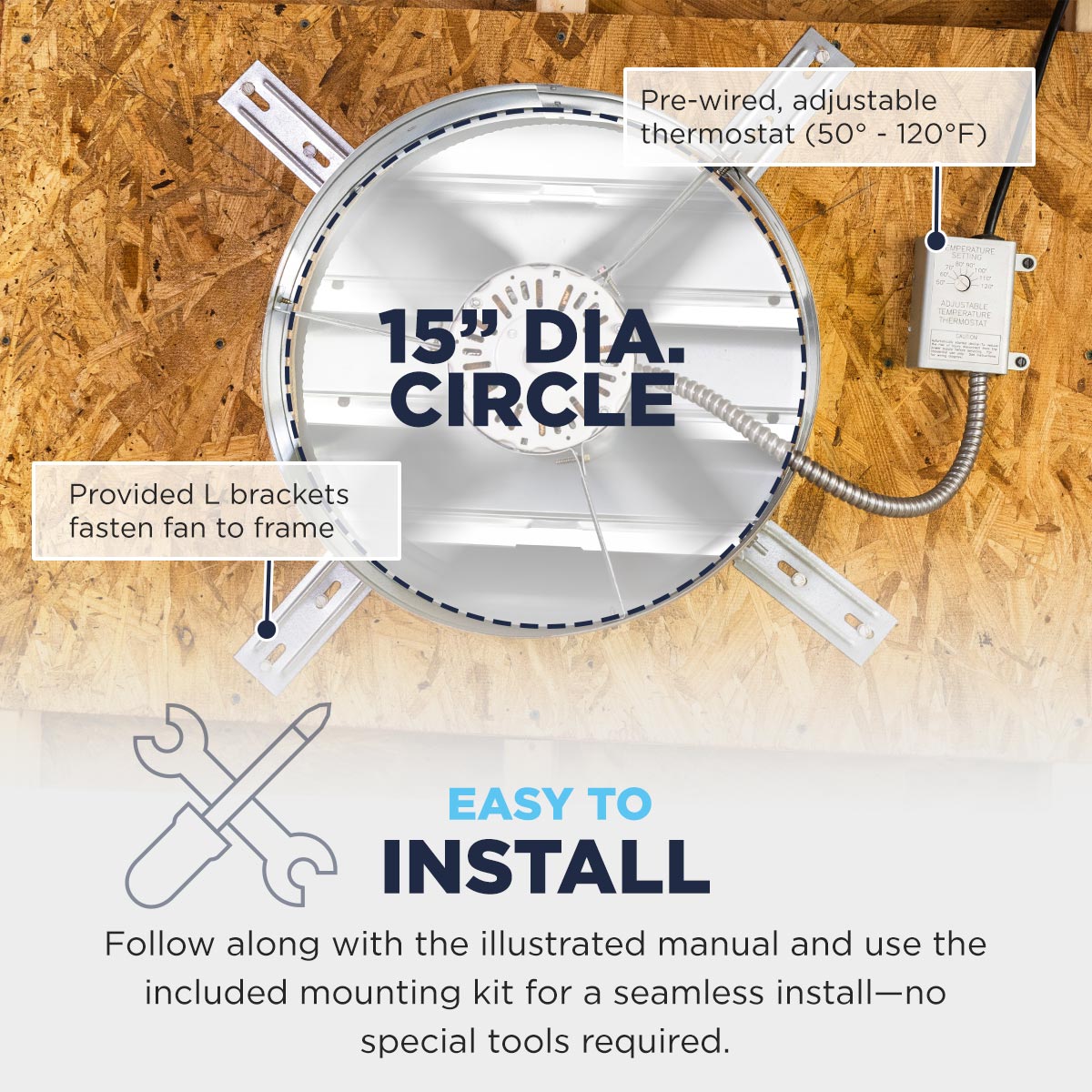

Installation:

Factory assembled for easy install—no holes in roof required. Includes bracket system for mounting.

Thermostat or Timer:

Adjustable thermostat settings from 50 - 120°F to run only when needed

Material:

Galvanized steel shroud with precision balanced 14 in. fan blades

Energy Efficiency:

Heavy-duty motor keeps your home attic cooler and can reduce air conditioning costs

Safety:

Requires 624 sq. in. of NFA intake ventilation

Primary Color

Mill

CFM

1,650

Material Details

Galvanized Steel Shroud and Fan Blades

Motor Details

Energy Efficient PSC Motor

Motor Specs

Rated at 3 Amps

120 V, 60 Hz

Dimensions

15 in. H x 15 in. W x 5.875 in. D

Unit Weight

10 lbs.

Box Dimensions

16 in. H x 15.5 in. W x 6.5 in. D

18 in. H x 17 in. W x 7 in. D (UPS)

Alias SKU(s)

CX2500: Printed Carton
CX2500UPS: Plain Carton
VX2500

Multi UPC Info

CX2500: 047242025002
CX2500UPS: 047242949162
VX2500: 047242025019

Country of Origin - Assembly

US from Domestic and Imported Components

Sold Under

Maxx Air, Cool Attic, Ventamatic

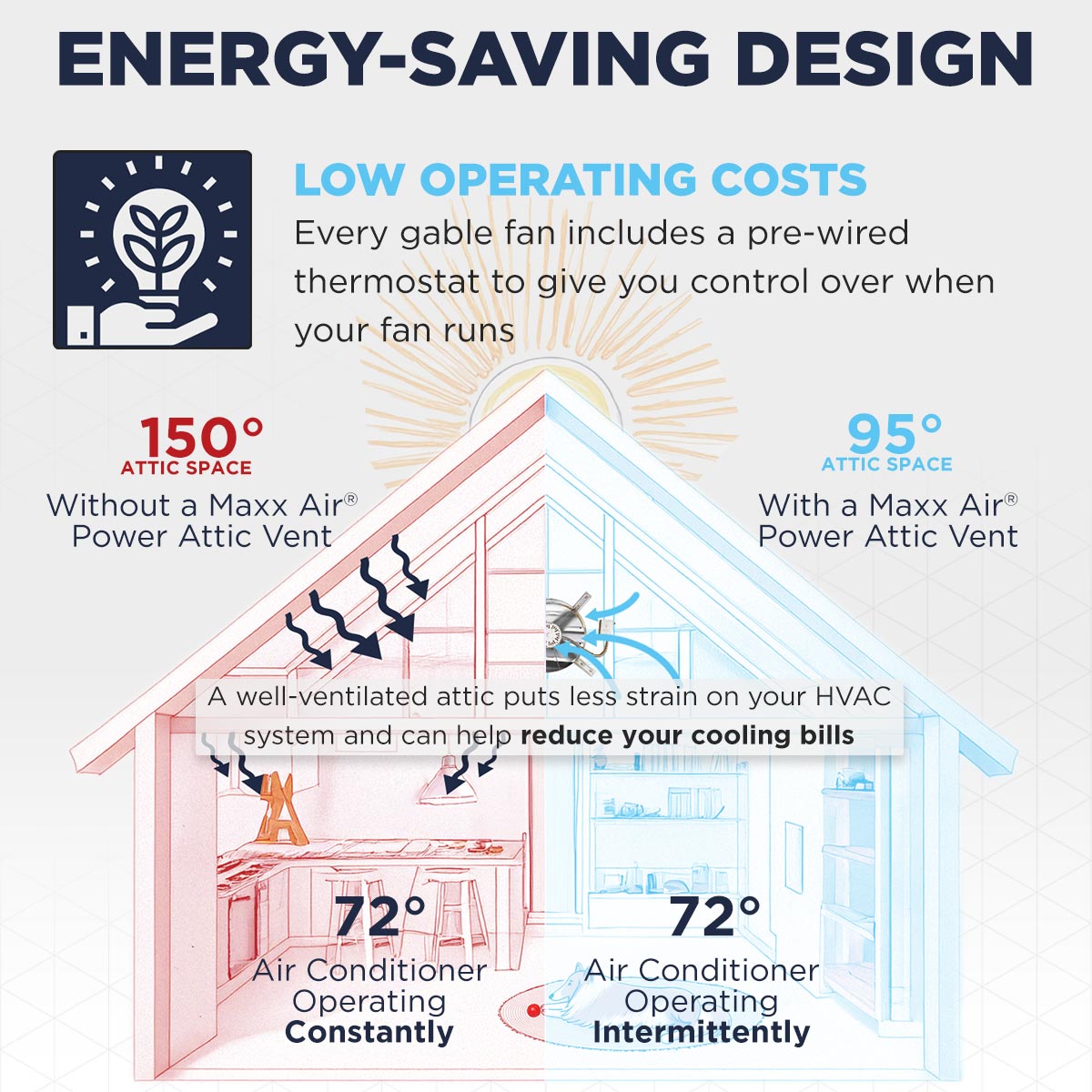

ENERGY SAVING DESIGN

An attic fan running all day can quickly eat into your pocketbook, which is why all electric Maxx Air gable fans have a pre-wired thermostat to give you control over when your fan runs.

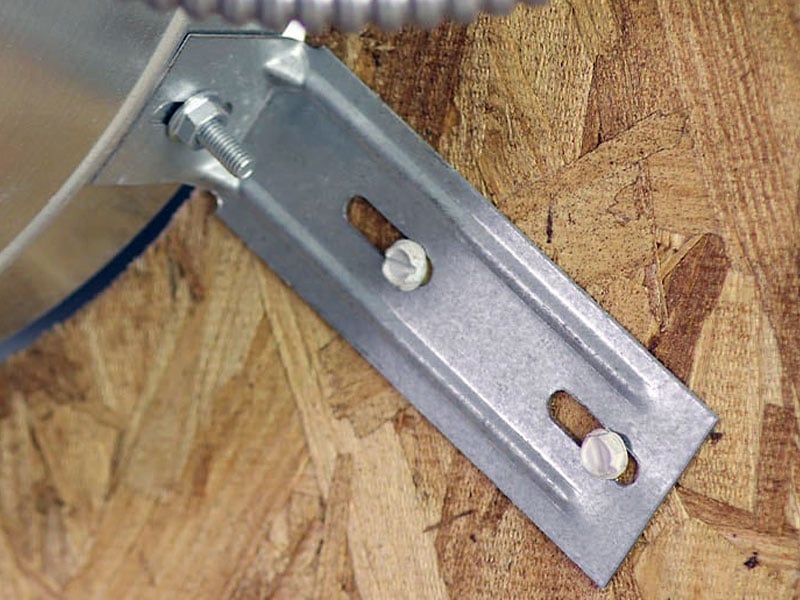

Easy Install Brackets

You don't have to be a professional to get your fan install started. Our line of gable fans include 4 brackets that fasten to the housing for easy and secure mounting in your attic space. The bracket system also ensures your fan operates quietly and reduces vibration, keeping your home space below it noise-free.

Offers Year-Round Home Benefits

Creating a balanced attic ventilation system is necessary for the overall health of any home. When your attic space is properly ventilated, your air conditioner runs less in the summer, your roof shingles last longer, and your attic insulation is further protected from mold and mildew. A Maxx Air gable fan is one component that can help you reach this goal.
