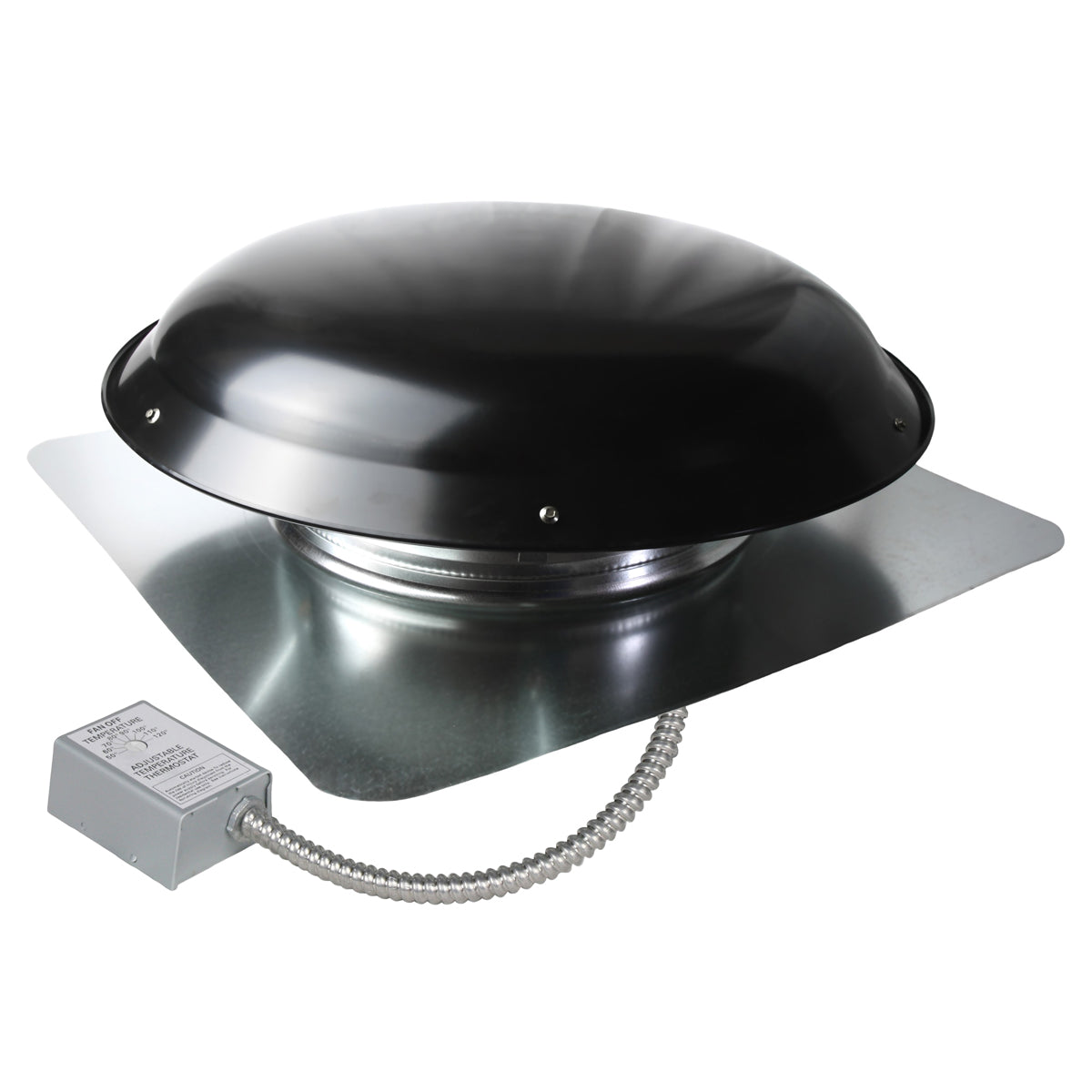

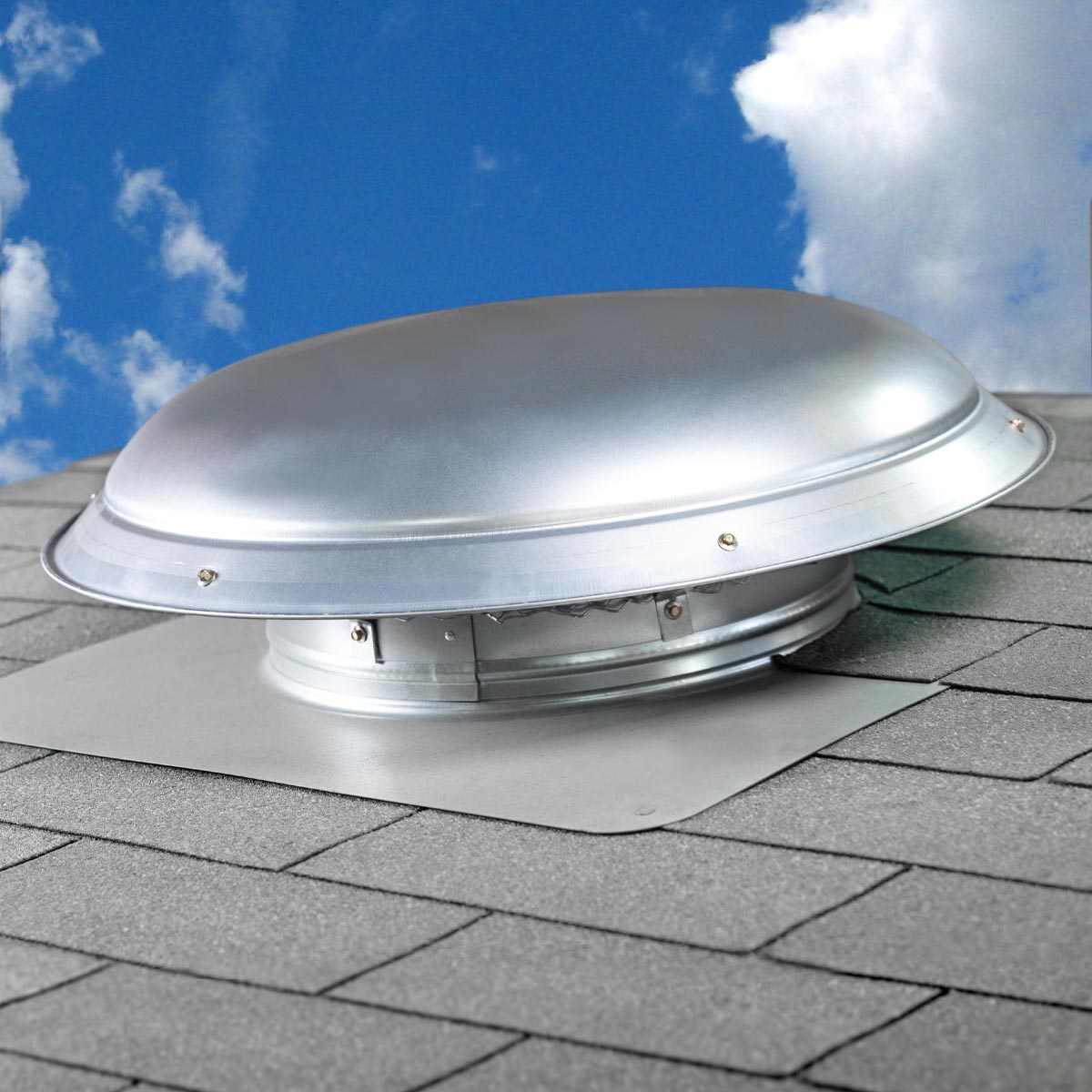

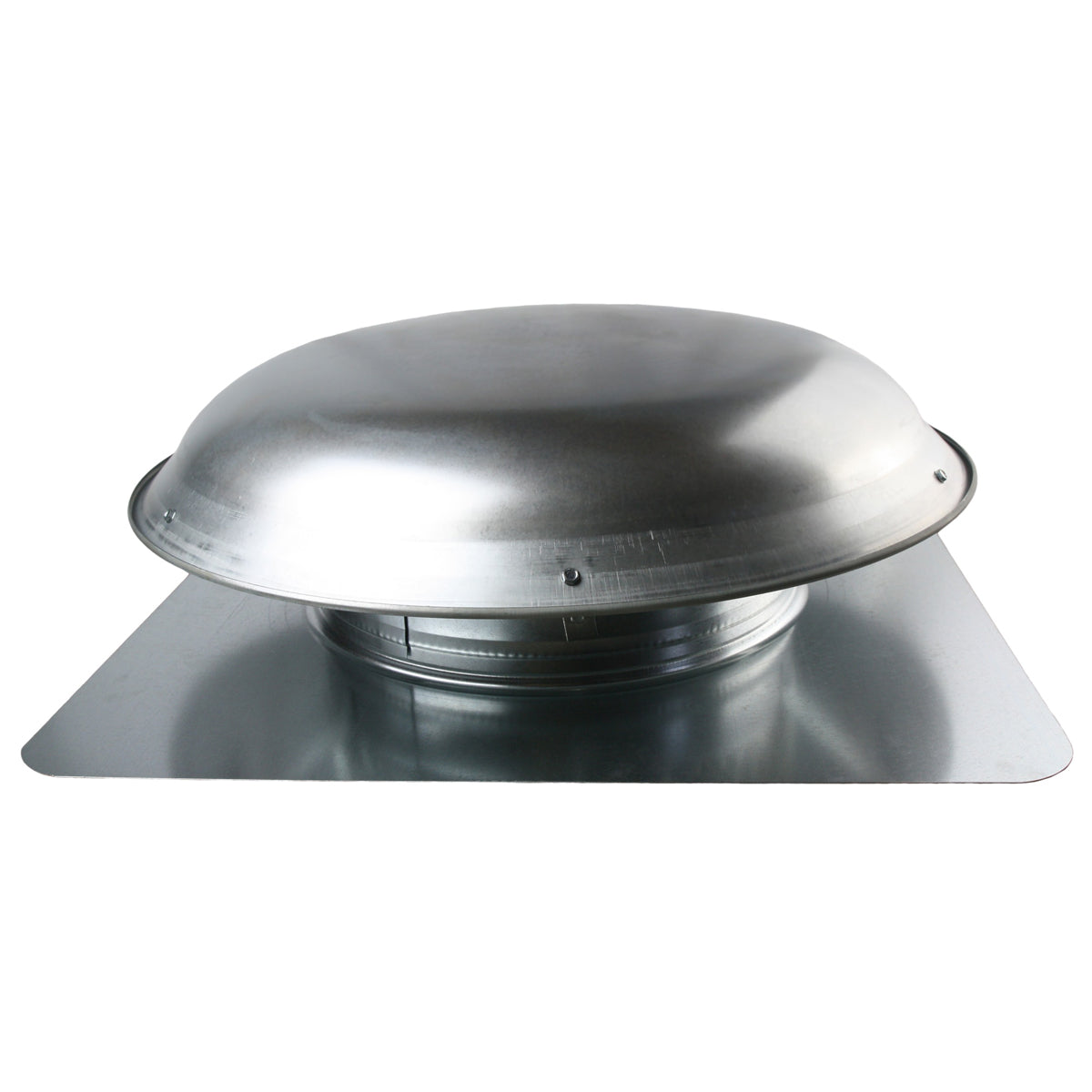

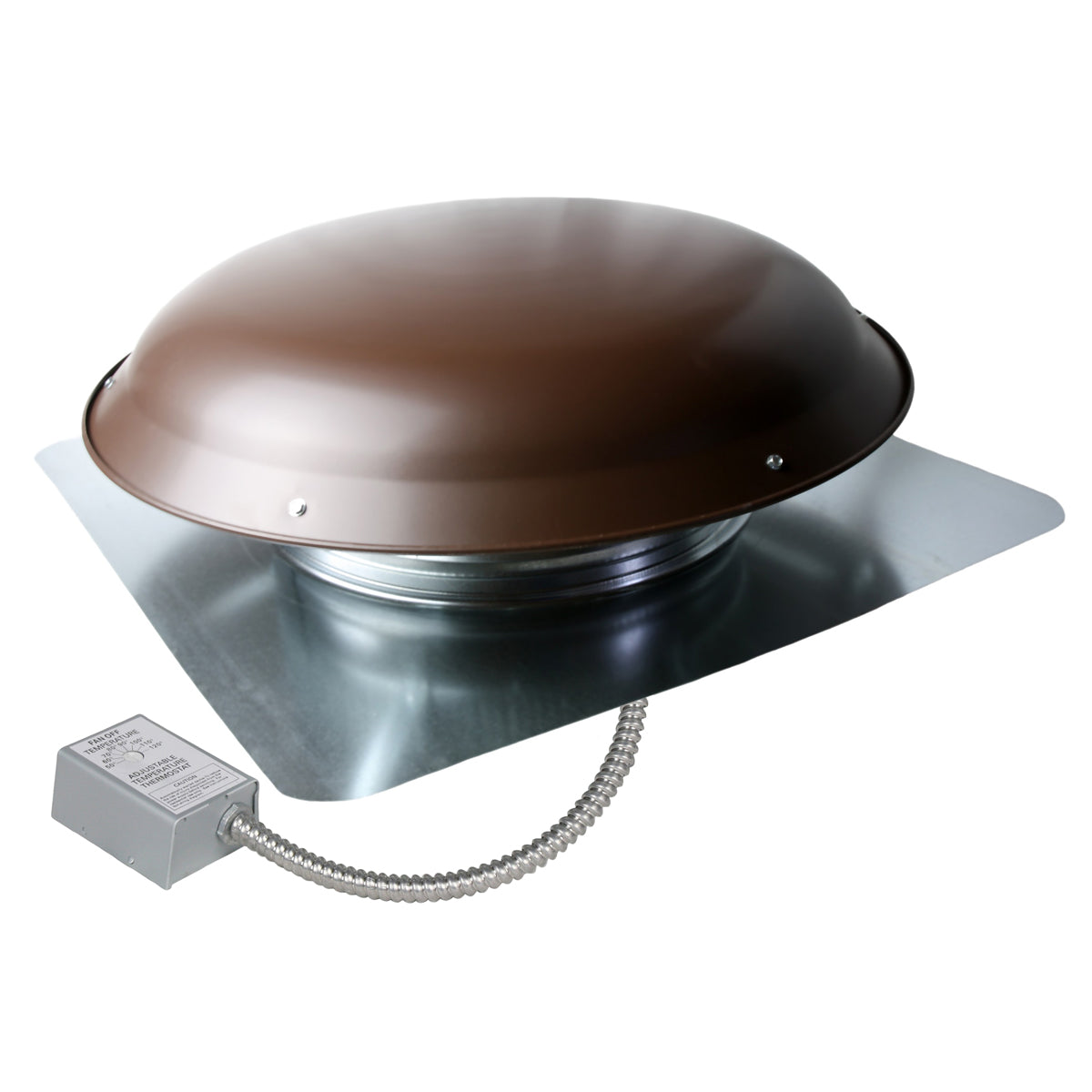

Maxx Air  |  SKU: CX1000AMUPS

1000 Series 1,080 CFM Roof Mount Power Attic Ventilators

$129.99

Color: Mill
Material

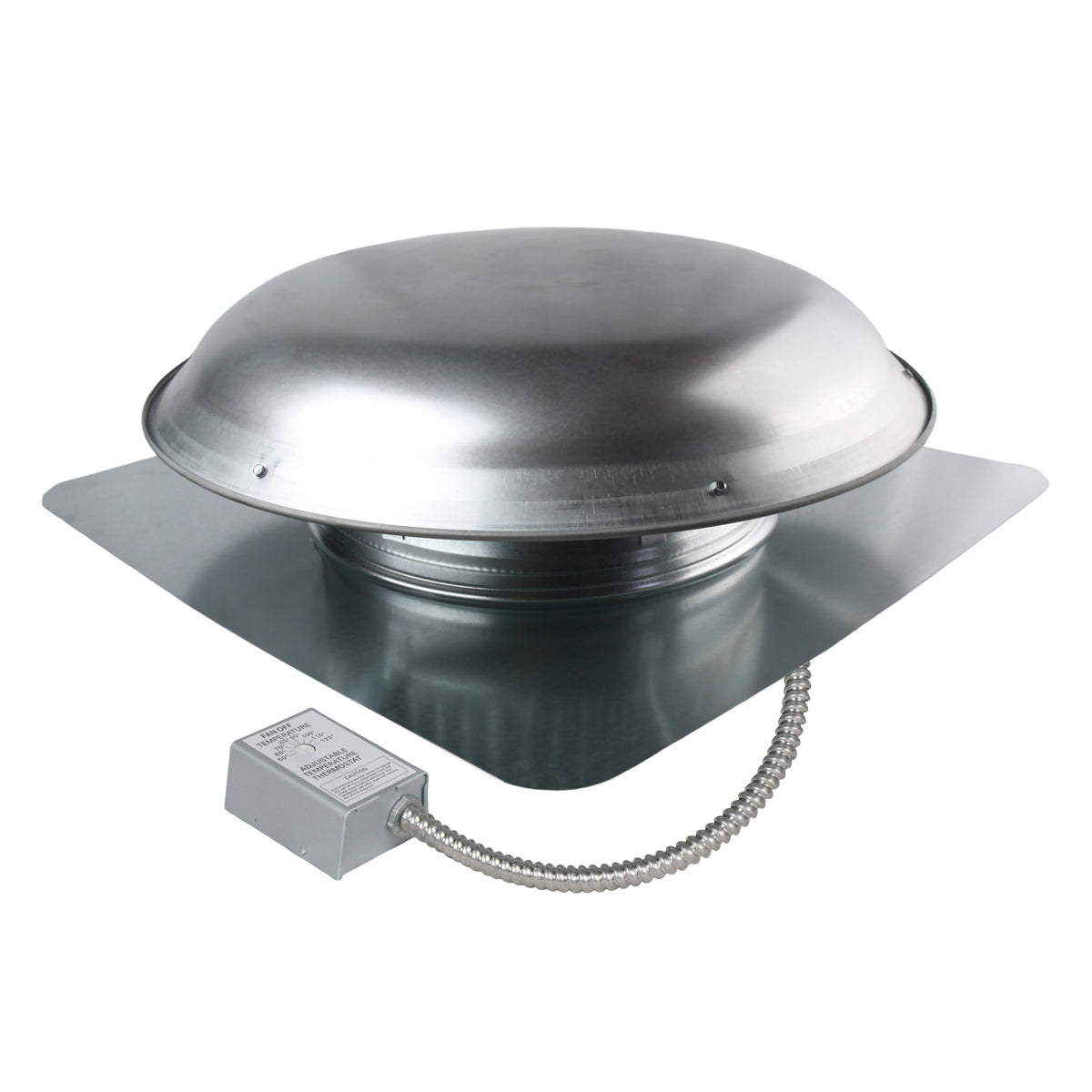

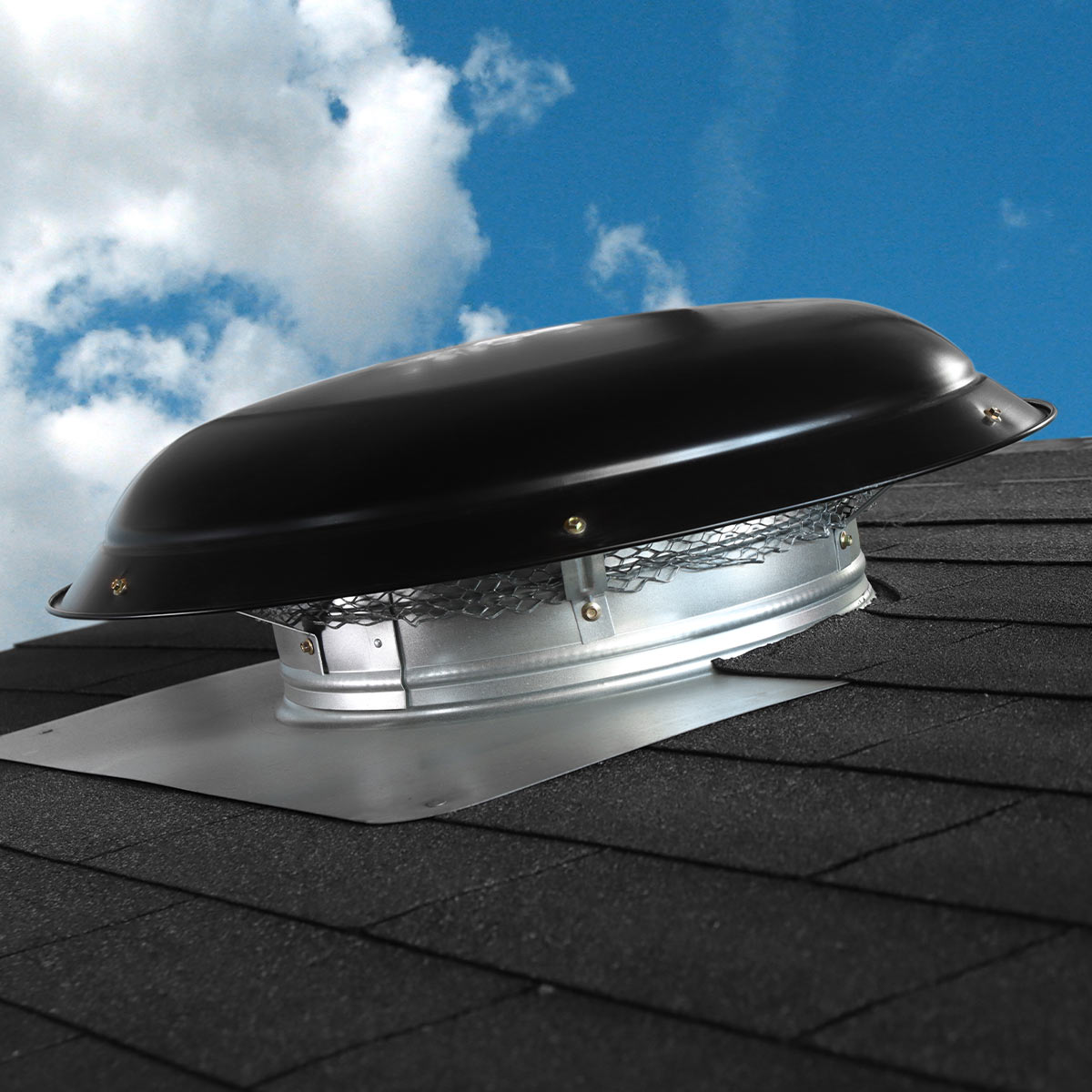

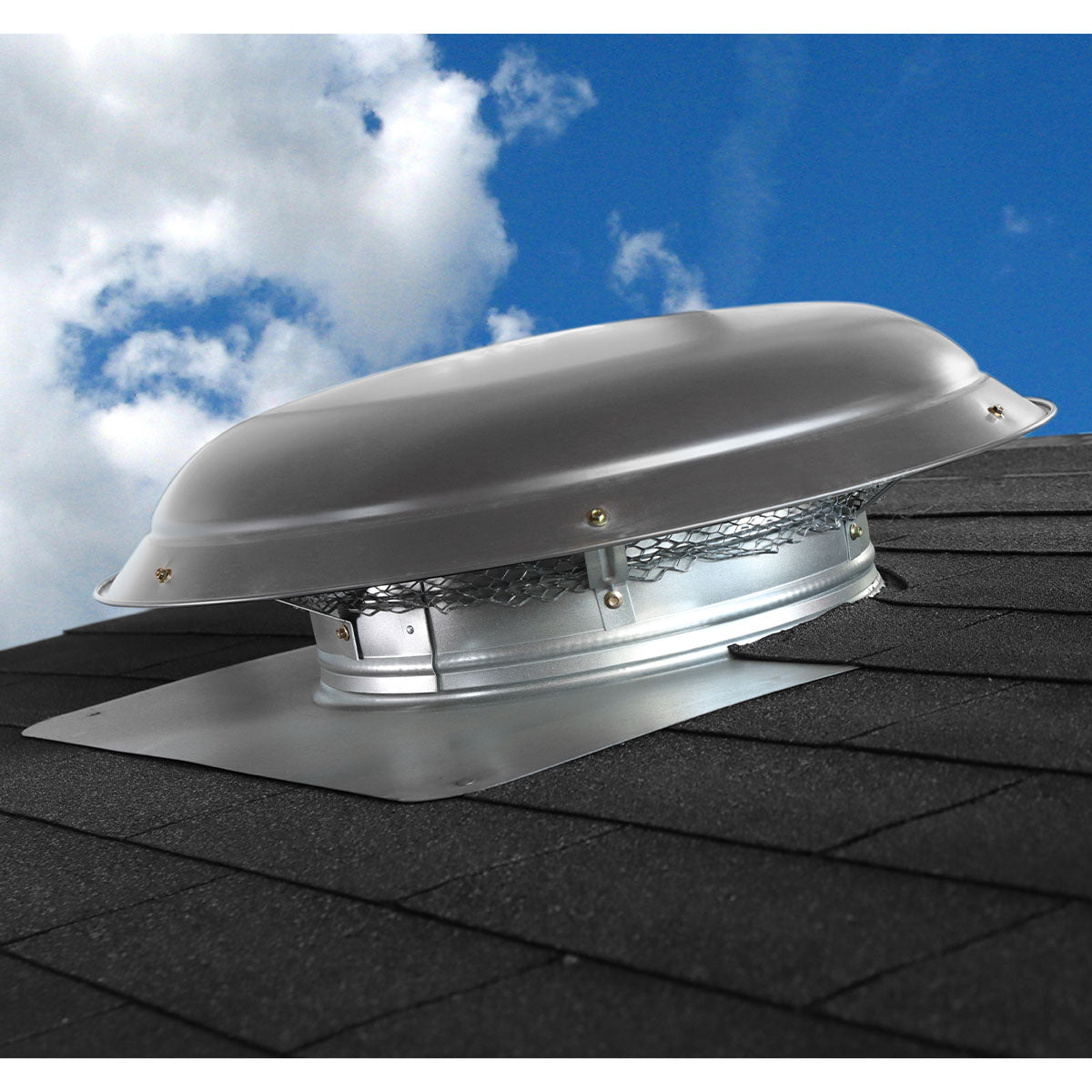

Maxx Air 1000 Series Power Attic Vents are built for ventilating residential attic spaces up to 1,600 sq. ft. The ventilator's low profile dome is aesthetically pleasing on the roofline, withstands impacting wind, debris, and hail, and has a galvanized steel mesh screen to protect against insects, birds, and rodents. Install is straightforward and requires no special tools to complete. This electric roof mount attic fan is designed to exhaust hot air from the attic and pull in cooler air through under eave or soffit vents, prolonging the life of composite roof shingles, helping to prevent weather-induced home deterioration, and making living areas more comfortable. Swap your pre-wired thermostat for a thermostat/humidistat combo (XXDUOSTAT) or add a rain guard (XXRAINGUARD) for installs on steeper roof pitches.

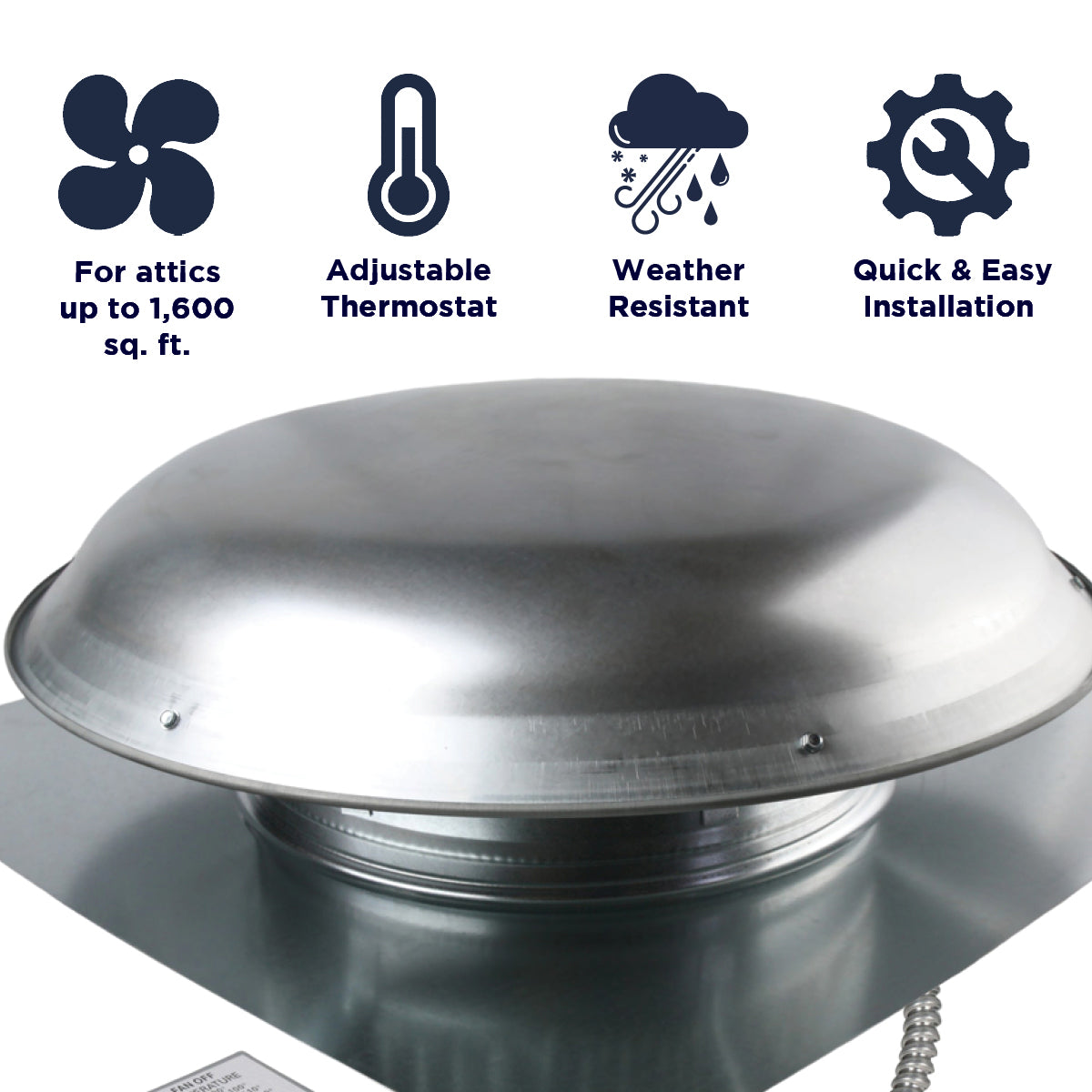

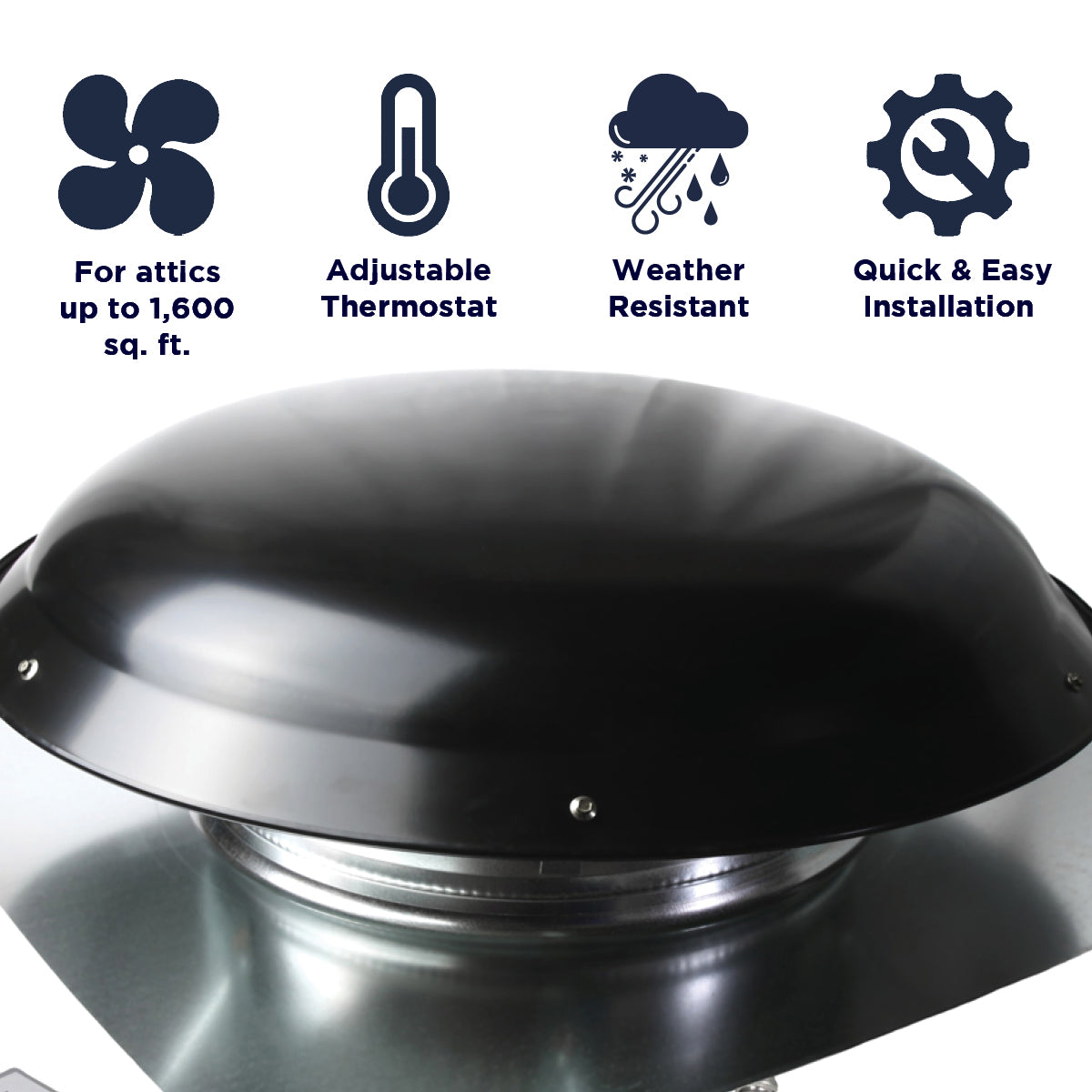

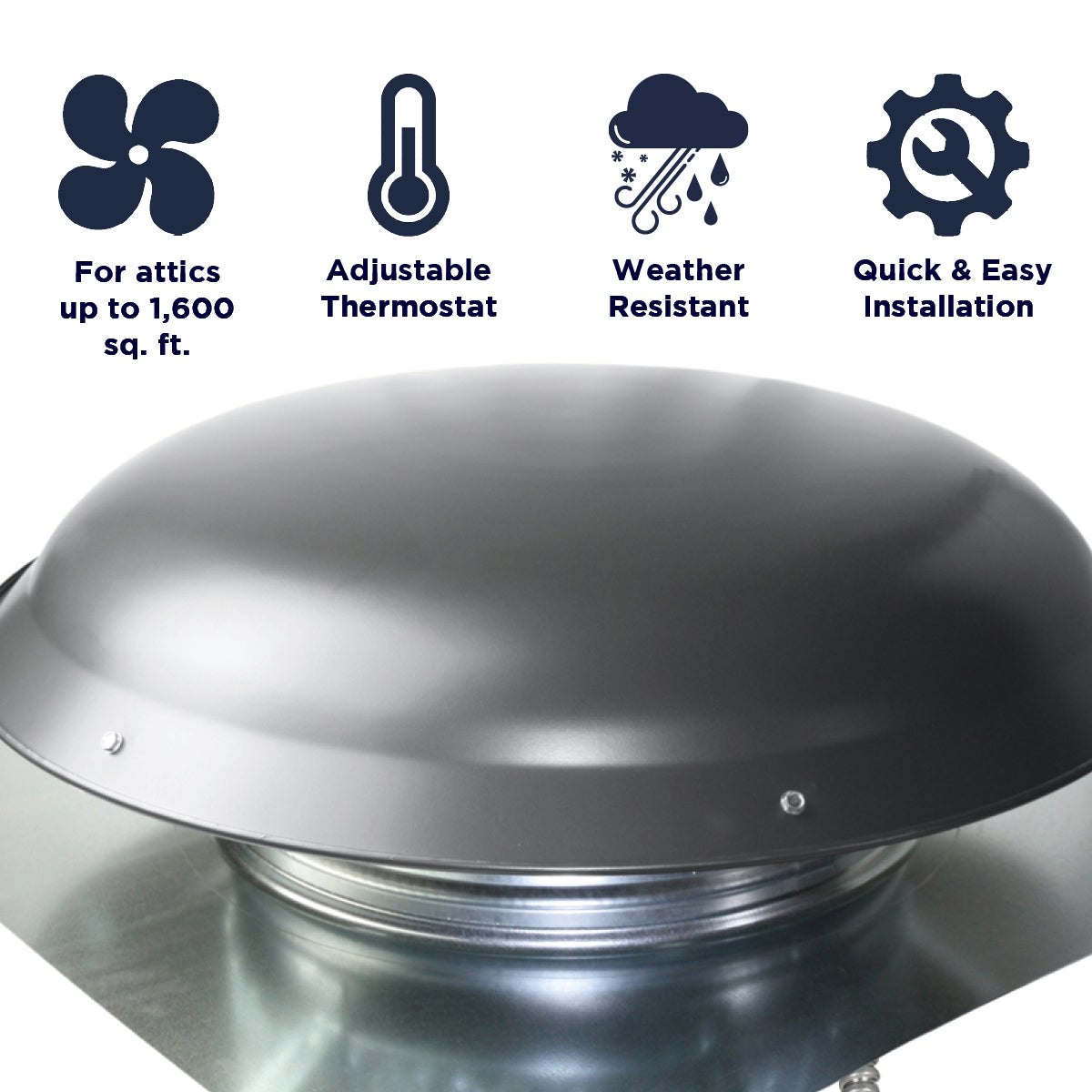

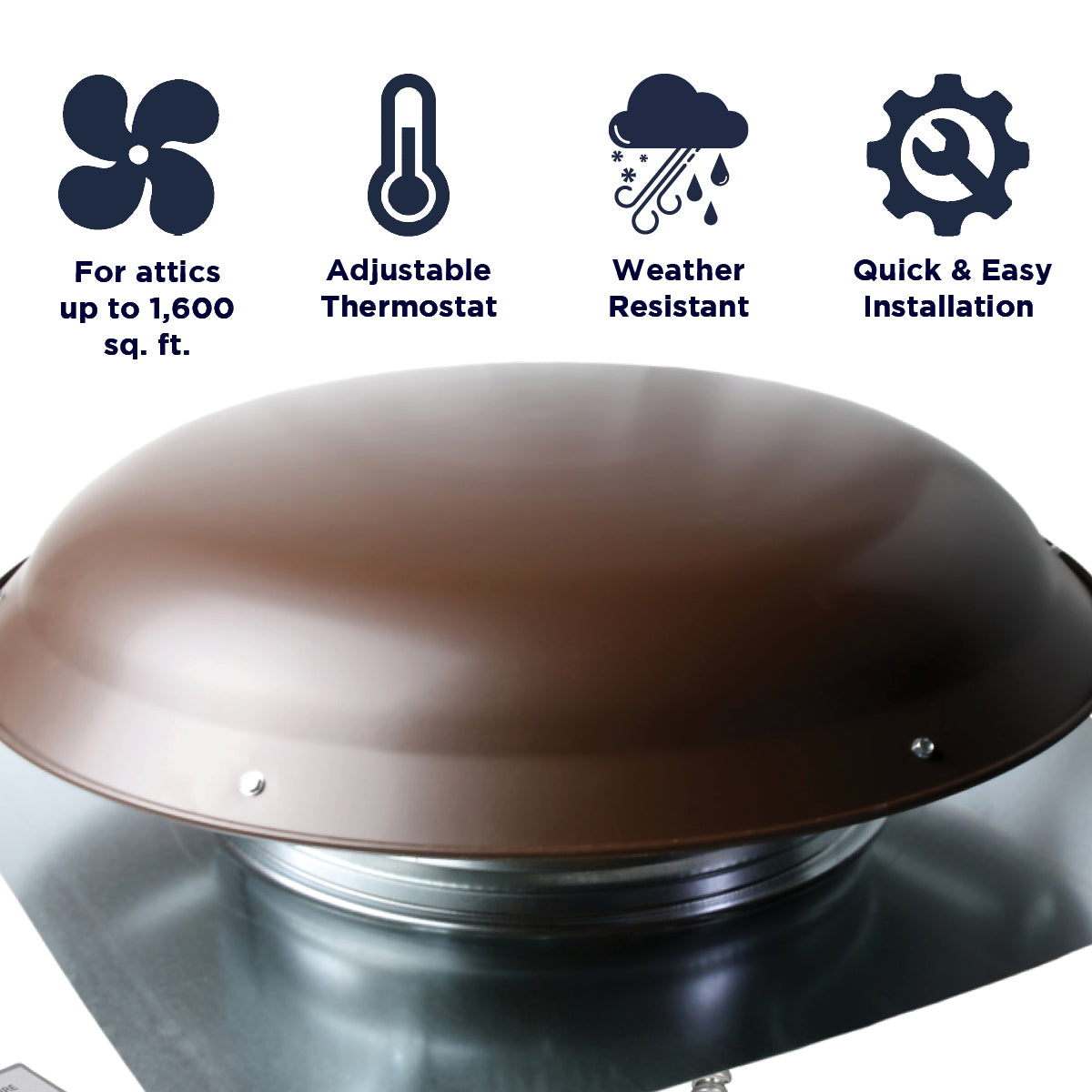

  • FOR ATTICS UP TO
    1,600 SQ. FT.

  • ADJUSTABLE
    THERMOSTAT

  • QUIET
    OPERATION

  • FACTORY ASSEMBLED FOR
    EASY INSTALL

Circulation:

Ventilates attic spaces up to 1,600 sq. ft.

Installation:

Factory assembled for easy install. Suitable for installs up to an 8/12 roof pitch.

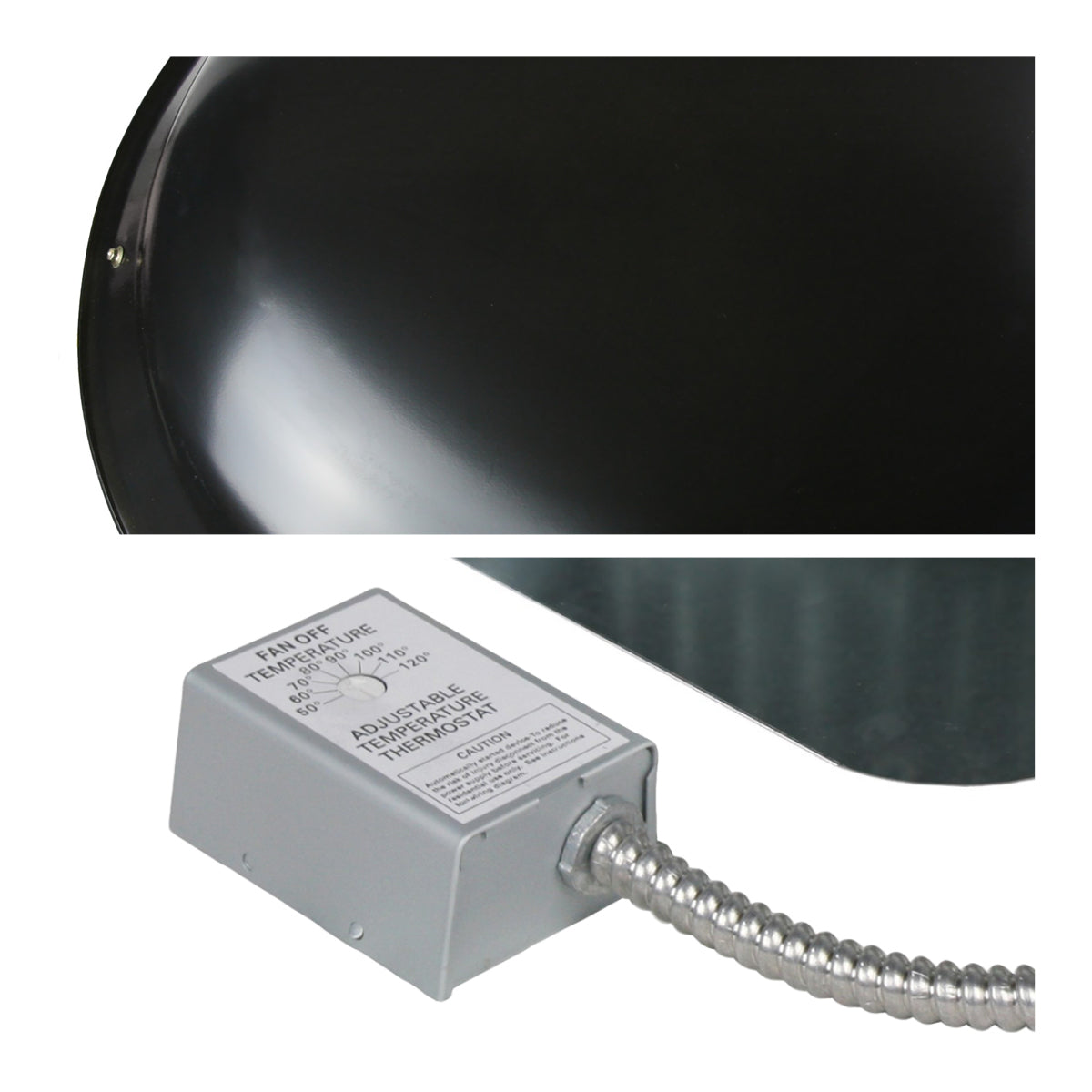

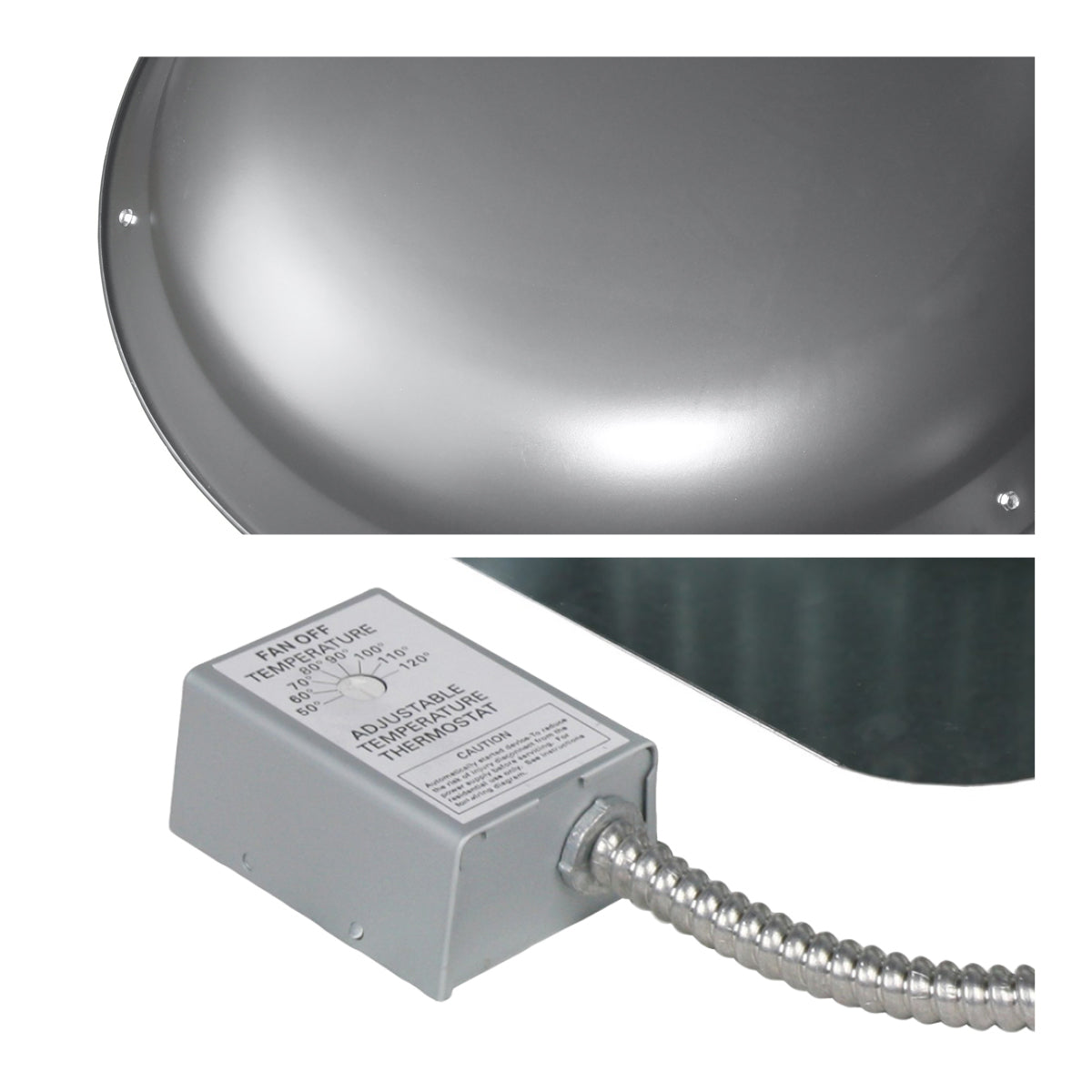

Thermostat or Timer:

Adjustable thermostat settings from 50 - 120°F to run only when needed

Material:

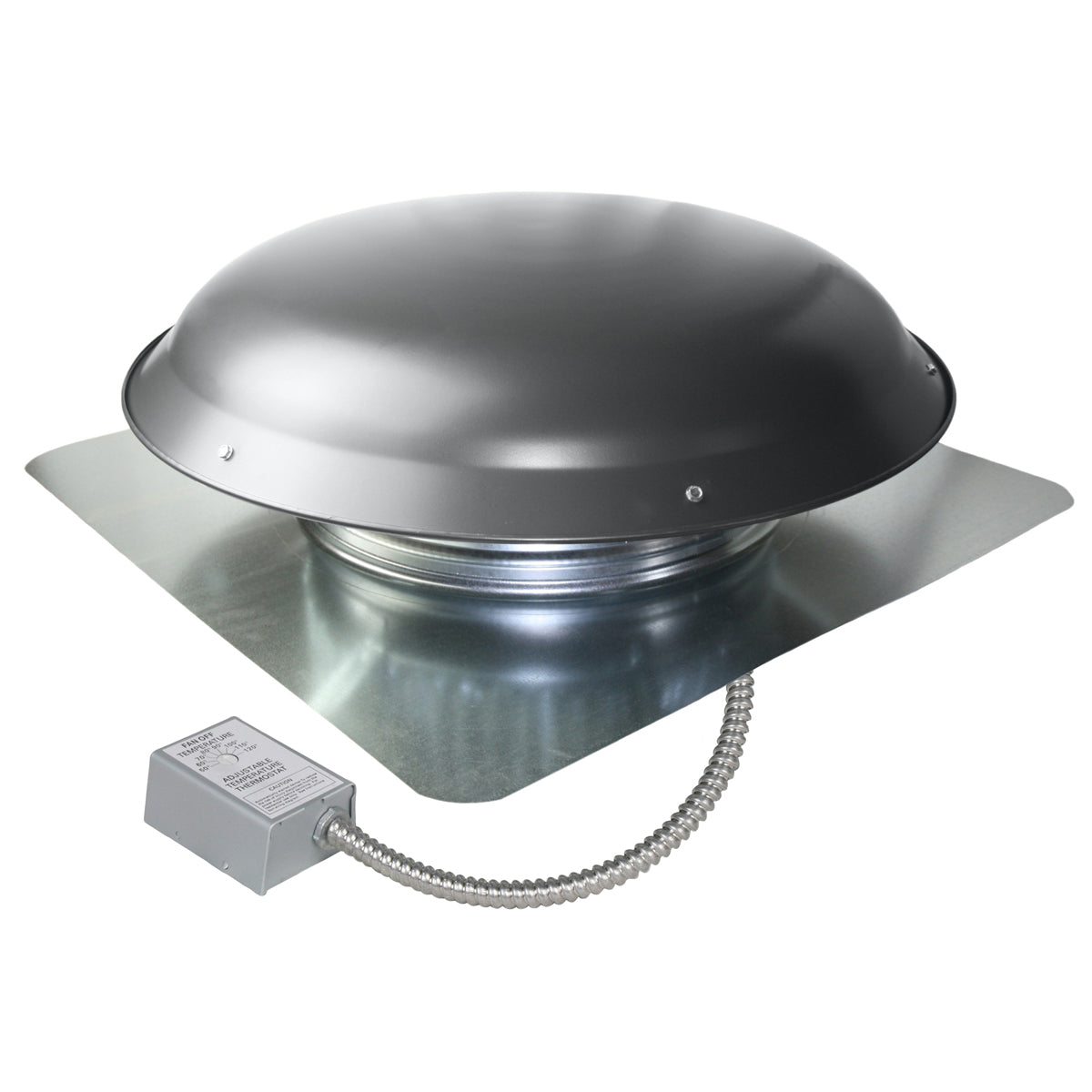

Low profile steel dome with galvanized steel mesh screen and 6 anchor points for stability and wind resistance

Energy Efficiency:

Heavy-duty motor keeps your home attic cooler and reduces air conditioning costs

Safety:

Requires 600 sq. in. of NFA intake ventilation

Primary Color

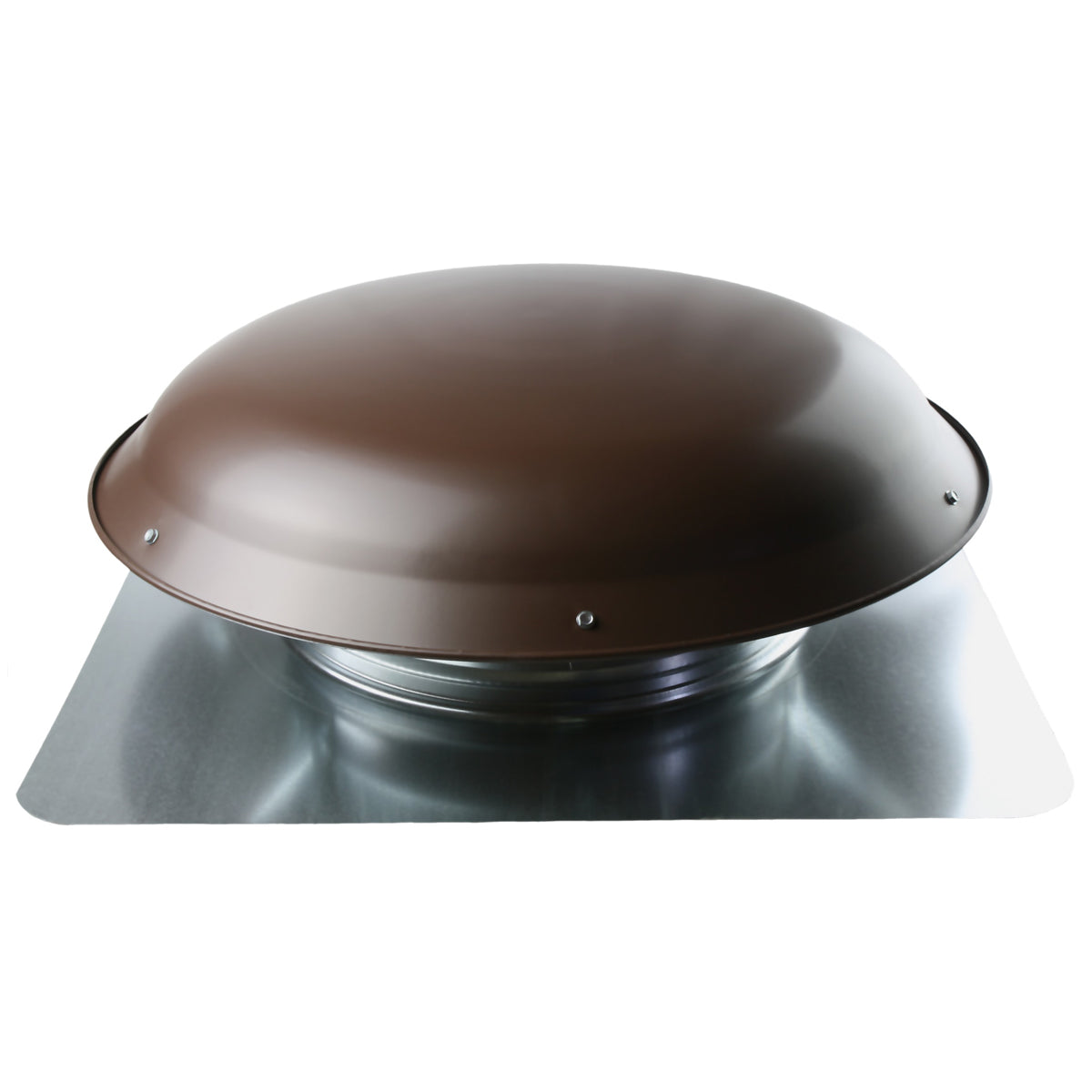

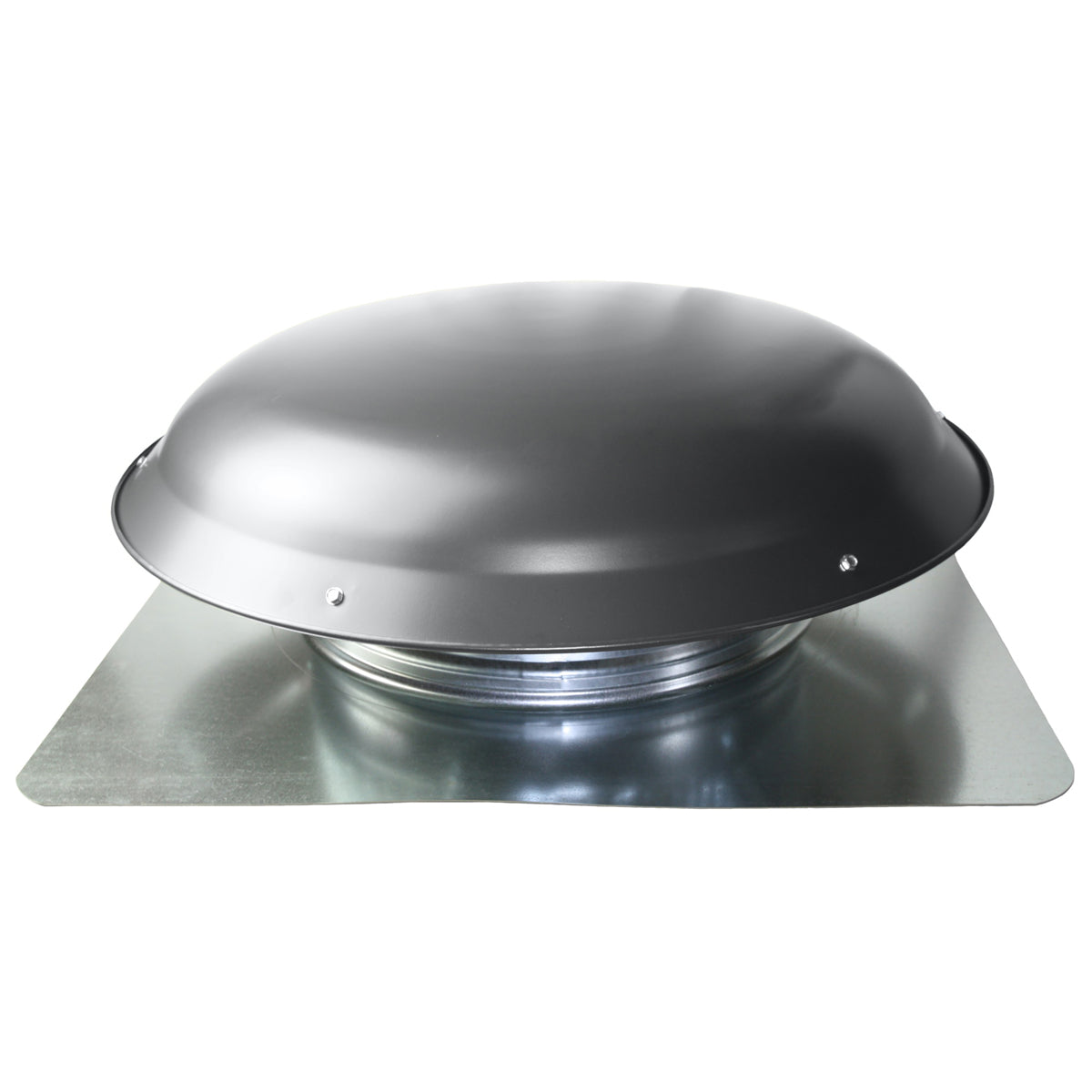

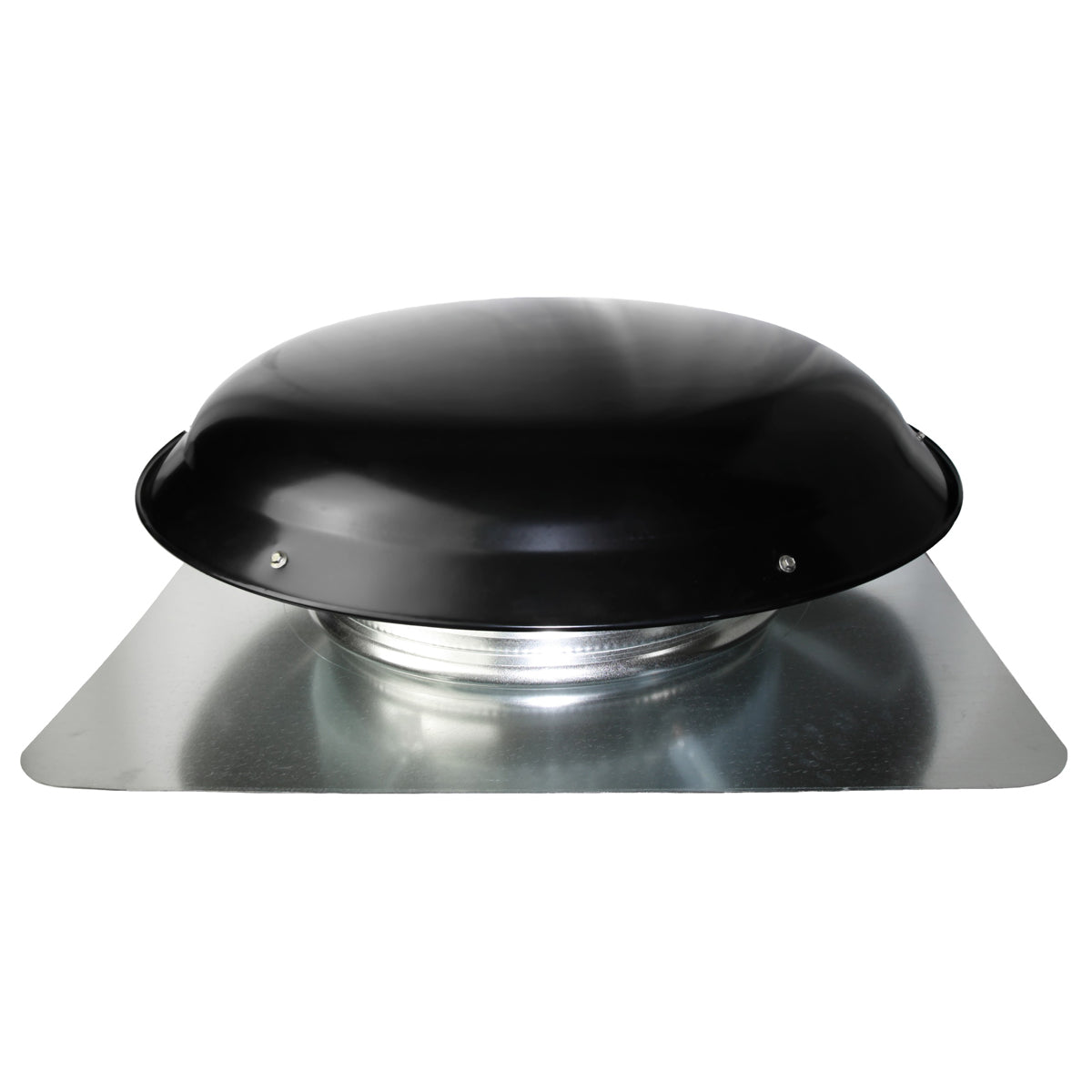

Mill, Black, Brown or Weathered Gray

Secondary Color

Mill

CFM

1,080

Material Details

Galvanized Steel Dome and Venturi

Motor Details

Heavy-Duty Motor

Motor Specs

1/12 HP

Rated at 3.4 Amps - Draws 2.6 Amps in operation

120 V, 60 Hz

Dimensions

9 in. H x 25.375 in. W x 25.375 in. D

26 in. Diameter Dome

Unit Weight

17.5 lbs.

Box Dimensions

26 in. H x 26 in. W x 9 in. D

Alias SKU(s)

CX1000AM, VX1000AM: Mill, Printed Carton
CX1000AMUPS: Mill, Plain Carton
CX1000AM-WG, VX1000AMWG: Weathered Gray, Printed Carton
CX1000AMWGUPS: Weathered Gray, Plain Carton
CX1000AMBL, VX1000AMBL: Black, Printed Carton
CX1000AMBLUPS: Black, Plain Carton
CX1000AMBR, VX1000AMBR: Brown, Printed Carton
CX100AMBRUPS: Brown, Plain Carton

Multi UPC Info

CX1000AM: 047242162059
CX1000AMUPS: 047242949001
CX1000AM-WG: 047242162066
CX1000AMWGUPS: 047242949032
CX1000AMBL: 047242162080
CX1000AMBLUPS: 047242949025
CX1000AMBR: 047242162073
CX100AMBRUPS: 047242949018

VX1000AM: 047242580174
VX1000AMWG: 047242580204
VX1000AMBLK: 047242580198
VX1000AMBRN: 047242580181

Country of Origin - Assembly

US from Domestic and Imported Components

Sold Under

Maxx Air, Cool Attic, Ventamatic

ENERGY SAVING DESIGN

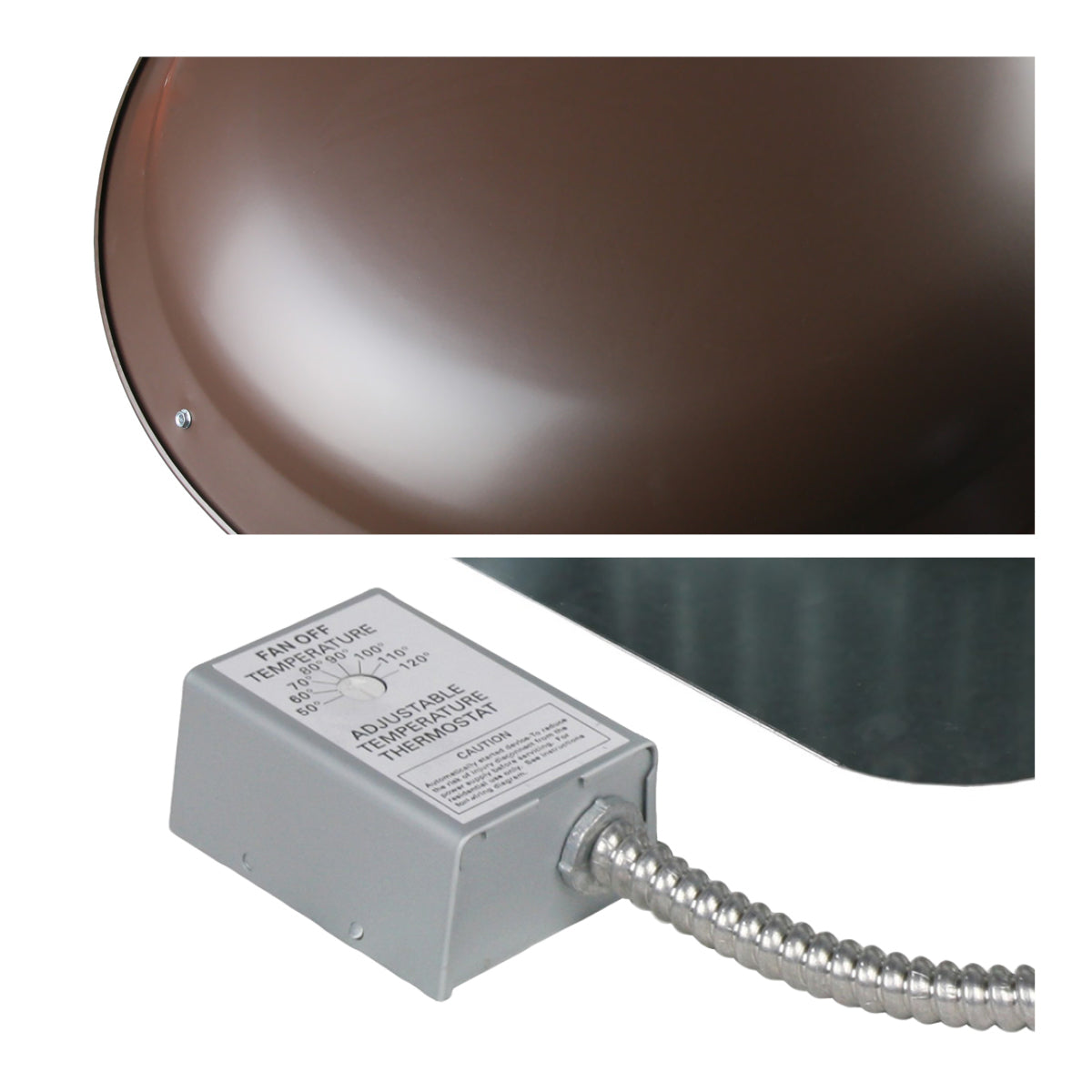

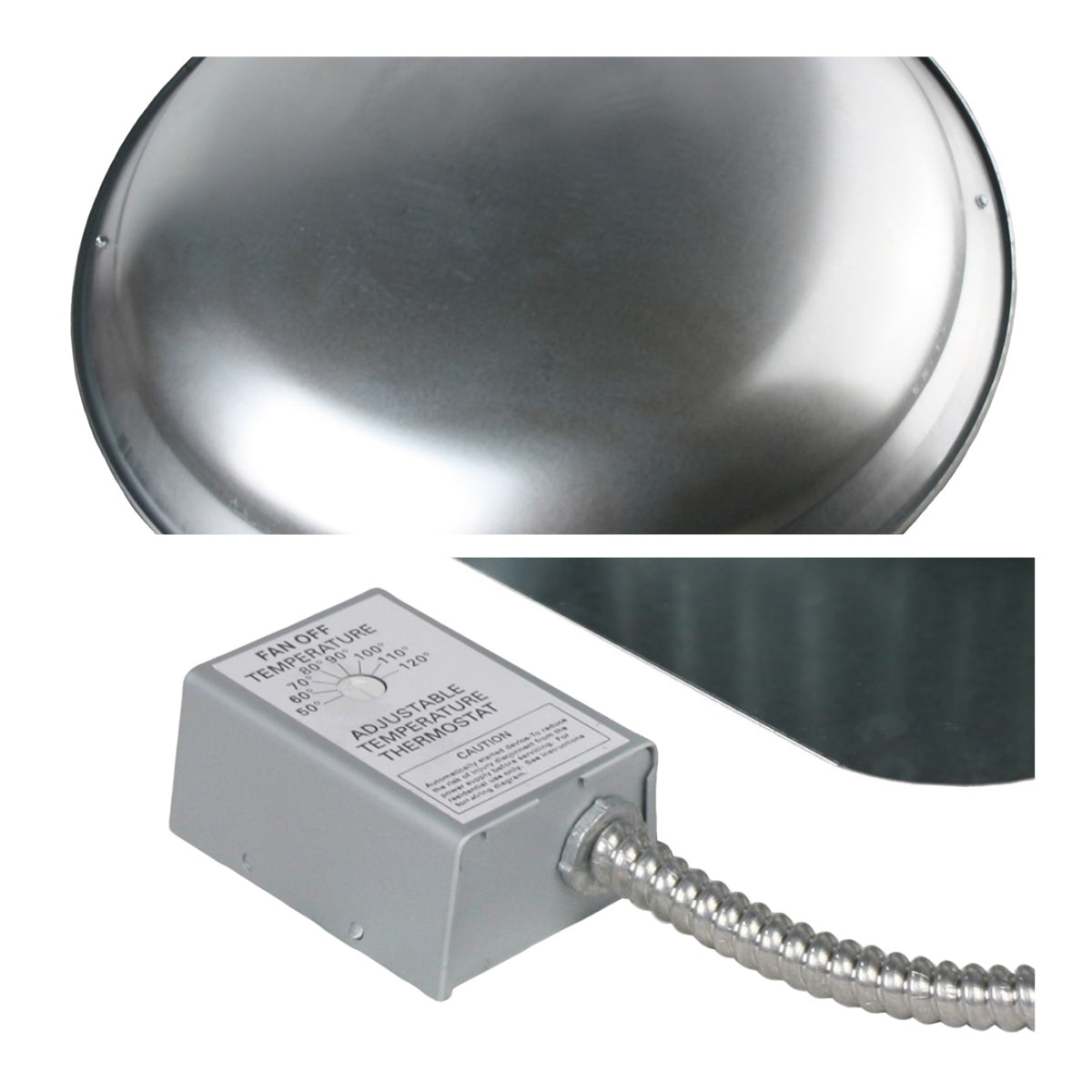

An attic fan running all day can quickly eat into your pocketbook, which is why all electric Maxx Air roof mount fans have a pre-wired thermostat to give you control over when your fan runs.

BUILT-IN MESH SCREEN

Pests can wreak havoc in your attic, damaging electrical wiring, insulation, and other critical components of your home. All Maxx Air roof mount power attic vents come standard with a built-in metal screen to keep insects, birds, and rodents at bay.

Offers Year-Round Home Benefits

Creating a balanced attic ventilation system is necessary for the overall health of any home. When your attic space is properly ventilated, your air conditioner runs less in the summer, your roof shingles last longer, and your attic insulation is further protected from mold and mildew. A Maxx Air roof mount fan is one component that can help you reach this goal.
