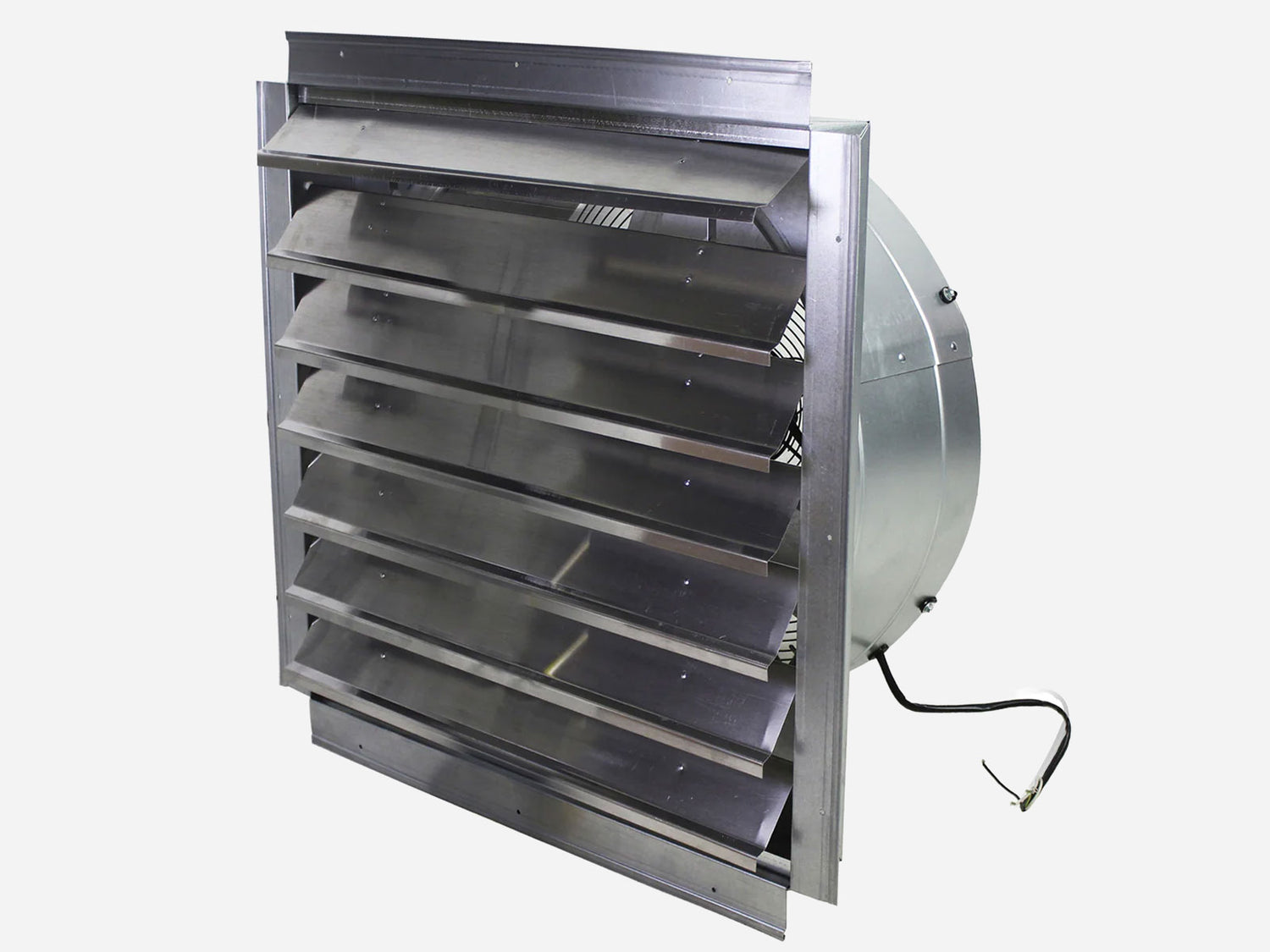

24 in. wall exhaust fan with aluminum louvered opening.
Features of the IF24 include 4,100 CFM operation, 1 speed design, an energy efficient motor, and electric wire-in installation.

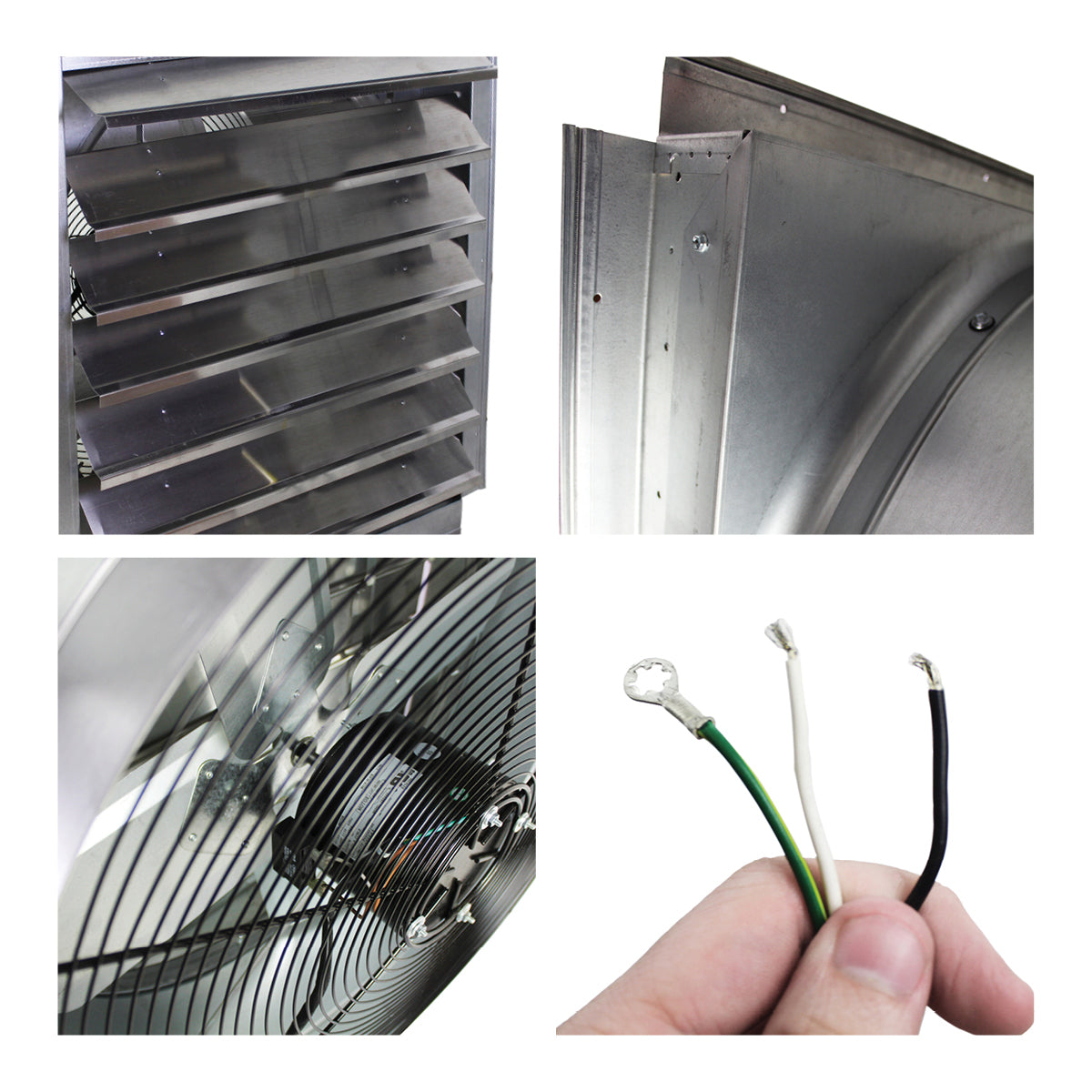

Detailed close-up of shutter assembly, steel housing, grille and motor, and wires on the ventilation fan.
Right side profile view of the 24 in. shop fan with metal housing.
Left side profile view of the 24 in. greenhouse fan showing the deep steel housing and louver pins.

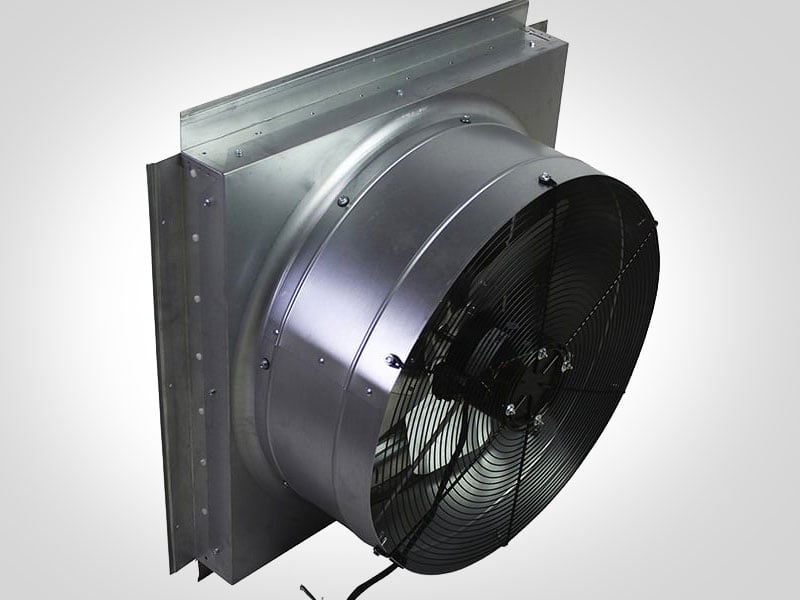

Back view of the exhaust fan showing the safety grille and fan blade for powerful airflow.
24 in. wall exhaust fan with aluminum louvered opening.
Features of the IF24 include 4,100 CFM operation, 1 speed design, an energy efficient motor, and electric wire-in installation.
Detailed close-up of shutter assembly, steel housing, grille and motor, and wires on the ventilation fan.
Right side profile view of the 24 in. shop fan with metal housing.
Left side profile view of the 24 in. greenhouse fan showing the deep steel housing and louver pins.
Back view of the exhaust fan showing the safety grille and fan blade for powerful airflow.

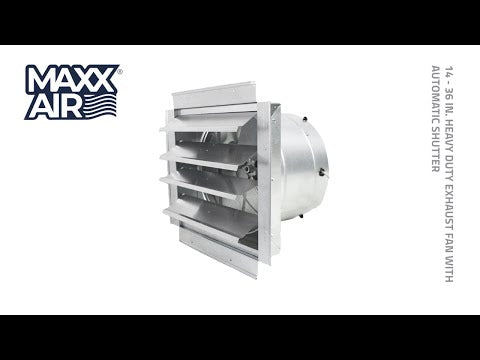

24 In. Heavy Duty Exhaust Fan with Automatic Shutter

24 In. Heavy Duty Exhaust Fan with Automatic Shutter

Login to view price.
DESCRIPTION:

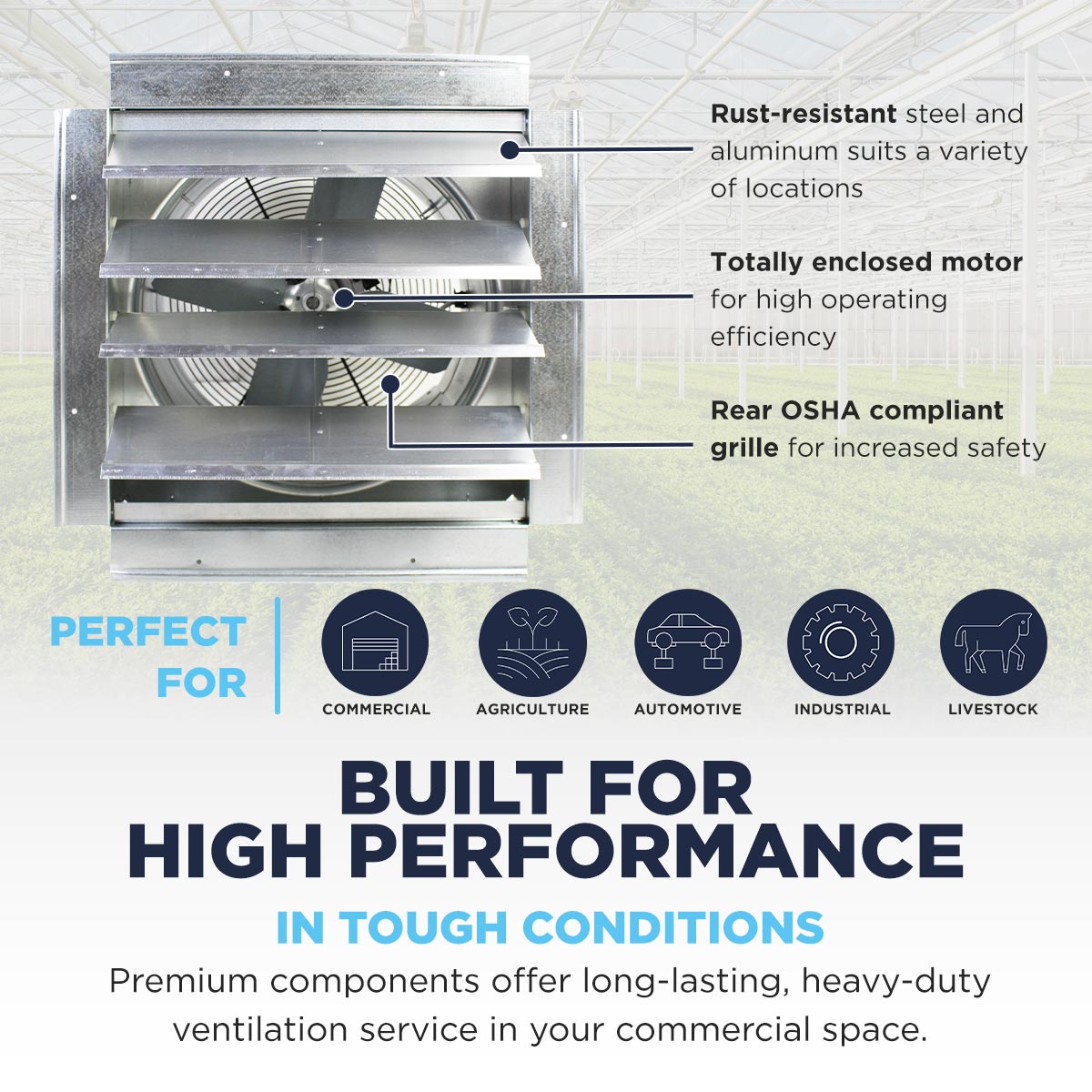

The Maxx Air 24 In. Exhaust Fan can be used in a garage, barn, greenhouse, warehouse, and a variety of other agricultural and industrial locations to quickly remove unwanted odors, dust and humidity, and refresh stale or warm air in your space. This metal wall exhaust fan is constructed of a sturdy 20 gauge steel housing with aluminum shutter louvers, a safety grille and a totally enclosed, thermally protected motor. Arrives fully assembled, just mount to your desired building wall and wire into your electrical system to complete installation. Pair this vent fan with our adjustable thermostat with firestat (XXFIRESTAT) for greater operational control and safety.

PERFECT FOR:
  • Agriculture

  • Automotive

  • Industrial

  • Livestock

  • MOVES UP TO
    4,100 CFM

  • 1-SPEED
    OPERATION

  • ENERGY EFFICIENT
    COMPONENTS

  • WIRING
    REQUIRED

Circulation:

Moves up to 4,100 CFM

Installation:

Pre-drilled holes on flange and rolled flange edges for safe and easy installation

Material:

Rust-resistant galvanized steel housing with removable interior grille. Automatic shutter prevents drafts from entering through the external opening.

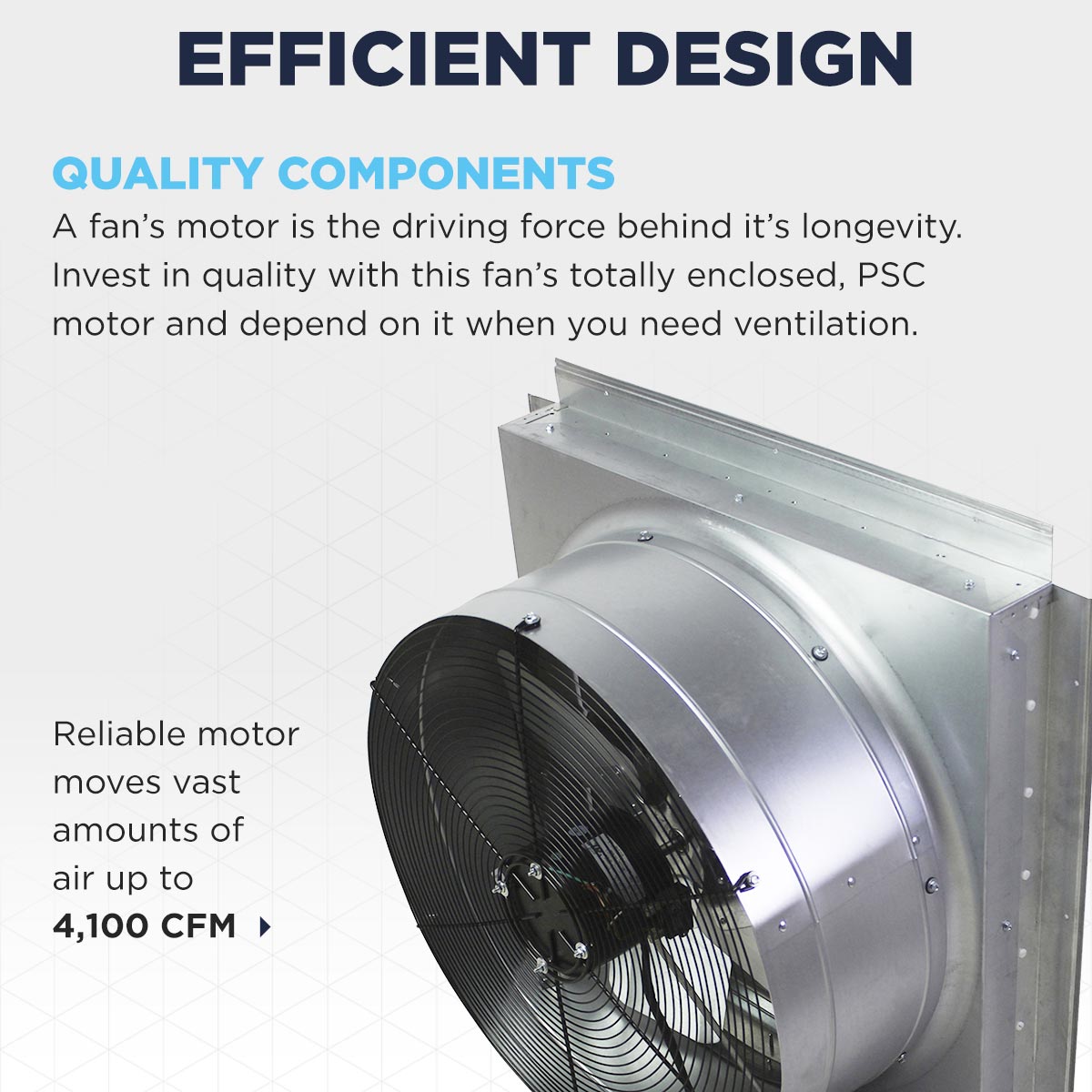

Energy Efficiency:

Totally enclosed, energy efficient PSC motor

Safety:

OSHA compliant grille. Requires 13.5 sq. ft. of NFA intake ventilation.

Other Features:

Not intended to exhaust hazardous fumes or chemicals

Primary Color

Mill

CFM

Up to 4,100

Material Details

20 Gauge Galvanized Steel Housing, Aluminum Shutter

Motor Details

1-Speed Totally Enclosed PSC Motor

Motor Specs

3/10 HP

4.35 Amps

120 V, 60 Hz

520 Watts

1,100 RPM

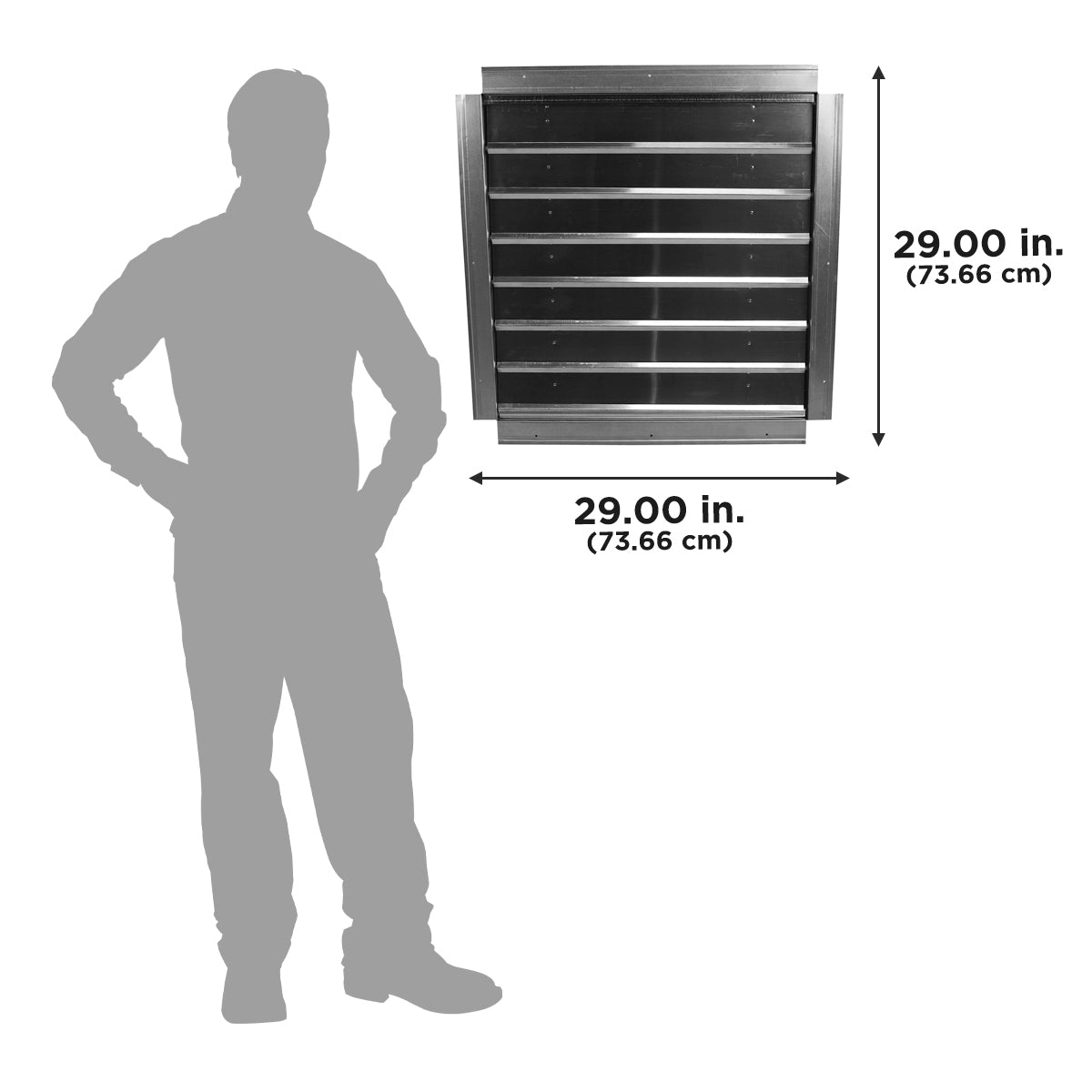

Dimensions

29 in. H x 29 in. W x 14 in. D

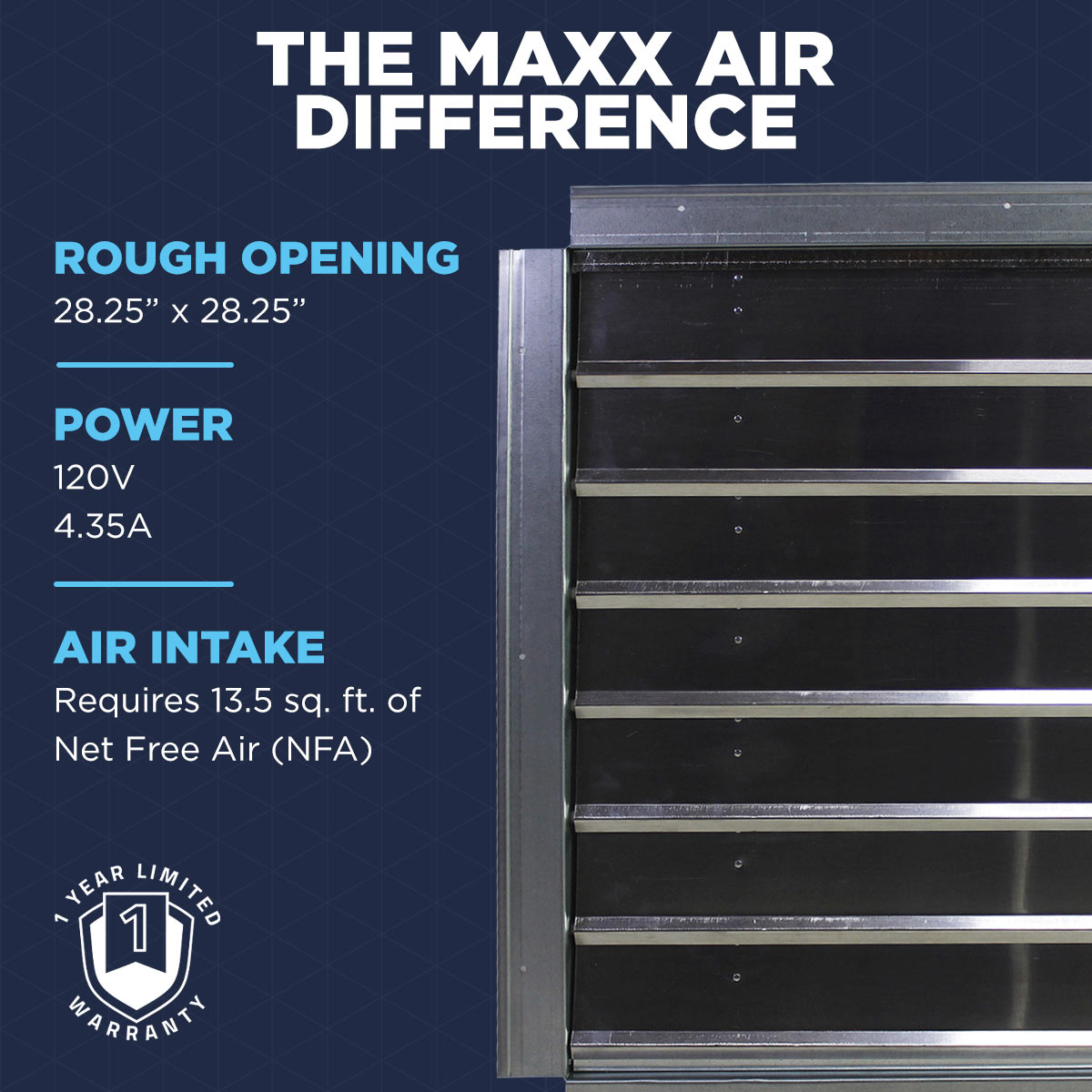

Rough Opening: 28.25 in. H x 28.25 in. W

Unit Weight

51 lbs.

Box Dimensions

35 in. H x 33 in. W x 19 in. D

36 in. H x 33 in. W x 15 in. D (UPS)

Alias SKU(s)

IF24
IF24UPS: Plain carton

Multi UPC Info

IF24: 047242642476; 047242642568 (QTY 6)
IF24UPS: 047242642537; 047242990058 (QTY 6)

Country of Origin - Assembly

US from Domestic and Imported Components

Sold Under

Maxx Air

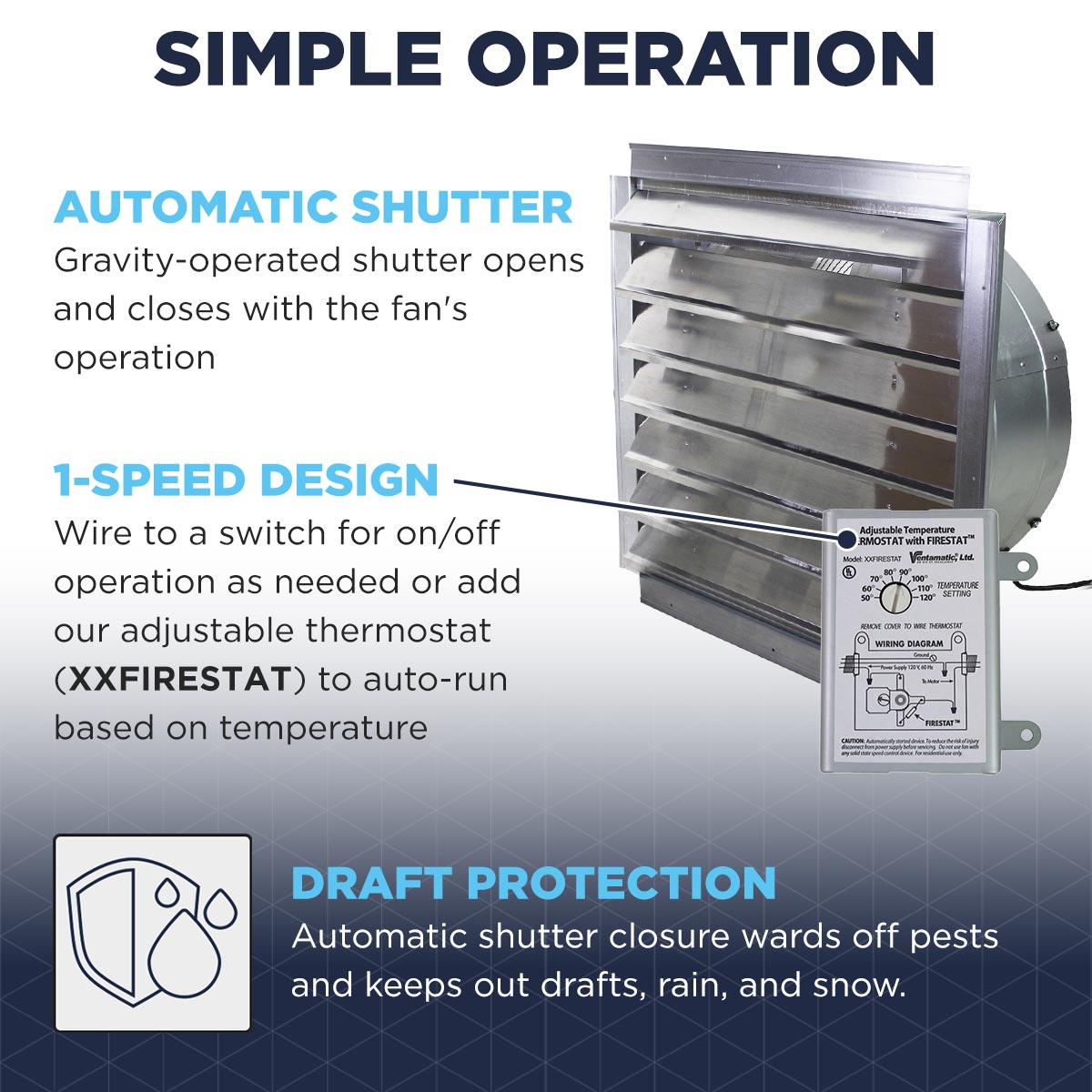

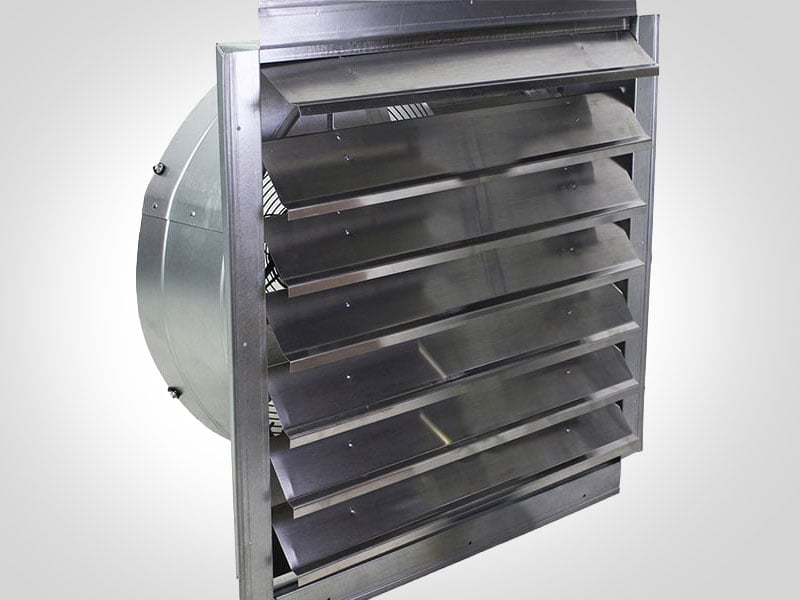

Automatic Shutter

The integrated exterior shutter automatically opens and closes with the fan's operation. When closed, this shutter is designed to ward off pests and keep out drafts, rain, and snow from the outside environment.

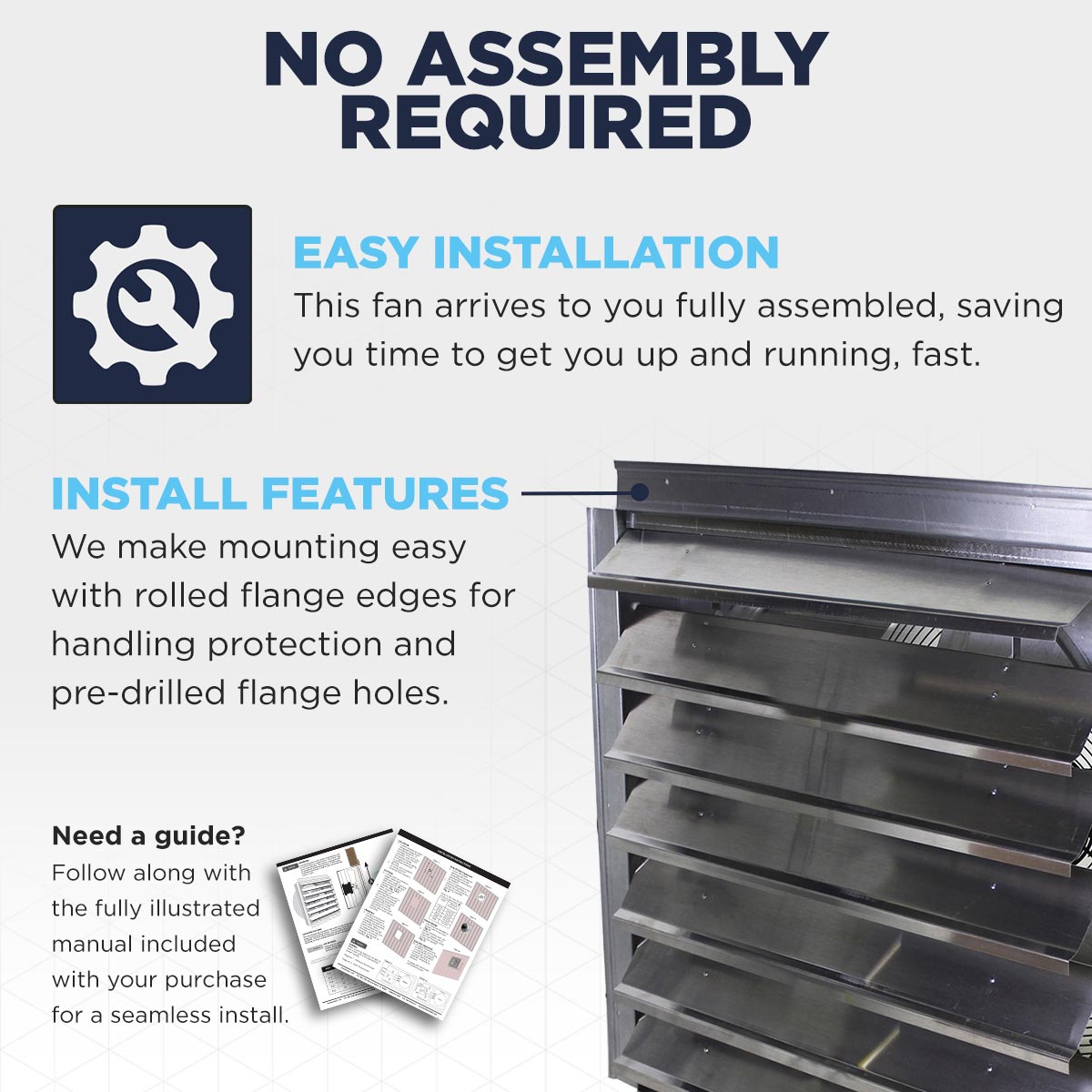

Fully Assembled

Each exhaust fan in this series arrives fully assembled and ready to install in your chosen space. Pre-punched mounting holes and rolled flange edges for handling protection make sure your install is perfect and is completed without a hitch. No special tools are required to complete installation!

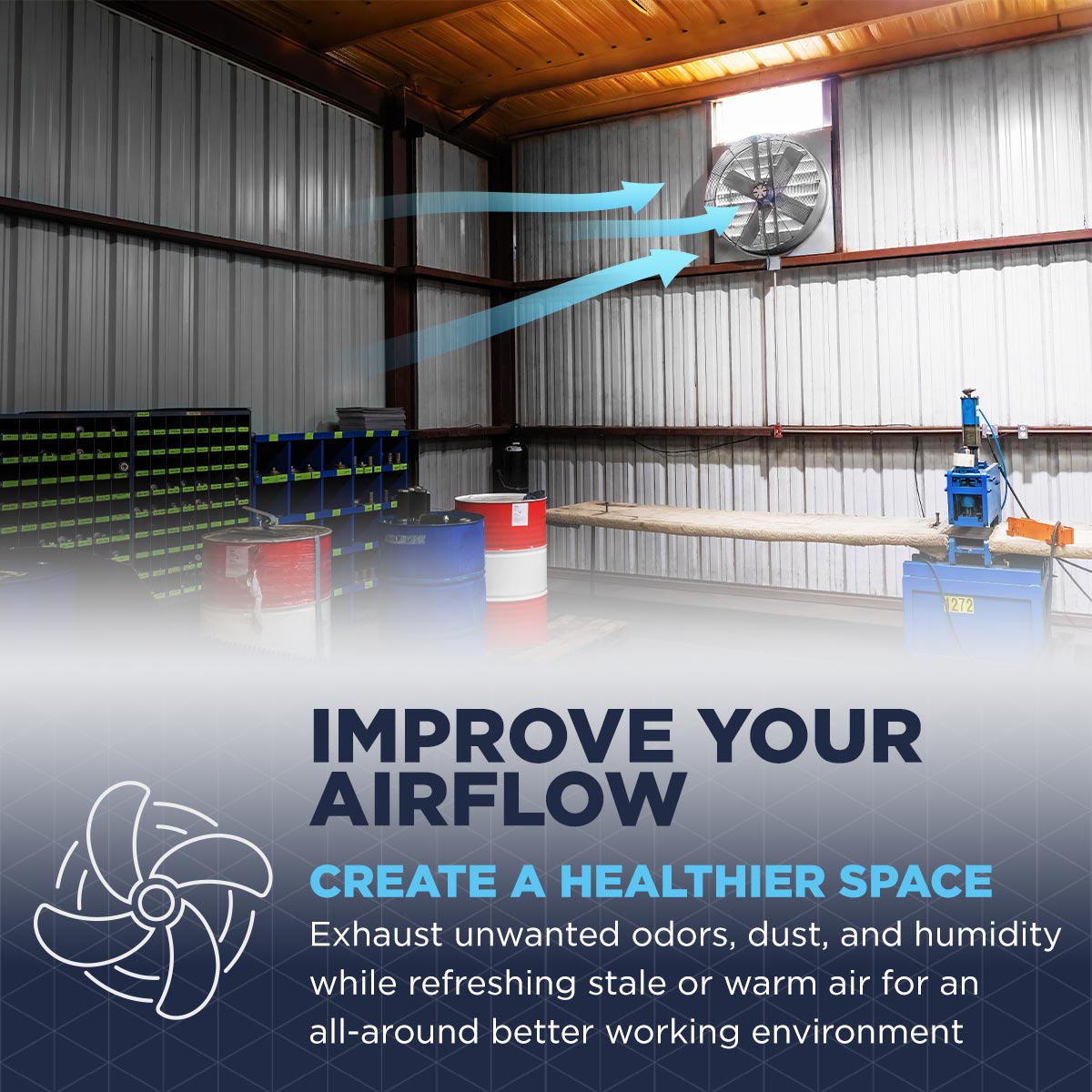

Creates a Healthier Environment

Whether it's generating airflow in a factory or barn, controlling the temperature in a greenhouse, or removing dusty air from a car garage, our exhaust fan line is ready to perform and offer you precise control over your working and living environment.
