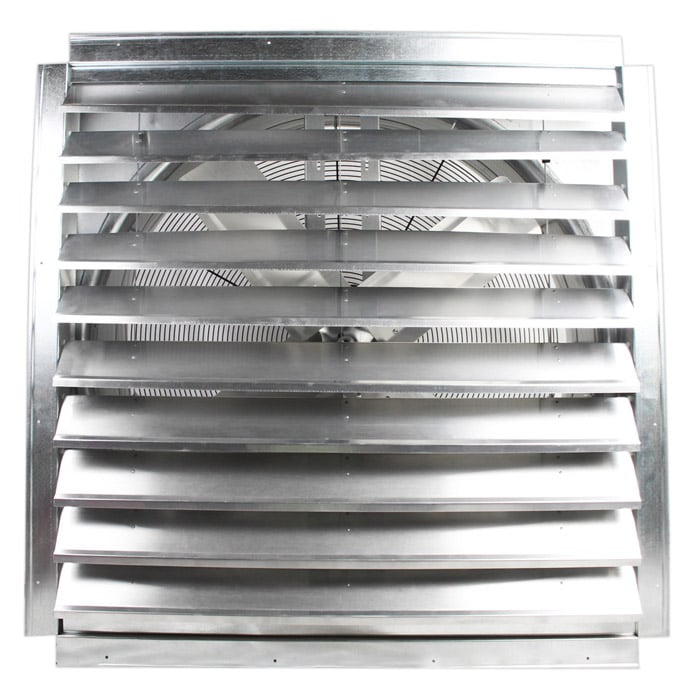

36 in. wall exhaust fan with draft-free aluminum shutter louvers open.
Features of the IF36 include 9,000 CFM operation, 1 speed design, an energy efficient motor, and electric wire-in installation.
Detailed close-up of shutter assembly, grille, and wires on the industrial fan.
Right side profile view of the 36 in. greenhouse fan showing the metal housing construction.

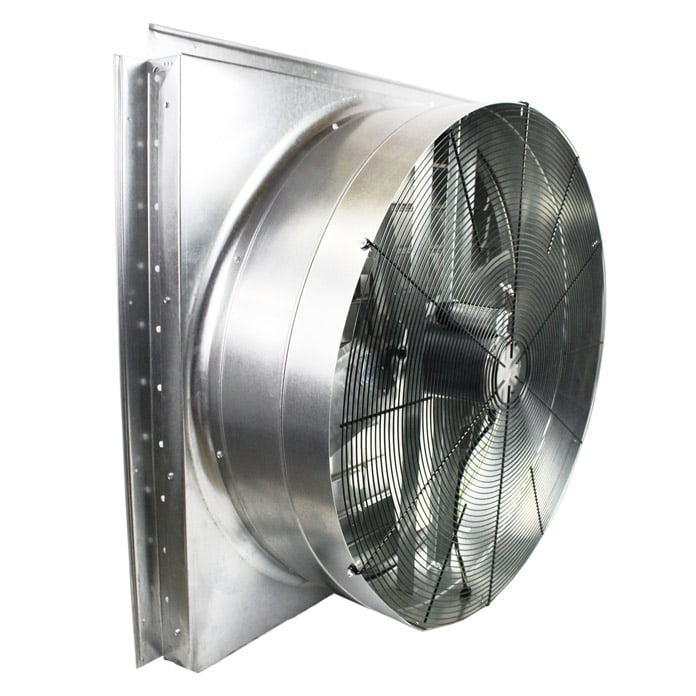

Back view of the electric fan showing the safety grille and fan blade for powerful exhaust function.
Left side profile view of the 36 in. ventilation fan with durable metal housing.
36 in. wall exhaust fan with draft-free aluminum shutter louvers open.
Features of the IF36 include 9,000 CFM operation, 1 speed design, an energy efficient motor, and electric wire-in installation.
Detailed close-up of shutter assembly, grille, and wires on the industrial fan.
Right side profile view of the 36 in. greenhouse fan showing the metal housing construction.
Back view of the electric fan showing the safety grille and fan blade for powerful exhaust function.
Left side profile view of the 36 in. ventilation fan with durable metal housing.

36 In. Heavy Duty Exhaust Fan with Automatic Shutter

$0.00
DESCRIPTION:

The Maxx Air 36 In. Exhaust Fan can be used in a garage, barn, greenhouse, warehouse, and a variety of other agricultural and industrial locations to quickly remove unwanted odors, dust and humidity, and refresh stale or warm air in your space. The wall fan is constructed of a sturdy 20 gauge steel housing with aluminum shutter louvers, a safety grille and a totally enclosed, thermally protected motor. Arrives fully assembled, just mount to your desired building wall and wire into your electrical system to complete installation. Pair this garage fan with our adjustable thermostat with firestat (XXFIRESTAT) for greater operational control and safety.

PERFECT FOR:
  • Agriculture

  • Automotive

  • Industrial

  • Livestock

  • MOVES UP TO
    9,000 CFM

  • 1-SPEED
    OPERATION

  • ENERGY EFFICIENT
    COMPONENTS

  • WIRING
    REQUIRED

Circulation:

Moves up to 9,000 CFM

Installation:

Pre-drilled holes on flange and rolled flange edges for safe and easy installation

Material:

Rust-resistant galvanized steel housing with removable interior grille. Automatic shutter prevents drafts from entering through the external opening.

Energy Efficiency:

Totally enclosed, energy efficient PSC motor

Safety:

OSHA compliant grille. Requires 30 sq. ft. of NFA intake ventilation.

Other Features:

Not intended to exhaust hazardous fumes or chemicals

Primary Color

Mill

CFM

Up to 9,000

Material Details

20 Gauge Galvanized Steel Housing, Aluminum Shutter

Motor Details

1-Speed Totally Enclosed PSC Motor

Motor Specs

1/2 HP

5.15 Amps

120 V, 60 Hz

620 Watts

900 RPM

Dimensions

41 in. H x 41 in. W x 14 in. D

Rough Opening: 40.25 in. H x 40.25 in. W

Unit Weight

84 lbs.

Box Dimensions

45.5 in. H x 44.25 in. W x 15 in. D

Alias SKU(s)

IF36

Single Product UPC

047242642438

Multi UPC Info

047242642582 (QTY 3)

Country of Origin - Assembly

US from Domestic and Imported Components

Automatic Shutter

The integrated exterior shutter automatically opens and closes with the fan's operation. When closed, this shutter is designed to ward off pests and keep out drafts, rain, and snow from the outside environment.

Fully Assembled

Each exhaust fan in this series arrives fully assembled and ready to install in your chosen space. Pre-punched mounting holes and rolled flange edges for handling protection make sure your install is perfect and is completed without a hitch. No special tools are required to complete installation!

Creates a Healthier Environment

Whether it's generating airflow in a factory or barn, controlling the temperature in a greenhouse, or removing dusty air from a car garage, our exhaust fan line is ready to perform and offer you precise control over your working and living environment.
