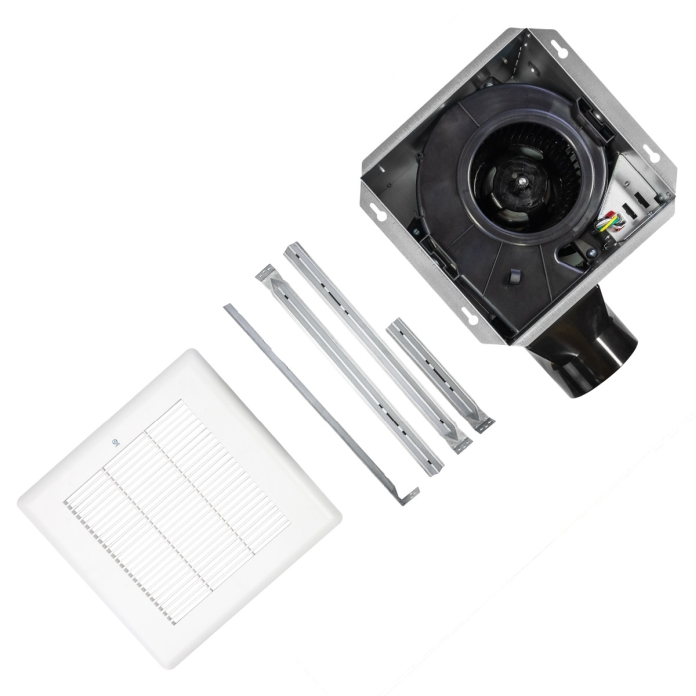

Exploded view of the utility fan with the grille pulled away from the main housing.
CDC Recommendations: Good ventilation, along with other preventative actions, can help prevent you from getting and spreading COVID-19.  At home, turn on the exhaust fan in your bathroom to help move air outside.
Features of the BC80 include 80 CFM operation, safe for installation over showers, quiet operation, and easy installation.

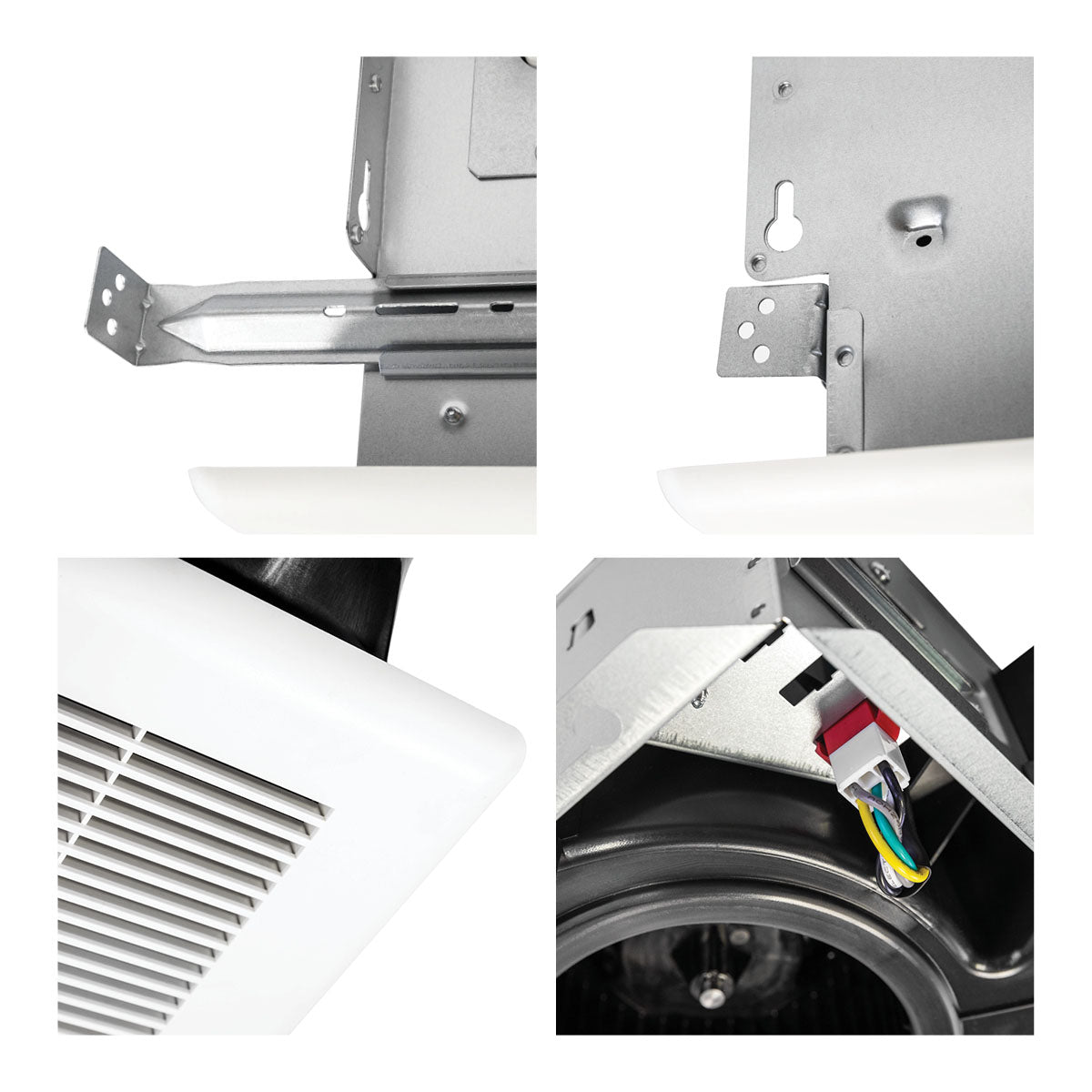

Close-up of the provided hanging bars, keyhole mounting tabs, grille construction, and plug-in motor.

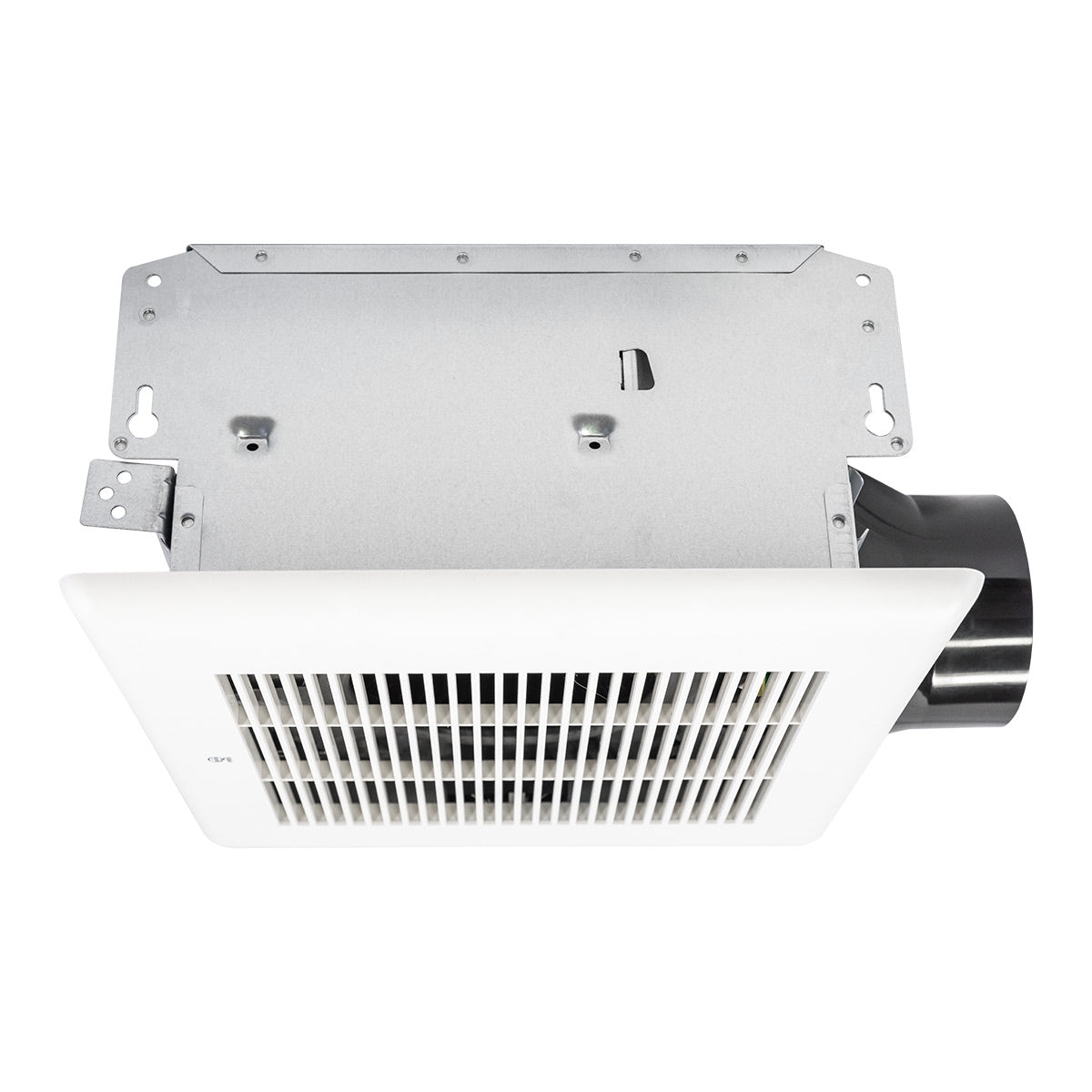

Left side profile view of the BC80 showing the steel housing, 4 in. duct collar and plastic grille cover.

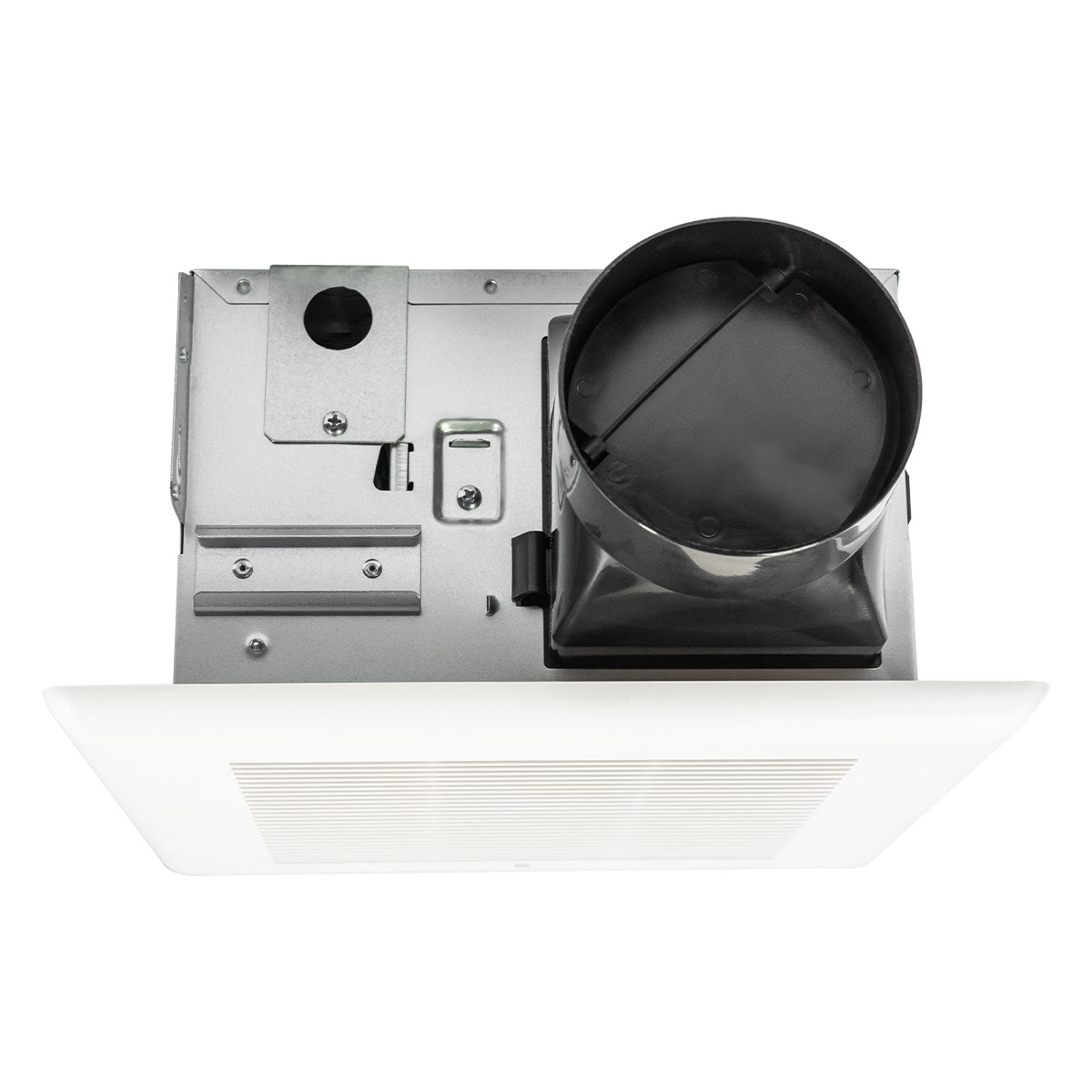

Front view of the bath fan with the 4 in. duct collar for installation.

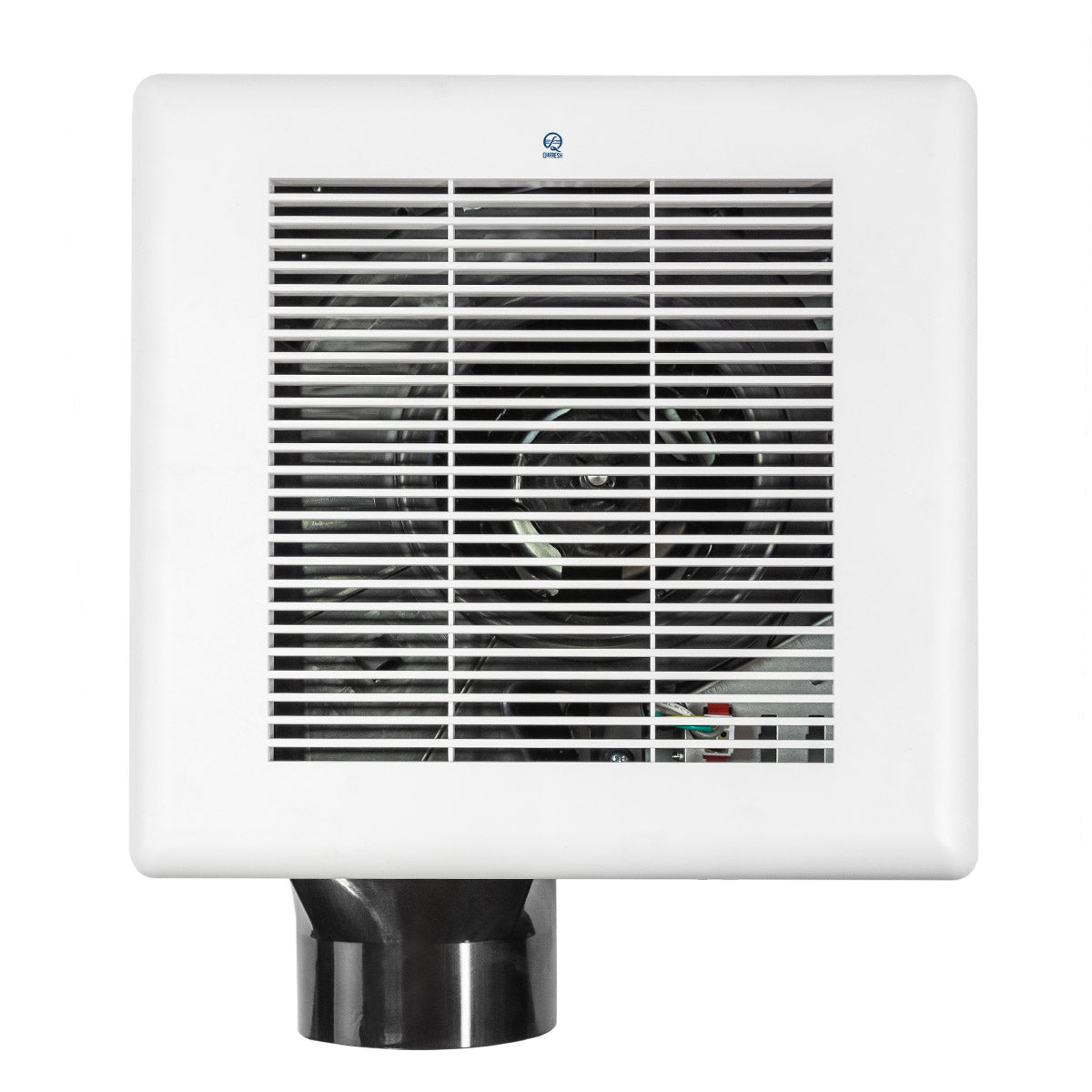

Top view of the bath exhaust fan showing the stylish decorative grille design.

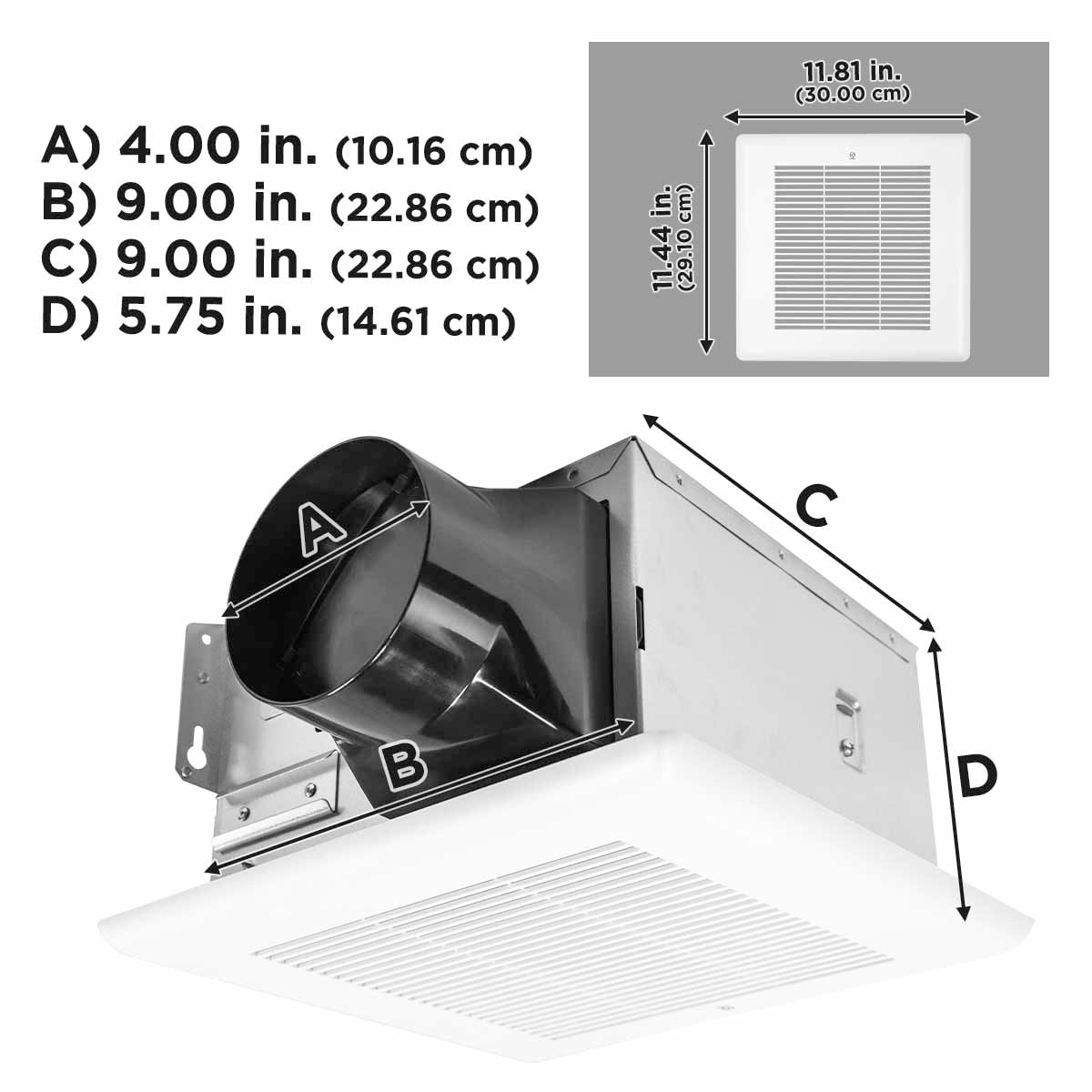

Dimensional drawing showing the bathroom exhaust fan housing and grille specs.

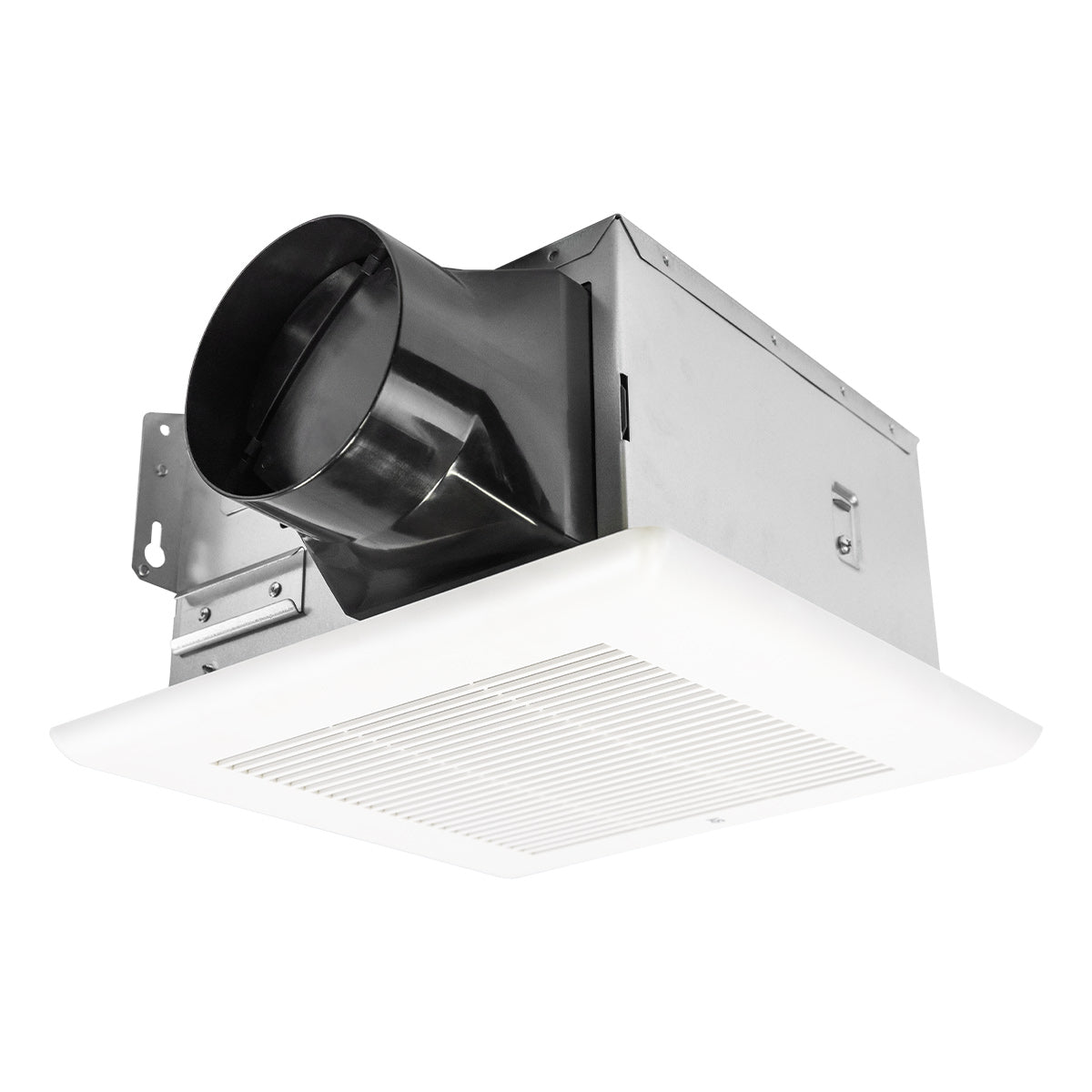

100 CFM non-lighted BC Series bath fan with 4 in. duct collar.
Exploded view of the utility fan with the grille pulled away from the main housing.
CDC Recommendations: Good ventilation, along with other preventative actions, can help prevent you from getting and spreading COVID-19.  At home, turn on the exhaust fan in your bathroom to help move air outside.

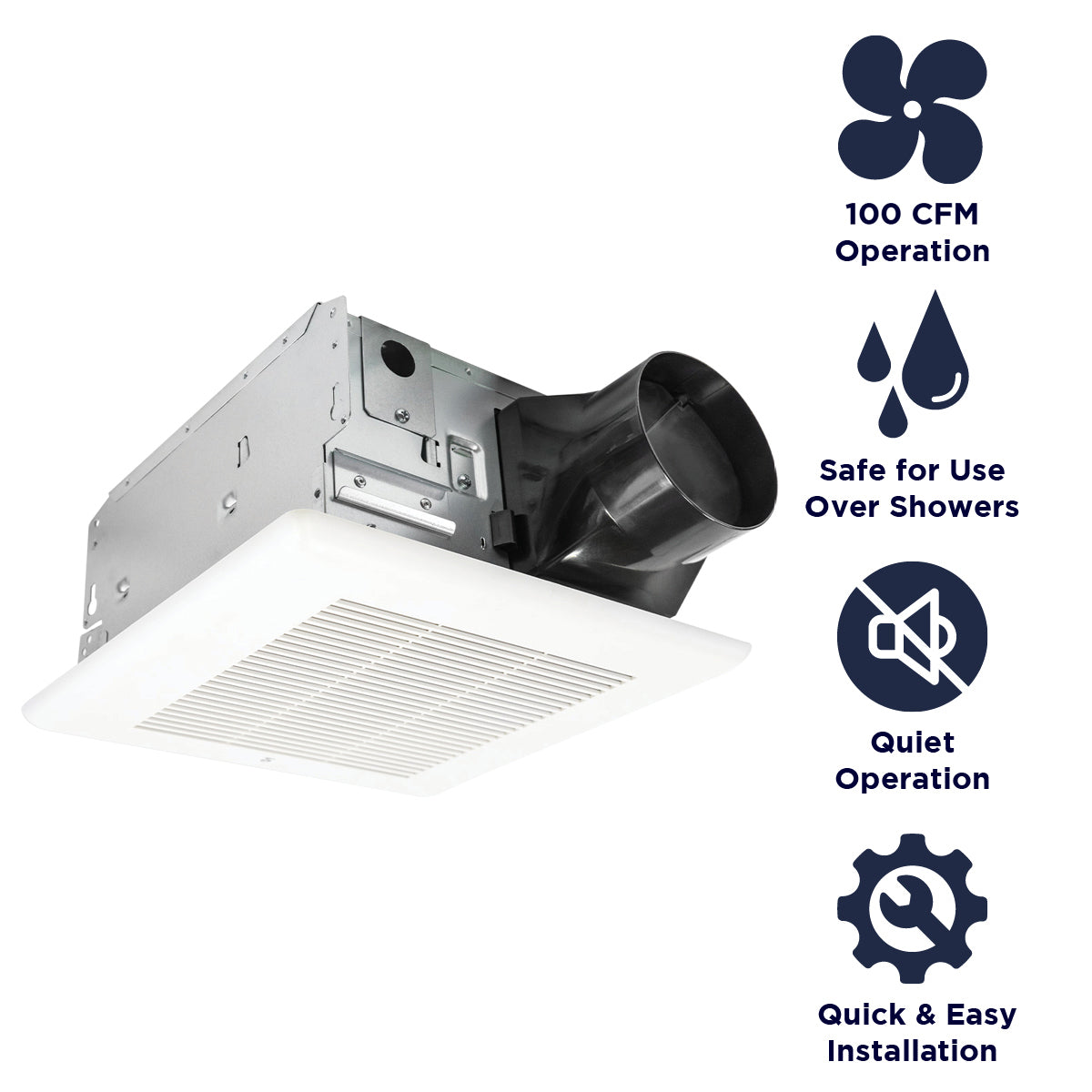

Features of the BC100 include 100 CFM operation, safe for installation over showers, quiet operation, and easy installation.
Dimensional drawing showing the bathroom exhaust fan housing and grille specs.
Close-up of the provided hanging bars, keyhole mounting tabs, grille construction, and plug-in motor.
Left side profile view of the BC100 showing the steel housing, 4 in. duct collar and plastic grille cover.
Front view of the bath fan with the 4 in. duct collar for installation.
Top view of the bath exhaust fan showing the stylish decorative grille design.
80 CFM non-lighted BC Series bath fan with 4 in. duct collar.
Exploded view of the utility fan with the grille pulled away from the main housing.
CDC Recommendations: Good ventilation, along with other preventative actions, can help prevent you from getting and spreading COVID-19.  At home, turn on the exhaust fan in your bathroom to help move air outside.
Features of the BC80 include 80 CFM operation, safe for installation over showers, quiet operation, and easy installation.
Close-up of the provided hanging bars, keyhole mounting tabs, grille construction, and plug-in motor.
Left side profile view of the BC80 showing the steel housing, 4 in. duct collar and plastic grille cover.
Front view of the bath fan with the 4 in. duct collar for installation.
Top view of the bath exhaust fan showing the stylish decorative grille design.
Dimensional drawing showing the bathroom exhaust fan housing and grille specs.
100 CFM non-lighted BC Series bath fan with 4 in. duct collar.
Exploded view of the utility fan with the grille pulled away from the main housing.
CDC Recommendations: Good ventilation, along with other preventative actions, can help prevent you from getting and spreading COVID-19.  At home, turn on the exhaust fan in your bathroom to help move air outside.
Features of the BC100 include 100 CFM operation, safe for installation over showers, quiet operation, and easy installation.
Dimensional drawing showing the bathroom exhaust fan housing and grille specs.
Close-up of the provided hanging bars, keyhole mounting tabs, grille construction, and plug-in motor.
Left side profile view of the BC100 showing the steel housing, 4 in. duct collar and plastic grille cover.
Front view of the bath fan with the 4 in. duct collar for installation.
Top view of the bath exhaust fan showing the stylish decorative grille design.

BC Series Ceiling Exhaust Bath Fans

Login to view price.
DESCRIPTION:

QuFresh BC Series Bath Fans are a cost-effective, yet modern solution for home or commercial use with fans from an 80 - 100 CFM operation for continuous odor ventilation, mildew prevention, and moisture reduction in a bathroom or other room needing a ventilation fan system. Constructed using a galvanized steel housing and 4 in. polymeric duct connector with a spring-installled polymeric grille cover. This exhaust fan includes hanger bars and mounting tabs for installation anywhere between 16 in. to 24 in. on-center joists and a plug-in motor with wiring knockouts on the housing. The PSC motor requires little maintenance and has an unrivaled quiet, low sone operation in this series from 0.8 to less than 0.3 sones. Order with a humidity sensor (BCHUMSR) or motion sensor (BCMOTSR) to customize your vent fan, and a radiation damper (BGCRD) to meet local code requirements.

The CDC recommends bathroom fans to help stop the spread of the COVID-19 virus.

PERFECT FOR:
  • Commercial

  • Home

  • PREVENTS MOISTURE
    BUILD-UP IN BATHROOMS

  • MOTION AND HUMIDITY SENSOR
    KITS FOR EASY UPGRADES

  • MOUNTING TABS & WIRING
    KNOCKOUTS FOR EASY INSTALL

  • QUIET
    OPERATION

Circulation:

Designed for ventilating bathrooms and other rooms from 80 - 100 sq. ft.

Installation:

Mounts using mounting tabs or included hanger bars to position anywhere between 16 in. to 24 in. on-center joists

Controls:

Permanently lubricated PSC motor designed for continuous operation with balanced centrifugal blower wheel for quiet, efficient performance

Material:

Heavy gauge steel housing with 4 in. round extended duct collar

Energy Efficiency:

Add humidity and motion sensor kits to your fan for more controlled operation

Safety:

ETL Listed for use over a bathtub or shower when connected to a GFCI protected branch circuit (ceiling mount only)

Primary Color

White

Secondary Color

Mill

CFM

80 or 100

Material Details

Steel Housing, Textured Polymeric Grille

Motor Details

Permanently Lubricated PSC, Plug-In

Motor Specs
ModelAmpsVolts, HzWattsRPMSones
80 CFM0.20120, 6016.2880<0.3
100 CFM0.20120, 6022.911000.8
Dimensions

5.75 in. H x 11.44 in. W x 11.81 in. D (Grille Size and Housing Depth)

Unit Weight

6.6 lbs.

Box Dimensions

7.25 in. H x 14.5 in. W x 12 in. D

Ship Weight

7.5 lbs.

Alias SKU(s)

BC80: 80 CFM, 4 in. Duct

BC100: 100 CFM, 4 in. Duct

Multi UPC Info

BC80: 697453939645

BC100: 697453939652

Country of Origin - Assembly

China

Sold Under

QuFresh

PERFECT FOR NEW CONSTRUCTION

BC series units can be installed in a 2-phase system—the housing can be mounted with wiring and duct in one phase, and the blower and grille installed in a later second phase once the ceiling is complete. This ventilation fan series has a 5.75 in. housing height which allows for 2 in. x 8 in. joist installations and hanger bars and mounting tabs to position between 16 in. to 24 in. on-center joists.

SILENT OPERATION

Don't put up with the excess noise generated from old, clunky fans. With units operating from less than 0.3 - 0.8 sones, the BC series bath fans are so quiet you might not even know it's on.

CREATE A HEALTHY HOME

A warm shower is great, but all that unventilated steam and moisture can set up your bathroom for mold and mildew (and the damaging after-effects of removing it). Installing a BC Series bath fan aids in removing this moisture in bathrooms ranging from 80 - 100 sq. ft.
