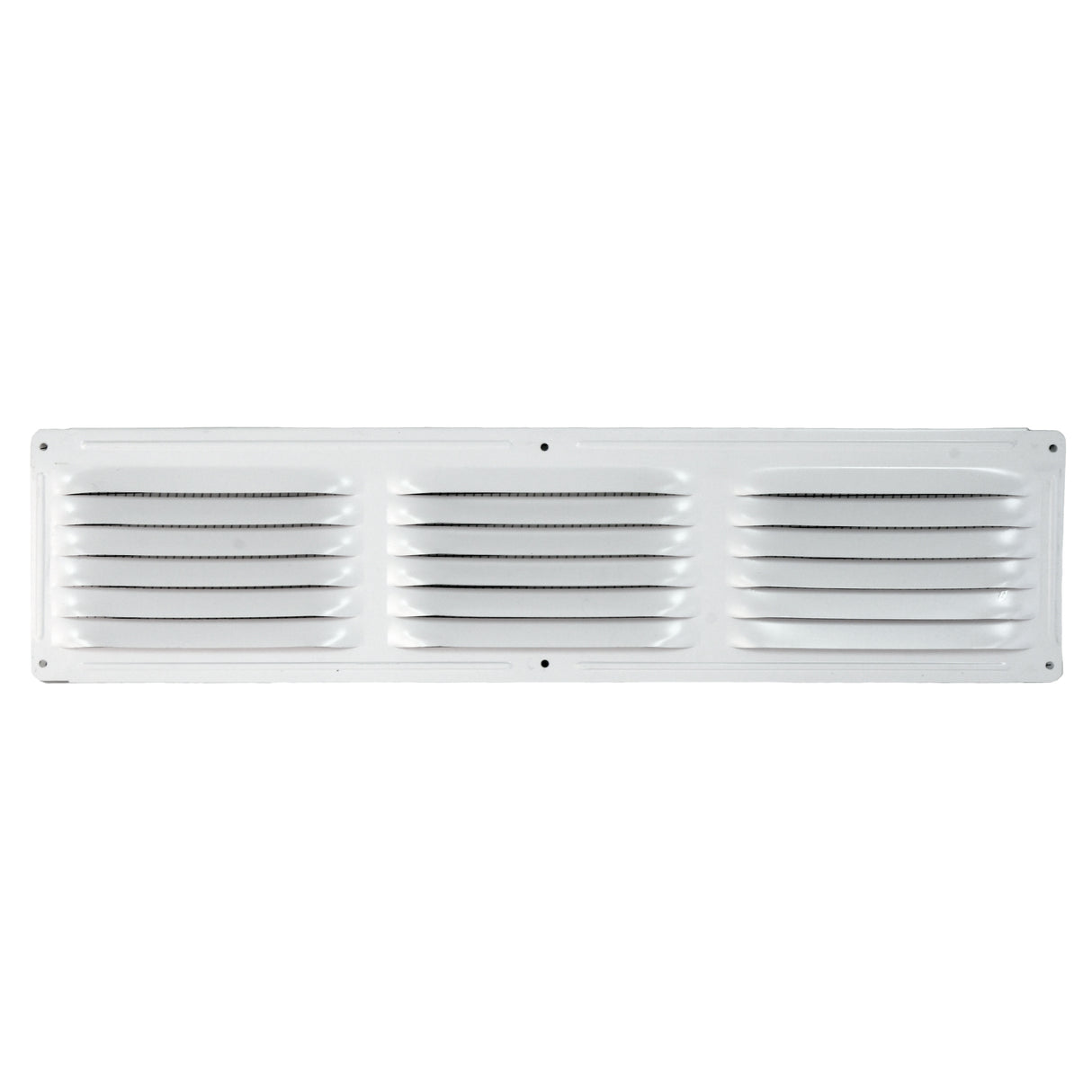

Front of 4 in. x 16 in. undereave vent in white finish.

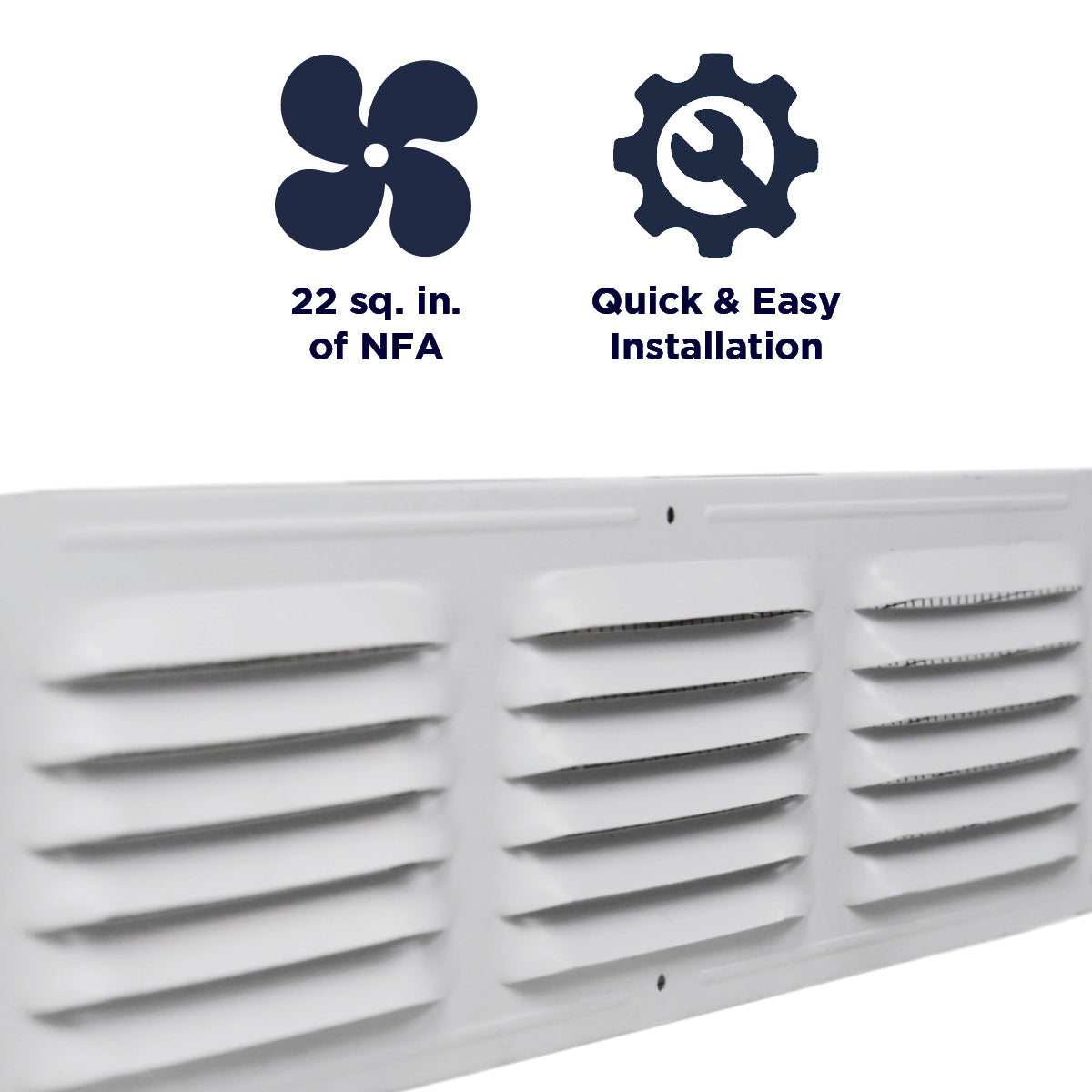

Features of the CX64 vent include providing 22 sq. inches of net free air, and a quick and easy install.

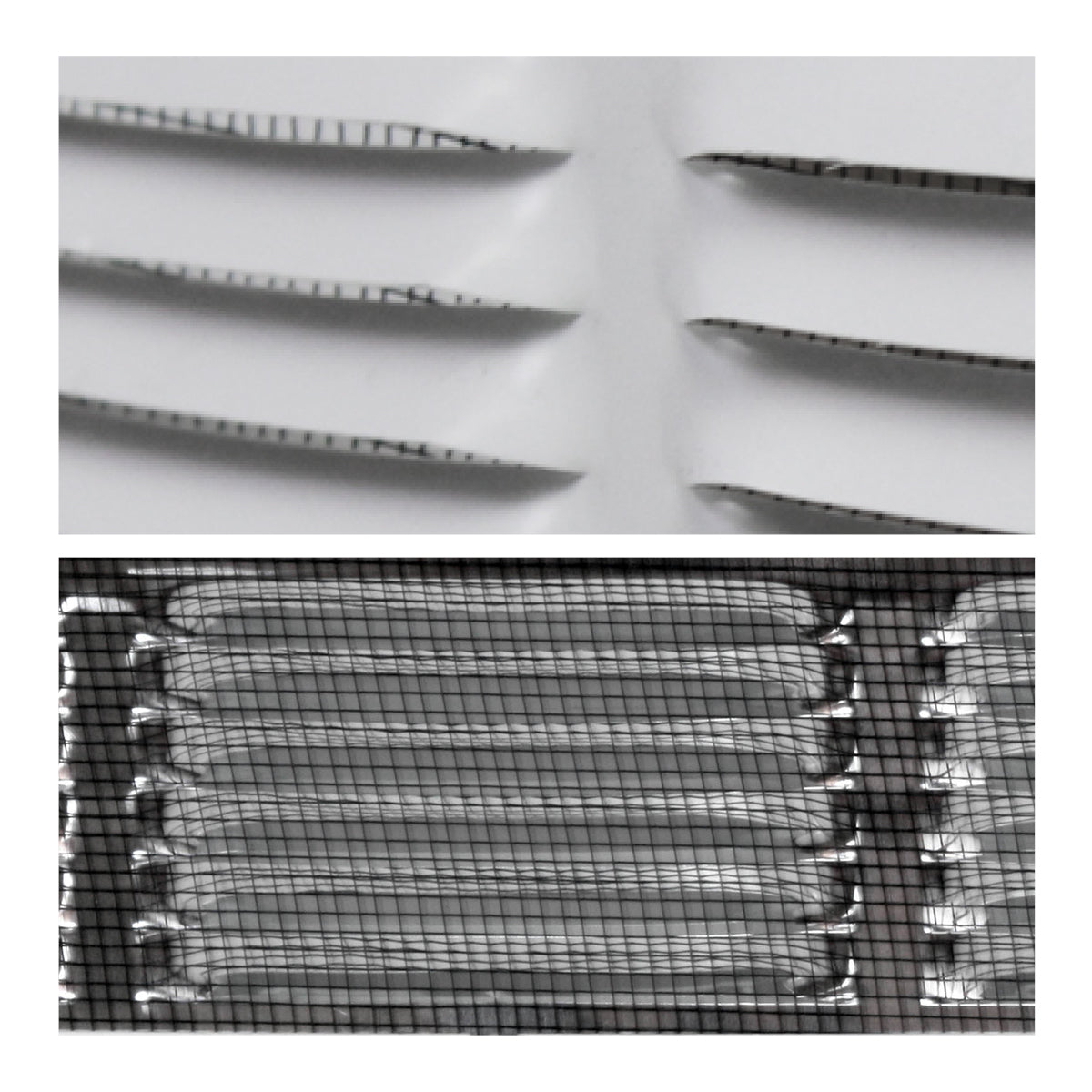

Detailed close-up of the vent louvers and the mesh screen.

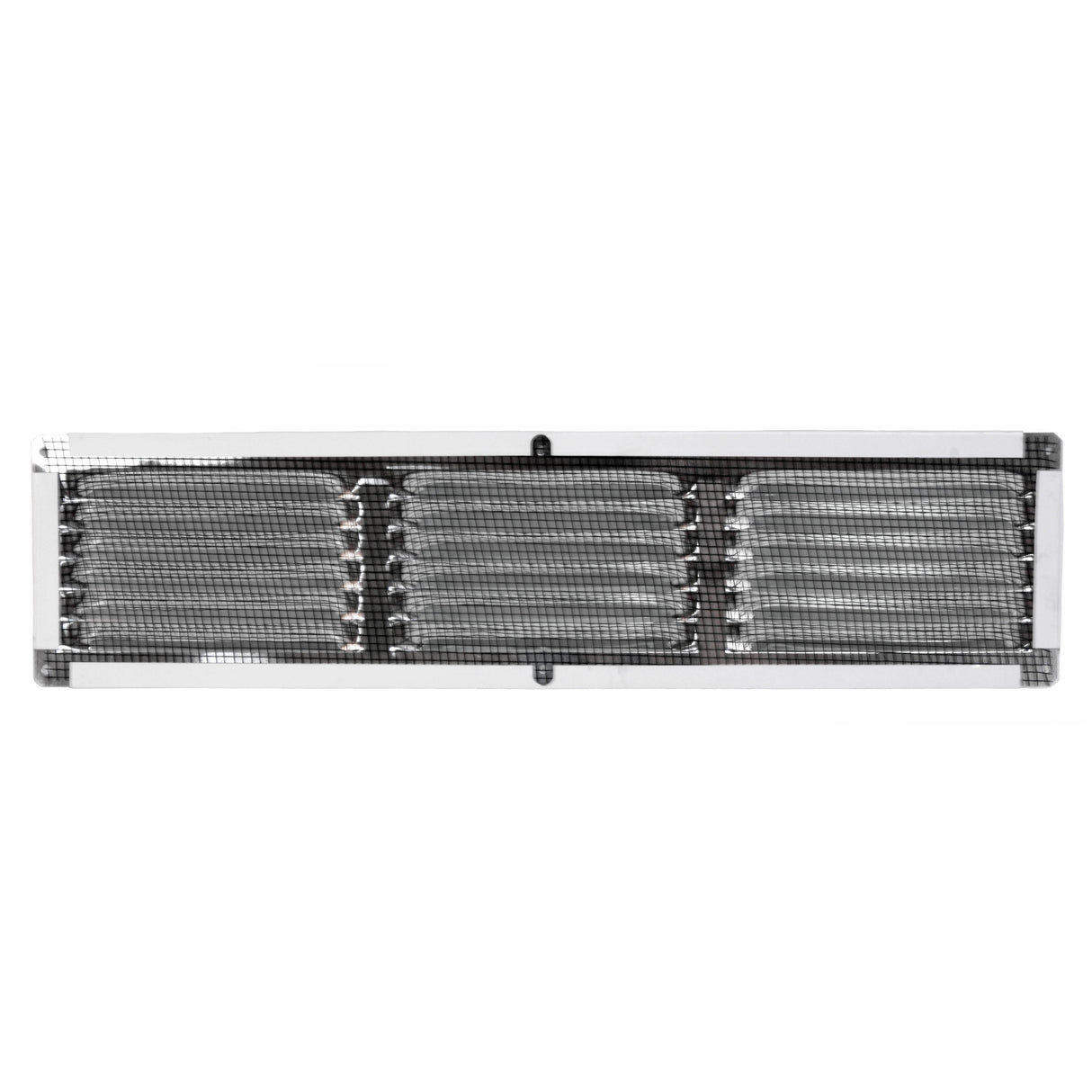

Back of 4 in. x 16 in. undereave vent showing the rodent-proof screen.
Front of 6 in. x 16 in. undereave vent in white finish.
Features of the CX66 vent include providing 40 sq. inches of net free air, and a quick and easy install.
Detailed close-up of the vent louvers and the mesh screen.
Back of 6 in. x 16 in. undereave vent showing the rodent-proof screen.

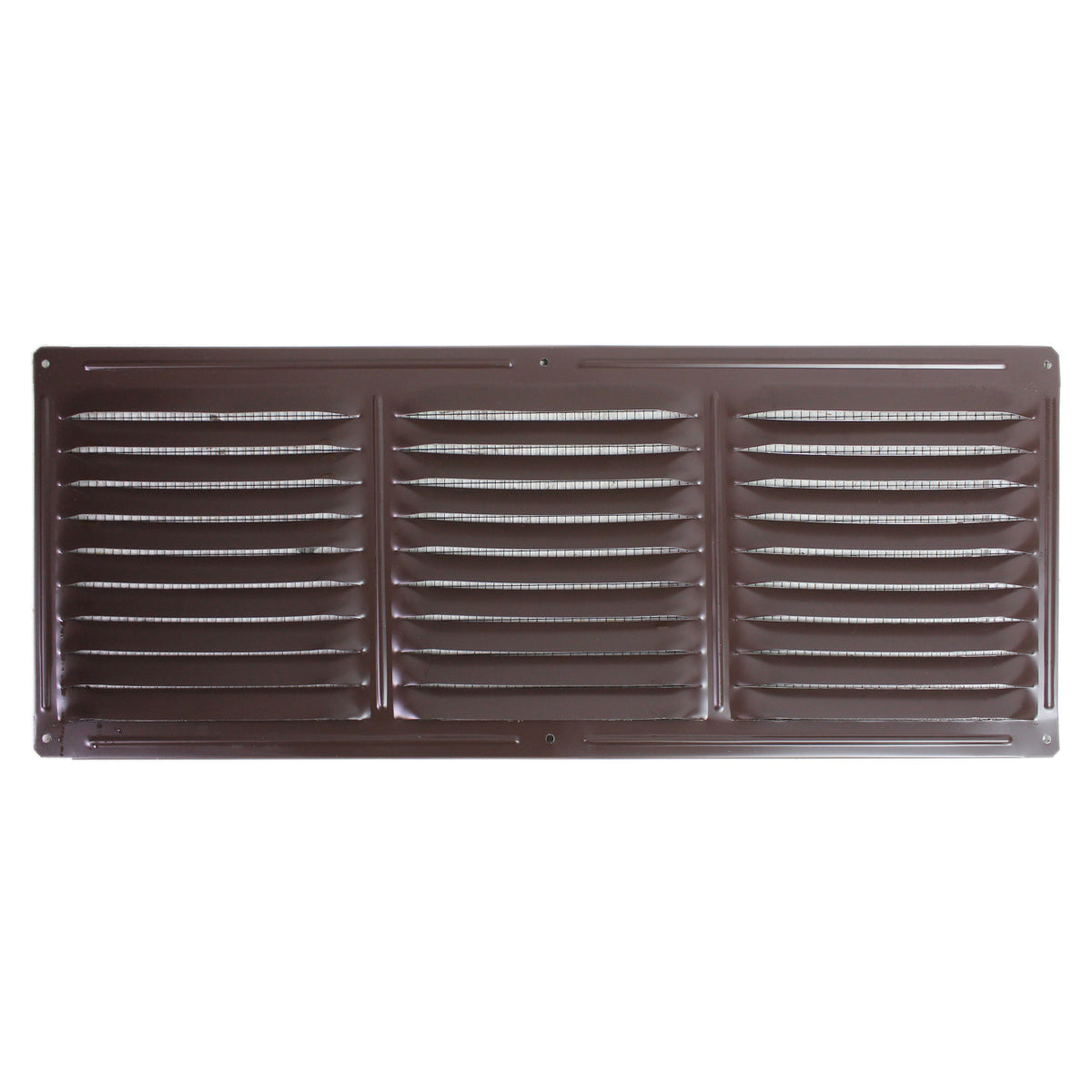

Front of 6 in. x 16 in. undereave vent in brown finish.

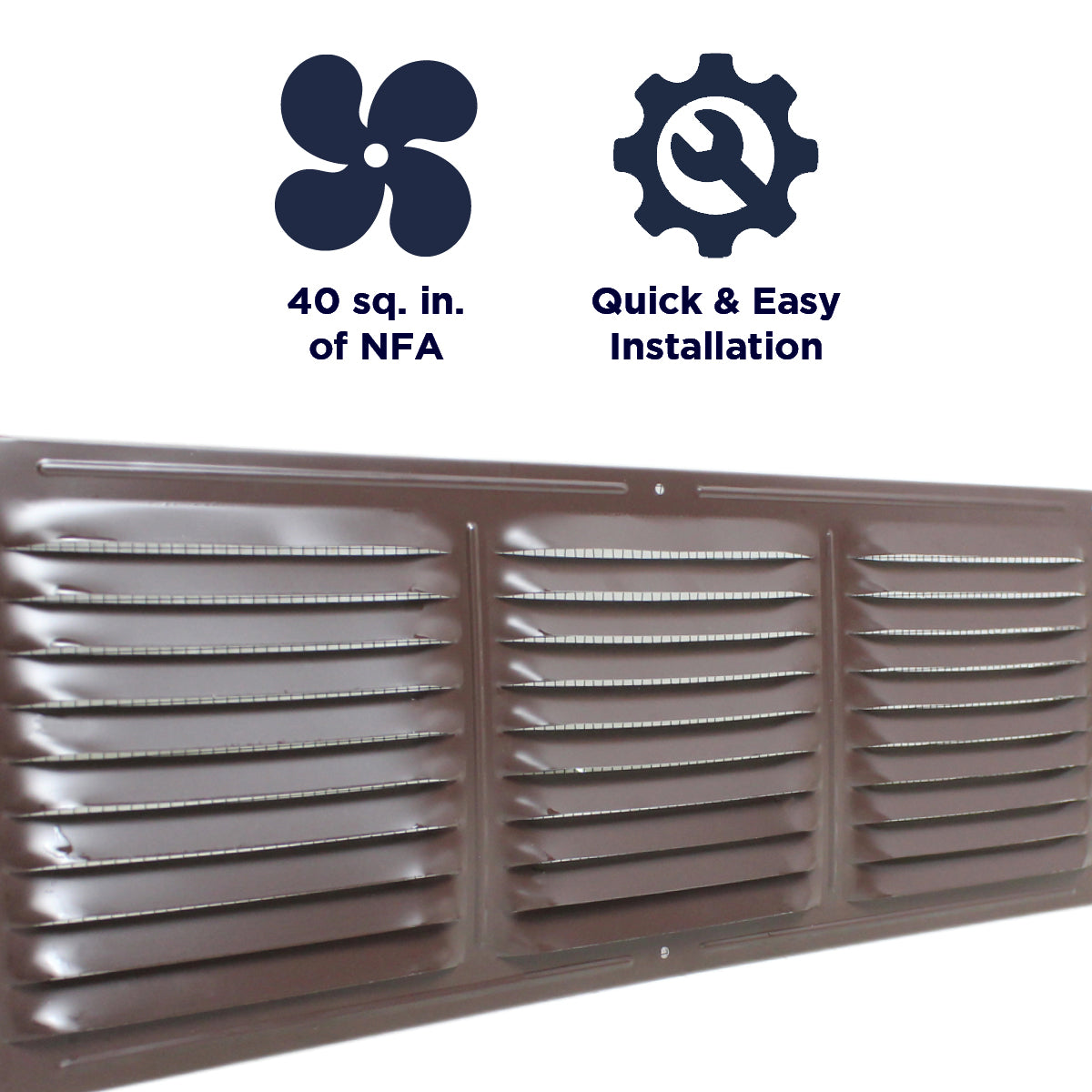

Features of the CX66 vent include providing 40 sq. inches of net free air, and a quick and easy install.

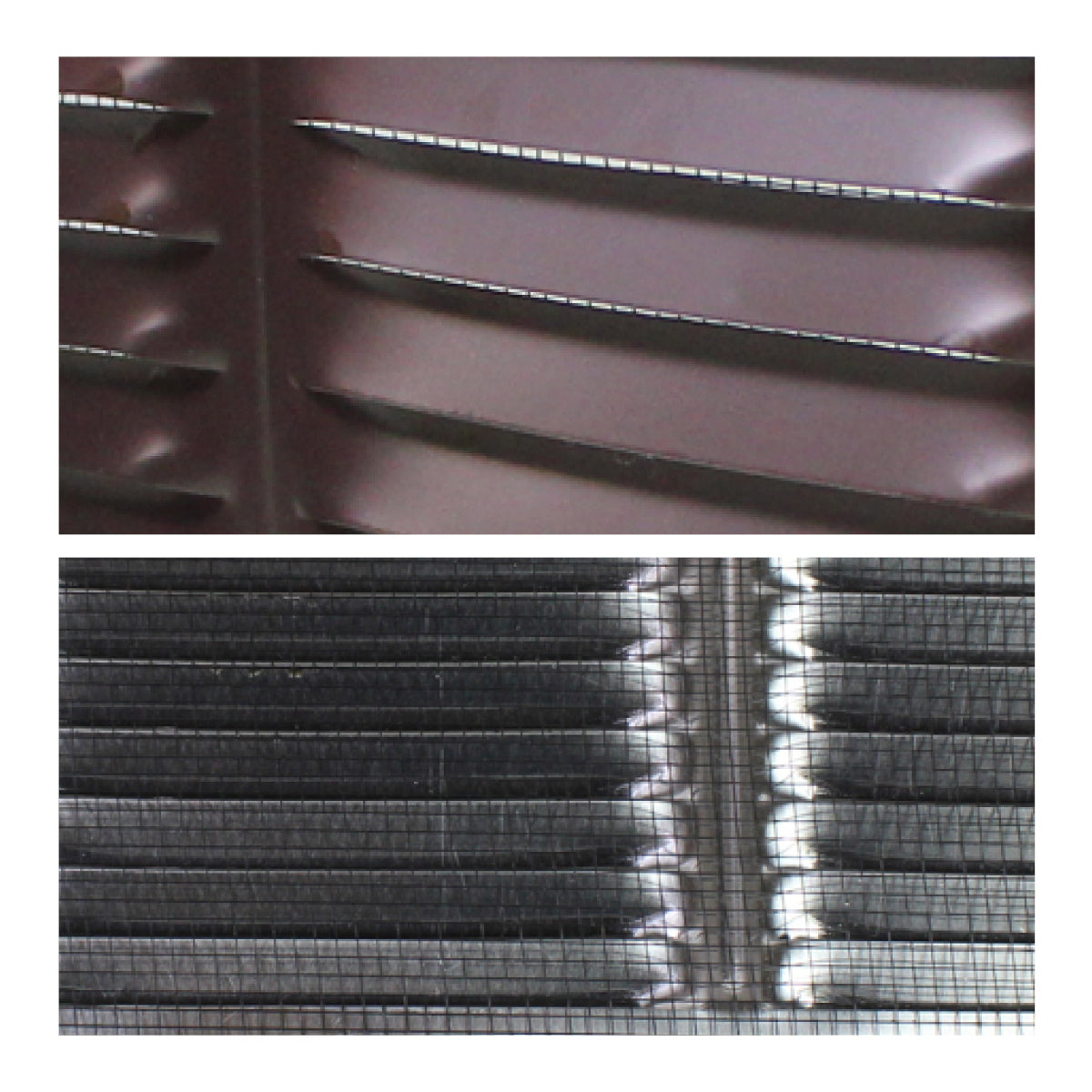

Detailed close-up of the vent louvers and the mesh screen.

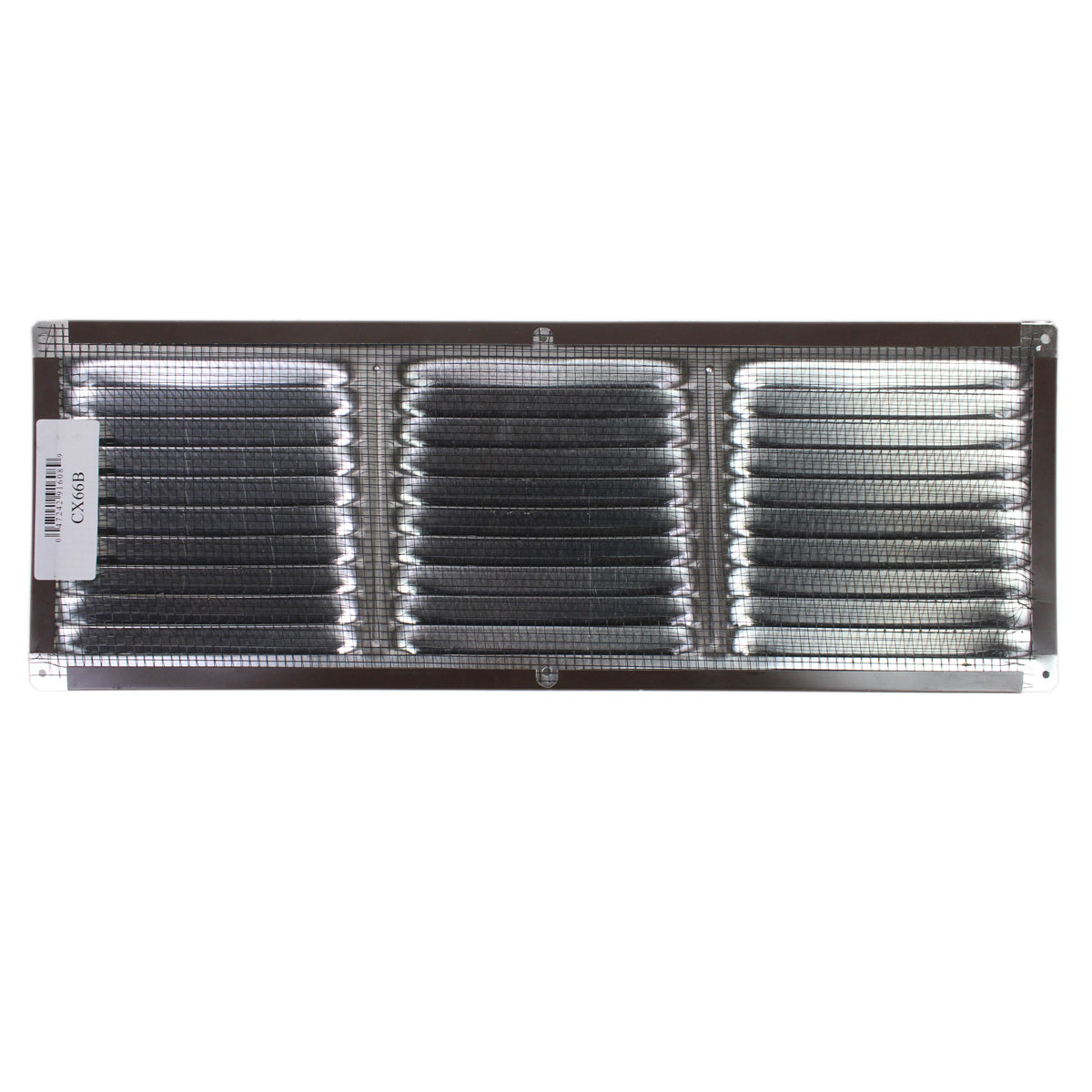

Back of 6 in. x 16 in. undereave vent showing the rodent-proof screen.

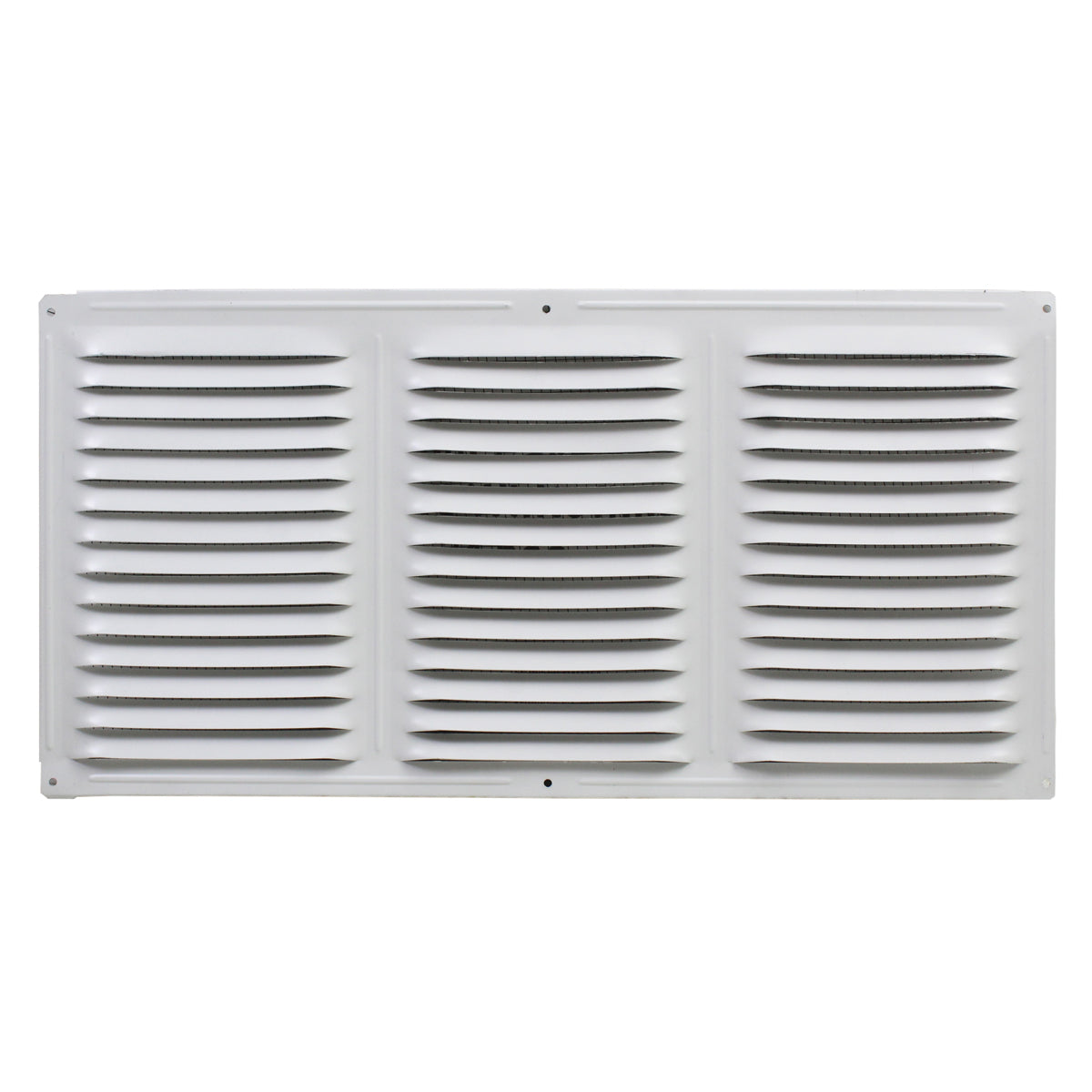

Front of 8 in. x 16 in. undereave vent in white finish.

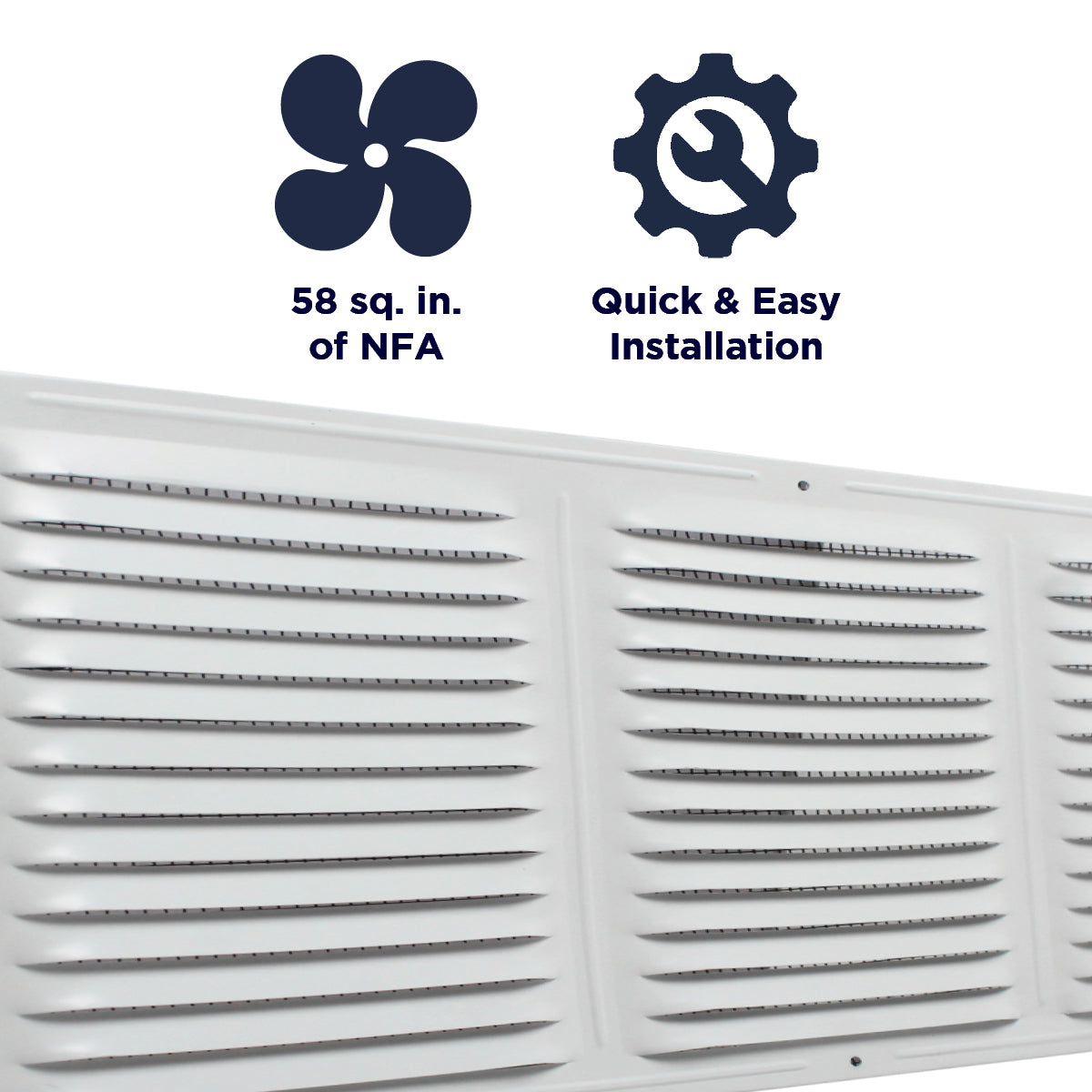

Features of the CX68 vent include providing 58 sq. inches of net free air, and a quick and easy install.

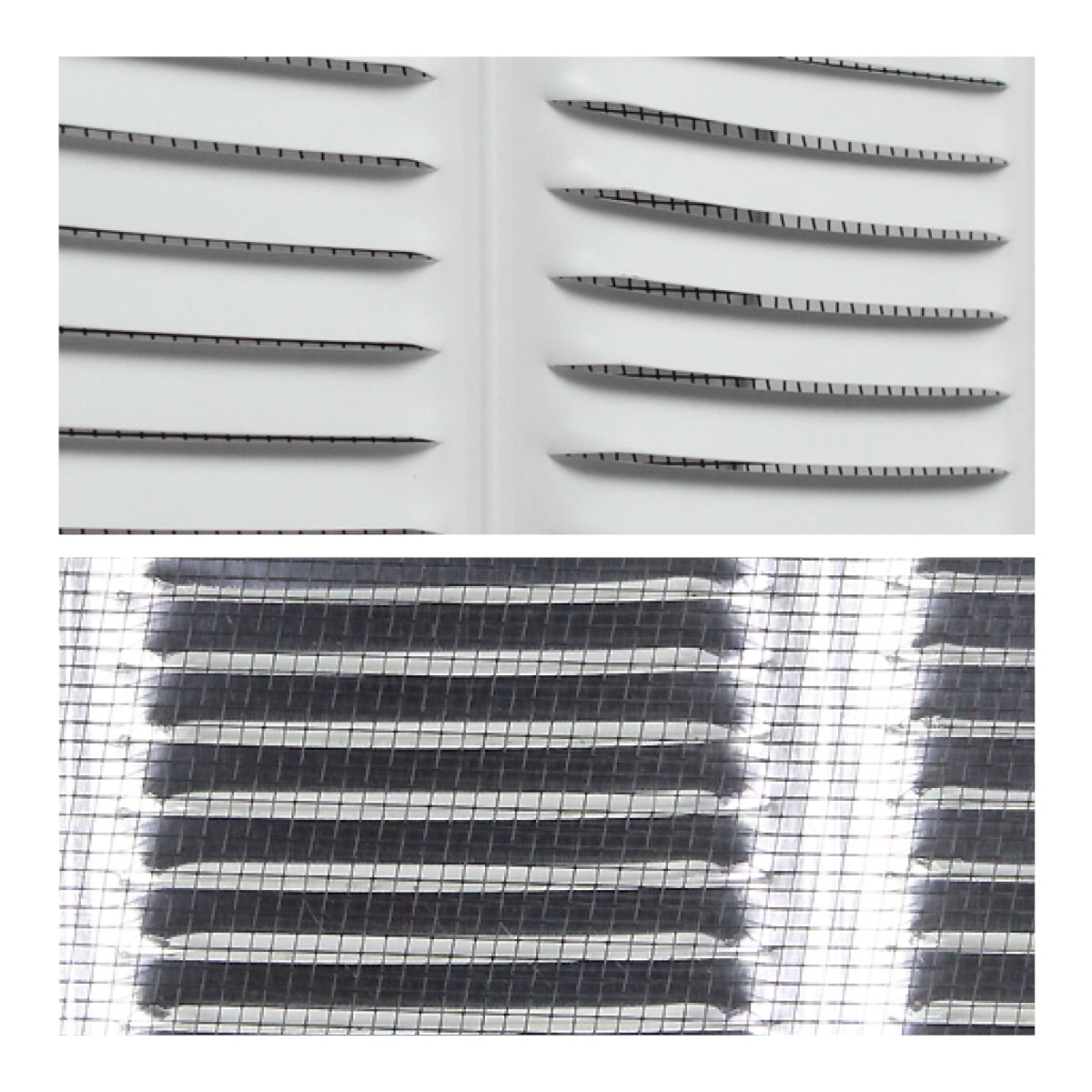

Detailed close-up of the vent louvers and the mesh screen.

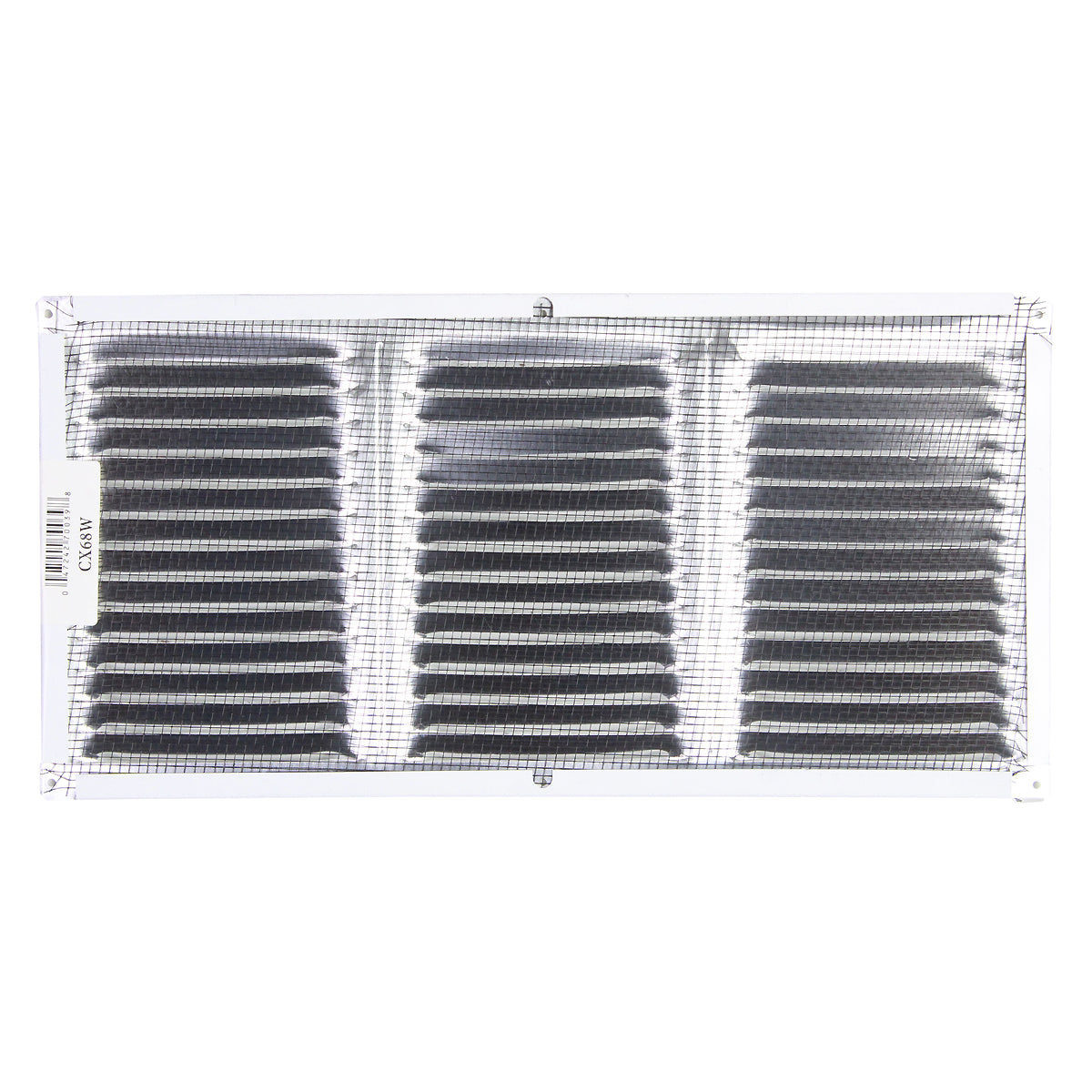

Back of 8 in. x 16 in. undereave vent showing the rodent-proof screen.
Front of 4 in. x 16 in. undereave vent in white finish.
Features of the CX64 vent include providing 22 sq. inches of net free air, and a quick and easy install.
Detailed close-up of the vent louvers and the mesh screen.
Back of 4 in. x 16 in. undereave vent showing the rodent-proof screen.
Front of 6 in. x 16 in. undereave vent in white finish.
Features of the CX66 vent include providing 40 sq. inches of net free air, and a quick and easy install.
Detailed close-up of the vent louvers and the mesh screen.
Back of 6 in. x 16 in. undereave vent showing the rodent-proof screen.
Front of 6 in. x 16 in. undereave vent in brown finish.
Features of the CX66 vent include providing 40 sq. inches of net free air, and a quick and easy install.
Detailed close-up of the vent louvers and the mesh screen.
Back of 6 in. x 16 in. undereave vent showing the rodent-proof screen.
Front of 8 in. x 16 in. undereave vent in white finish.
Features of the CX68 vent include providing 58 sq. inches of net free air, and a quick and easy install.
Detailed close-up of the vent louvers and the mesh screen.
Back of 8 in. x 16 in. undereave vent showing the rodent-proof screen.

CX Series Soffit and Under Eave Vents

$0.00
Color
White
Brown
Size

Contact Us for Availability at 800-433-1626

DESCRIPTION:

Soffit and Under Eave Vents are an efficient solution for residential home attic ventilation that allows for a constant flow of air in and out of the attic when paired with exhaust vents. Maxx Air louvered soffit and under eave vents are constructed of aluminum metal and have a mesh screen to deter animals from entering your house's attic space. Easily install these lightweight vents on the exterior, lower portion of the roof (soffit or under eave) using nails or screws to secure in place. Intake vents help to create a constant upward draft of air which helps to equalize attic temperature with the temperature in the living space below. This constant airflow assists in reducing the strain on cooling and heating systems, and also helps the efficiency of ceiling insulation, making it a worthwhile home improvement project and a great investment in your home's overall health.

PERFECT FOR:
  • Home

  • PROVIDES
    22 - 58 SQ. IN. OF
    NET FREE AIR

  • WEATHER
    RESISTANT

  • REDUCES
    COOLING COSTS

  • FULLY ASSEMBLED FOR
    EASY INSTALL

Capacity:

Provides 22 - 58 sq. in. of NFA

Installation:

Pre-drilled mounting holes for easy installation

Material:

All aluminum construction is durable and rust-resistant. Fully screened to protect against insects and rodents.

Primary Color

Brown or White

Material Details

Aluminum

Dimensions

CX64: 4 in. x 16 in. with a 2.24 in. x 14.25 in. Flange

CX66: 6 in. x 16 in.

CX68: 8 in. x 16 in. with a 6.5 in. x 14.5 in. Flange

Unit Weight

< 1 lb.

Box Dimensions

CX64: 17 in. x 7 in. x 18 in.

CX68: 16.25 in. x 5.5 in. x 8.25 in.

Ship Weight

CX64: 3 lbs.

CX68: 6 lbs.

Alias SKU(s)

CX64 W: White
CX64 WUPS: White, Plain Carton

CX66BRN: Brown
CX66BRNUPS: Brown, Plain Carton
CX66WHT: White
CX66WHTUPS: White, Plain Carton


CX68 W: White
CX68 WUPS: White, Plain Carton

Multi UPC Info

CX64 W: 047242700367; 047242580501 (QTY 24)
CX64 WUPS: 047242916508 (QTY 24)

CX66BRN: 047242768428; 047242916089 (QTY 24)
CX66BRNUPS: 047242916553 (QTY 24)
CX66WHT: 047242768411; 047242916096 (QTY 24)
CX66WHTUPS: 047242916607 (QTY 24)


CX68 W: 047242700398; 047242580549 (QTY 24)
CX68 WUPS: 047242916706 (QTY 24)

Other Details
ModelNFA
CX6422 sq. in.
CX6640 sq. in.
CX6858 sq. in.

EASY INSTALLATION

Our soffit units arrive fully assembled and ready for placement. Perfect for new construction or an existing home with pre-drilled anchor points for a secure installation with nails or screws.

BUILT-IN SCREEN

Pests can wreak havoc in your attic, damaging electrical wiring, insulation, and other critical components of your home. The CX series sofft and undereave vent are screened to keep insects and rodents from entering your attic space.

Offers Year-Round Home Benefits

Creating a balanced attic ventilation system is necessary for the overall health of any home. When your attic space is properly ventilated, your air conditioner runs less in the summer, your roof shingles last longer, and your attic insulation is further protected from mold and mildew. Maxx Air soffit and undereave vents are one component that can help you reach this goal.
