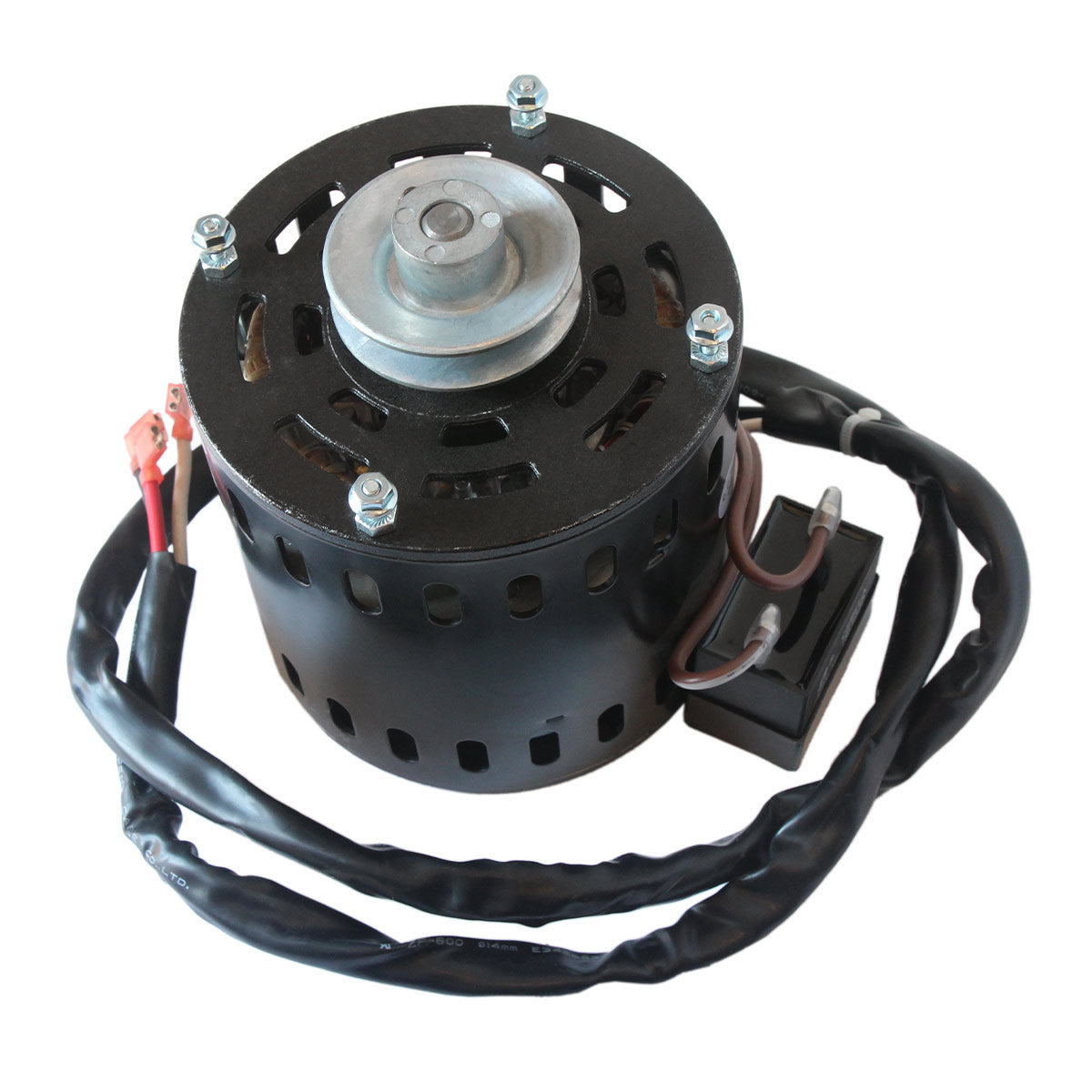

Angled view of belt drive motor and pulley with capacitor.

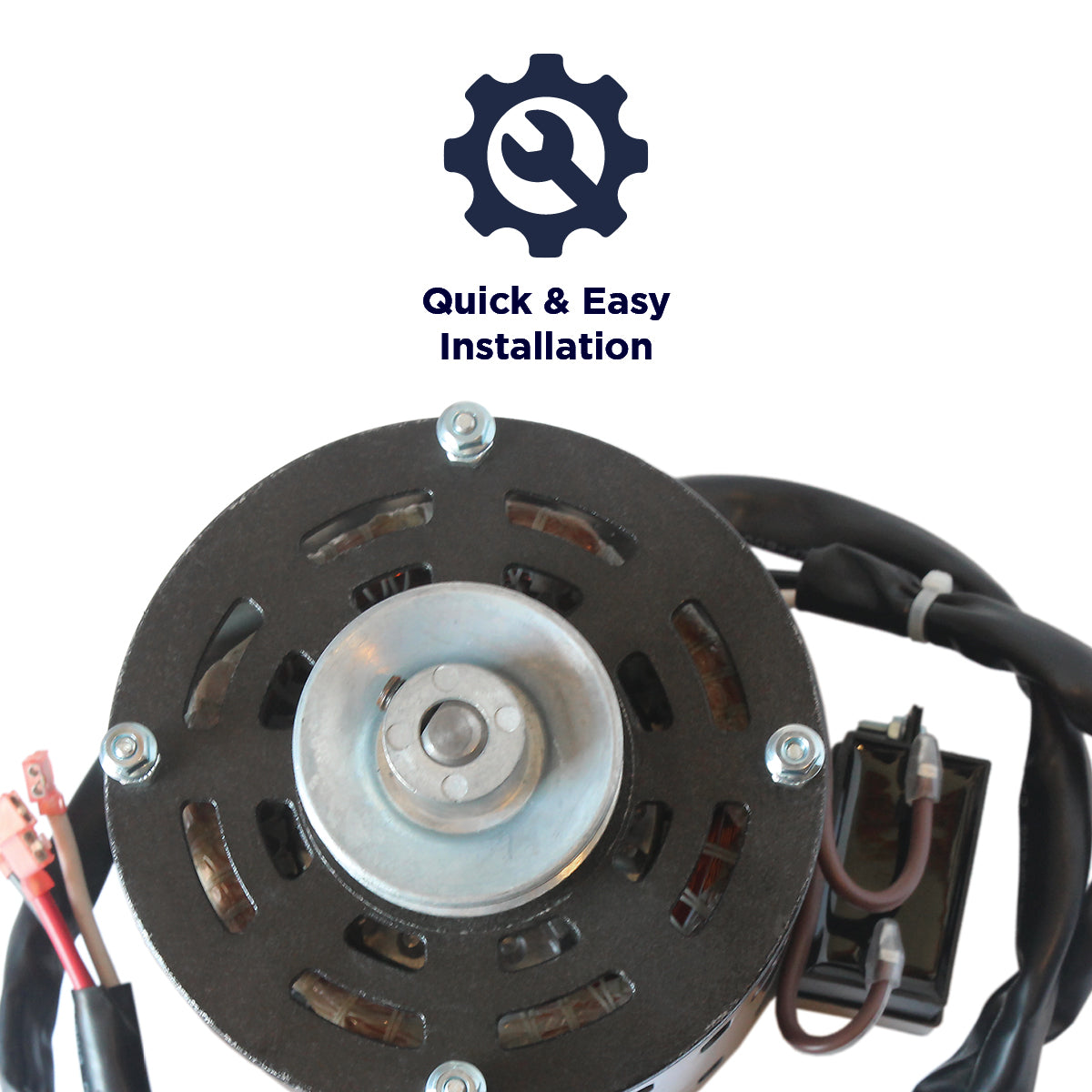

The XE460 installs quickly and easily using the terminal clips.

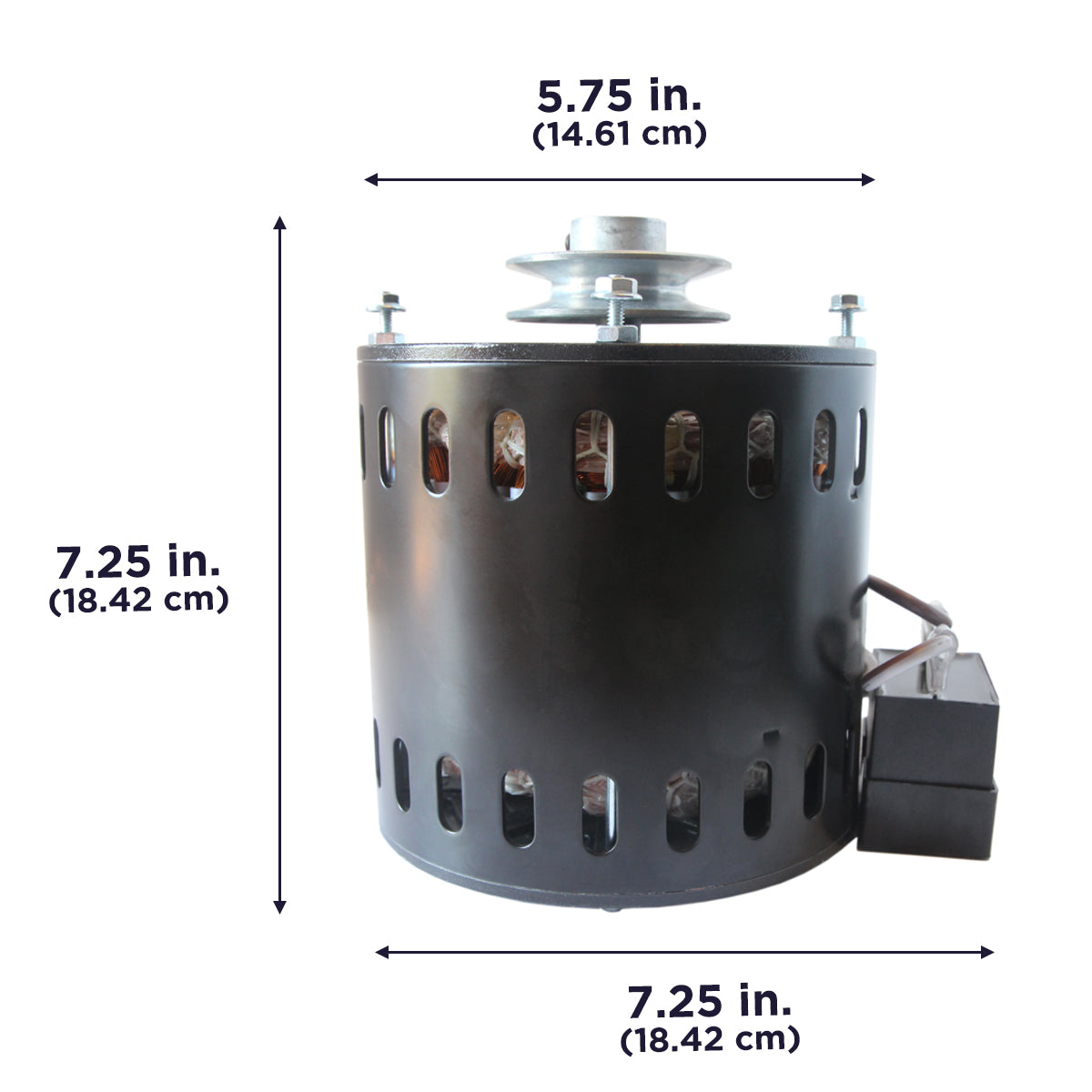

This motor is 7.25 in. (18.42 cm) high, 5.75 in. (14.61 cm) wide without capacitor, and 7.25 in. (18.42 cm) wide with capacitor.

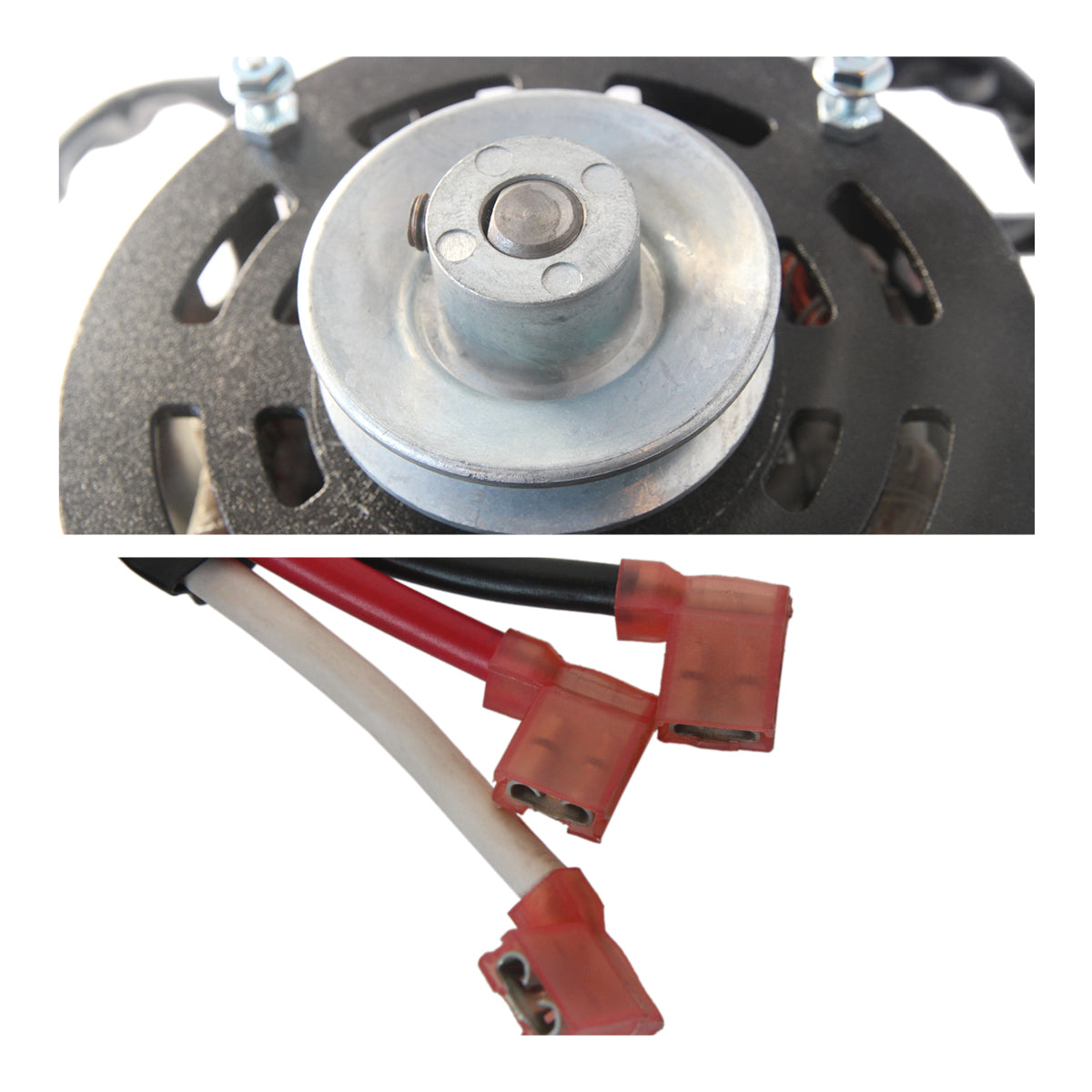

Close-up of pulley and terminal clips.

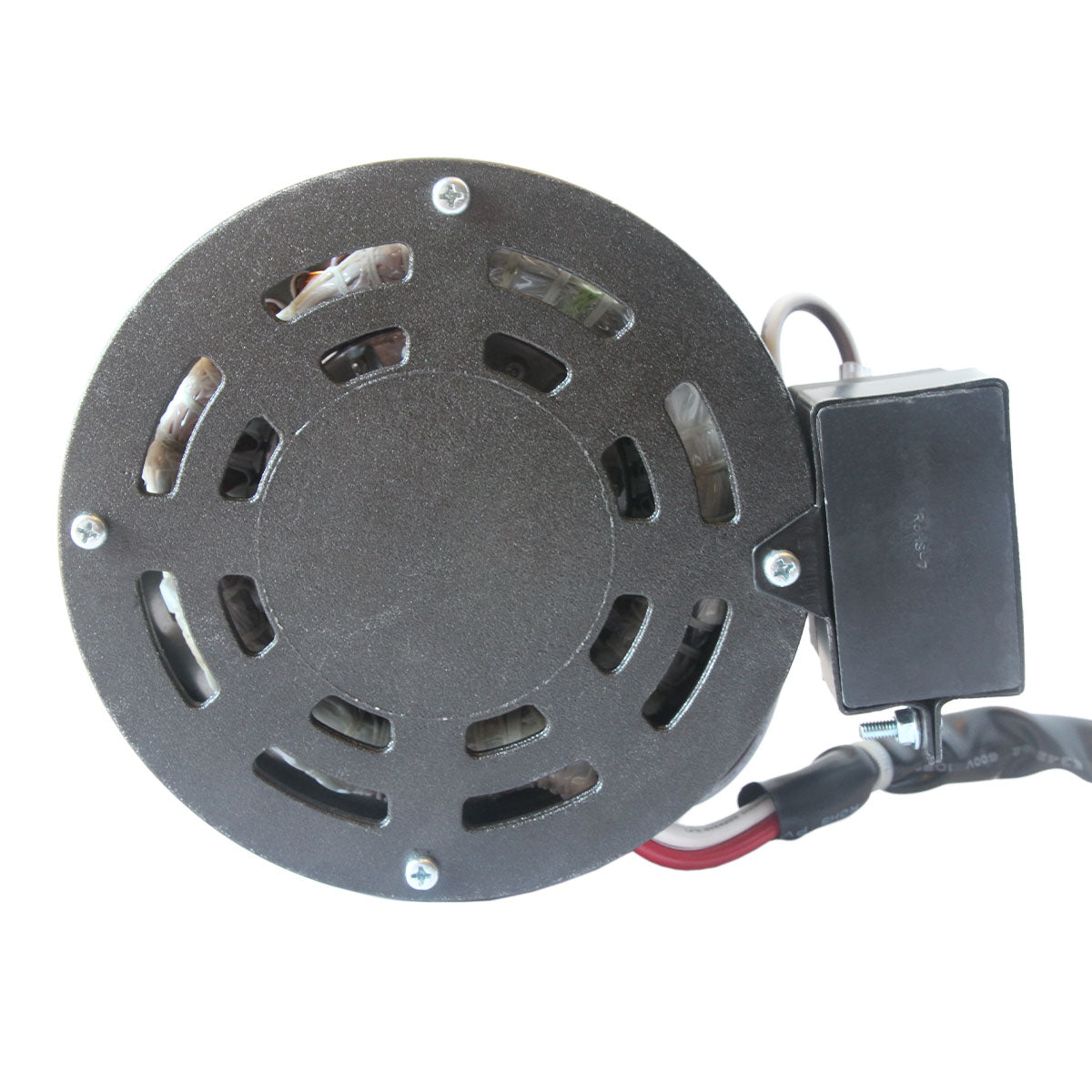

Back of vented motor and capacitor.

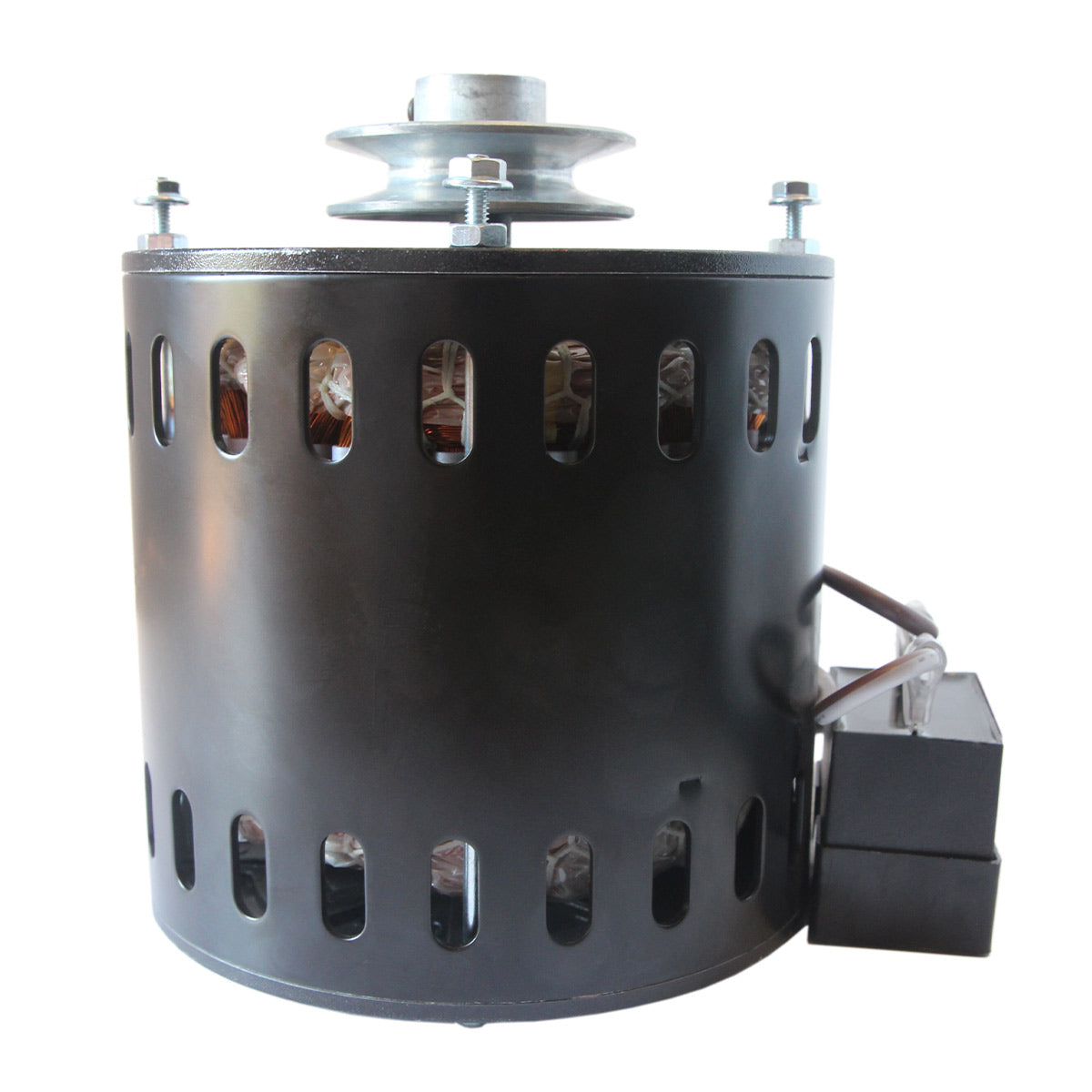

Side view of belt drive motor.
Angled view of belt drive motor and pulley with capacitor.
The XE460 installs quickly and easily using the terminal clips.
This motor is 7.25 in. (18.42 cm) high, 5.75 in. (14.61 cm) wide without capacitor, and 7.25 in. (18.42 cm) wide with capacitor.
Close-up of pulley and terminal clips.
Back of vented motor and capacitor.
Side view of belt drive motor.

Motor and 2.5 In. Pulley for 60 In. Belt Drive Drum Fans

$378.85

DESCRIPTION:

This 2 speed belt drive motor includes a pre-installed 2.5 in. pulley, is for indoor use only, and is easily rewired to your existing fan.

For use only with Maxx Air 60 in. drum fans. This motor is compatible with fan models beginning in BF60BD.

PERFECT FOR:

  • Automotive

  • Commercial

  • Construction

  • Fitness

  • Industrial

  • Livestock

Controls:

2 speed operation

Use:

Suitable for indoor usage

Other Features:

Reference numbers: BRE 460

Primary Color

Black

Motor Details

2-Speed Thermally Protected, Belt Drive PSC Motor

Motor Specs

3/4 HP

Rated at 8 Amps

120 Volts, 60 Hz

Rated at 1,500 RPM

Unit Weight

5.75 in. H x 7.25 in. W x 7.25 in. D

Alias SKU(s)

XE460

Single Product UPC

047242140828

Sold Under

Maxx Air
