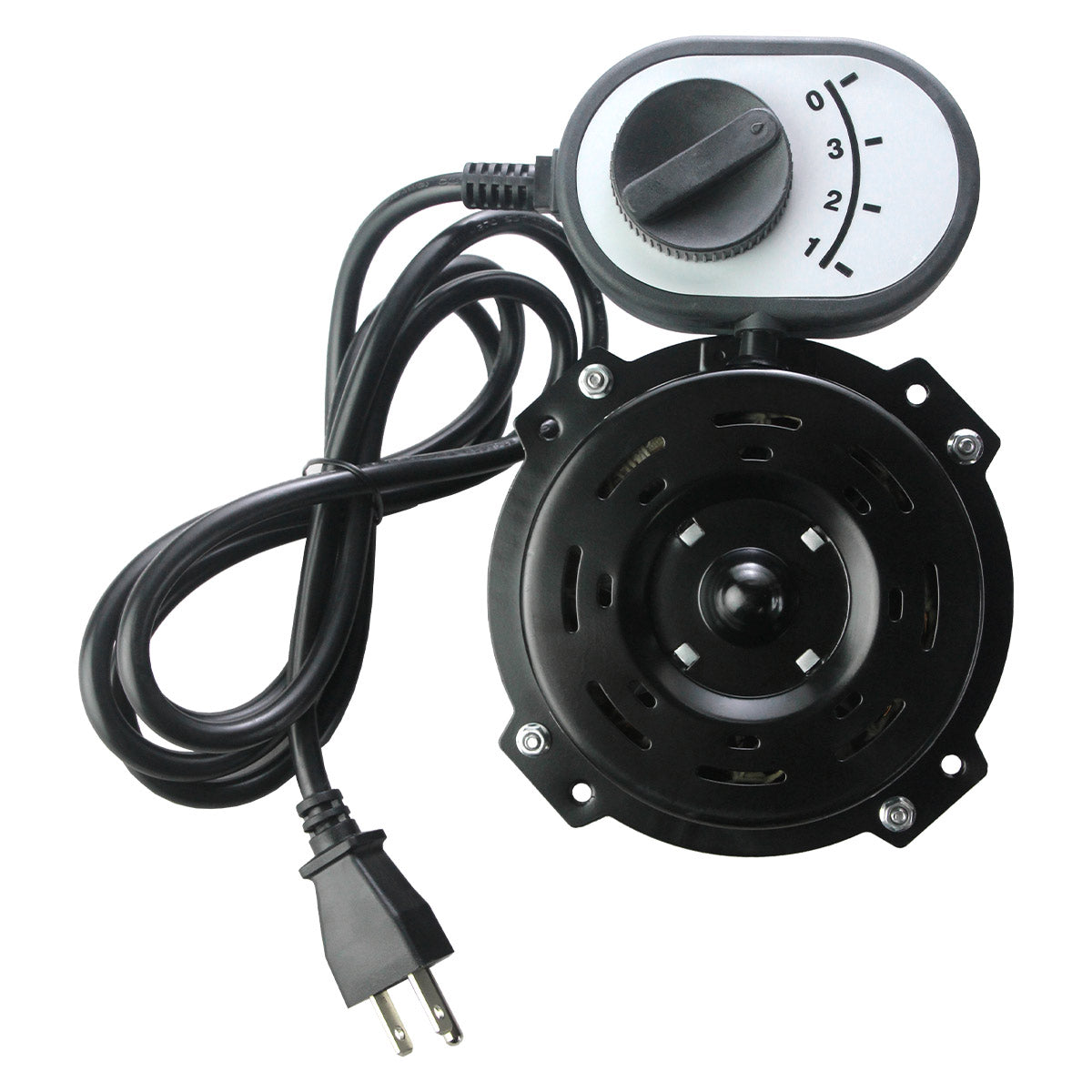

Back view of motor showing pre-wired 3 speed switch.

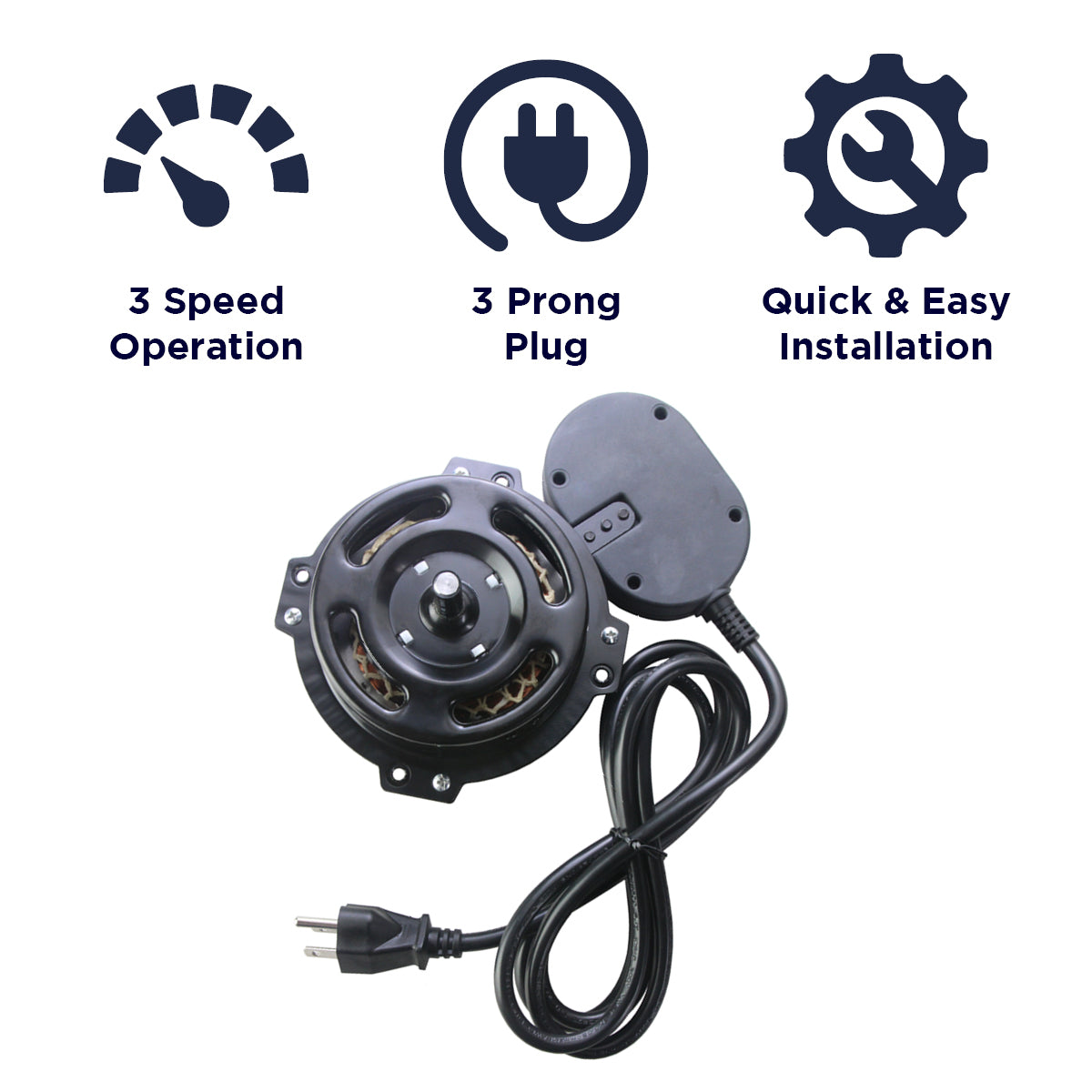

The XEFLOOR414 has a 3 speed operation, a 3 prong plug, and installs quickly and easily to your floor fan.

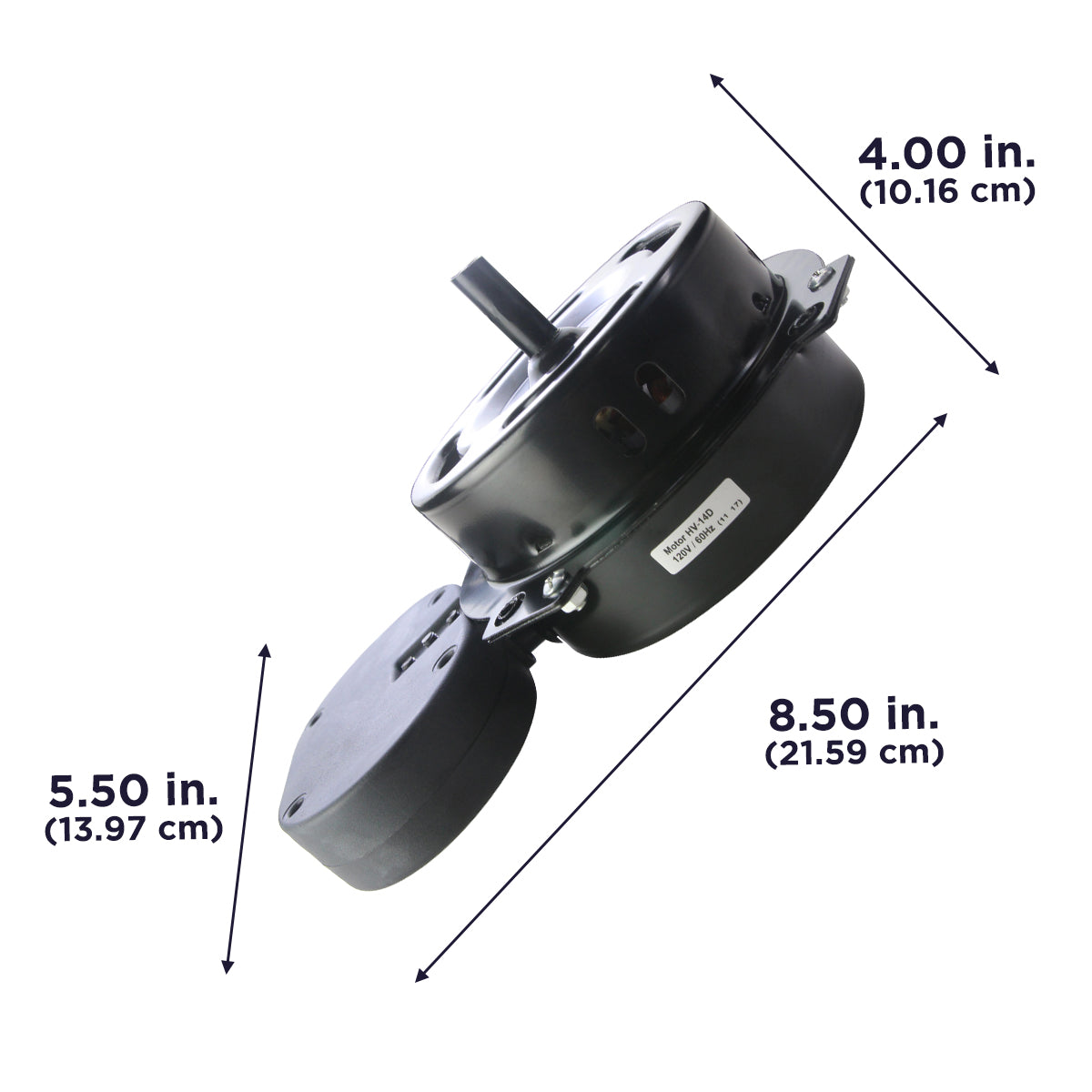

The motor assembly is 8.5 in. (21.59 cm) high, 5.5 in. (13.97 cm) wide, and 4 in. (10.16 cm) deep.

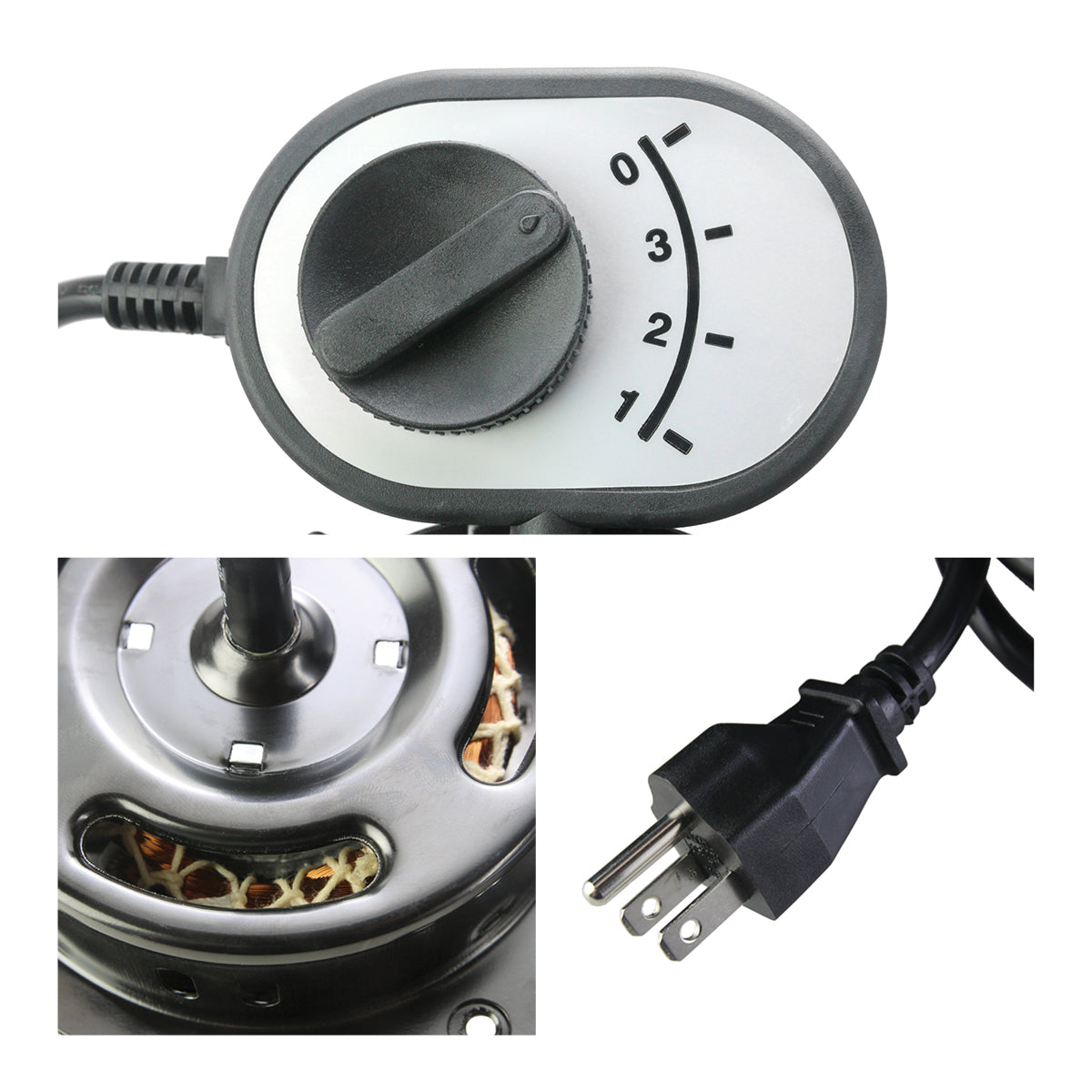

Close-up of speed switch, motor vents, and plug.

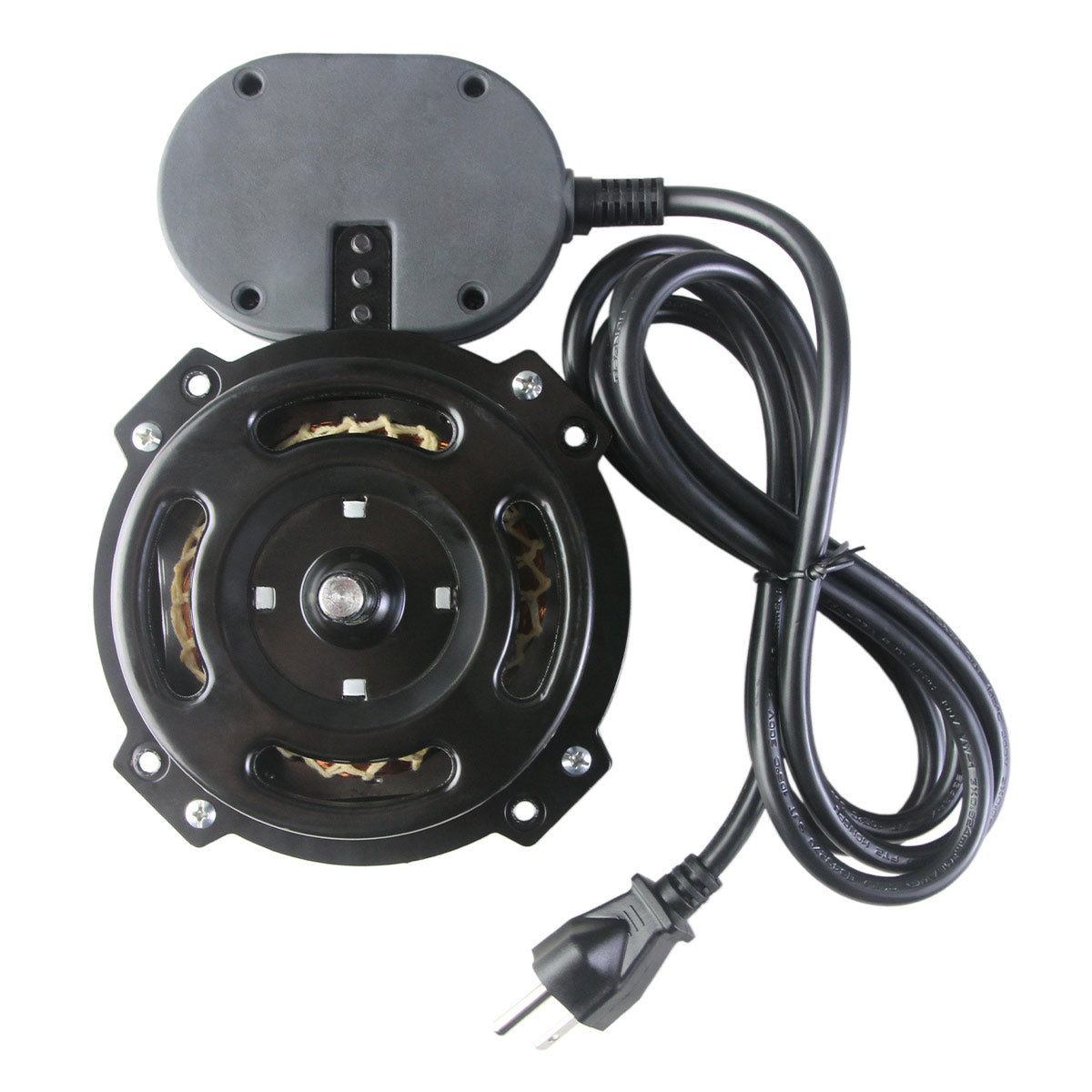

Front view of the floor fan motor.

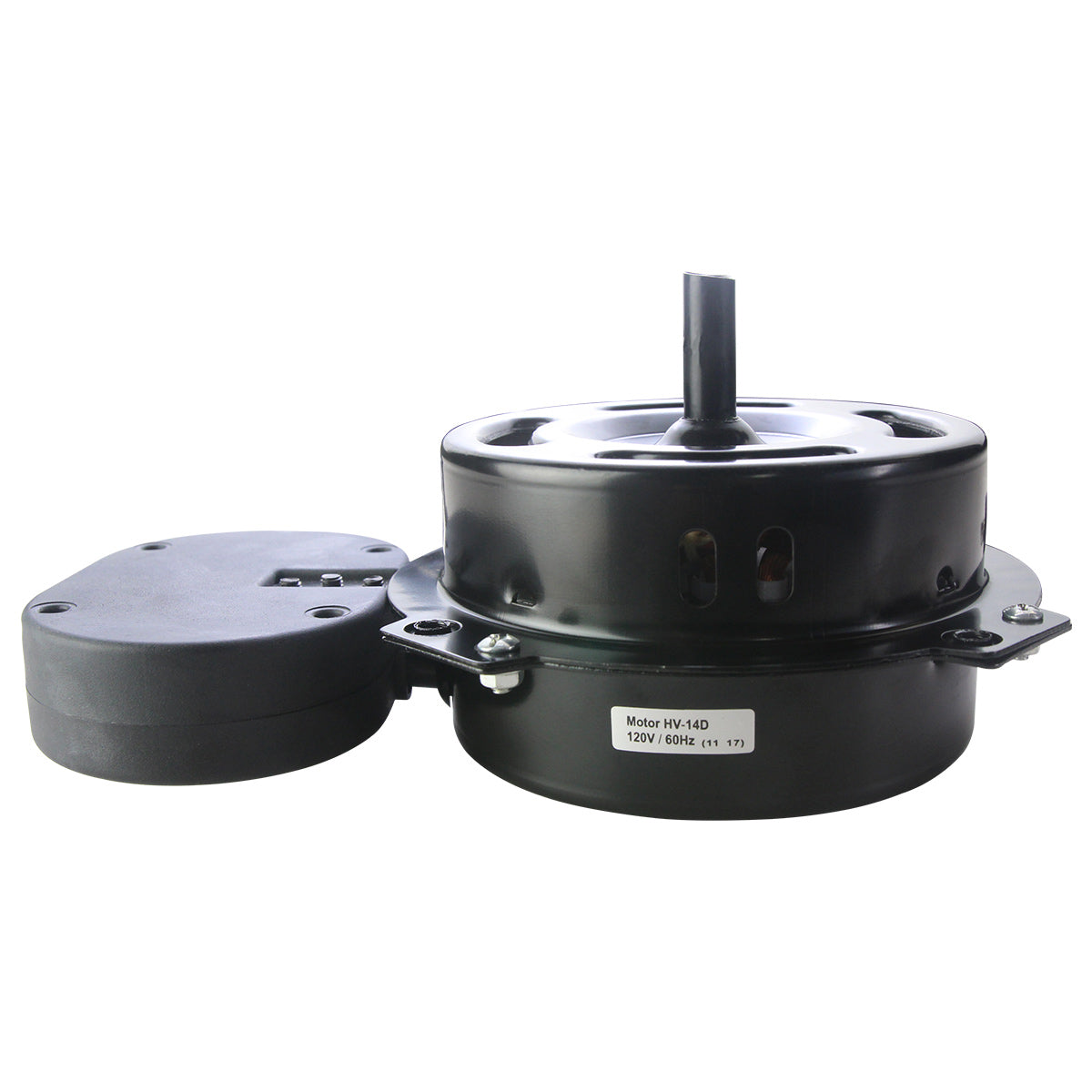

Right side profile view of floor fan motor.

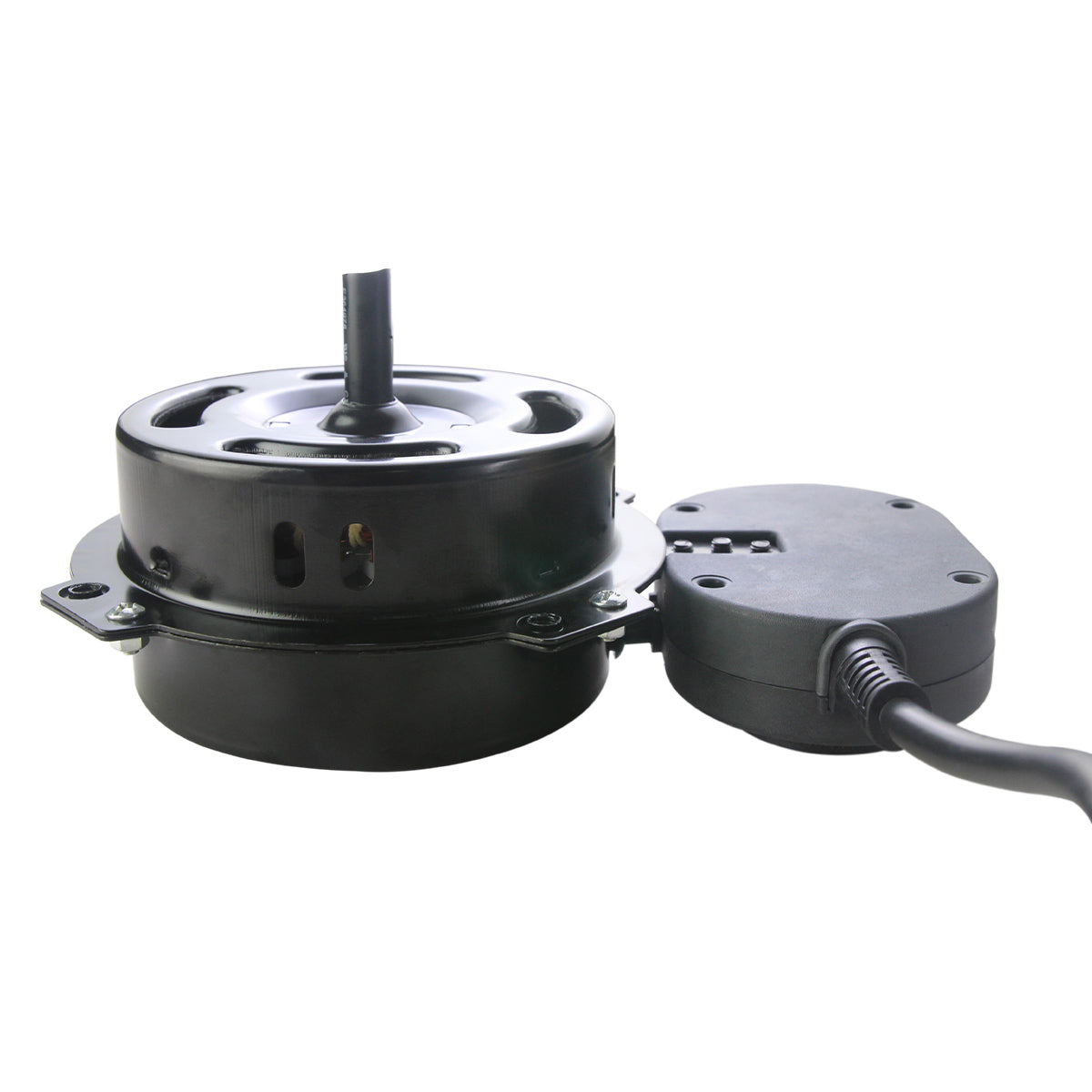

Left side profile view of the air circulator motor.
Back view of motor showing pre-wired 3 speed switch.
The XEFLOOR414 has a 3 speed operation, a 3 prong plug, and installs quickly and easily to your floor fan.
The motor assembly is 8.5 in. (21.59 cm) high, 5.5 in. (13.97 cm) wide, and 4 in. (10.16 cm) deep.
Close-up of speed switch, motor vents, and plug.
Front view of the floor fan motor.
Right side profile view of floor fan motor.
Left side profile view of the air circulator motor.

Motor for 14 In. Floor Fans

Login to view price.
DESCRIPTION:
This 3 speed motor is for indoor use only and is pre-assembled with the switch, motor, and 6 ft. power cord wired for easy replacement.

For use only with Maxx Air 14 in. floor fans. This motor is compatible with fan models beginning in HVFF 14.
PERFECT FOR:
  • Commercial

  • Fitness

  • Home

Controls:

3 speed operation via rotary switch

Use:

Suitable for indoor usage

Safety:

Thermally protected

Primary Color

Black

Secondary Color

White

Motor Details

3-Speed Thermally Protected Direct Drive Motor

Motor Specs

Rated at 0.7 Amps

120 Volts, 60 Hz

Power Cord Length

6 ft.

Dimensions

8.5 in. H x 5.5 in. W x 4 in. D (including shaft)

Unit Weight

3 lbs.

Box Dimensions

12 in. H x 10.5 in. W x 10.25 in. D

Alias SKU(s)

XEFLOOR414
