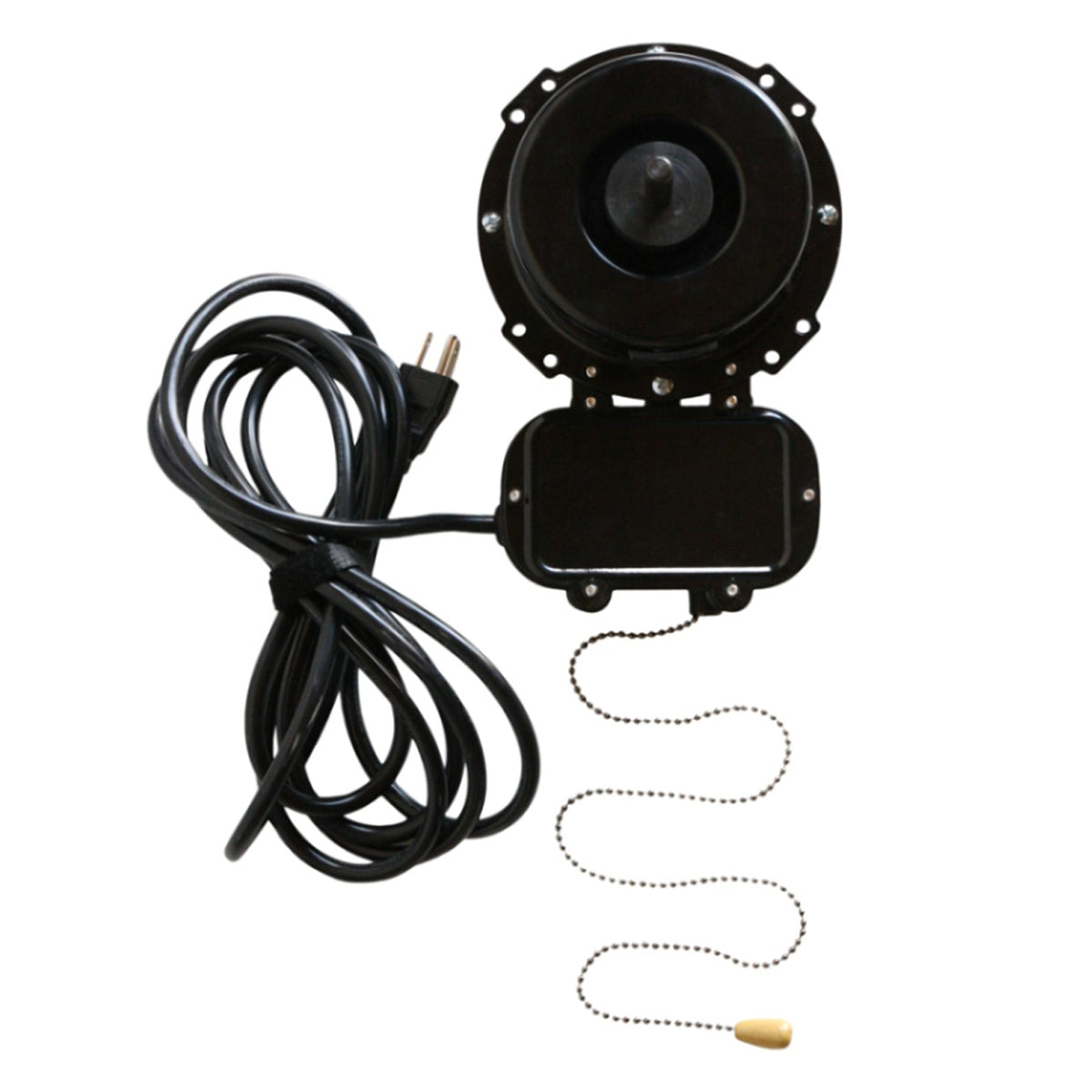

Full view of motor with pre-wired switch assembly and power cord.

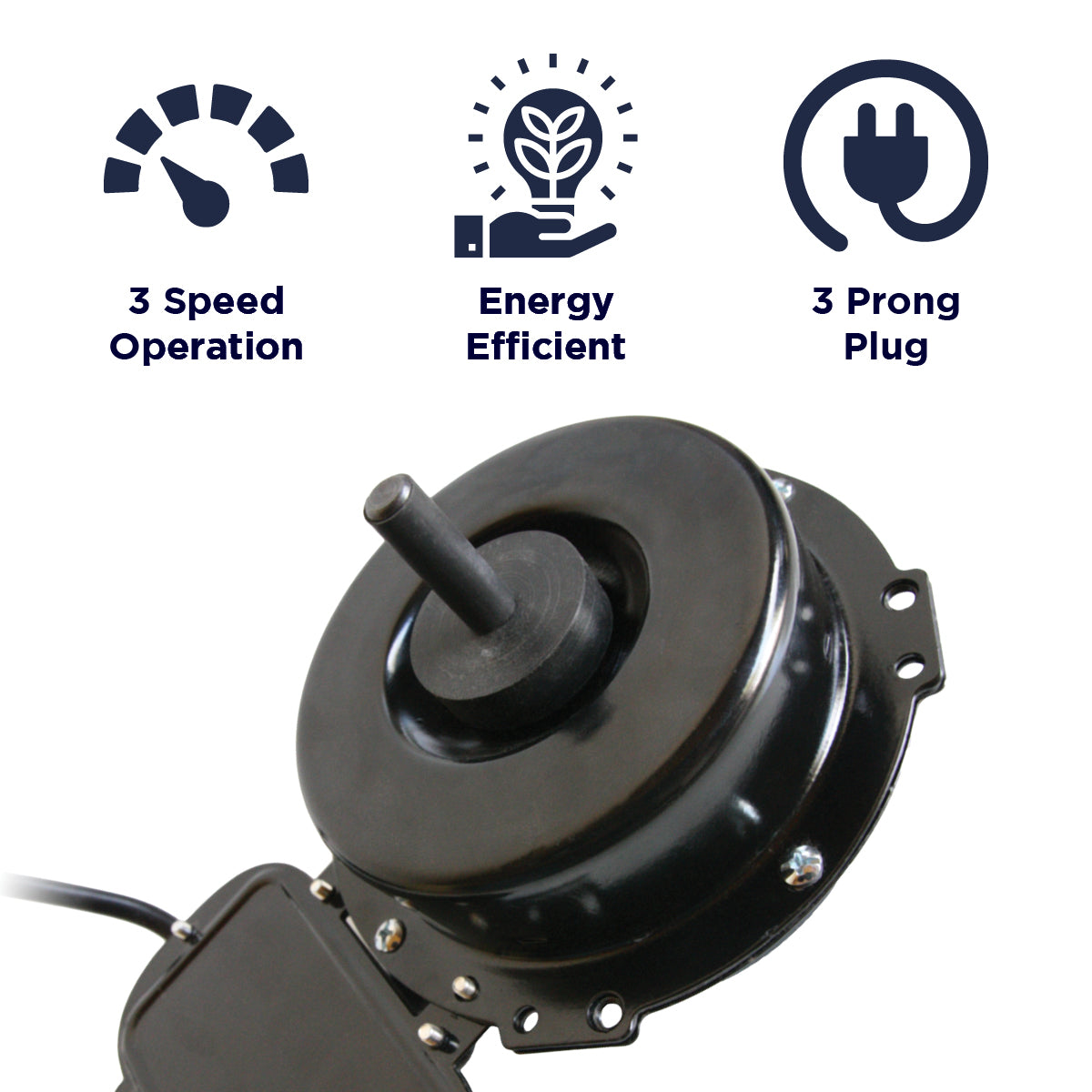

The XE418TE offers a 3 speed operation, is energy efficient, and has a 3 prong plug.

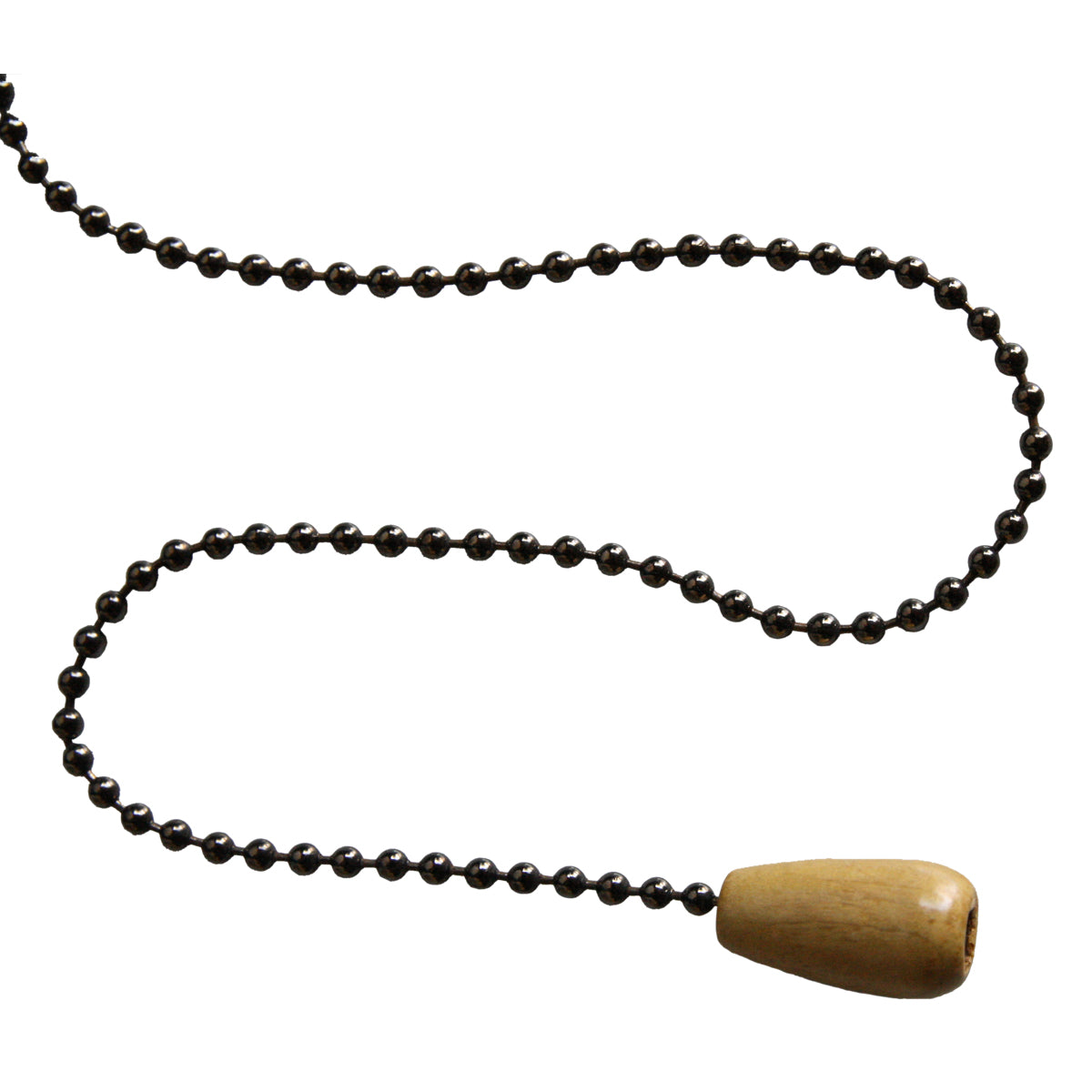

Close-up of motor's pull chain speed switch.

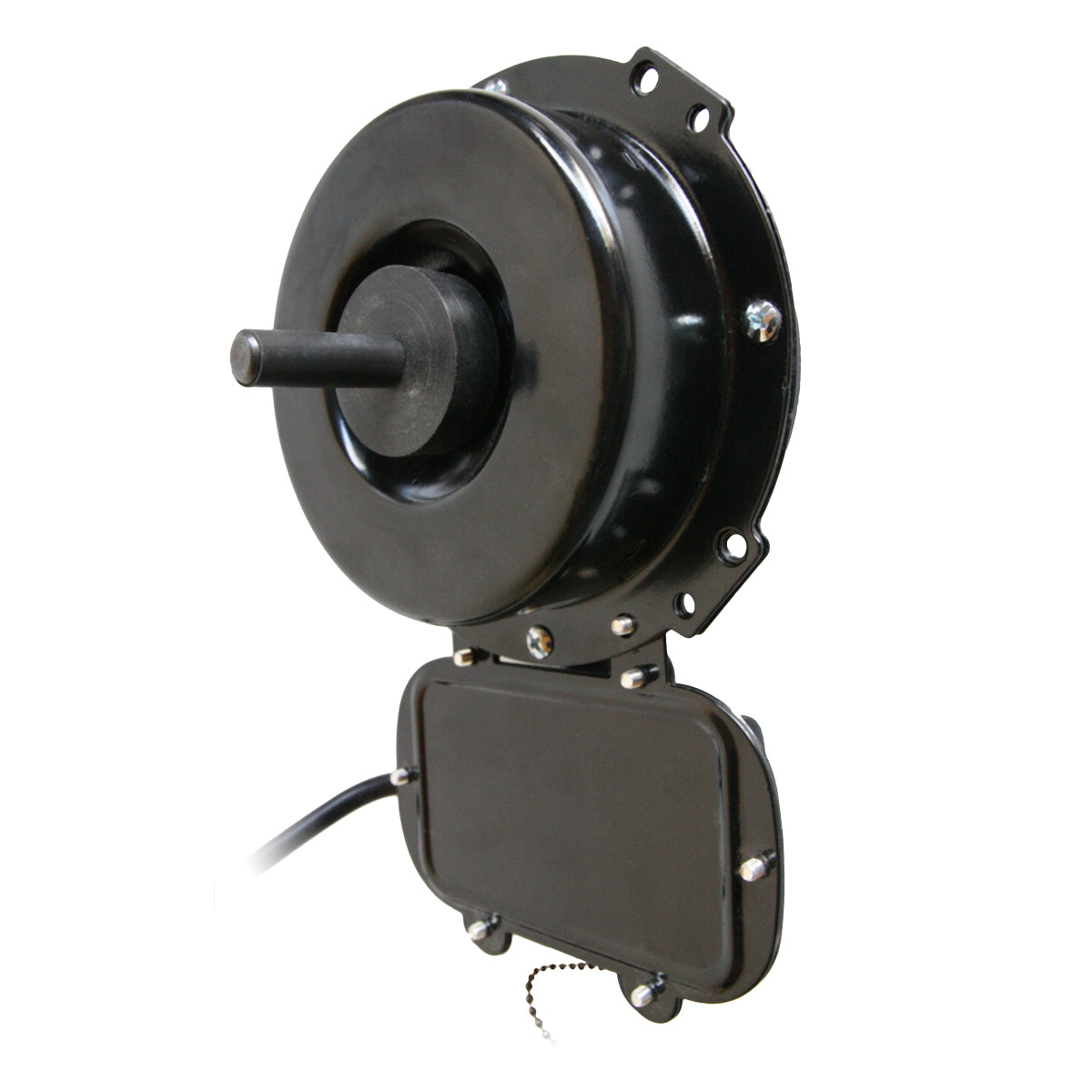

Angled view of motor.

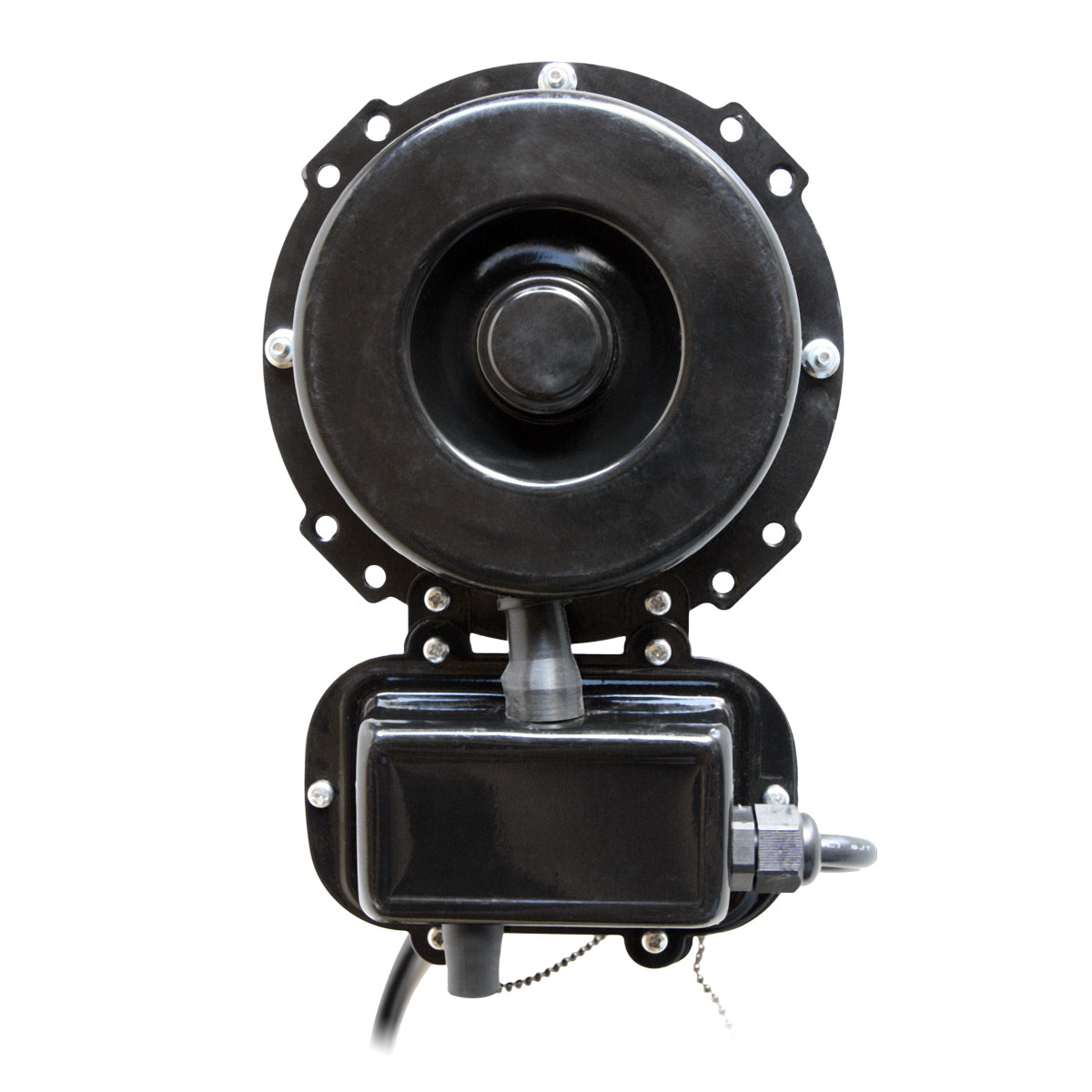

Back of motor showing speed switch.

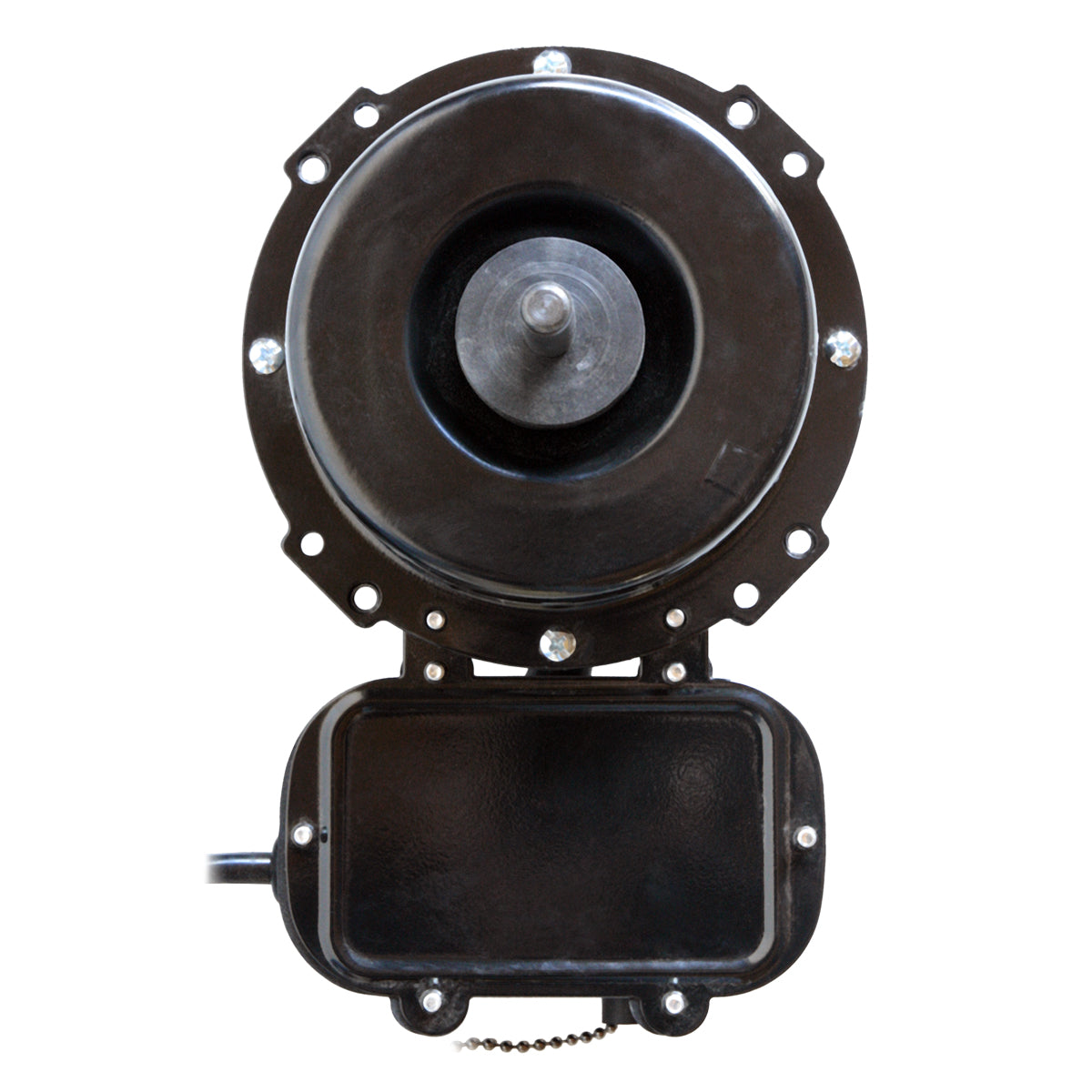

Front of wall mount fan motor.
Full view of motor with pre-wired switch assembly and power cord.
The XE418TE offers a 3 speed operation, is energy efficient, and has a 3 prong plug.
Close-up of motor's pull chain speed switch.
Angled view of motor.
Back of motor showing speed switch.
Front of wall mount fan motor.

Motor for 18 In. Wall Mount Fans

Login to view price.
DESCRIPTION:

This motor model includes a pre-installed 10 ft. power cord, is for indoor use only, and is totally enclosed, making it safe for use in dusty environments where other fans may fall short.

For use only with Maxx Air 18 in. standard wall mount fans. This motor is compatible with fan models HVWM 18 and HVWM 18 UPS.

PERFECT FOR:
  • Agriculture

  • Automotive

  • Commercial

  • Fitness

  • Home

  • Industrial

  • Livestock

  • Restaurant

Controls:

3 speed operation via pull chain

Use:

Suitable for indoor usage

Energy Efficiency:

Energy efficient design

Safety:

Totally enclosed

Other Features:

Reference numbers: HRE 418TE

Primary Color

Black

Motor Details

3-Speed Totally Enclosed, Thermally Protected, Dust-Proof, and Energy Efficient Direct Drive PSC Motor

Motor Specs

0.7 A

120 V, 60 Hz

85 Watts

1,070 Low / 1,250 Medium / 1,580 High RPM

Power Cord Length

10 ft.

Unit Weight

7 lbs.

Box Dimensions

13 in. H x 12.5 in. W x 12.5 in. D

Ship Weight

8 lbs.

Alias SKU(s)

XE418TE

Single Product UPC

047242140767
