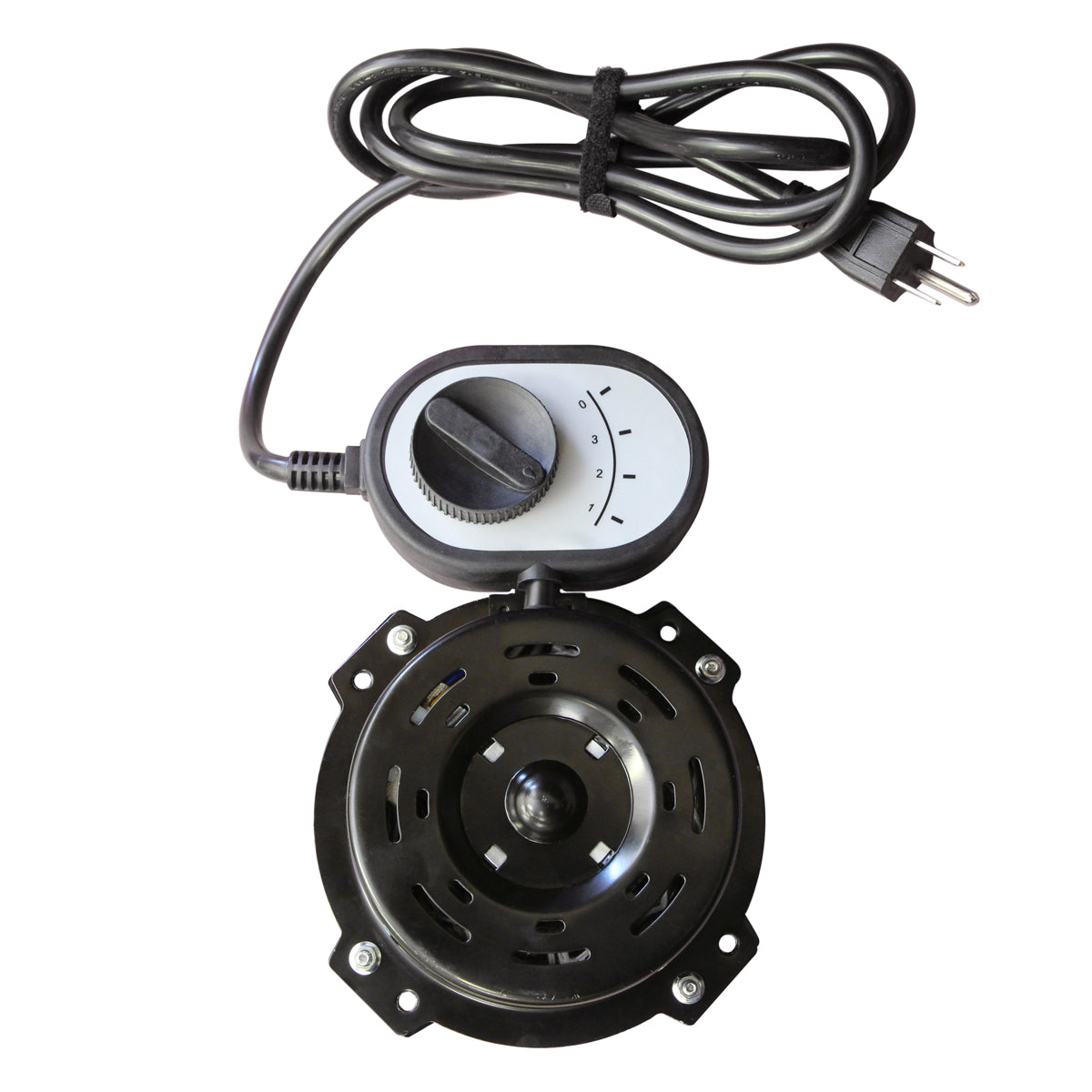

Front view of motor with pre-wired switch and power cord.

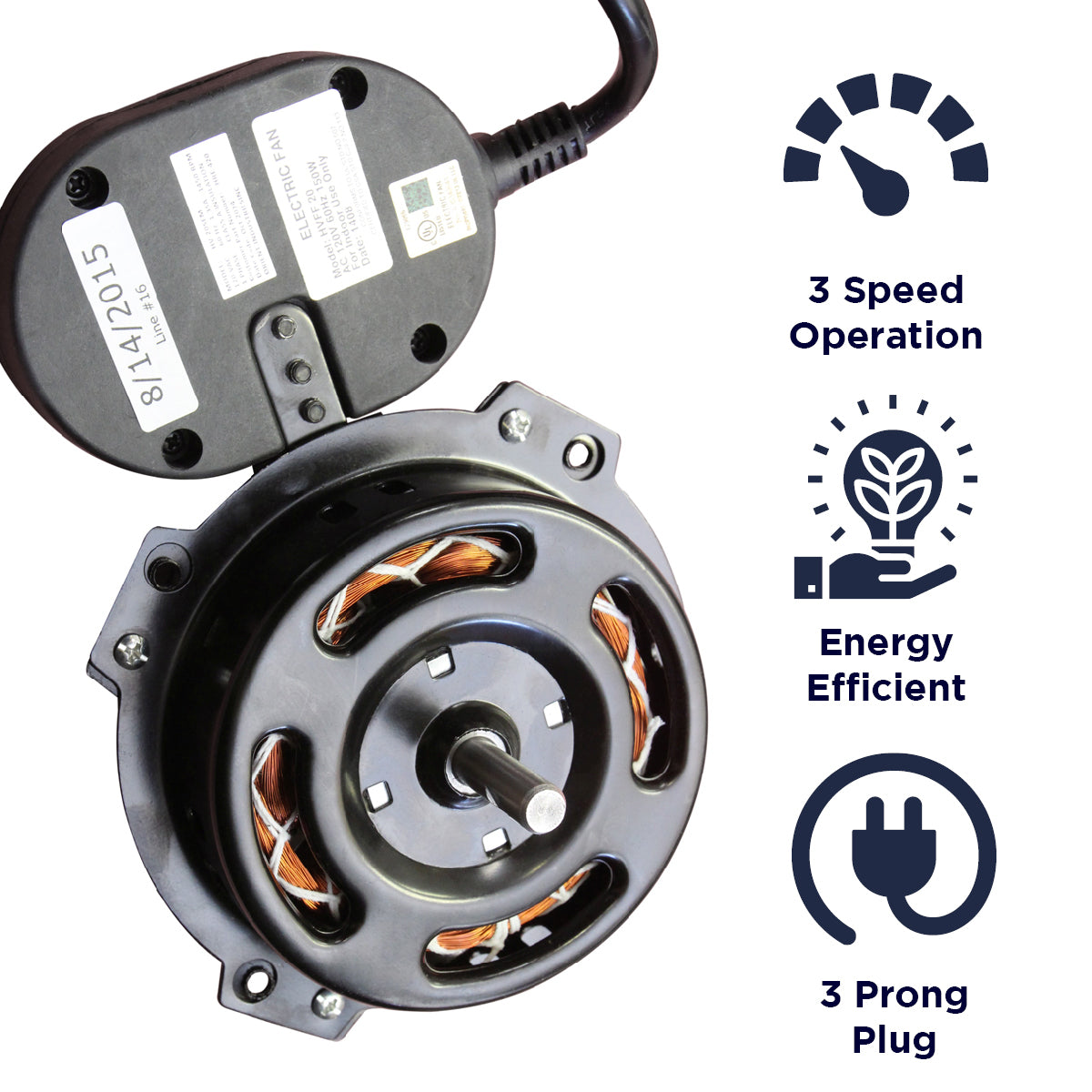

The XEFLOOR420 has a 3 speed operation, is energy efficient and has a 3 prong plug.

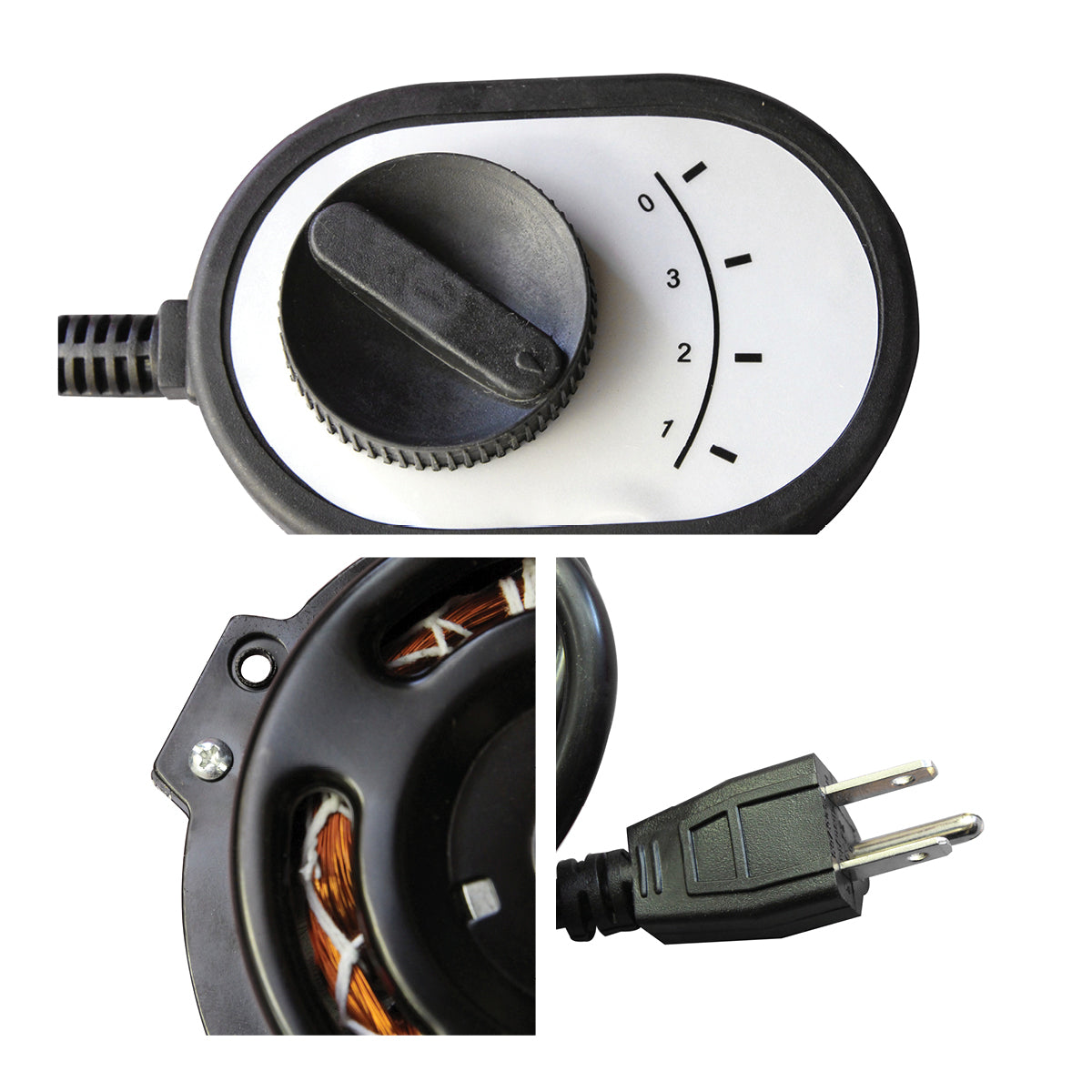

Close-up of switch, motor vents and plug.

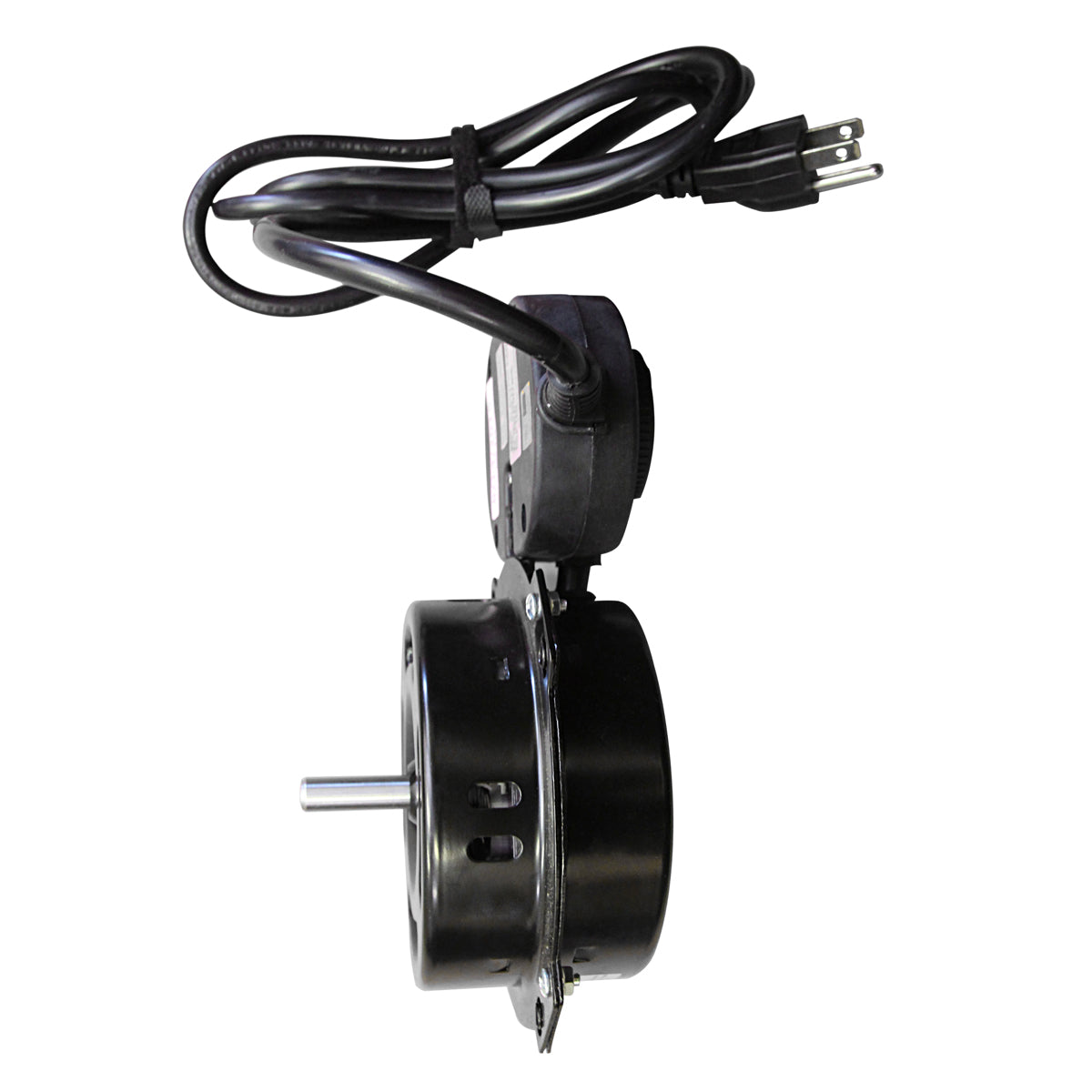

Right side profile view of floor fan motor.

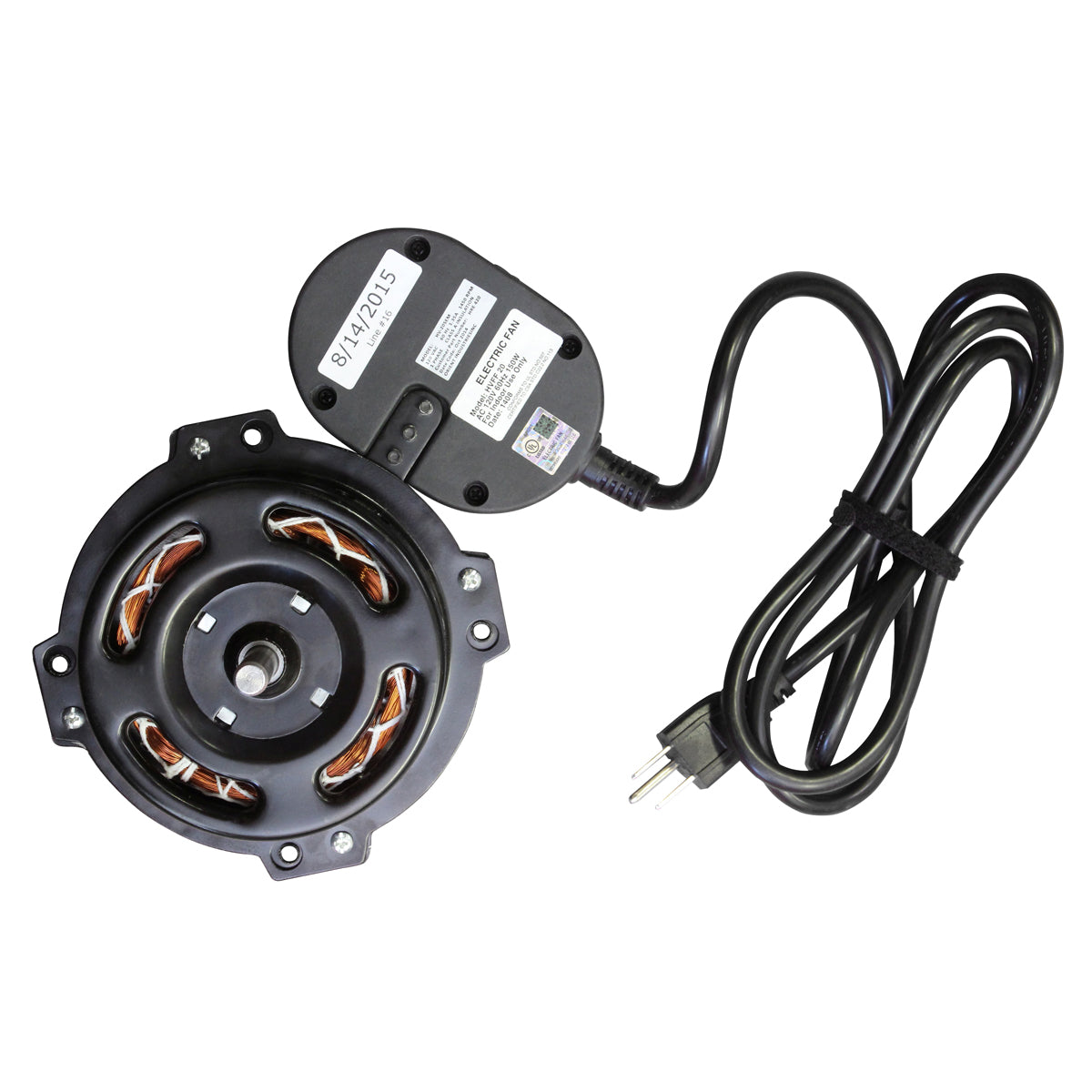

Back of vented motor with rotary switch.
Front view of motor with pre-wired switch and power cord.
The XEFLOOR420 has a 3 speed operation, is energy efficient and has a 3 prong plug.
Close-up of switch, motor vents and plug.
Right side profile view of floor fan motor.
Back of vented motor with rotary switch.

Motor for 20 In. Standard and Shroud Floor Fans

Login to view price.
Buy Now
DESCRIPTION:
This 3 speed motor is for indoor use only and is pre-assembled with the switch, motor, and 5 ft. power cord attached for easy replacement.

For use only with Maxx Air 20 in. floor fans. This motor is compatible with fan models beginning in HVFF 20 and HVFF 20S manufactured after 2/1/14.
PERFECT FOR:

  • Commercial

  • Fitness

  • Home

  • Industrial

Controls:

3 speed operation via rotary switch

Use:

Suitable for indoor usage

Energy Efficiency:

Energy efficient design

Safety:

Thermally protected

Other Features:

Reference numbers: HV-20Y, HRE 420A

Primary Color

Black

Motor Details

3-Speed Thermally Protected Direct Drive Motor

Motor Specs

Rated at 1.18 Amps

120 Volts, 60 Hz

142 Watt Input, 50 Watt Output

Rated at 1,450 RPM

Power Cord Length

5 ft.

Unit Weight

6 lbs.

Box Dimensions

12 in. H x 10.5 in. W x 10.25 in. D

Alias SKU(s)

XEFLOOR420

Single Product UPC

047242140743

Sold Under

Maxx Air
