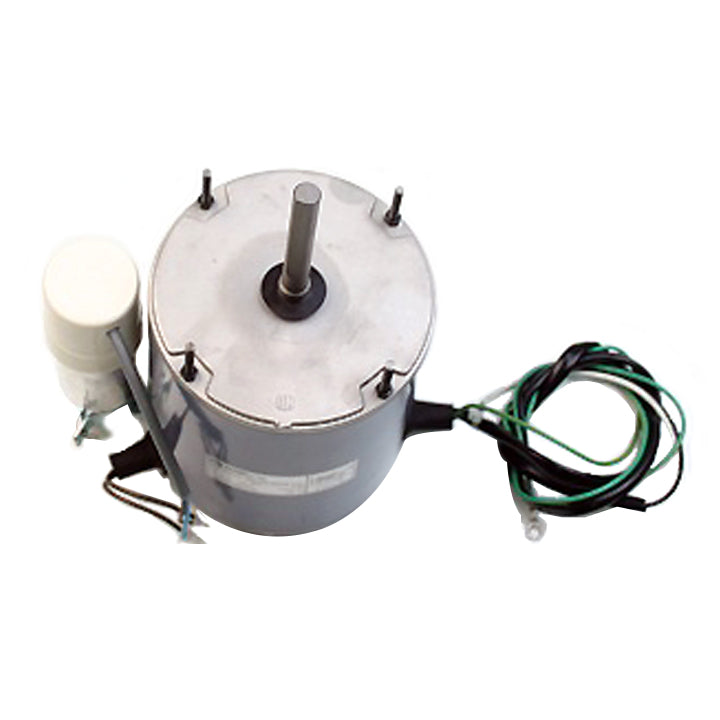

Angled view of totally enclosed motor with capacitor.

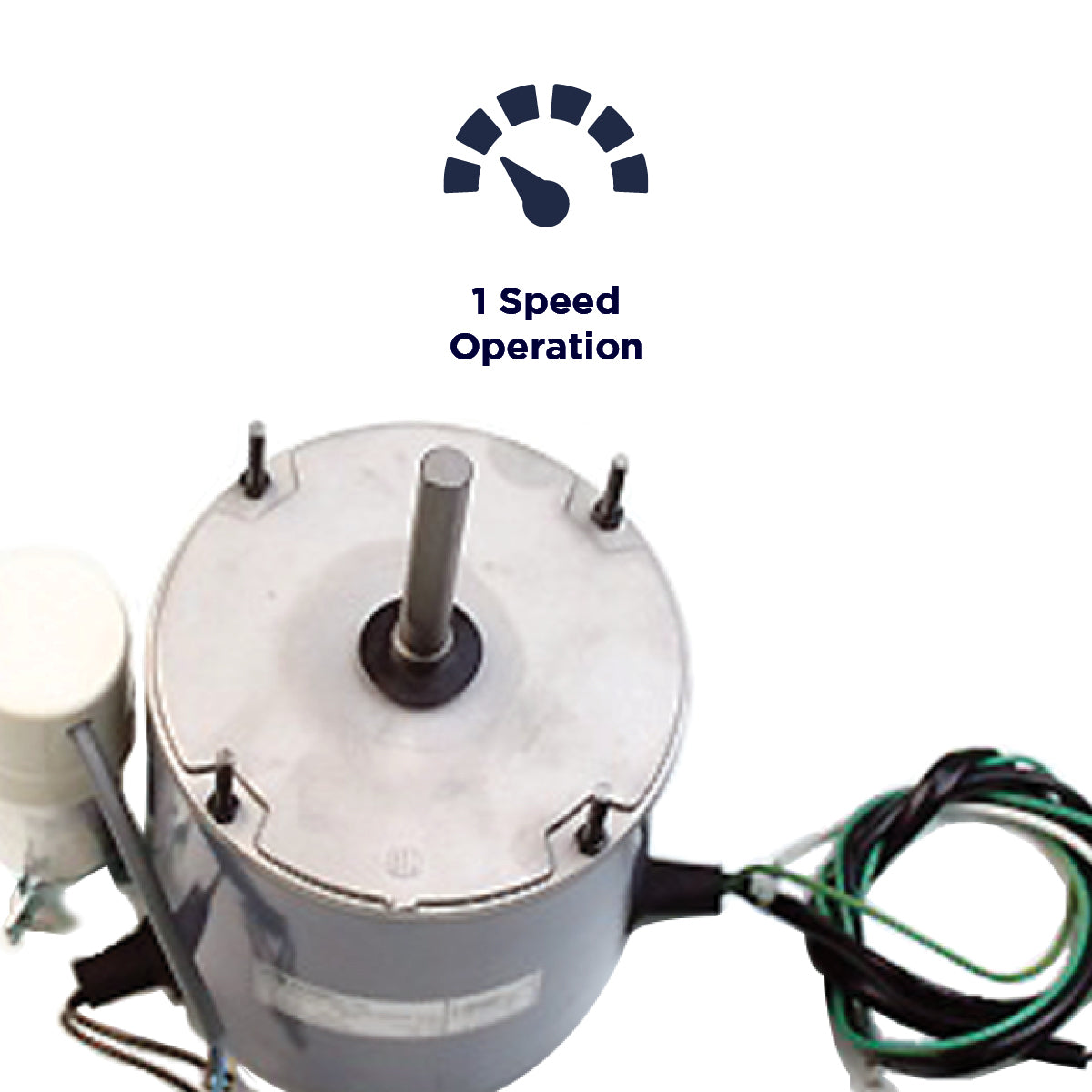

The XE430 offers a 1 speed operation.

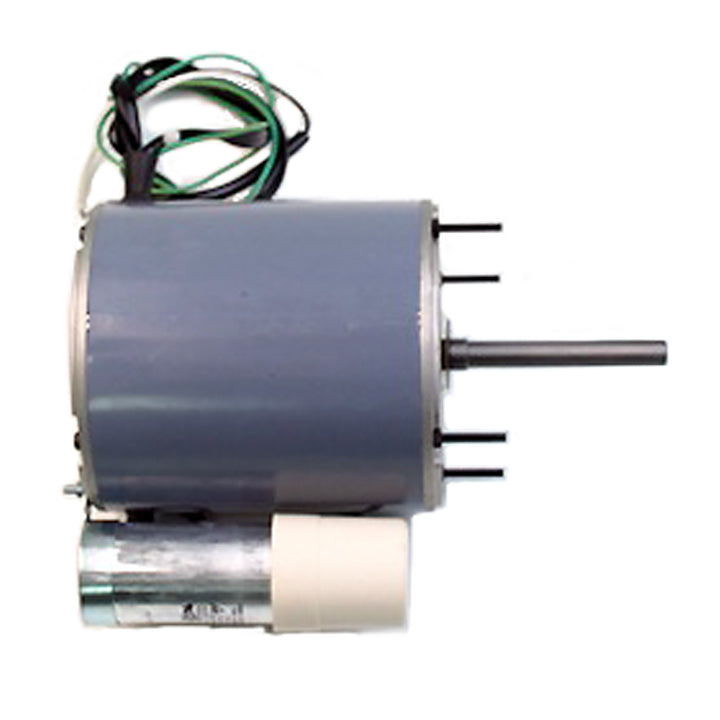

Right side profile view of the motor with wiring.

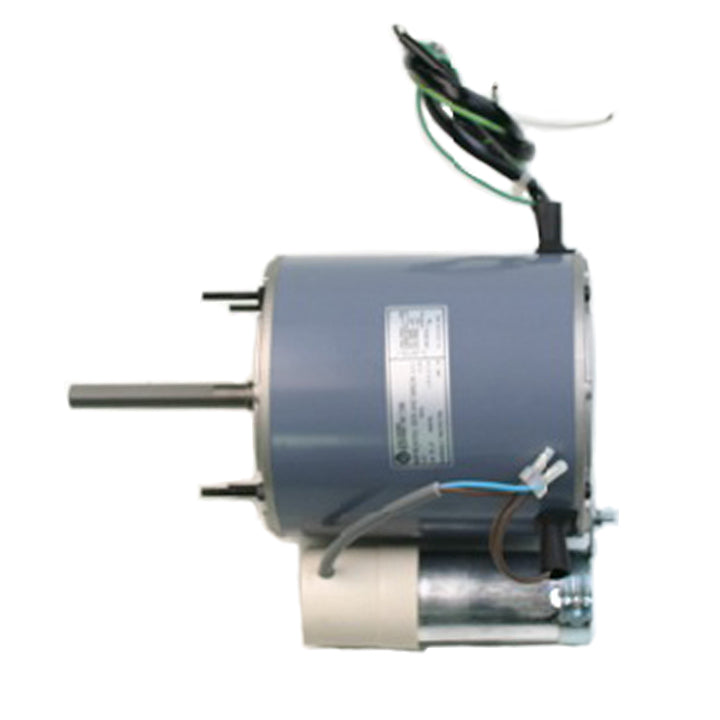

Left side profile view of the exhaust fan motor.
Angled view of totally enclosed motor with capacitor.
The XE430 offers a 1 speed operation.
Right side profile view of the motor with wiring.
Left side profile view of the exhaust fan motor.

Motor for 30 In. Exhaust Fans

$0.00
DESCRIPTION:

This motor model is totally enclosed and has 1 speed setting for easy on/off ventilation needs.

For use only with Maxx Air 30 in. exhaust fans. This motor is compatible with fan model IF30.

PERFECT FOR:
  • Agriculture

  • Automotive

  • Industrial

  • Livestock

Controls:

1 speed operation

Safety:

Totally enclosed

Other Features:

Reference numbers: IRE 430

Primary Color

Gray

Secondary Color

Mill

Motor Details

1-Speed Thermally Protected, Totally Enclosed Direct Drive PSC Motor

Motor Specs

Rated at 6.3 Amps

115 Volts, 60 Hz

362 Watt Output, 603 Watt Input

Rated at 825 RPM

Dimensions

5.6 in. H x 8 in. W x 10 in. D

Unit Weight

20.5 lbs.

Box Dimensions

11.625 in. H x 10.375 in. W x 10.625 in. D

Alias SKU(s)

XE430

Single Product UPC

047242140613
