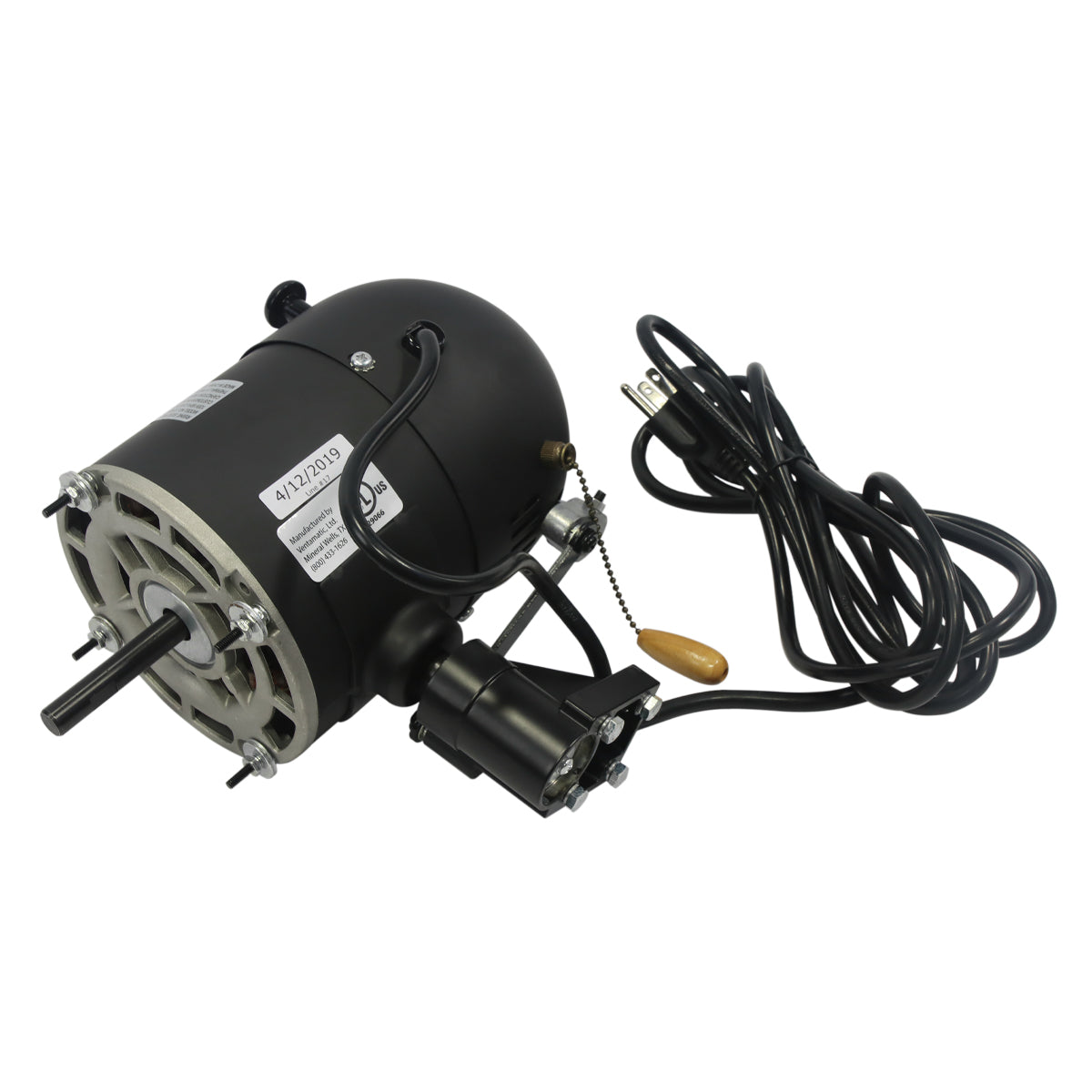

Angled view of the motor with pre-wired power cord and plug.

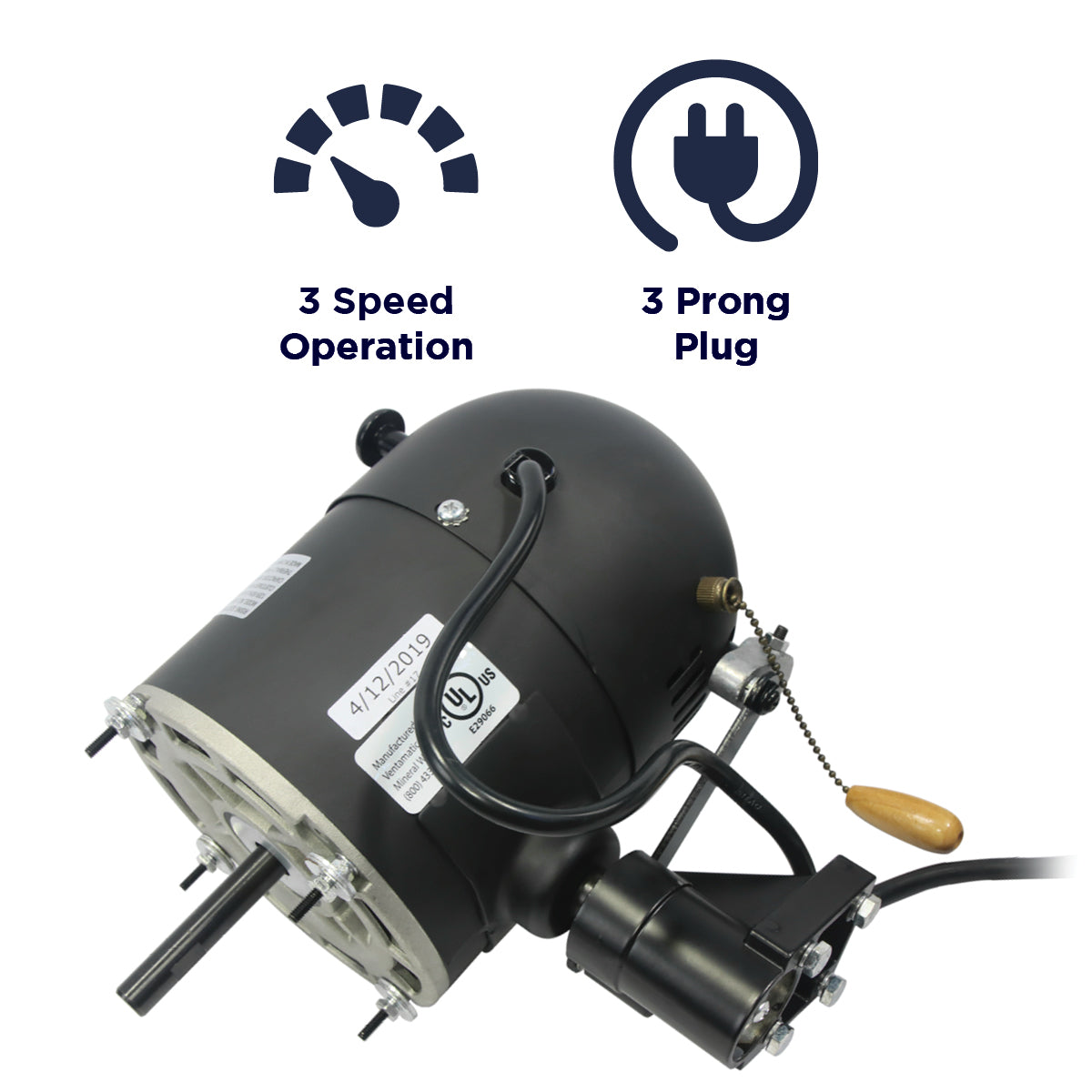

Features of the XE300351A include a 3 speed operation and a 3 prong plug.

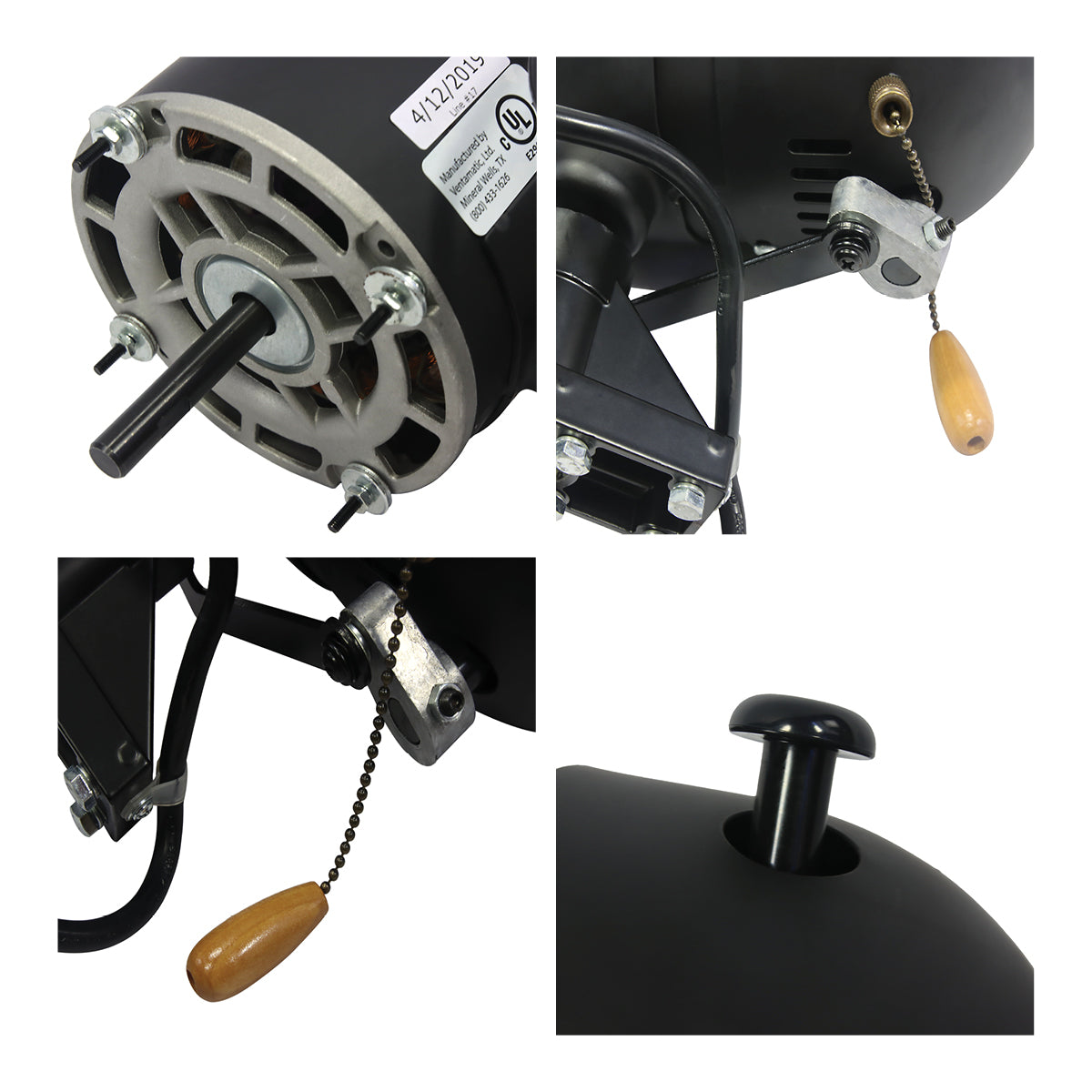

Close-up of motor shafts, oscillation mechanism, pull chain, and oscillation puller.

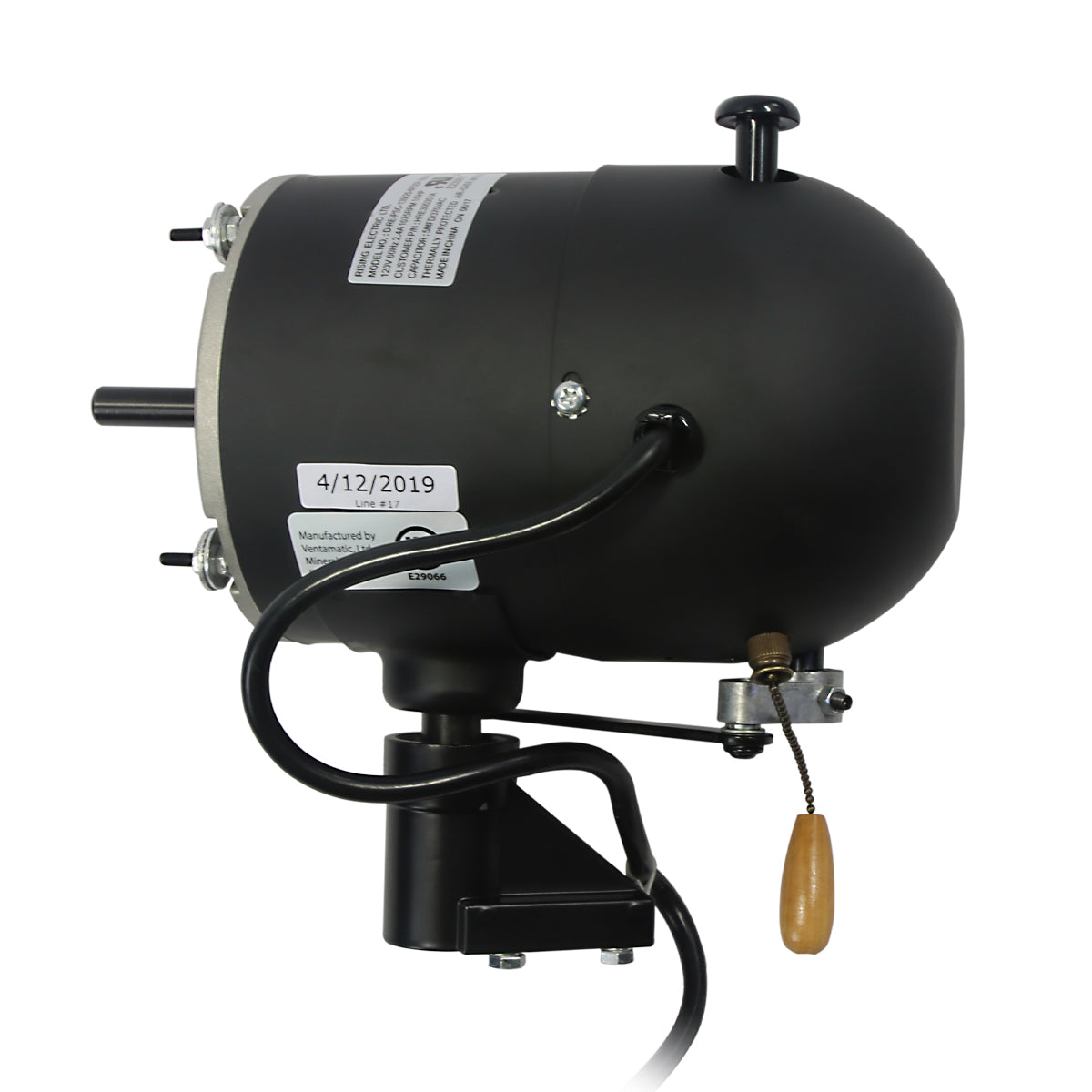

Right side profile view of the motor showing the oscillation puller and pull chain.

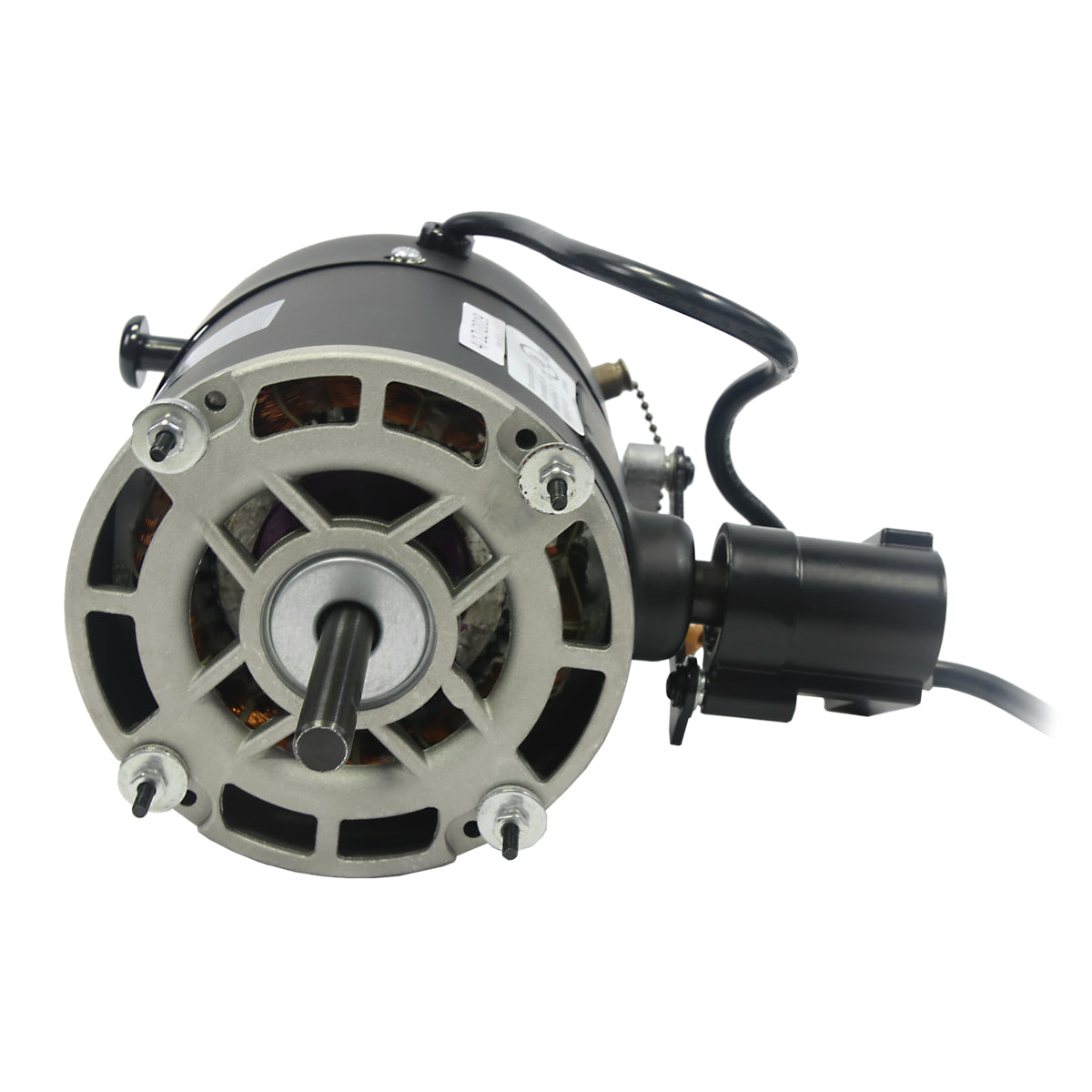

Front view of vented motor showing the motor shaft and bolts.
Angled view of the motor with pre-wired power cord and plug.
Features of the XE300351A include a 3 speed operation and a 3 prong plug.
Close-up of motor shafts, oscillation mechanism, pull chain, and oscillation puller.
Right side profile view of the motor showing the oscillation puller and pull chain.
Front view of vented motor showing the motor shaft and bolts.

Motor for 30 In. Oscillating Pedestal and Wall Mount Fans

$0.00

Contact Us for Availability at 800-433-1626

DESCRIPTION:
This motor model includes a pre-installed 6 ft. power cord, is for indoor use only, and can be installed in place of your current motor using common household tools. Features 3 speeds with a pull chain to achieve your perfect ventilation setting. Fans made pre-July 2017 will need both this motor and blade assembly XXM30PW to restore normal operation.

For use only with Maxx Air 30 in. oscillating pedestal and wall mount fans. This motor is compatible with fan models HVPF 30 OSC and HVWM 30 OSC that were manufactured after July 2017.
PERFECT FOR:
  • Agriculture

  • Automotive

  • Commercial

  • Construction

  • Fitness

  • Home

  • Industrial

  • Livestock

Adjustability:

90° tilt on fan

Installation:

Easy installation using household tools

Controls:

3 speed operation via pull chain

Oscillation:

90° oscillation ability with on/off puller

Use:

Suitable for indoor usage

Safety:

Thermally protected

Other Features:

Reference numbers: HRE300351

Primary Color

Black

Motor Details

3-Speed Thermally Protected Direct Drive Motor

Motor Specs

1/5 HP

Rated at 2.4 Amps

120 Volts, 60 Hz

Rated at 1,075 RPM

Power Cord Length

6 ft.

Box Dimensions

12 in. H x 10.5 in. W x 10.5 in. D

Ship Weight

16 lbs.

Alias SKU(s)

XE300351A

Single Product UPC

047242140750

Country of Origin - Assembly

China
