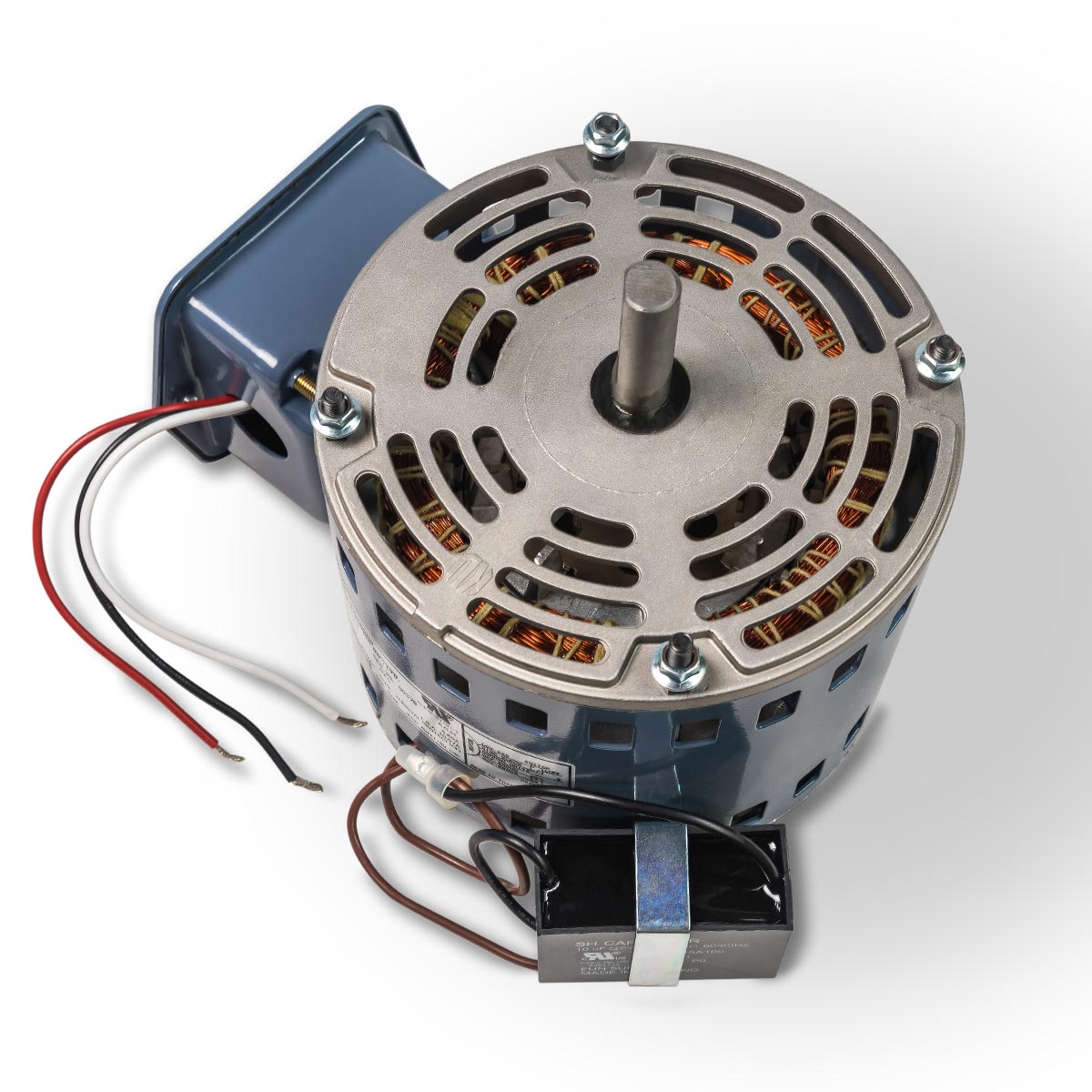

Angled view of the vented whole house fan motor.
The XE423A offers a 2 speed operation.

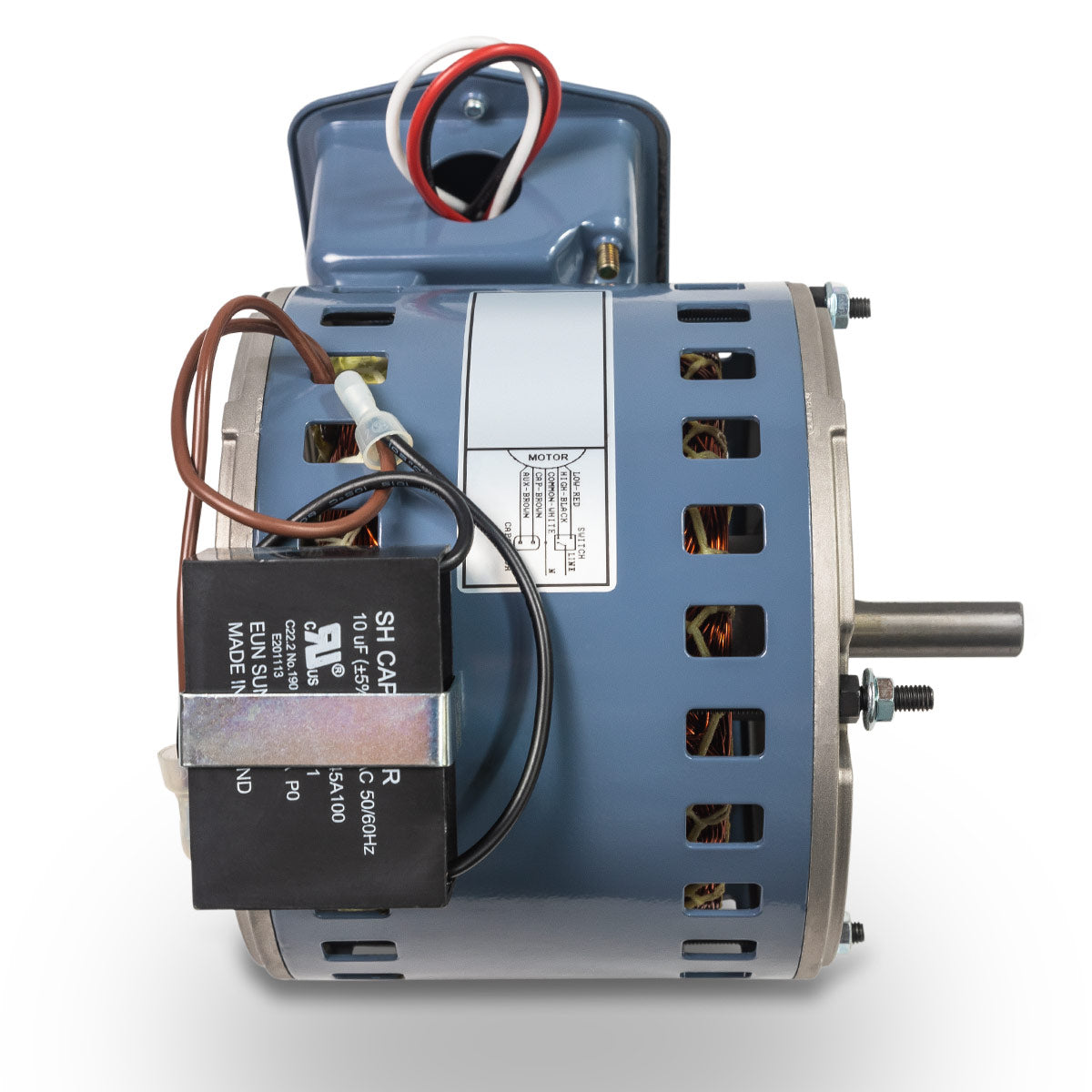

Right side profile view of the motor showing wiring.

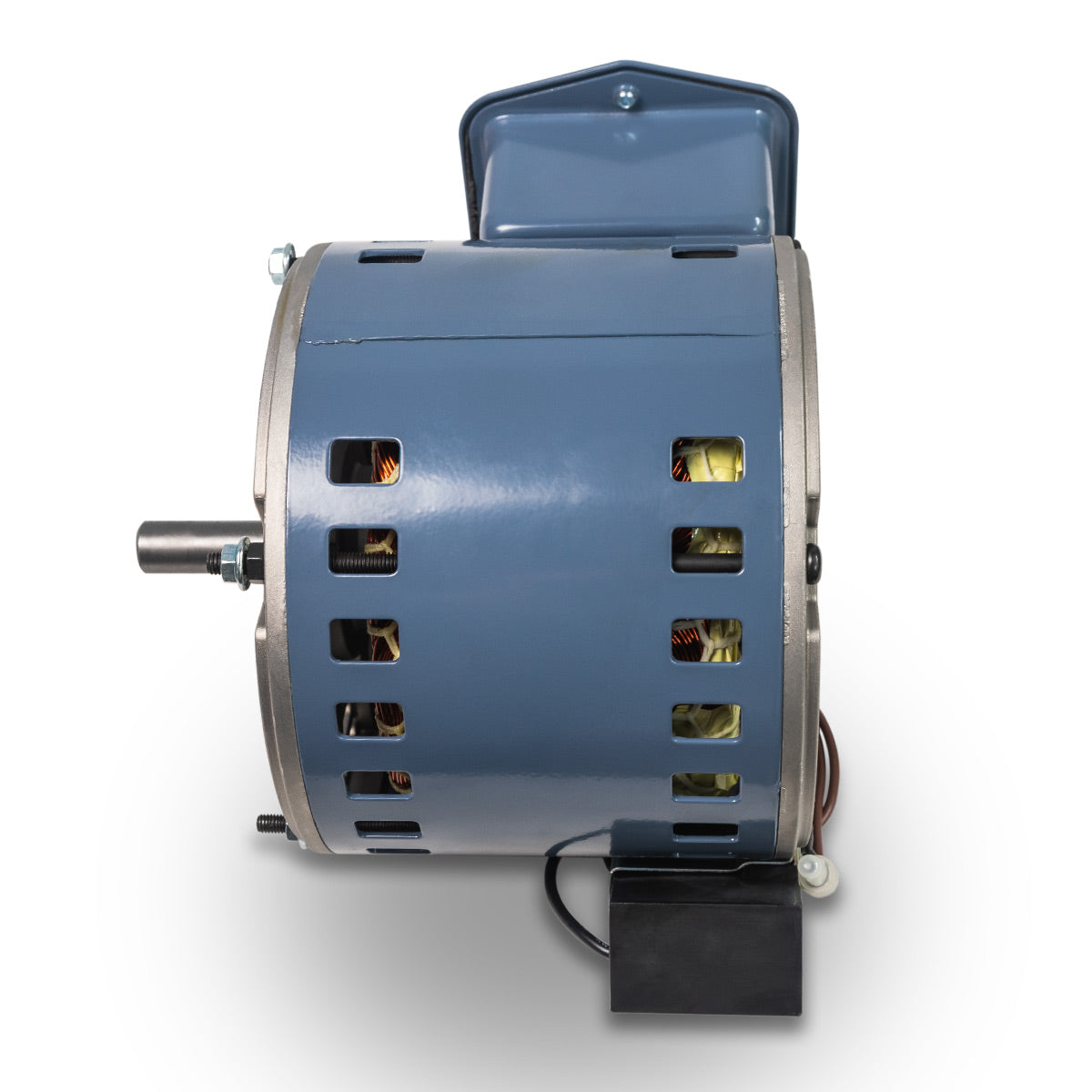

Left side profile view of the motor with capacitor.

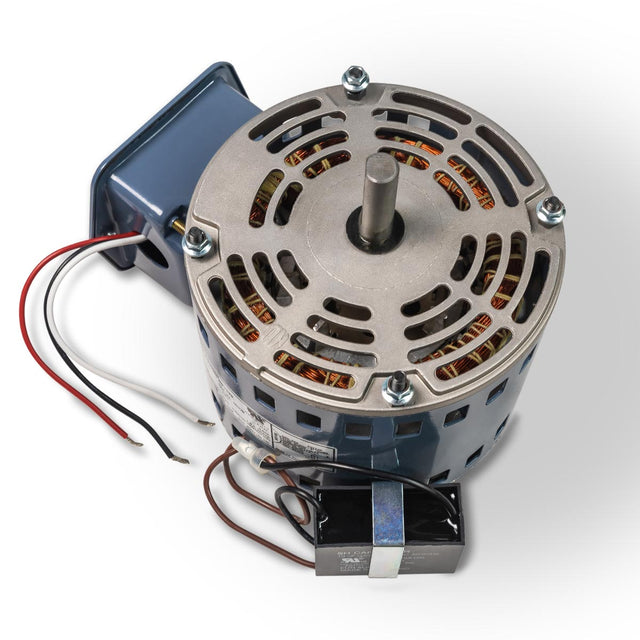

Angled view of the vented whole house fan motor.
The XE423A offers a 2 speed operation.
Right side profile view of the motor showing wiring.
Left side profile view of the motor with capacitor.

Motor for Belt Drive Whole House Fans

$0.00
DESCRIPTION:

This 2 speed belt drive motor replaces 24 in., 30 in., and 36 in. belt-driven whole house fan models and must be wired into your switch assembly to complete installation.

For use only with Cool Attic whole house fans. This motor is compatible with fan models beginning in CX24BD2SPD, CX30BD2SPD, and CX36BD2SPD, excluding HUB models. NOT a replacement for motors GE 5KCP39FGL 581AP, AOSmith F48F20B43, and AOSmith F48D55B43.

PERFECT FOR:
  • Home

Controls:

2 speed operation

Other Features:

Reference numbers: WRE 423A, KHF2F4706, BRE423, GE 5KCP39HGT 159CP (CCW - Requires reverse rotation fanblade), GE 5KCP39HGT 159CT (CCW - Requires reverse rotation fanblade), GE 5KCP39HGT 159DP (CW), DM DRE-PSC-139/40-4P2SP (CCW), AOSmith F48F92B43 (CCW)

Primary Color

Gray

Secondary Color

Mill

Motor Details

2-Speed Belt Drive PSC Motor

Motor Specs

Rated at 5 Amps

120 Volts, 60 Hz

Rated at 1,525 RPM

Unit Weight

12 lbs.

Box Dimensions

12 in. H x 10.5 in. W x 10.5 in. D

Ship Weight

14 lbs.

Alias SKU(s)

XE423A

Single Product UPC

047242140736

Other Details

*The motor shown in the photographs is only representative and is not intended for installation with a resilient-ring mount style base.
