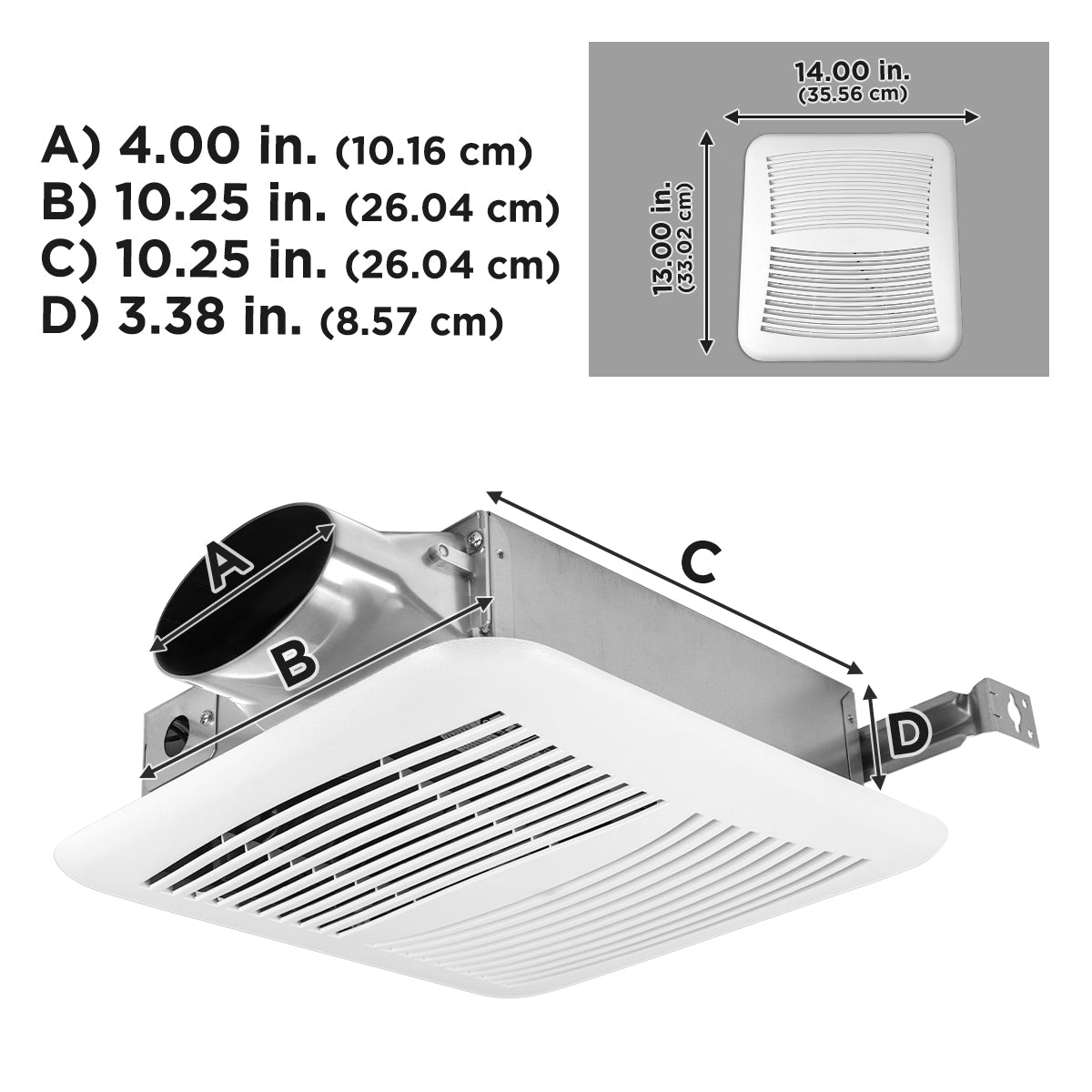

Dimensional drawing showing the bathroom exhaust fan housing and grille specs.

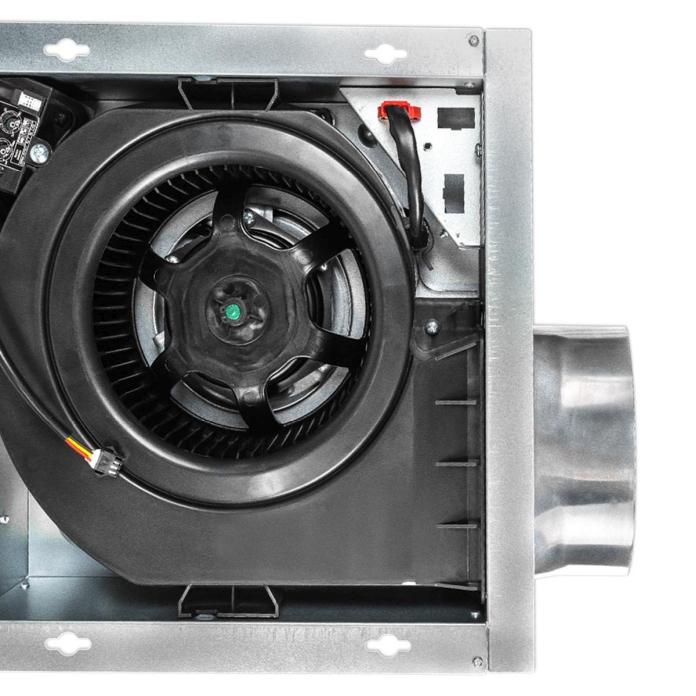

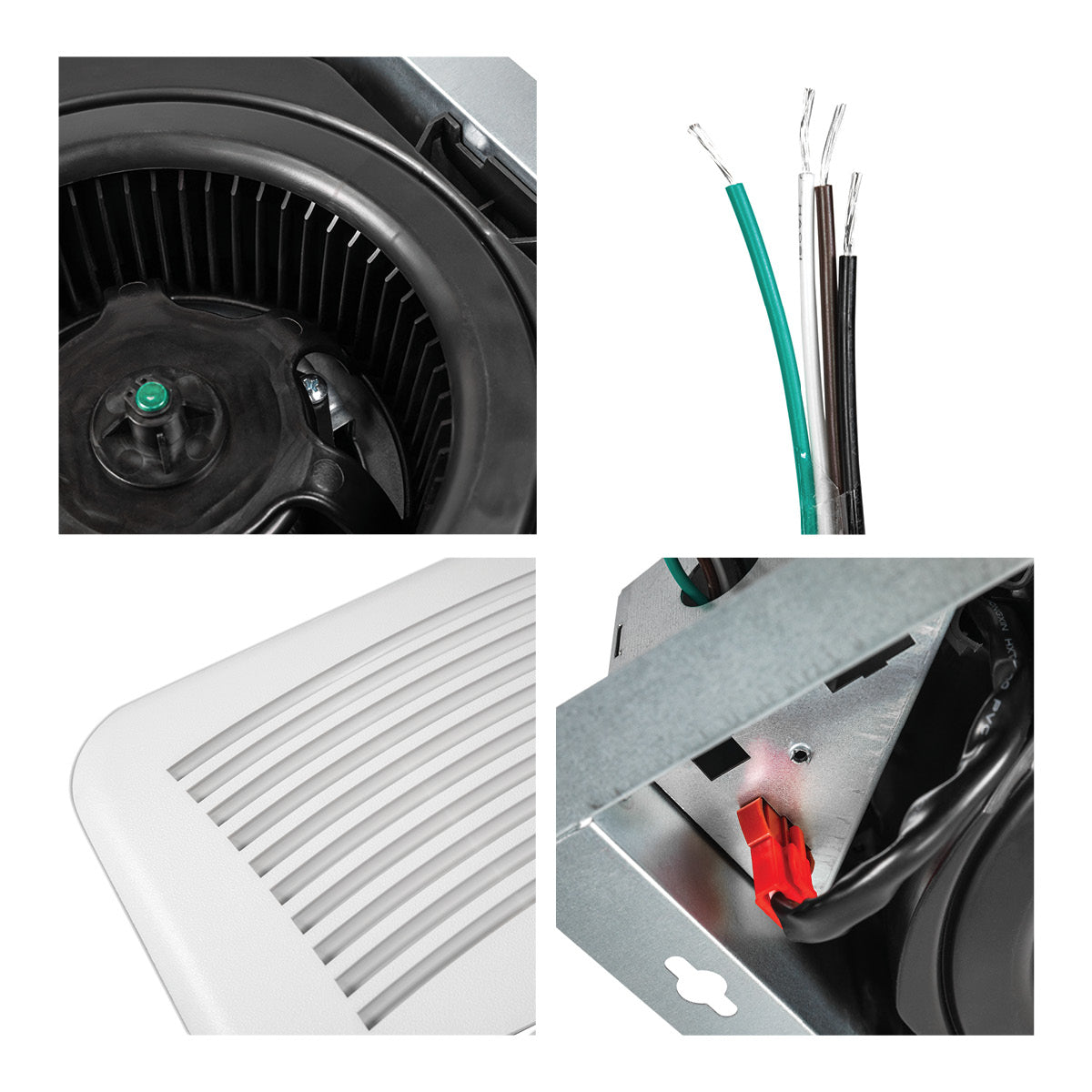

Close-up of the blower wheel, wiring, grille construction, and plug-in motor.

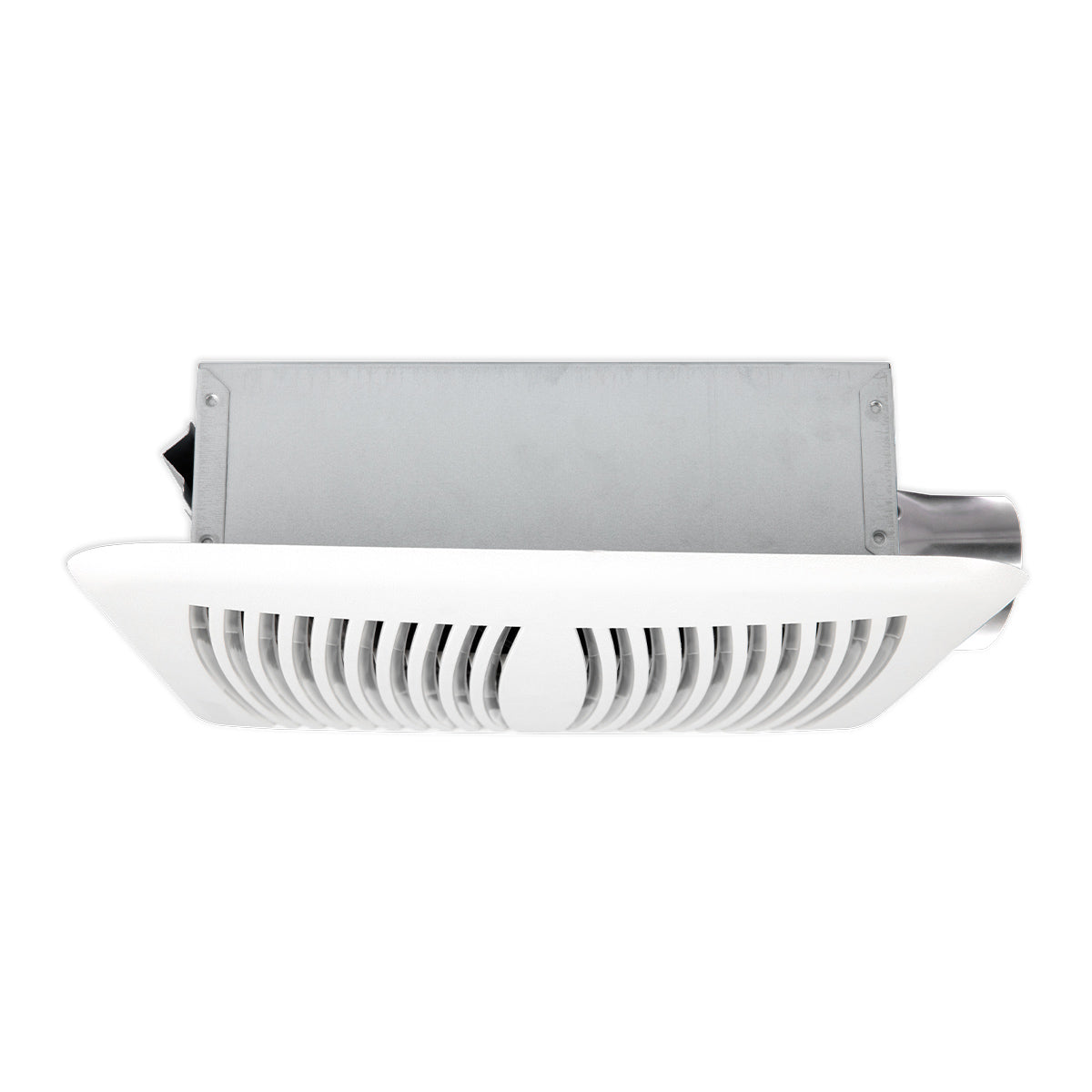

Left side profile view of the SL100-3 showing the steel housing, 4 in. duct collar and plastic grille cover.

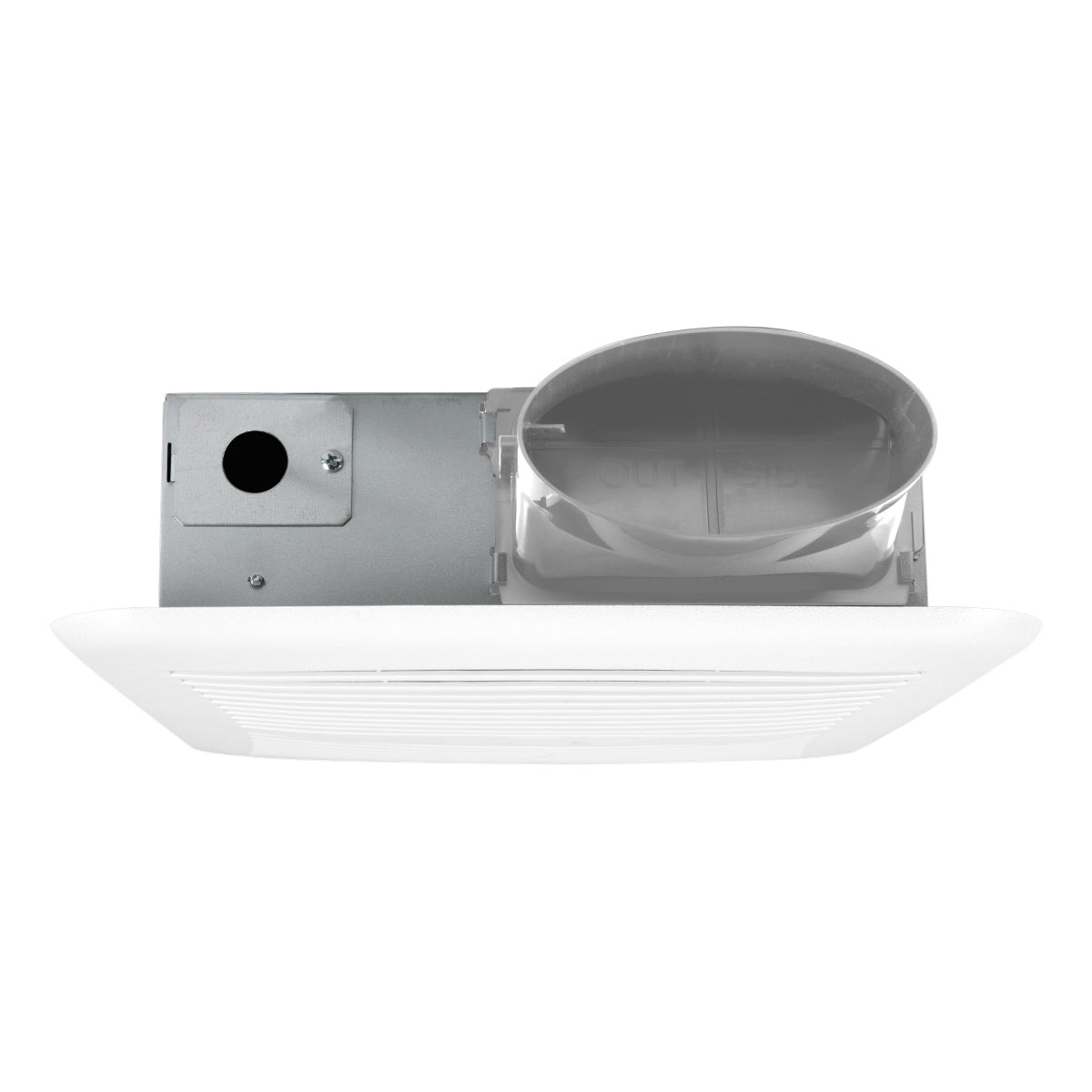

Front view of the bath fan with the 4 in. oval duct collar for installation.

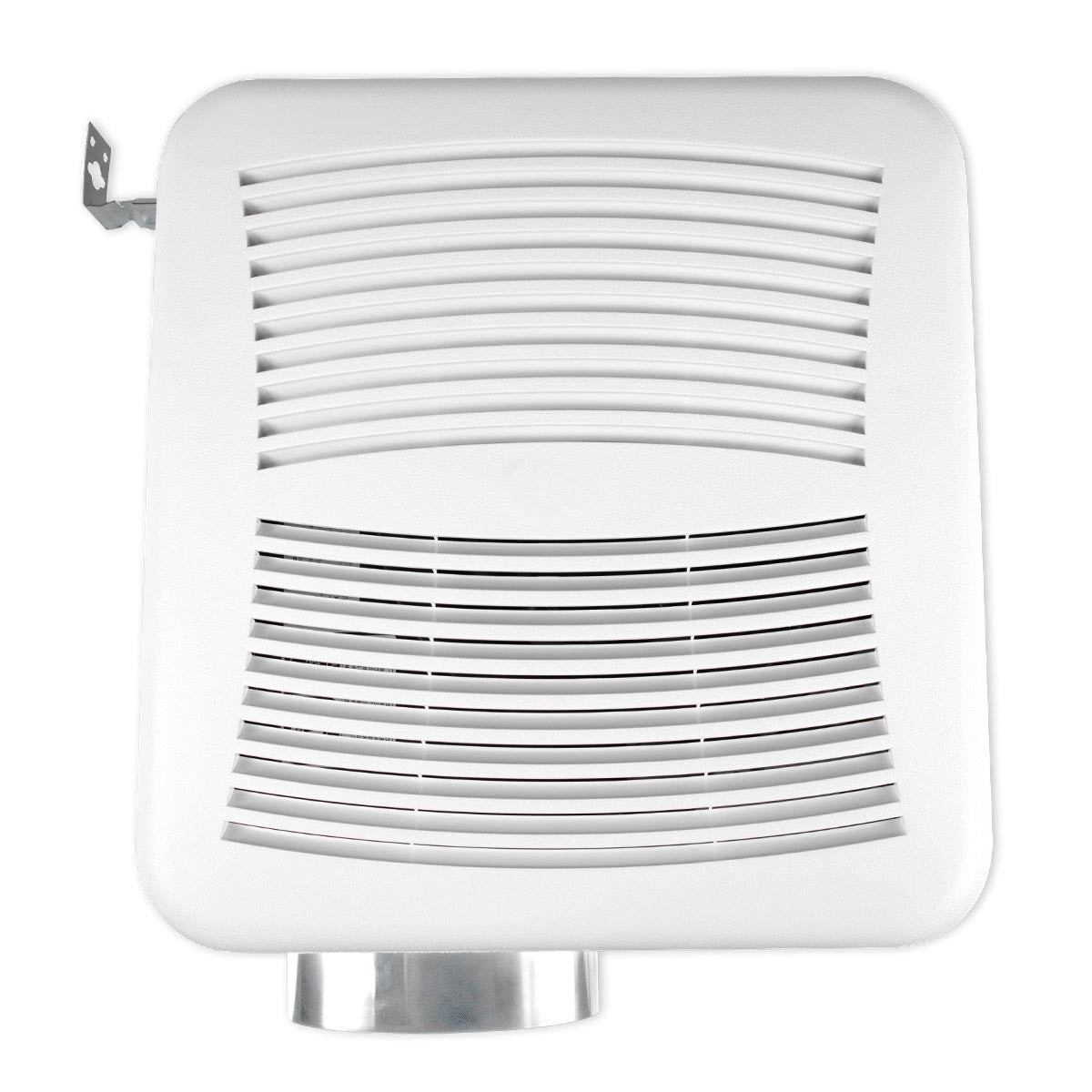

Top view of the bath exhaust fan showing the stylish decorative grille design.
Features of the SL100-3H  include 50-80-100 CFM operation, 30-80% humidity sensor control, quiet operation, and easy installation.

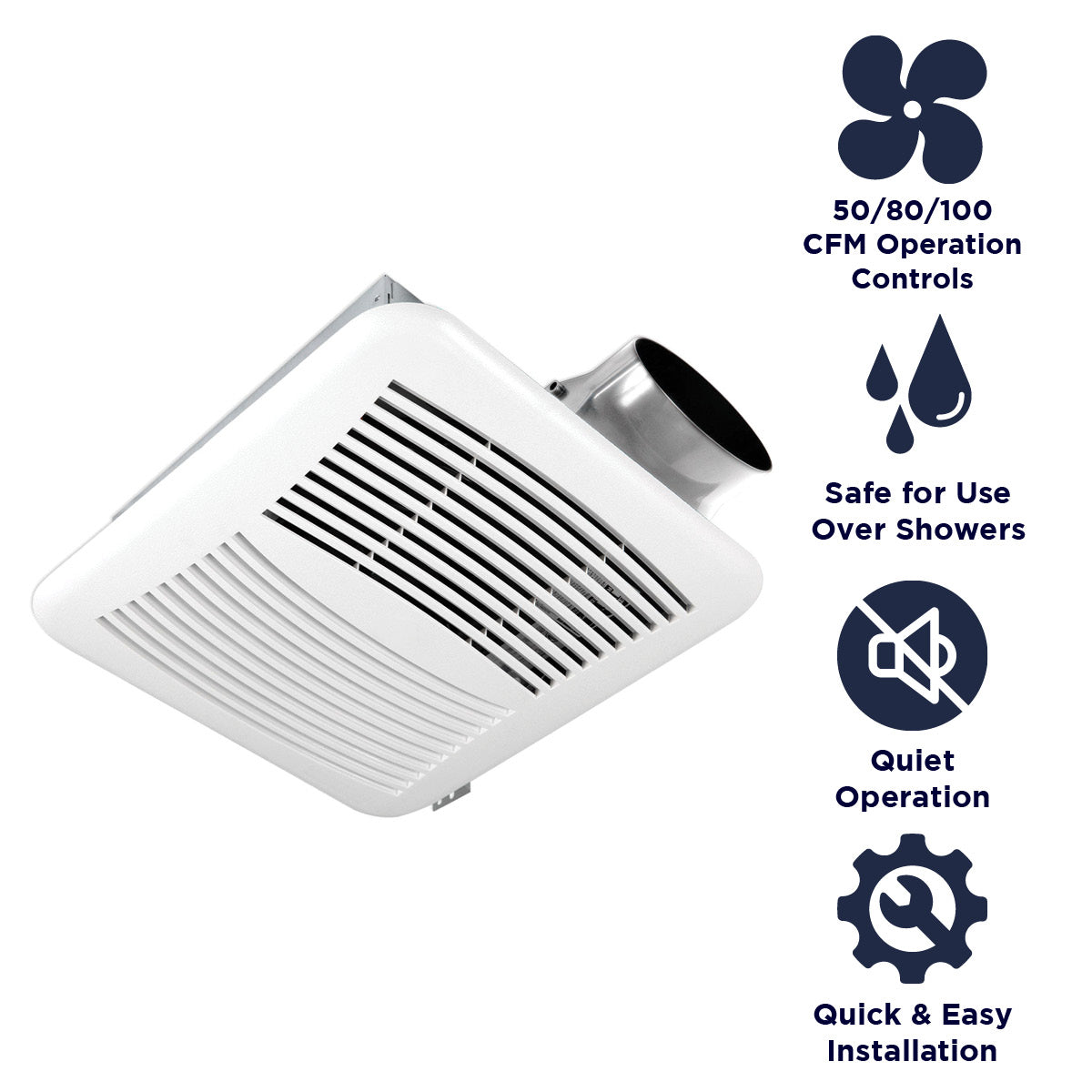

Features of the SL100-3  include 50-80-100 CFM operation, safe use over a shower when installed in a GFCI branch circuit, quiet operation, and easy installation.
50-80-100 CFM non-lighted SL Series bath fan with 4 in. duct collar.
CDC Recommendations: Good ventilation, along with other preventative actions, can help prevent you from getting and spreading COVID-19.  At home, turn on the exhaust fan in your bathroom to help move air outside.
Dimensional drawing showing the bathroom exhaust fan housing and grille specs.
Close-up of the blower wheel, wiring, grille construction, and plug-in motor.
Left side profile view of the SL100-3 showing the steel housing, 4 in. duct collar and plastic grille cover.
Front view of the bath fan with the 4 in. oval duct collar for installation.
Top view of the bath exhaust fan showing the stylish decorative grille design.
Features of the SL100-3H  include 50-80-100 CFM operation, 30-80% humidity sensor control, quiet operation, and easy installation.
Features of the SL100-3  include 50-80-100 CFM operation, safe use over a shower when installed in a GFCI branch circuit, quiet operation, and easy installation.

Slim Line Series Ceiling/Wall Exhaust Bath Fans

Login to view price.

Contact Us for Availability at 800-433-1626

DESCRIPTION:

QuFresh ENERGY STAR® Slim Line Bath Fans are the ultimate in versatility for home and commercial use, offering odor ventilation, mildew prevention, and moisture reduction in a bathroom, laundry room, or utility space. Constructed using a low profile steel housing perfect for wall or ceiling mount installations and 4 in. oval duct connector with a spring-installled polymeric grille cover. This exhaust fan includes hanger bars and mounting tabs for installation against a joist or stud, and a motor with 3 speed selections (50, 80, or 100 CFM) with wiring knockouts on the housing. The SL100-3's ECM motor is highly efficient no matter which CFM setting you choose, and operates quietly from 0.6 - 1.2 sones. For added control, choose a Slim Line fan with an added humidity sensor (SL100-3H) or with both a humidity and motion sensor (SL100-3HM) to ensure your room is properly ventilated in any situation.

The CDC recommends bathroom fans to help stop the spread of the COVID-19 virus.

PERFECT FOR:
  • Commercial

  • Home

  • PREVENTS MOISTURE
    BUILD-UP IN BATHROOMS

  • MOTION AND HUMIDITY SENSOR
    MODELS AVAILABLE

  • MOUNTING TABS & WIRING
    KNOCKOUTS FOR EASY INSTALL

  • QUIET
    OPERATION

Circulation:

Designed for ventilating bathrooms and other rooms from 50 - 100 sq. ft.

Installation:

Mounts using mounting tabs and included hanger bars to position against a stud

Controls:

Setpoint choices on unit for 50, 80, or 100 CFM operation from ECM motor with dynamically balanced centrifugal blower wheel for quiet, efficient performance

Material:

Low profile steel housing with 4 in. oval duct collar

Energy Efficiency:

Choose a humidity and/or motion sensor model for more controlled operation

Safety:

ETL Listed for use over a bathtub or shower when connected to a GFCI protected branch circuit (ceiling mount only)

Primary Color

White

Secondary Color

Mill

CFM

50, 80 or 100

Material Details

Steel Housing, Textured Polymeric Grille

Motor Details

ECM motor

Motor Specs
CFMAmpsVolts, HzWattsRPMSones
50 CFM0.30120, 6021.07250.6
80 CFM0.30120, 6021.08001.0
100 CFM0.30120, 6021.08751.2
Dimensions

3.38 in. H x 14 in. W x 13 in. D (Grille Size and Housing Depth)

Alias SKU(s)

SL100-3: 50/80/100 CFM, 4 in. Duct

SL100-3H: 50/80/100 CFM, 4 in. Duct, Humidity Sensor

Multi UPC Info

SL100-3: 697453939904

SL100-3H: 697453939911

Country of Origin - Assembly

China

Sold Under

QuFresh

AN ENERGY EFFICIENT CHOICE

Slim Line bath fan models SL100-3 and SL100-3H are both ENERGY STAR® Certified for their energy efficient performance thanks in part to their advanced, high quality ECM motor. Trust that your fan only runs when it needs to using the 3H model's built-in humidity sensor, which can be set to operate the fan on demand with setpoints from 30% - 80% humidity.

SILENT OPERATION

Don't put up with the excess noise generated from old, clunky fans. With units operating from less than 0.6 - 1.2 sones, the Slim Line series bath fans are so quiet you might not even know it's on.

CREATE A HEALTHY HOME

A warm shower is great, but all that unventilated steam and moisture can set up your bathroom for mold and mildew (and the damaging after-effects of removing it). Installing a Slim Line Series bath fan aids in removing this moisture in bathrooms ranging from 50 - 100 sq. ft.
