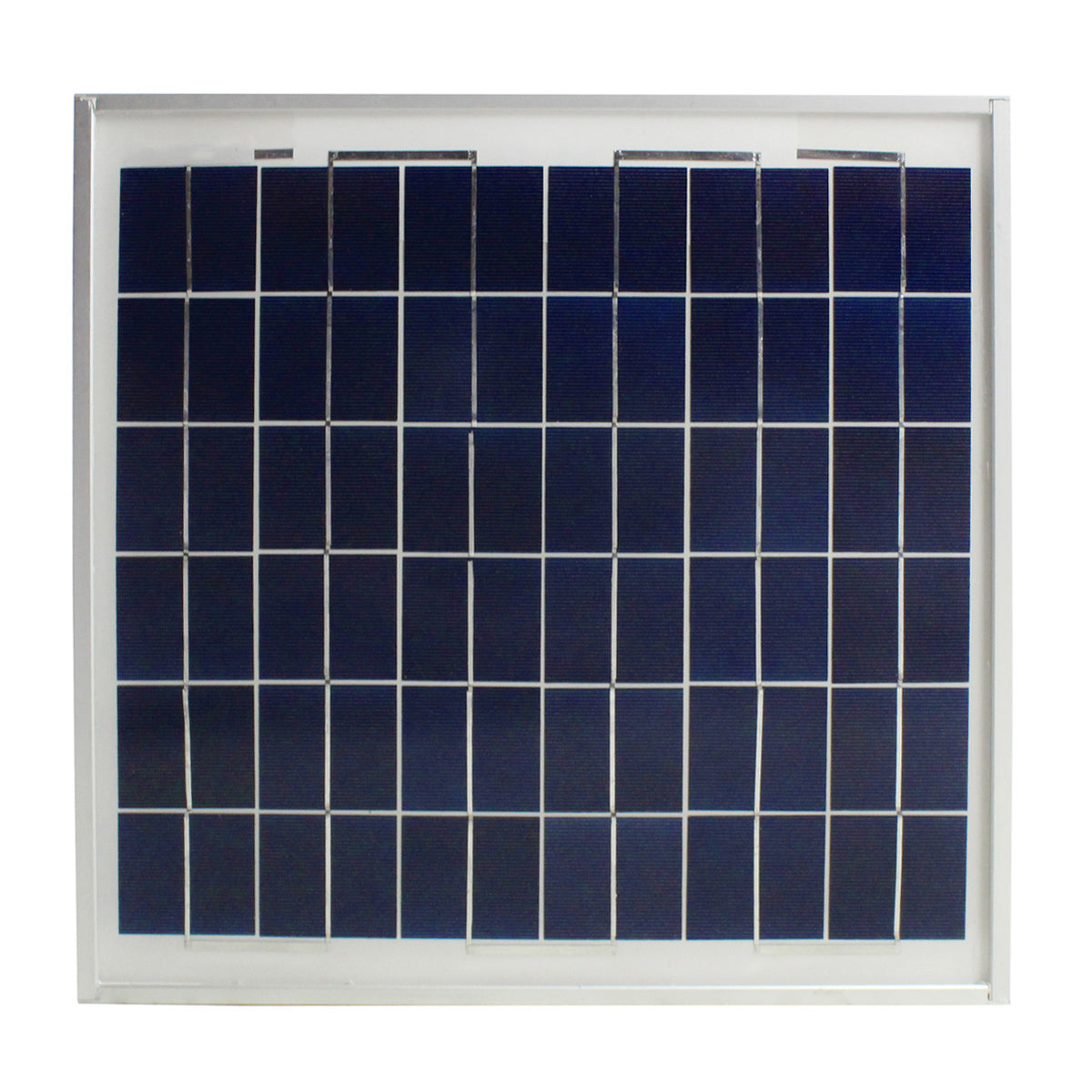

Front facing view of the Maxx Air solar panel showing the multi-crystal cells.
Features of the CXSOLPANEL include zero energy cost operation, weather resistant construction, and a quick and easy install.

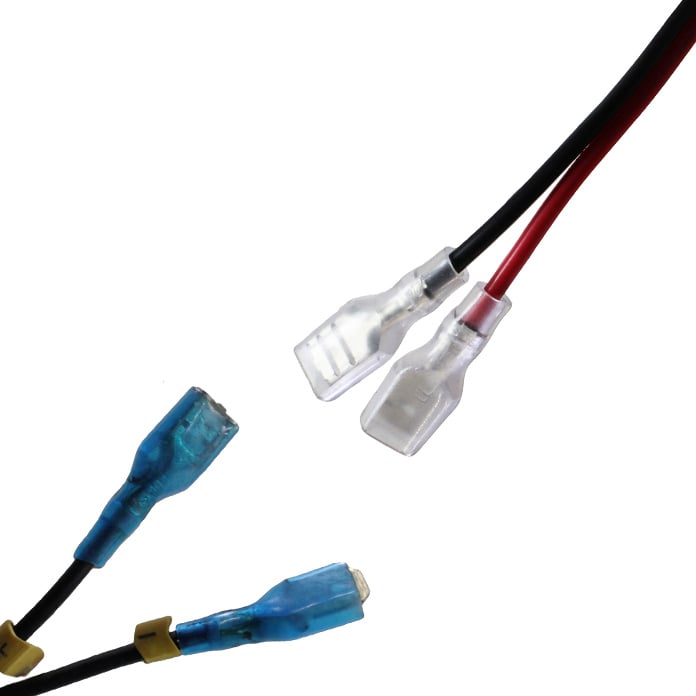

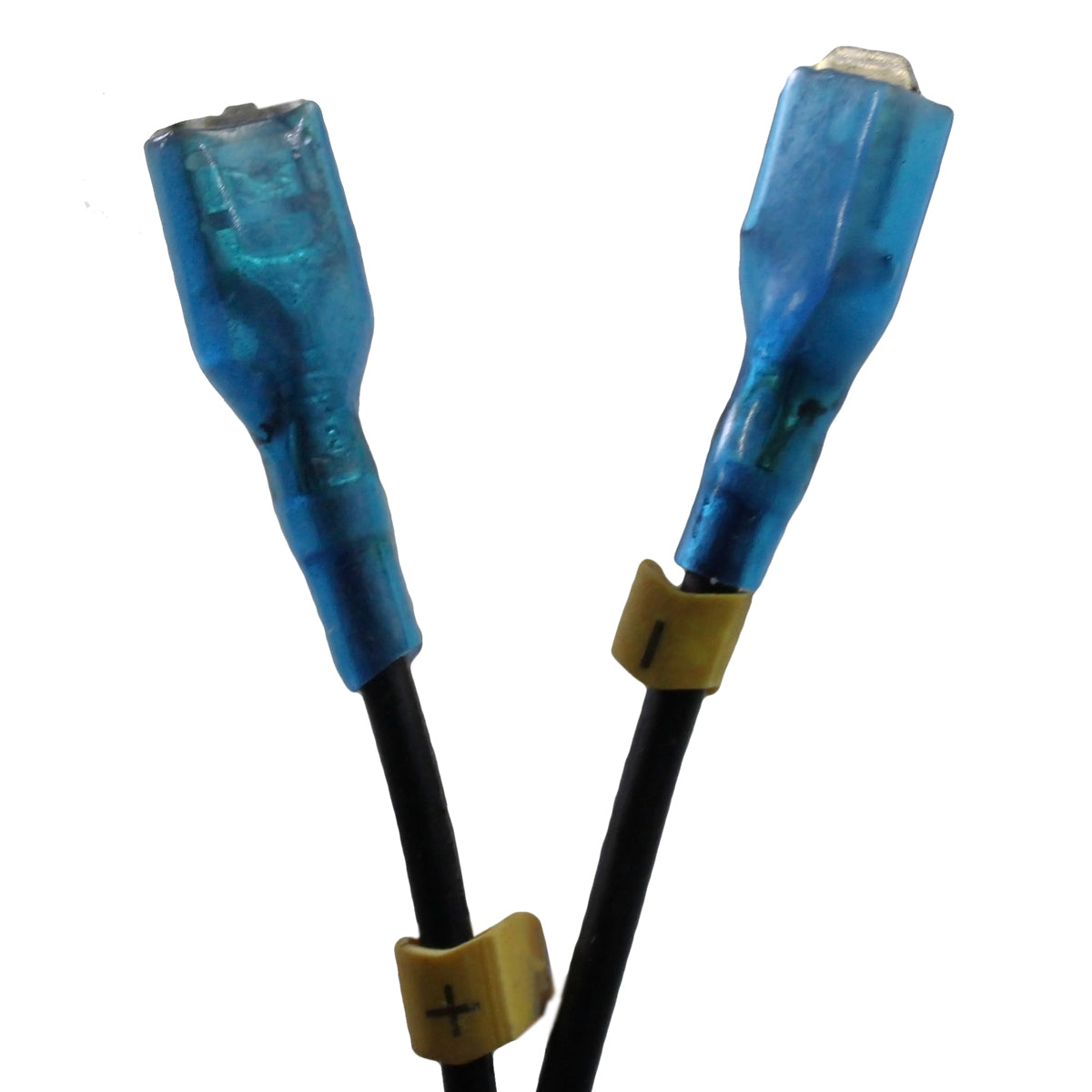

Close-up view of the quick connect clips which can be used to link solar panels and your roof or gable attic fan.

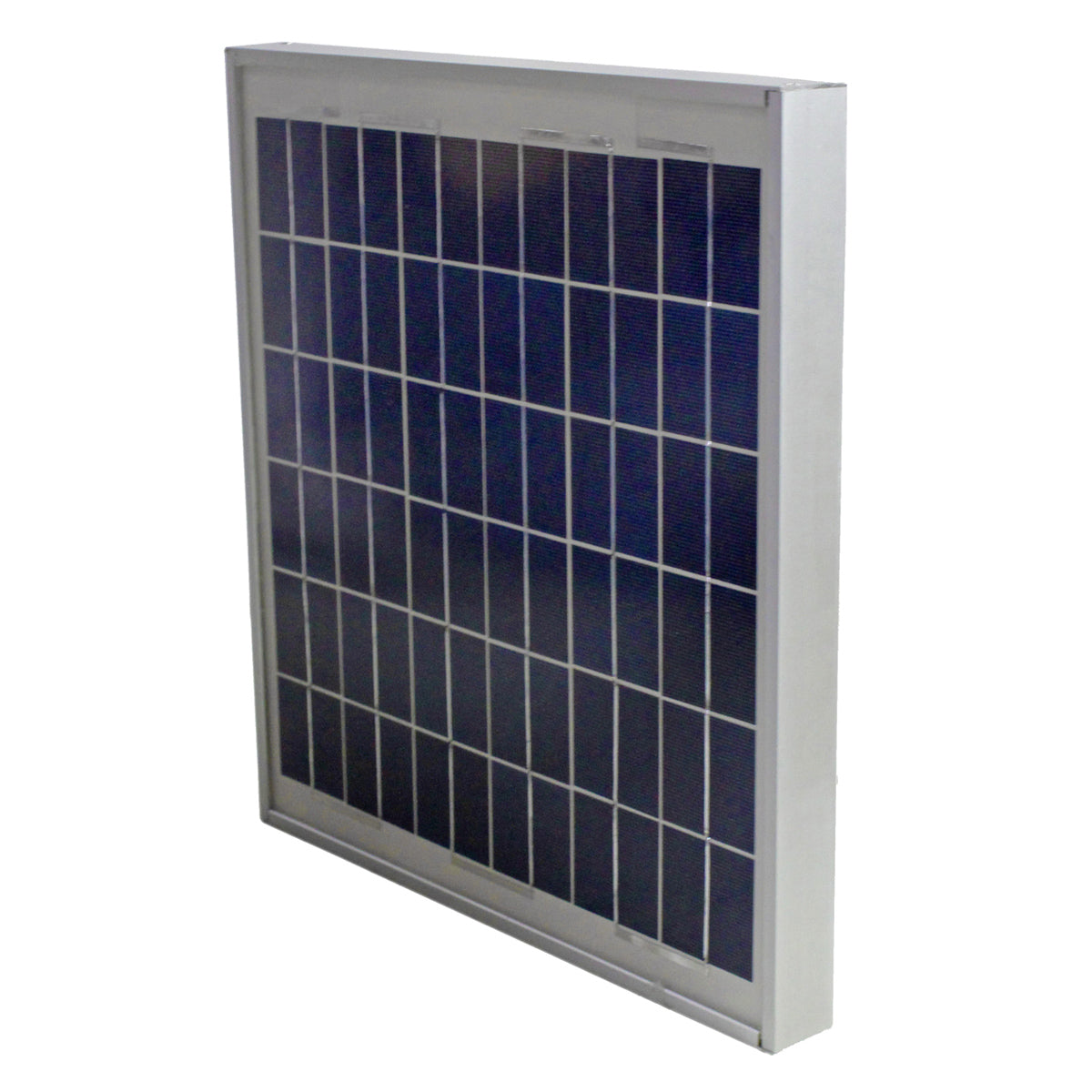

Right side view of the solar panel for home attic fan ventilation use.

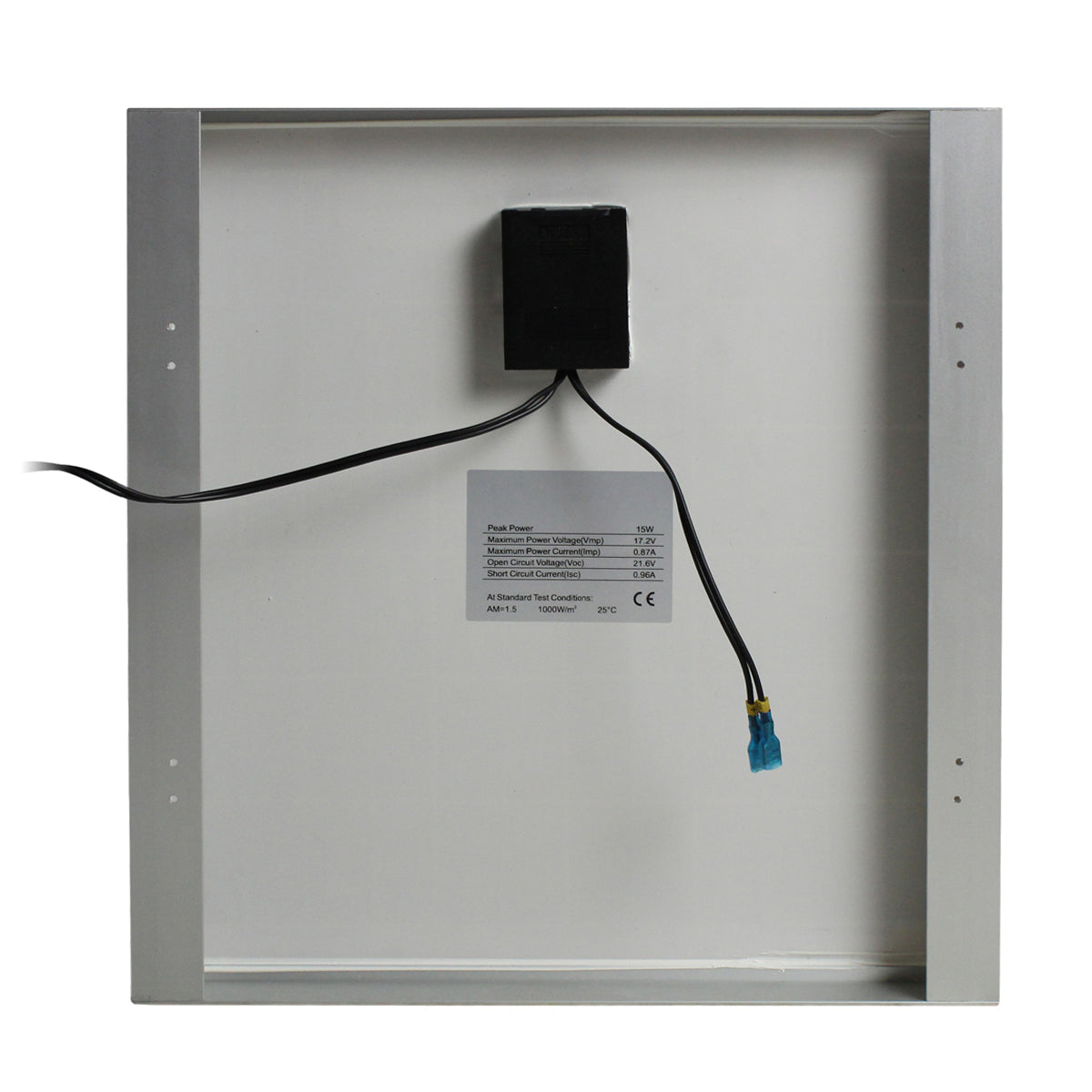

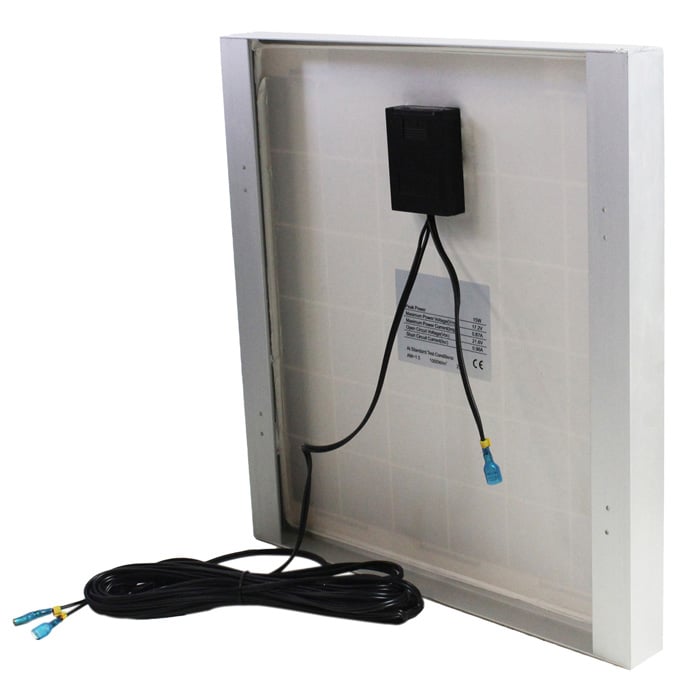

Back view of the solar panel showing the quick connect clips and bracket mount punches.
Left side view of the solar panel for solar ventilation fans.
Front facing view of the Maxx Air solar panel showing the multi-crystal cells.
Features of the CXSOLPANEL include zero energy cost operation, weather resistant construction, and a quick and easy install.
Close-up view of the quick connect clips which can be used to link solar panels and your roof or gable attic fan.
Right side view of the solar panel for home attic fan ventilation use.
Back view of the solar panel showing the quick connect clips and bracket mount punches.
Left side view of the solar panel for solar ventilation fans.

Solar Panel for Roof and Gable Mount Solar Powered Attic Ventilators

$0.00
DESCRIPTION:

Incorporate this solar panel as a replacement or additional unit to pair with Maxx Air solar powered ventilator products for superior home ventilation. Constructed using tempered solar cell casings to resist hail, flying debris and impacting wind. Panels are easily linked together or to your existing solar attic fan using the easy connect clips and will increase the CFM potential of your fan. The 25 ft. cord enables this solar panel to be positioned in the most productive spot to achieve the most efficient output possible.

PERFECT FOR:
  • Home

  • ZERO ENERGY
    COSTS

  • WEATHER
    RESISTANT

  • EASILY LINKED TO YOUR
    EXISTING SOLAR UNIT

Installation:

Mounts onto roof with screw and lock washer hardware provided. 25 ft. power cord with easy connect clips to link to fan.

Material:

Silicone crystals in anodized aluminum frame

Energy Efficiency:

Environmentally friendly energy solution

Other Features:

15 watt output, multi-cell panel

Primary Color

Blue

Secondary Color

Mill

Material Details

Silicone Crystals, Anodized Aluminum Frame

Power Cord Length

25 ft. (0.25 in. One Male, One Female Clip; 18-Gauge Wire)

Unit Weight

5 lbs.

Box Dimensions

17 in. H x 14.5 in. W x 2.25 in. D

Alias SKU(s)

CXSOLPANEL

Single Product UPC

047242960501

Other Details

15 W output

Max power current (Imp) - 0.87A
Max power voltage (Vmp) - 17.2V
Short Circuit Current (Isc) - 0.96A
Open Circuit Voltage (Voc) - 21.6V

EASY CONNECT CLIPS

Our solar panels feature a quick-connect system that takes the guesswork out of installation. Each panel has one male and one female clip to link solar panels together for greater output and to connect to the fan motor as a replacement panel.

CUSTOMIZED PLACEMENT

This unit offers a full 25 feet of cord that is safe to run across your roof or through your attic to get your panel where you need it.

COMPATIBLE WITH ALL MAXX AIR SOLAR FANS

This panel is designed for compatibility with all Maxx Air brand gable mount and roof mount solar attic ventilators.
