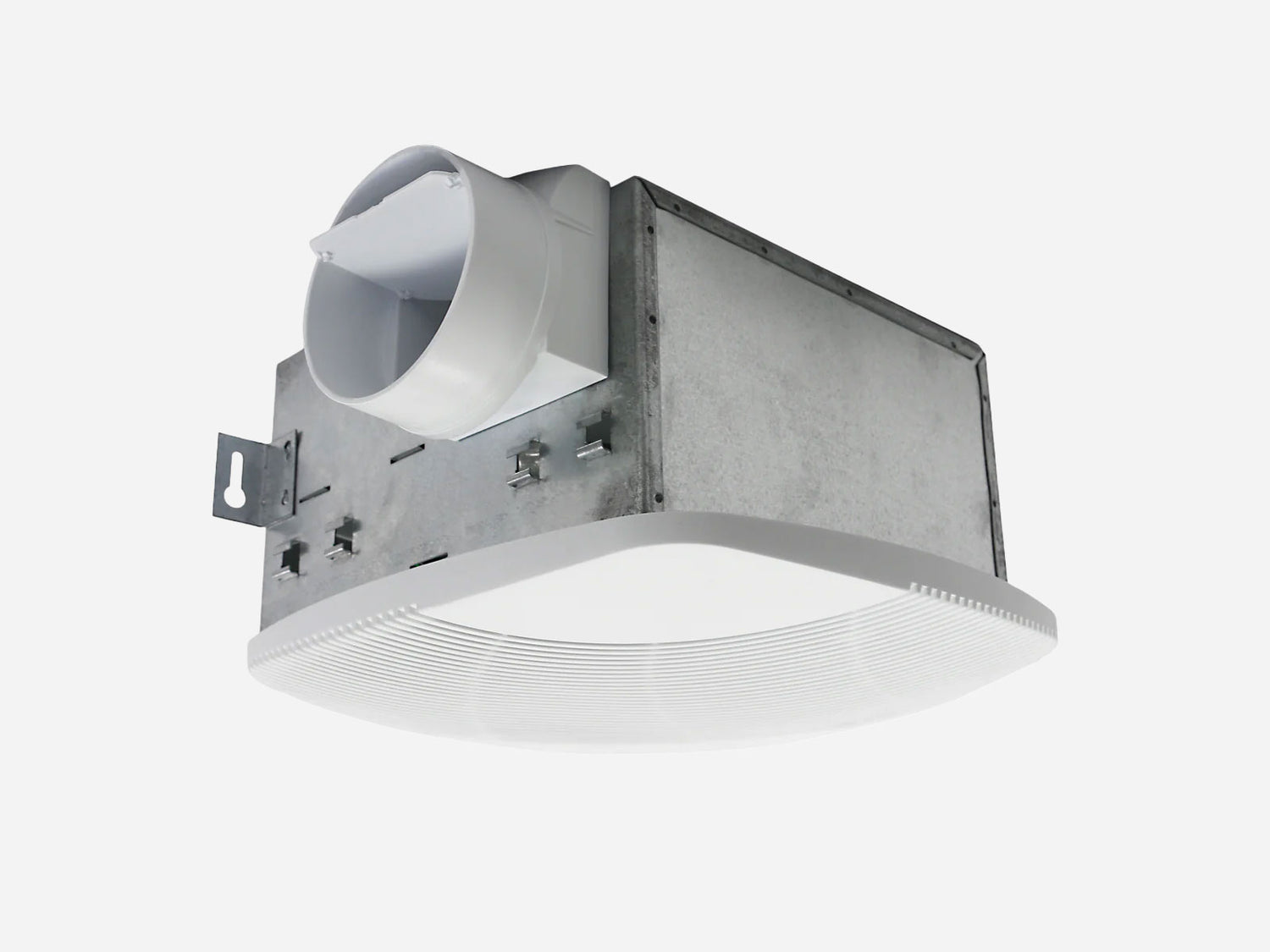

MS Series Ceiling Exhaust Bath Fans and Fan-Lights

$0.00
CFM
Light
DESCRIPTION:

Whether you're building a new home with a master luxury bath or replacing an old, noisy exhaust fan during home improvement, an MS Series Bathroom Fan is an impressive choice with contemporary style. A rugged galvanized steel housing contains a powerful ball-bearing motor and a balanced, forward-curved blower wheel to efficiently ventilate your space and reduce moisture or odors while offering an exceptionally quiet performance not only in a bathroom, but also in a powder room, laundry room, or other utility room. Our vent fan uses a side tab mounting installation method and features a plastic discharge collar with backdraft damper for easy attachment to a 4 in. diameter duct.

PERFECT FOR:
  • Commercial

  • Home

  • PREVENTS MOISTURE
    BUILD-UP IN BATHROOMS

  • NON-LIGHTED, 100W INCANDESCENT, &
    21W FLUORESCENT MODELS

  • MOUNTING TABS & ELECTRICAL
    KNOCKOUTS FOR EASY INSTALL

  • 22 GA. STEEL HOUSING WITH
    BALL-BEARING MOTOR

Circulation:

Designed for ventilating bathrooms from 45 - 85 sq. ft. and other rooms from 60 - 110 sq. ft.

Installation:

Heavy gauge mounting tabs with 4 in. round duct collar and knockouts on side and top of housing for quicker installation

Light:

Choose from models with or without a built-in light

Controls:

Gracefully curved grille for efficient airflow

Material:

Sturdy 22-gauge steel housing with 4 in. round duct collar

Safety:

UL Listed and approved for use over tub/shower enclosures when installed in a GFCI protected branch circuit

Primary Color

White

Secondary Color

Mill

CFM

50, 70, or 90

Material Details

22 ga. Steel Housing, Plastic Discharge Collar and Grille

Light Details

L Models: 100W Incandescent Bulb (A-19)

FL Models: 21W 2-D Fluorescent Bulb; 1,350 Lumen Output

Motor Details

Permanently Lubricated, Ball-Bearing, Plug-In

Motor Specs


ModelAmps (+1 with light)Volts, HzWattsSones
50 CFM0.80120, 6046.13.0
70 CFM0.88* 120, 6049.44.5
90 CFM0.55120, 6047.03.5

*Fluorescent models are 1.40 Amps

Dimensions

5.62 in. H x 12 in. W x 12 in. D (Grille Size and Housing Depth)

Unit Weight

7.5 lbs.

Box Dimensions

13 in. x 13 in. x 9 in.

Ship Weight

8.5 lbs.

Alias SKU(s)

NXMS50: 50 CFM, Non-Lighted

NXMS70: 70 CFM, Non-Lighted

NXMS90: 90 CFM, Non-Lighted

NXMS50L: 50 CFM, Incandescent

NXMS70L: 70 CFM, Incandescent

NXMS70FL: 70 CFM, Fluorescent

NXMS90L: 90 CFM, Incandescent

Multi UPC Info

NXMS50: 697453518000

NXMS70: 697453519007

NXMS90: 697453520003

NXMS50L: 697453532006

NXMS70L: 697453533003

NXMS70FL: 697453544009

NXMS90L: 697453534000

Country of Origin - Assembly

US from Domestic and Imported Components

EASY BULB REPLACEMENTS

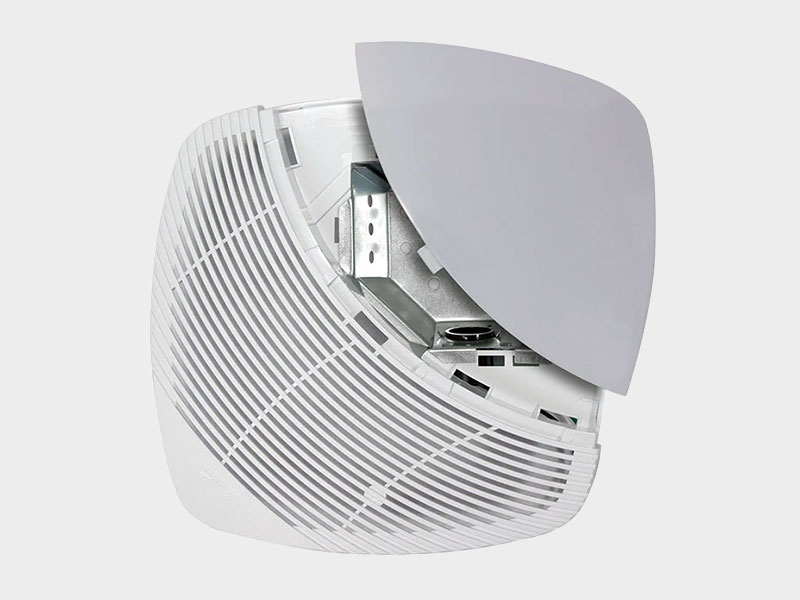

Our attractive grille fits neatly into place and compliments any design style no matter your space.  When your bulb requires replacement, simply push the center tab to remove the lens for access to the lamp holder. It's that easy!

VERSATILE INSTALLATION

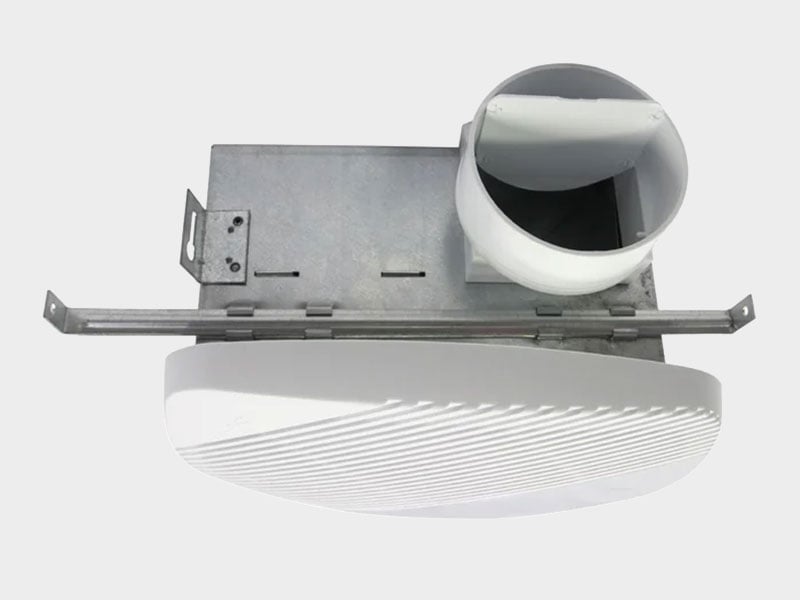

MS Series units provide keyhole mounting tabs and L brackets for customized, secure installations, as well as knockouts on the side of the housing for quick wiring setup.

CREATE A HEALTHY HOME

A warm shower is great, but all that unventilated steam and moisture can set up your bathroom for mold and mildew (and the damaging after-effects of removing it). Installing an MS series bath fan aids in removing this moisture in bathrooms ranging from 45 - 85 sq. ft.
