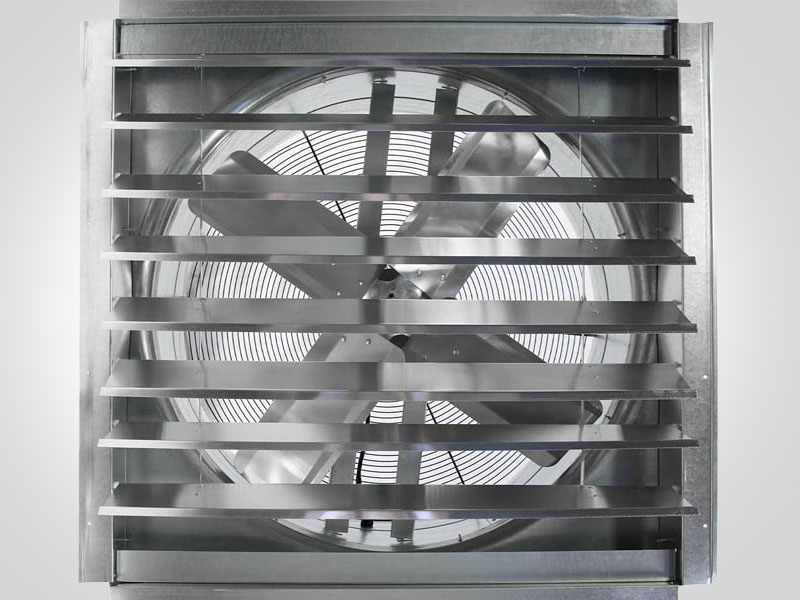

30 in. wall exhaust fan with draft-free aluminum shutters open.
Features of the IF30 include 5,500 CFM operation, 1 speed design, an energy efficient motor, and electric wire-in installation.
Detailed close-up of shutter assembly, steel housing, grille, and wires on the ventilation fan.
Left side angled view of the greenhouse fan with shutter louvers closed to repel insects when not in use.

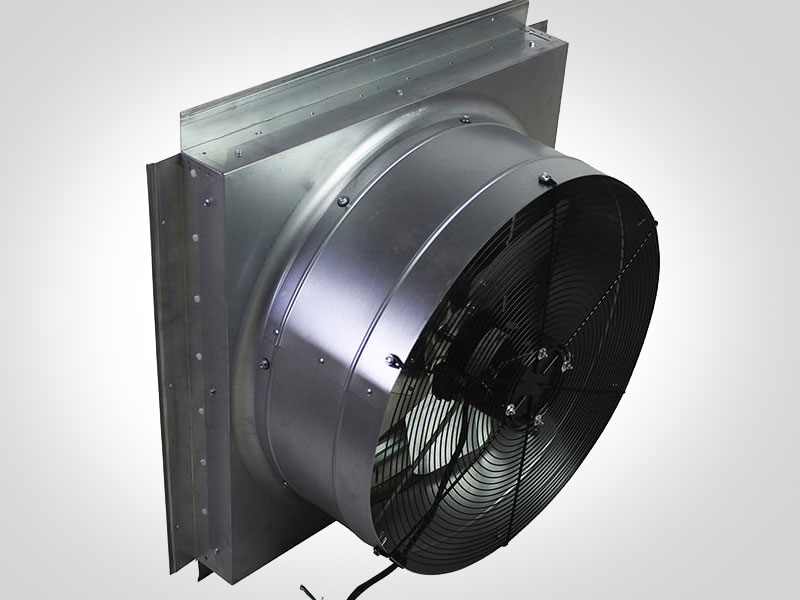

Back view of the shop fan showing the safety grille and fan blade for powerful exhaust.
Right side profile view of the 30 in. exhaust fan with deep steel housing.
30 in. wall exhaust fan with draft-free aluminum shutters open.
Features of the IF30 include 5,500 CFM operation, 1 speed design, an energy efficient motor, and electric wire-in installation.
Detailed close-up of shutter assembly, steel housing, grille, and wires on the ventilation fan.
Left side angled view of the greenhouse fan with shutter louvers closed to repel insects when not in use.
Back view of the shop fan showing the safety grille and fan blade for powerful exhaust.
Right side profile view of the 30 in. exhaust fan with deep steel housing.

30 In. Heavy Duty Exhaust Fan with Automatic Shutter

$0.00
DESCRIPTION:

The Maxx Air 30 In. Exhaust Fan can be used in a garage, barn, greenhouse, warehouse, and a variety of other agricultural and industrial locations to quickly remove unwanted odors, dust and humidity, and refresh stale or warm air in your space. This industrial fan is constructed of a sturdy 20 gauge steel housing with aluminum shutter louvers, a safety grille and a totally enclosed, thermally protected motor. Arrives fully assembled, just mount to your desired building wall and wire into your electrical system to complete installation. Pair this shop fan with our adjustable thermostat with firestat (XXFIRESTAT) for greater operational control and safety.

PERFECT FOR:
  • Agriculture

  • Automotive

  • Industrial

  • Livestock

  • MOVES UP TO
    5,500 CFM

  • 1-SPEED
    OPERATION

  • ENERGY EFFICIENT
    COMPONENTS

  • WIRING
    REQUIRED

Circulation:

Moves up to 5,500 CFM

Installation:

Pre-drilled holes on flange and rolled flange edges for safe and easy installation

Material:

Rust-resistant galvanized steel housing with removable interior grille. Automatic shutter prevents drafts from entering through the external opening.

Energy Efficiency:

Totally enclosed, energy efficient PSC motor

Safety:

OSHA compliant grille. Requires 18 sq. ft. of NFA intake ventilation.

Other Features:

Not intended to exhaust hazardous fumes or chemicals

Primary Color

Mill

CFM

Up to 5,500

Material Details

20 Gauge Galvanized Steel Housing, Aluminum Shutter

Motor Details

1-Speed Totally Enclosed PSC Motor

Motor Specs

1/2 HP

6.3 Amps

120 V, 60 Hz

750 Watts

900 RPM

Dimensions

35 in. H x 35 in. W x 14 in. D

Rough Opening: 34.25 in. H x 34.25 in. W

Unit Weight

70 lbs.

Box Dimensions

41.25 in. H x 37.75 in. W x 15.25 in. D

Alias SKU(s)

IF30

Single Product UPC

047242642421

Multi UPC Info

047242642575 (QTY 6)

Country of Origin - Assembly

US from Domestic and Imported Components

Automatic Shutter

The integrated exterior shutter automatically opens and closes with the fan's operation. When closed, this shutter is designed to ward off pests and keep out drafts, rain, and snow from the outside environment.

Fully Assembled

Each exhaust fan in this series arrives fully assembled and ready to install in your chosen space. Pre-punched mounting holes and rolled flange edges for handling protection make sure your install is perfect and is completed without a hitch. No special tools are required to complete installation!

Creates a Healthier Environment

Whether it's generating airflow in a factory or barn, controlling the temperature in a greenhouse, or removing dusty air from a car garage, our exhaust fan line is ready to perform and offer you precise control over your working and living environment.
